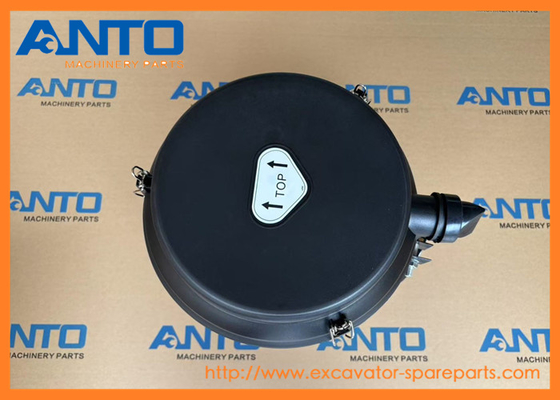

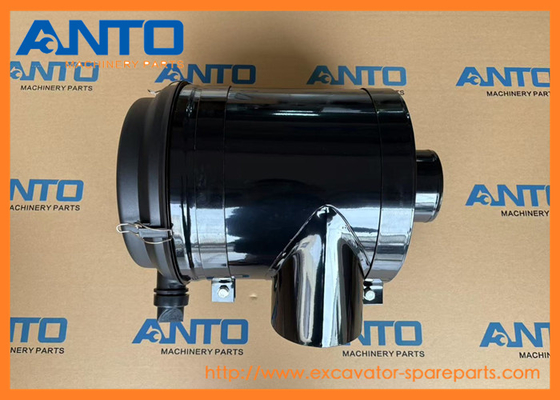

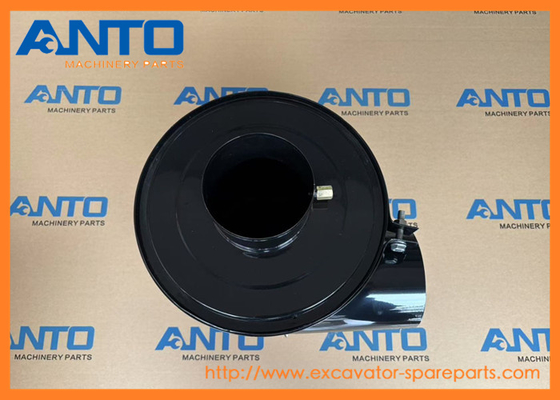

- 6156-81-7101 6156-81-7111 Air Cleaner Assy KOMATSU Wheel Loader Spare Parts For WA380 WA430 WA450
| Name |
Air Cleaner Assy |
| Parts No |
6156-81-7101 6156-81-7111 |
| Machine Model |
WA380 WA380Z WA430 WA450 WA470 WA480 |
| Category |
Engine Related Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
The air cleaner assembly is a crucial part of the engine intake system, responsible for filtering dust, sand, and other contaminants from the air entering the engine. It protects vital components like cylinders, pistons, and piston rings from wear, avoiding issues such as "cylinder scuffing" to ensure the engine runs smoothly, thus extending its service life.
WHEEL LOADERS WA380 WA380Z WA430 WA450 WA470 WA480 Komatsu
- More other air cleaner parts fit for KOMATSU machine
| 6738-81-7500 AIR CLEANER ASS'Y |
| D61EX, D61PX, HB205, HB215, PC200, PC220, PC270, SAA6D107E, WA250, WA250PZ, WA320, WA320PZ |
| |
| 6204-81-7410 AIR CLEANER ASS'Y |
| CARRIER, PC78MR, PC78US, PC78UU, PC88MR, TRACK |
| |
| 423-T43-1110 AIR CONDITIONER A. |
| WA200, WA300, WA320, WA350, WA400, WA450, WA500, WA600, WA700 |
| |
| 423-T43-1111 AIR CONDITIONER A. |
| 542, 545, GD825A, WA200, WA300, WA320, WA350, WA380, WA400, WA450, WA500, WA600, WF450T, WF600T |
| |
| 22U-979-1720 AIR CONDITIONER A. |
| CD110R, GD555, GD655, GD675, PC128US, PC138, PC138US, PC228, PC228US, PC308, PC78MR, PC78US, PC78UU |
| |
| 232-64-11221 AIR CLEANER ASS'Y |
| GD28AC, GD30, GD300A, GD31, GD31RC, GD37, GD405A, GD505A, GD623A, NH |
| |
| 6206-83-7500 AIR CLEANER ASS'Y |
| PC100, PC100L, PC100N, PC120, PC120SC, PC130, PC150LGP, S4D102E |
| |
| 23B-806-X210 AIR BRAKE A GROUP |
| GD623A, GD663A |
| |
| 41E-35-11680 AIR DRYER ASS'Y |
| HD255, HD325, WA600, WA700, WD600 |
| |
| 232-61-11221 AIR CLEANER ASS'Y |
| GD37 |
| |
| 235-44-11771 AIR DRYER ASS'Y,(DR-31) |
| GD505A, GD521A, GD605A, GD825A, GH320 |
| |
| 426-T43-1110 AIR CONDITIONER A. |
| WA500, WA600, WA700, WA800, WA900 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
6156-81-7101 |
[1] |
Air Cleaner Assembly Komatsu |
5.8 kg. |
| |
|
|
["SN: 65949-UP"] analogs:["6156817111"] |$0. |
|
| 1. |
6156-81-7111 |
[1] |
Body Komatsu |
5.8 kg. |
| |
|
|
["SN: 65949-UP"] analogs:["6156817101"] |
|
| 1. |
600-185-5100 |
[1] |
Element Assembly Komatsu China |
0.9 kg. |
| |
|
|
["SN: 65949-UP"] analogs:["6001855120"] |
|
| 2 |
600-185-5110 |
[1] |
Element Komatsu China |
3.135 kg. |
| |
|
|
["SN: 65949-UP"] analogs:["6001855100"] |
|
| 4 |
600-184-1570 |
[1] |
O-ring Komatsu |
0.01 kg. |
| |
|
|
["SN: 65949-UP"] |
|
| 5. |
600-184-1510 |
[1] |
Cover Assembly Komatsu |
1.176 kg. |
| |
|
|
["SN: 65949-UP"] |
|
| 6. |
600-184-1350 |
[1] |
Valve, Vaquator Komatsu |
0.027 kg. |
| |
|
|
["SN: 65949-UP"] analogs:["6008141350"] |
|
| 7 |
6151-11-4840 |
[1] |
Band Komatsu |
0.75 kg. |
| |
|
|
["SN: 65949-UP"] |
|
| |
6691-21-6550 |
[1] |
Pin Komatsu |
0.101 kg. |
| |
|
|
["SN: 65949-UP"] |$9. |
|
| |
6691-21-6560 |
[1] |
Pin, With Thread Komatsu China |
|
| |
|
|
["SN: 65949-UP"] |$10. |
|
| 8 |
6643-11-4641 |
[1] |
Bolt Komatsu |
0.09 kg. |
| |
|
|
["SN: 65949-UP"] |
|
| 9 |
423-01-42110 |
[1] |
Hose Komatsu China |
|
| |
|
|
["SN: 65949-UP"] |
|
| 10 |
07299-00120 |
[1] |
Clamp Komatsu |
0.116 kg. |
| |
|
|
["SN: 65949-UP"] analogs:["6162144750"] |
|
| 11 |
07299-00145 |
[1] |
Clamp Komatsu |
0.12 kg. |
| |
|
|
["SN: 65949-UP"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
