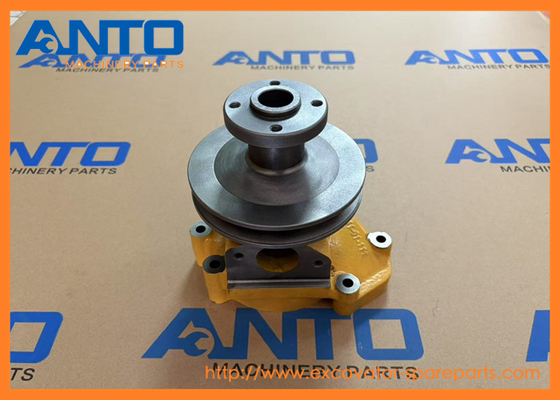

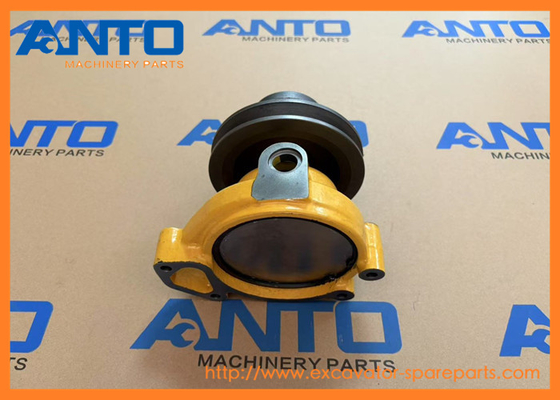

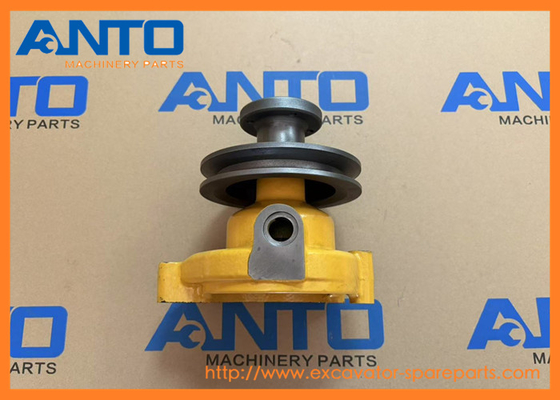

- 6141-61-1200 6141611201 Water Pump KOMATSU Bulldozer Spare Parts For 4D92-1A D20A-3
| Name |
Water Pump |
| Parts No |
6141-61-1200 6141611201 |
| Engine Model |
4D92-1A 4D92-1B |
| Category |
Water Pump And Cooling Fan |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
The water pump serves as a key part of the engine cooling system. Its main task is to pump coolant, forcing it through the radiator, engine block, and relevant cooling channels. As the thermostat operates, the water pump enables coolant to circulate in the large loop of the cooling system to prevent the engine from overheating.
BULLDOZERS D20A-3 D20P-3 D20PL-3 D21A-3 D21P-3 Komatsu
- More other water pump parts fit for KOMATSU machine
| 6138-62-1500 WATER PUMP ASS'Y |
| SA6D110 |
| |
| 6631-62-1013 WATER PUMP ASS'Y |
| NTO |
| |
| EA4892175 WATER PUMP |
| WB91R, WH609 |
| |
| 6212-62-2200 WATER PUMP ASS'Y |
| SDA6D140E |
| |
| 195-04-X1000 WATER SEPARATOR G. |
| D375A, SA6D170 |
| |
| OT507521 WATER BOTTLE |
| PC240 |
| |
| 266-80-43000 WATER PUMP ASS'Y |
| JV25 |
| |
| 6144-61-1100 WATER PUMP ASS'Y |
| 4D94 |
| |
| 6144-61-1101 WATER PUMP ASS'Y |
| 4D94 |
| |
| 6141-61-1300 WATER PUMP ASS' |
| 4D92 |
| |
| 6138-61-1100 WATER PUMP ASS'Y,(WITH NON HARDENING PULLEY) |
| SA6D110 |
| |
| 6141-61-1102 WATER PUMP ASS' |
| 4D92 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
6141-61-1200 |
[1] |
WATER PUMP ASS'Y Komatsu China |
|
| |
|
|
["SN: 33517-UP"] analogs:["6141611201"] |$0. |
|
| |
6141-61-1102 |
[1] |
WATER PUMP ASS'Y Komatsu China |
|
| |
|
|
["SN: 11008-33516"] |$1. |
|
| |
6141-61-1300 |
[1] |
WATER PUMP ASS'Y,(TRIMMING SPEC.)(4D92-1B) Komatsu China |
|
| |
|
|
["SN: 56108-56110"] |$2. |
|
| 1. |
6141-61-1111 |
[1] |
HOUSING Komatsu China |
|
| |
|
|
["SN: 11008-UP"] |
|
| 2. |
6140-61-1160 |
[1] |
O-RING (K2) Komatsu |
0.005 kg. |
| |
|
|
["SN: 11008-UP"] |
|
| 3. |
6140-61-1170 |
[1] |
RING Komatsu |
0.1 kg. |
| |
|
|
["SN: 11008-UP"] |
|
| 4. |
6140-61-1180 |
[1] |
COVER Komatsu China |
|
| |
|
|
["SN: 11008-UP"] |
|
| 4. |
6140-61-1191 |
[1] |
COVER,(TRIMMING SPEC.)(4D92-1B) Komatsu China |
|
| |
|
|
["SN: 56108-56110"] |
|
| 5. |
6140-61-1311 |
[1] |
SHAFT Komatsu China |
|
| |
|
|
["SN: 11008-UP"] |
|
| 6. |
6140-61-1910 |
[1] |
CLIP Komatsu China |
|
| |
|
|
["SN: 11008-UP"] |
|
| 7. |
6140-61-1331 |
[1] |
IMPELLER Komatsu China |
|
| |
|
|
["SN: 11008-UP"] |
|
| 8. |
6140-61-1510 |
[1] |
SEAL, WATER (K2) Komatsu China |
|
| |
|
|
["SN: 11008-UP"] analogs:["6140611511"] |
|
| 9. |
6141-61-3220 |
[1] |
PULLEY Komatsu China |
|
| |
|
|
["SN: 33517-UP"] analogs:["6141611311"] |
|
| 9. |
6141-61-3210 |
[1] |
PULLEY Komatsu China |
|
| |
|
|
["SN: 11008-33516"] |
|
| 10 |
6140-61-1810 |
[1] |
GASKET (K2) Komatsu China |
|
| |
|
|
["SN: 11008-UP"] |
|
| 11 |
6140-61-1820 |
[2] |
GASKET (K2) Komatsu China |
|
| |
|
|
["SN: 11008-UP"] |
|
| 12 |
01010-30845 |
[2] |
BOLT Komatsu China |
|
| |
|
|
["SN: 11008-UP"] analogs:["4700567X", "01010E0845", "0101060845"] |
|
| 13 |
01124-30855 |
[1] |
STUD Komatsu China |
|
| |
|
|
["SN: 33517-UP"] |
|
| 13 |
01010-30860 |
[1] |
BOLT Komatsu |
0.029 kg. |
| |
|
|
["SN: 11008-33516"] |
|
| 14 |
01124-30860 |
[1] |
STUD Komatsu China |
|
| |
|
|
["SN: 33517-UP"] |
|
| 14 |
01010-30865 |
[1] |
BOLT Komatsu China |
|
| |
|
|
["SN: 11008-33516"] analogs:["0100040865", "0100030865", "01010E0865", "0101060865", "1400918110", "38510127531"] |
|
| 14A. |
01580-00806 |
[2] |
NUT Komatsu |
0.005 kg. |
| |
|
|
["SN: 33517-UP"] |
|
| 15 |
01602-00825 |
[4] |
WASHER Komatsu |
0.004 kg. |
| |
|
|
["SN: 11008-UP"] analogs:["0160220825", "0231011020", "6124613790"] |
|
| 16 |
600-613-0383 |
[1] |
FAN Komatsu China |
|
| |
|
|
["SN: 48294-UP"] analogs:["6006130380", "6006130381", "6006130382"] |
|
| 16 |
600-613-0382 |
[1] |
FAN Komatsu China |
|
| |
|
|
["SN: 19281-48293"] analogs:["6006130380", "6006130381", "6006130383"] |
|
| 16 |
600-613-0381 |
[1] |
FAN Komatsu China |
|
| |
|
|
["SN: 13983-19280"] analogs:["6006130380", "6006130383", "6006130382"] |
|
| 16 |
600-613-0380 |
[1] |
FAN Komatsu China |
|
| |
|
|
["SN: 11008-13982"] analogs:["6006130381", "6006130383", "6006130382"] |
|
| 16 |
600-615-0382 |
[1] |
FAN,(SUCTION TYPE) Komatsu China |
|
| |
|
|
["SN: 11008-UP"] analogs:["6006150381"] |
|
| 17 |
01010-30825 |
[4] |
BOLT Komatsu |
0.015 kg. |
| |
|
|
["SN: 48294-UP"] analogs:["01010E0825"] |
|
| 17 |
01010-30820 |
[4] |
BOLT Komatsu |
0.013 kg. |
| |
|
|
["SN: 11008-48293"] analogs:["01010E0820"] |
|
| 18A. |
6141-61-3250 |
[1] |
PLATE Komatsu China |
|
| |
|
|
["SN: 48294-UP"] analogs:["6144653250"] |
|
| 19 |
6141-61-6280 |
[1] |
PIPE,(4D92-1A) Komatsu China |
|
| |
|
|
["SN: ..-UP"] analogs:["6141616281"] |
|
| 19 |
6141-61-6213 |
[1] |
PIPE,(4D92-1A) Komatsu China |
|
| |
|
|
["SN: .-.."] analogs:["6141616211", "6141616212"] |
|
| 19 |
6141-61-6212 |
[1] |
PIPE,(4D92-1A) Komatsu China |
|
| |
|
|
["SN: 12807-."] analogs:["6141616211", "6141616213"] |
|
| 19 |
6141-61-6211 |
[1] |
PIPE,(4D92-1A) Komatsu China |
|
| |
|
|
["SN: 11008-12806"] analogs:["6141616213", "6141616212"] |
|
| 19 |
6141-61-6420 |
[1] |
PIPE,(4D92-1B) Komatsu China |
|
| |
|
|
["SN: .-UP"] |
|
| 19 |
6141-61-6412 |
[1] |
PIPE,(4D92-1B) Komatsu China |
|
| |
|
|
["SN: 14647-."] analogs:["6141616411", "6141616410"] |
|
| 19 |
6141-61-6411 |
[1] |
PIPE,(4D92-1B) Komatsu China |
|
| |
|
|
["SN: 14355-14646"] analogs:["6141616410", "6141616412"] |
|
| 19 |
6141-61-6410 |
[1] |
PIPE,(4D92-1B) Komatsu China |
|
| |
|
|
["SN: 11008-14354"] analogs:["6141616411", "6141616412"] |
|
| 20 |
6141-61-6810 |
[1] |
GASKET (K2) Komatsu |
0.003 kg. |
| |
|
|
["SN: 11008-UP"] |
|
| 21 |
01010-30822 |
[2] |
BOLT,(4D92-1A) Komatsu |
0.014 kg. |
| |
|
|
["SN: 12807-UP"] analogs:["0100030822", "0101080822"] |
|
| 23 |
6140-11-6310 |
[1] |
THERMOSTAT Komatsu OEM |
0.11 kg. |
| |
|
|
["SN: 11008-UP"] analogs:["6004216110"] |
|
| 24 |
6140-11-6331 |
[1] |
GASKET (K1) Komatsu |
0.003 kg. |
| |
|
|
["SN: 27151-UP"] |
|
| 24 |
6140-11-6330 |
[1] |
GASKET Komatsu |
0.003 kg. |
| |
|
|
["SN: 11008-27150"] analogs:["6140116331"] |
|
| 25 |
6140-11-6460 |
[1] |
HOUSING Komatsu China |
|
| |
|
|
["SN: 11008-UP"] analogs:["6142116460"] |
|
| 26 |
6141-11-6420 |
[1] |
SOCKET Komatsu China |
|
| |
|
|
["SN: 11008-UP"] |
|
| 27 |
01010-30835 |
[2] |
BOLT Komatsu |
0.019 kg. |
| |
|
|
["SN: 11008-UP"] analogs:["01010E0835"] |
|
| 29 |
01641-20812 |
[2] |
WASHER Komatsu |
0.005 kg. |
| |
|
|
["SN: 11008-UP"] analogs:["YM22117080000"] |
|
| 30 |
6140-11-6430 |
[1] |
GASKET (K1) Komatsu |
0.001 kg. |
| |
|
|
["SN: 11008-UP"] |
|
| 31 |
01010-30870 |
[2] |
BOLT Komatsu China |
|
| |
|
|
["SN: 11008-UP"] analogs:["0101060870", "01010E0870"] |
|
| 33 |
6140-11-6442 |
[1] |
GASKET (K1) Komatsu |
0.012 kg. |
| |
|
|
["SN: 17400-UP"] |
|
| 33 |
6140-11-6441 |
[1] |
GASKET Komatsu |
0.012 kg. |
| |
|
|
["SN: 13899-17399"] analogs:["6140116442"] |
|
| 33 |
6140-11-6440 |
[1] |
GASKET Komatsu |
0.012 kg. |
| |
|
|
["SN: 11008-13898"] analogs:["6140116442"] |
|
| 36 |
04120-21746 |
[1] |
V-BELT,(4D92-1A) Komatsu |
0.259 kg. |
| |
|
|
["SN: .-UP"] |
|
| 36 |
04120-01723 |
[1] |
V-BELT,(4D92-1A) Komatsu |
0.259 kg. |
| |
|
|
["SN: 41020-."] analogs:["0412021746"] |
|
| 36 |
600-736-5311 |
[1] |
V-BELT,(4D92-1A) Komatsu |
0.259 kg. |
| |
|
|
["SN: 33517-41019"] analogs:["0412021746"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
