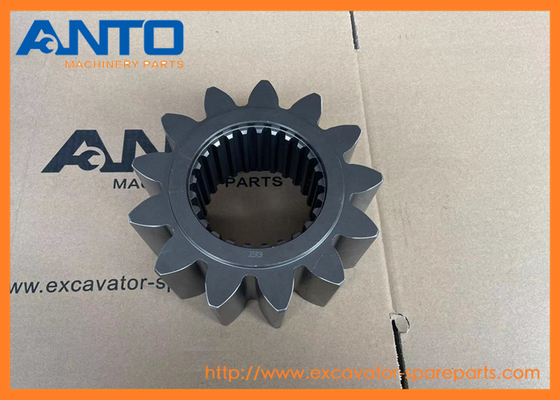

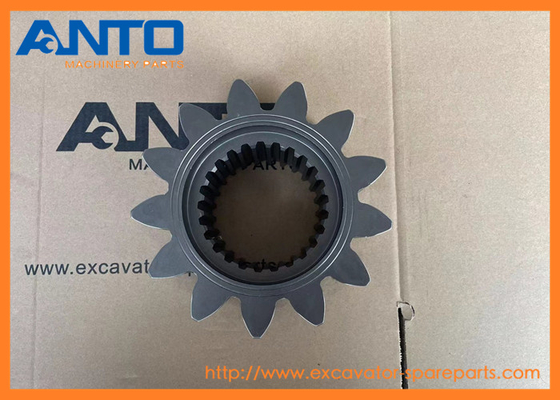

- XKAQ-00977 Pinion Gear Excavator Swing Gear Used For HYUNDAI R160LC9 R160LC9A R160LC9S
| spare parts name |
Pinion gear |
| Equipment Model |
R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A RB160LC9S RB220LC9S RD220LC9 |
| Parts Category |
HYUNDAI Excavator Swing Gear |
| Spare parts Condition |
Brand new, OEM quality |
| MOQ of order(PCS, SET) |
1 PCS |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
1.Directional Control:
In many configurations, the pinion gear’s meshing with another gear changes the direction of rotation. For example, in a differential, the pinion gear (connected to the driveshaft) meshes with a ring gear (attached to the differential case), redirecting power 90 degrees to drive the axle shafts and wheels—enabling the machinery to move forward or backward.
2.System Synchronization:
The pinion gear ensures precise timing and alignment between connected components. Its teeth are machined to tight tolerances to mesh smoothly with the larger gear, minimizing friction, vibration, and wear. This synchronization is essential for efficient operation and prolonged component life, especially under the high stresses of heavy machinery.
1.Metal debris or shavings in gearbox oil
2.Excessive backlash or free play in gearset
3.Unusual noises under load (e.g., grinding or knocking)
4.Uneven wear or tooth damage visible during disassembly
9-SERIES CRAWLER EXCAVATOR R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A RB160LC9S RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R160W9A R170W9 R170W9S R180W9A R180W9S R210W-9 R210W9A R210W9AMH R210W9MH R210W9S
- More other gear parts applicable for HYUNDAI machine
| 3929027 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| |
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| |
| 4896380 GEAR-CAMSHAFT |
| HL760-7A, HL760-9, HL760-9SB, R200W7A, R210W-9, R210W9MH, R250LC7A |
| |
| M230X-00671 GEAR ASSY |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |
| |
| 4893389 GEAR-FUEL PUMP |
| R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A |
| |
| 39Q5-12110 GEAR-RING |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| |
| 39Q5-12270 GEAR-PLANETARY 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| |
| 39Q5-12320 GEAR-SUN 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| |
| ZGAQ-04882 GEAR-RING |
| R160W9A, R170W9, R180W9A, R180W9S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| N*. |
@ |
[1] |
SWING MOTOR ASSY |
SEE 4100 |
| *-2. |
31Q6-10141 |
[1] |
SWING REDUCTION GEAR |
|
| *-2. |
31Q6-10141AR |
[1] |
SWING REDUCTION GEAR |
|
| 1 |
XKAQ-00962 |
[1] |
CASING |
|
| 2 |
XKAQ-00780 |
[1] |
SHAFT-DRIVE |
|
| 3 |
XKAQ-00018 |
[1] |
SPACER |
|
| 4 |
XKAQ-00026 |
[1] |
BEARING-ROLLER |
|
| 5 |
XKAQ-00032 |
[1] |
SEAL-OIL |
|
| 6 |
XKAQ-00961 |
[1] |
BEARING-ROLLER |
|
| 7 |
XKAQ-00404 |
[1] |
PLATE-THRUST |
|
| 8 |
XKAQ-00753 |
[1] |
CARRIER ASSY 2 |
NOT SHOWN |
| 9 |
XKAQ-00075 |
[1] |
CARRIER 2 |
|
| 10 |
XKAQ-00023 |
[3] |
GEAR-PLANET 2 |
|
| 11 |
XKAQ-00643 |
[3] |
PIN ASSY 2 |
NOT SHOWN |
| 12 |
XKAQ-00070 |
[3] |
PIN 2 |
|
| N13. |
XKAQ-00291 |
[1] |
BUSHING 2 |
|
| 14 |
XKAQ-00071 |
[6] |
WASHER-THRUST |
|
| 15 |
XKAQ-00048 |
[3] |
PIN-SPRING |
|
| 16 |
XKAQ-00755 |
[1] |
GEAR-SUN 2 |
|
| 17 |
XKAQ-00754 |
[1] |
CARRIER ASSY 1 |
NOT SHOWN |
| 15 |
XKAQ-00048 |
[3] |
PIN-SPRING |
|
| 18 |
XKAQ-00531 |
[1] |
CARRIER 1 |
|
| 19 |
XKAQ-00025 |
[3] |
GEAR-PLANET 1 |
|
| 20 |
XKAQ-00415 |
[3] |
PIN 1 |
|
| 21 |
XKAQ-00030 |
[3] |
CAGE-NEEDLE |
|
| 22 |
XKAQ-00057 |
[3] |
PLATE-SIDE 1 |
|
| 23 |
XKAQ-00040 |
[3] |
PLATE-SIDE 2 |
|
| 24 |
XKAQ-00041 |
[3] |
RING-STOP |
|
| 25 |
XKAQ-00010 |
[1] |
GEAR-SUN 1 |
|
| 26 |
XKAQ-00534 |
[1] |
PLATE-SIDE 3 |
|
| 27 |
XKAQ-00779 |
[1] |
GEAR-RING |
|
| 28 |
XKAQ-00977 |
[1] |
GEAR-PINION |
|
| 30 |
XKAQ-00072 |
[2] |
PIN-KNOCK |
|
| 31 |
XKAQ-00065 |
[12] |
BOLT-SOCKET |
|
| 32 |
XKAQ-00031 |
[1] |
PLATE-COVER |
|
| 33 |
XKAQ-00064 |
[8] |
BOLT-HEX |
|
| 34 |
XKAQ-00043 |
[1] |
PLATE-LOCK |
|
| 35 |
XKAQ-00042 |
[2] |
BOLT-HEX |
|
| 36 |
XKAQ-00292 |
[1] |
WASHER-LOCK |
|
| 37 |
XKAQ-00049 |
[1] |
PLUG |
|
| 38 |
XKAQ-00066 |
[2] |
PLUG |
|
| *-1. |
@ |
[1] |
SWING MOTOR UNIT |
SEE 4100 |
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts catalog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
