| Application |
C A T excavator electric parts |
| Name |

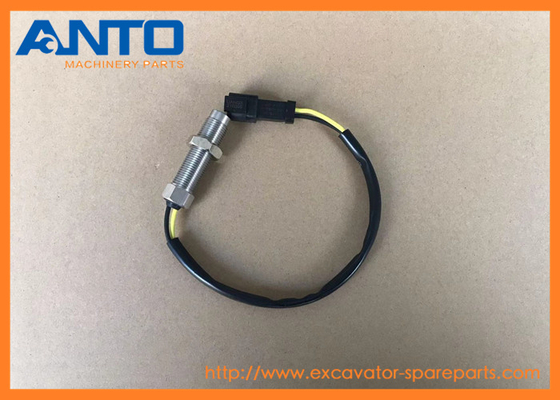

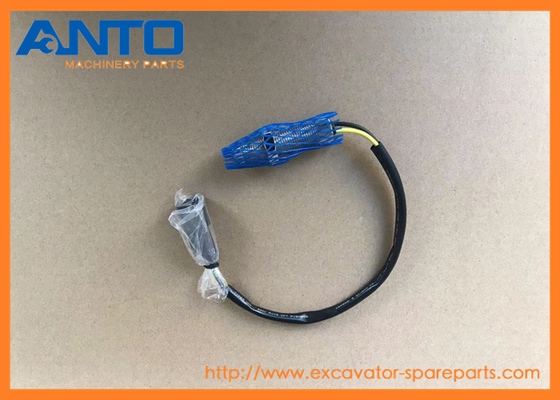

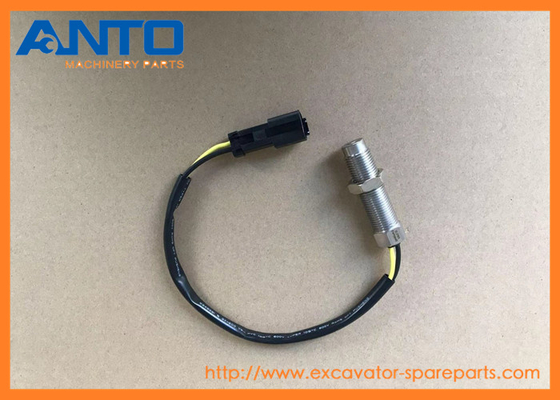

Speed Sensor |
| Parts No |
3244131 324-4131 |
| Model |
311C 311D LRR 312C 312C L 312D 312D L 313D 314C 314D CR 314D LCR 315D L 318C 318D L 319C 319D 319D L 319D LN 320C 320C FM 320C L 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 321C 321D LCR 323D L 323D LN 323D SA
|
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
1. Speed Monitoring
It accurately detects the rotational speed of components such as engines, transmissions, or drive shafts. Using technologies like magnetic induction or hall-effect sensing, it measures how fast these parts rotate (typically in revolutions per minute, RPM) during operation.
2. Signal Transmission to Control Systems
The sensor sends real-time speed data to the equipment’s electronic control unit (ECU) or main control module. This information serves as a foundational input for the system to assess operating conditions and make adjustments.
EXCAVATOR 311C 311D LRR 312C 312C L 312D 312D L 313D 314C 314D CR 314D LCR 315D L 318C 318D L 319C 319D 319D L 319D LN 320C 320C FM 320C L 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 321C 321D LCR 323D L 323D LN 323D SA
MOBILE HYD POWER UNIT 323D L 323D LN
- More sensor parts supplied to C A T machine
| 2380112 SENSOR GP-TEMPERATURE |
| 120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 226B, 232B, 236B, 236B3, 242B, 242B3, 246C, 247B, 252B3, 256C, 257B, 257B3, 25... |
| |
| 2380120 SENSOR GP-SPEED |
| 120M, 120M 2, 12M, 2384C, 2470C, 2484C, 2570C, 2670C, 311D LRR, 312D, 312D L, 312E, 312E L, 313D, 314D CR, 314D LCR, 314E CR, 314E LCR, 315D L, 316E L, 318D L, 318E L, 319D, 319D L, 319D LN, 320D, 320... |
| |
| 2660136 SENSOR GP-PRESSURE |
| 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA, C175... |
| |
| 1573182 SENSOR AS-PRESSURE |
| 312C, 312C L, 314C, 315B L, 315C, 317B LN, 318B, 318C, 320C, 320C FM, 321B, 322C, 322C FM, 325C, 325C FM, 330C, 330C FM, 330C L, 330C MH, 365B, 385B, 5090B |
| |
| 2382227 SENSOR AS-FUEL LEVEL |
| 305.5, 306, 307B, 307C, 311C, 320C, 320D LRR, 320D RR, 325C, 345B II |
| |
| 1967975 SENSOR GP-TEMPERATURE |
| 311C, 312C, 312C L, 314C, 315C, 318C, 319C, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| |
| 1636700 SENSOR GP-FUEL LEVEL |
| 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 312C, 312C L, 312D, 315C, 315D L, 318C, 319C, 319D, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D L, 320D LN, 321C, 321D LCR, 322C, 322C F... |
| |
| 2218859 SENSOR AS-PRESSURE |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 313D2, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC,... |
| |
| 2380118 SENSOR GP-PRESSURE |
| 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| |
| 3669312 SENSOR AS-PRESSURE |
| 311D LRR, 311F LRR, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA, 324D, 324D L |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
8T-4136 M |
[2] |
BOLT (M10X1.5X25-MM) |
|
| 2 |
7X-0796 |
[12] |
LOCKWASHER |
|
| 3 |
5I-7660 |
[1] |
SEAL AS |
|
| 4 |
8T-4224 |
[4] |
WASHER-HARD (8.8X16X2-MM THK) |
|
| 5 |
5I-4983 |
[2] |
STUD |
|
| 6 |
324-4131 |
[1] |
SENSOR GP-SPEED |
|
| 7 |
6V-8231 M |
[2] |
NUT (M10X1.25-THD) |
|
| 8 |
5I-7661 |
[1] |
GASKET |
|
| 9 |
8T-7547 M |
[4] |
BOLT (M8X1.25X30-MM) |
|
| 10 |
3B-4505 |
[4] |
LOCKWASHER |
|
| 11 |
8T-4195 M |
[8] |
BOLT (M10X1.5X30-MM) |
|
| 12 |
125-2965 |
[1] |
HOUSING |
|
| 13 |
5I-7607 |
[1] |
PLUG |
|
| |
M |
|
METRIC PART |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
