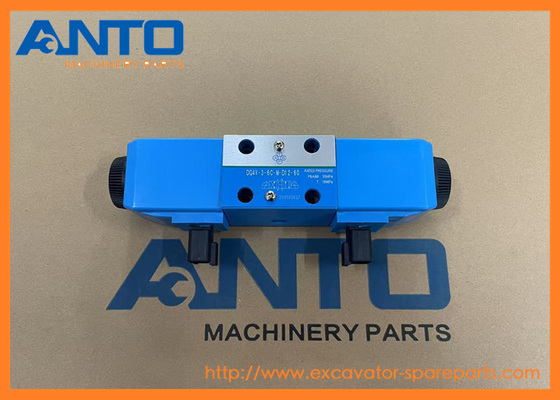

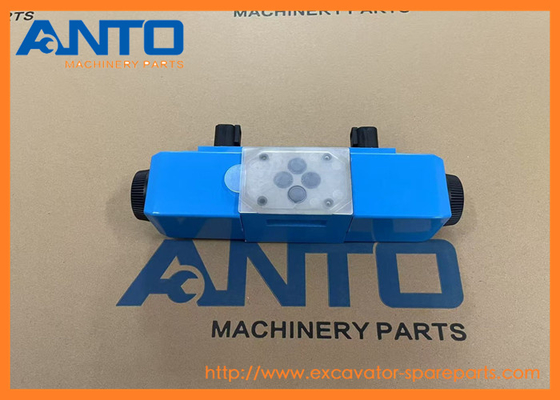

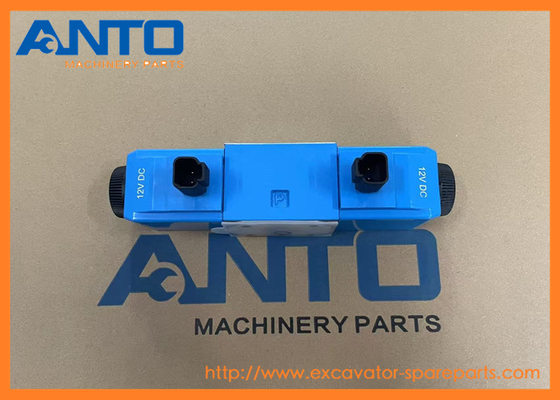

- 25/220998 Solenoid Valve Assembly Backhoe Loader Spare Parts Fit For 216 217 3C 3CX 3D
| Name |
Solenoid Valve |
| Parts No |
25/220998 |
| Machine Model |
1400B 1550B 1600B 1700B 214 215 216 217 3C 3CX 3D |
| Category |
Transmission |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
The solenoid valve assembly controls the on - off of the hydraulic oil circuit by energizing and de - energizing the coil. When the coil is energized, it generates a magnetic field to drive the internal valve core to move, thereby realizing the switching of the hydraulic oil flow path, and then controlling the front - drive system of the vehicle to connect or disconnect, so as to meet the different working requirements of the equipment.
BACKHOE LOADERS 1400B 1550B 1600B 1700B 214 215 216 217 3C 3CX 3D JCB
- More other valve parts fit for JCB machine
| 25/220991 Valve Solenoid 3 Way-2 Position |
| JCB |
| |
| 17/305211 Valve overflow |
| JCB |
| |
| 15/916700 Valve Brake Charge single circuit |
| JCB |
| |
| 20/902617 Valve pilot DFR1 |
| JCB |
| |
| 20/208204 Valve |
| JCB |
| |
| 20/208203 Valve inching |
| JCB |
| |
| 333/Y1972 Valve Non-Return |
| JCB |
| |
| 25/222316 Valve |
| JCB |
| |
| 333/P2389 Valve chrck 10 bar |
| JCB |
| |
| 25/221216 Valve check |
| JCB |
| |
| 20/925383 Valve Priority Steer |
| JCB |
| |
| 25/221359 Valve Solenoid (90 Deg Connectors) |
| JCB |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
445/80190 |
[1] |
Gearbox assembly |
|
| 2 |
445/76504 |
[1] |
Housing flywheel |
|
| 3 |
459/30371 |
[1] |
Casing front |
|
| 4 |
459/30377 |
[1] |
Casing rear |
|
| 5 |
826/01417 |
[18] |
Setscrew flanged M10 x 30 |
|
| 8 |
1606/0017 |
[2] |
Adapter 5/8" x 1/2" M/M |
|
| 9 |
1406/0018 |
[5] |
Washer Bonded (1/2" BSP) |
|
| 11 |
814/00222 |
[1] |
Spring |
|
| 12 |
916/00008 |
[2] |
Bearing 14diameter Ball |
|
| 13 |
816/80031 |
[5] |
Plug |
|
| 14 |
32/902200 |
[1] |
Strainer Suction |
|
| 19 |
45/905000 |
[1] |
Adapter Pressure Test 1/4BSP Male |
|
| 20 |
813/50027 |
[1] |
Gasket |
|
| 21 |
1321/0303Z |
[2] |
Screw M8 x 16 |
|
| 22 |
816/15184 |
[1] |
Adapter 1/2"BSPx1"UNF |
|
| 23 |
581/18063 |
[1] |
Element Transmission Filter 94mm Long |
|
| 23 |
581/M7012 |
[1] |
Element Transmission Filter 94mm Long |
|
| 24 |
813/10175 |
[1] |
Gasket Valve Block |
|
| 25 |
445/07300 |
[1] |
Adapter Block Assembly |
|
| 25B. |
816/60286 |
[1] |
Adapter |
|
| 25C. |
1406/0008 |
[1] |
Seal Washer |
|
| 26 |
814/00407 |
[1] |
Spring |
|
| 27 |
816/80061 |
[1] |
Plug |
|
| 28 |
1392/3207Z |
[4] |
Capscrew M6 x 25mm |
|
| 29 |
1391/3108Z |
[4] |
Capscrew M5 X 30mm |
|
| 30 |
25/220998 |
[1] |
Valve Solenoid Assembly |
|
| 30A. |
477/00824 |
[1] |
Coil |
|
| 31 |
35/100801 |
[1] |
Kit-seal solenoid valve |
|
| 33 |
816/80041 |
[1] |
Plug 1/2"BSP 25.65mm A/F |
|
| 34 |
1406/0011 |
[2] |
Washer Bonded (1/4") |
|
| 35 |
701/80319 |
[1] |
Switch oil pressure,M12 green body,Deutsch |
|
| 37 |
816/80052 |
[1] |
Plug Taper 1/4" BSP |
|
| 38 |
20/925327 |
[1] |
Pump |
|
| 39 |
20/915901 |
[1] |
Seal oil trans pump |
|
| 40 |
813/50041 |
[1] |
Seal Rear |
|
| 41 |
1315/3311Z |
[1] |
Bolt (M8 X 45) |
|
| 42 |
823/00291 |
[4] |
Washer Copper M8 |
|
| 43 |
828/10222 |
[1] |
O Ring 20 x 1.6mm |
|
| 44 |
445/14001 |
[2] |
Dowel |
|
| 45 |
1315/0409Z |
[12] |
Setscrew M10 x 35 |
|
| 46 |
331/16159 |
[1] |
Bracket brake caliper mount Hayes caliper |
|
| 47 |
826/01080 |
[7] |
Bolt |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
