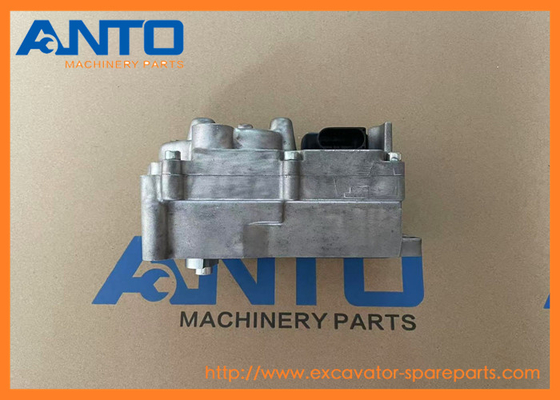

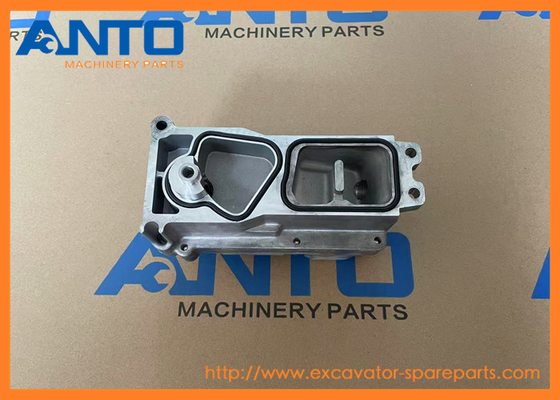

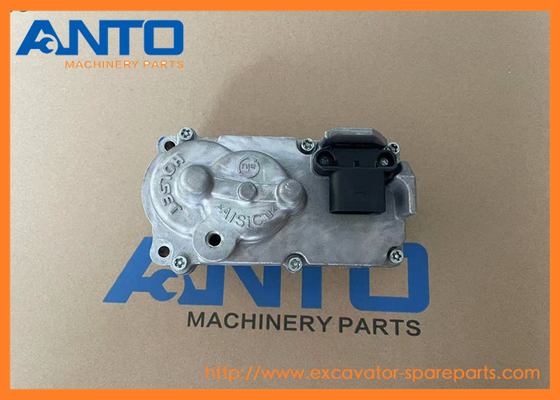

- 3784300 Turbo Electronic Actuator HYUNDAI Excavator Spare Parts Fitting For HW210 HX220 L
| Name |
Turbo Electronic Actuator |
| Parts No |
3784300 |
| Machine Model |
EX200 EX200K RX2000 |
| Category |
Turbocharger |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
1.Boost Pressure Regulation:Adjusts turbine vane angles to control exhaust gas flow, optimizing boost pressure across the engine’s RPM range.
Prevents over-boosting, which could damage the engine or turbocharger.
2.Emission Reduction:Works with the ECM to maintain optimal air-fuel ratios, reducing NOx and particulate emissions.
3.Performance Enhancement:Improves low-RPM torque (e.g., 1,500–2,000 RPM) for better drivability in city traffic or heavy loads.
Enhances high-RPM power output for highway cruising or towing.
9-SERIES FORK LIFT-DIESEL 110D-9
F-SERIES CRAWLER EXCAVATOR HX220L HX220NL HX235L HX260L HX300L
F-SERIES WHEEL EXCAVATOR HW140 HW210
F-SERIES WHEEL LOADER HL740-F HL740TM-F Hyundai
- More other actuator parts fit for HYUNDAI machine
| 5291752 ACTUATOR-ETR F/CONTROL |
| 110D-9, HL740-F, HL740TM-F, HL757-F, HL757TM-F, HL760-F, HW140, HW210, HX220L, HX220NL, HX235L, HX260L, HX300L |
| |
| 3785179 ACTUATOR-TUR ELECTRIC |
| 110D-9, HW140, HW210, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L |
| |
| 21WD-13100 ACTUATOR-COWL OPEN |
| HL740-F, HL740TM-F, HL757-F, HL757TM-F, HL760-F, HL770-F, HL780-F |
| |
| 3785183 ACTUATOR-TUR ELECTRIC |
| HL740-F, HL740TM-F |
| |
| 11K6-90520 ACTUATOR ASSY |
| HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| |
| 11K6-90570 ACTUATOR ASSY-INTAKE |
| HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| |
| 3785179 ACTUATOR-TUR ELECTRIC |
| 110D-9, HW140, HW210, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L |
| |
| 5291752 ACTUATOR-ETR F/CONTROL |
| 110D-9, HL740-F, HL740TM-F, HL757-F, HL757TM-F, HL760-F, HW140, HW210, HX220L, HX220NL, HX235L, HX260L, HX300L |
| |
| 21EN-32320 ACTUATOR-ACCEL(1600L) |
| RD80-7 |
| |
| 3533135 ACTUATOR |
| R250LC3 |
| |
| XKDE-02677 ACTUATOR |
| R210W9S |
| |
| XKDE-00825 ACTUATOR-ETR FUEL CNTL |
| R210LC7A, R210LC9, R210NLC9 |
| |
| 4679012952 ACTUATOR-BRAKE |
| R130W3, R170W3 |
| |
| XKDE-02037 ACTUATOR-E/FUEL CNTL |
| HL770-9, HL770-9S |
| |
| 3529856 ACTUATOR-TURBO |
| HL757-9SM |
| |
| 81L1-20141 ACTUATOR |
| HL750, HL750-3, HL750TM3, HL760, HL760-3, HL770, HL770-3 |
| |
| XKBT-00119 ACTUATOR |
| HDF20-5 |
| |
| ME707410 ACTUATOR ASSY |
| HC50E |
| |
| 21FT-26530 ACTUATOR-CABIN TILT |
| 50D-9 |
| |
| 5319505 ACTUATOR-ETR FUEL CNTL |
| 50D-9, 80D-9 |
| |
| 21WD-13100 ACTUATOR-COWL OPEN |
| HL740-F, HL740TM-F, HL757-F, HL757TM-F, HL760-F, HL770-F, HL780-F |
| |
| 3785183 ACTUATOR-TUR ELECTRIC |
| HL740-F, HL740TM-F |
| |
| ZSAE-00351 ACTUATOR |
| HL770-F, HL780-F, HX480L, HX520L |
| |
| ZSAE-00702 ACTUATOR KIT |
| HL770-F, HL780-F, HX480L, HX520L |
| |
| 11K6-90520 ACTUATOR ASSY |
| HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| |
| 11K6-90570 ACTUATOR ASSY-INTAKE |
| HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
11K6-00010 |
[1] |
ENGINE ASSY |
PP90319-02, W/O PTO |
| *. |
11K6-00090 |
[1] |
ENGINE ASSY |
PP90319-02, W/ PTO |
| *-1. |
4352162NX |
[1] |
KIT-TURBOCHARGER |
|
| N*-2. |
3789625 |
[1] |
TURBOCHARGER |
|
| N1. |
3527619 |
[1] |
DATAPLATE |
|
| 2 |
3527184 |
[1] |
SCREW-HEX HD CAP |
|
| N*-3. |
3785179 |
[1] |
ACTUATOR-TUR ELECTRIC |
|
| N3. |
3784300 |
[1] |
ACTUATOR-TUR ELECTRIC |
|
| N4. |
2835493 |
[1] |
SEAL-SPLIT RING |
|
| 5 |
2835596 |
[2] |
CLAMP-V BAND |
|
| N6. |
2841493 |
[1] |
BEARING-TUR, THRUST |
|
| 7 |
3519163 |
[2] |
SCREW-DRIVE |
|
| 8 |
3529372 |
[2] |
NUT-REGULAR HEX |
|
| 9 |
3532217 |
[1] |
COLLAR-THRUST |
|
| N10. |
3536549 |
[1] |
SCREW-SOCKET H/CAP |
|
| N11. |
3595280 |
[2] |
SEAL-OIL |
|
| N12. |
3596179 |
[2] |
BLOCK-PIVOT |
|
| 13 |
3596402 |
[1] |
NUT-LOCK |
|
| N14. |
4035788 |
[1] |
IMPELLER-TURBO COMP |
|
| 15 |
3756754 |
[2] |
SEAL-SPLIT RING |
|
| 16 |
3758848 |
[2] |
SEAL-SPLIT RING |
|
| 17 |
3762259 |
[4] |
RING-RETAINING |
|
| N18. |
3768300 |
[1] |
SHAFT |
|
| N19. |
3770578 |
[2] |
BEARING-TURBOCHARGER |
|
| N20. |
3767399 |
[1] |
SHROUD-TUR NOZZLE |
|
| N21. |
3596572 |
[1] |
RING-RETAINING |
|
| N22. |
3772491 |
[1] |
SLINGER-OIL |
|
| N23. |
3772492 |
[1] |
BAFFLE-OIL |
|
| N24. |
3773721 |
[1] |
RING-TURBO NOZZLE |
|
| N25. |
3774726 |
[1] |
LEVER-TUR ACTUATOR |
|
| N26. |
3777315 |
[3] |
SCREW-SOCKET H/CAP |
|
| N*-4. |
3779008 |
[1] |
YOKE-TUR ACTUATOR |
|
| N27. |
2836337 |
[2] |
PIN-PIVOT |
|
| N28. |
3779007 |
[1] |
YOKE-TUR ACTUATOR |
|
| N29. |
2839995 |
[1] |
HOUSING-TURBINE |
|
| N*-5. |
3791606 |
[1] |
HOUSING-TUR BEARING |
|
| N30. |
3777608 |
[2] |
BUSHING |
|
| 31 |
3522597 |
[2] |
PIN-ROLL |
|
| N32. |
3782849 |
[1] |
PLUG-ORIFICE |
|
| N33. |
3595260 |
[2] |
BUSHING |
|
| N34. |
3782849 |
[1] |
PLUG-ORIFICE |
|
| N35. |
3791598 |
[1] |
HOUSING-TUR BEARING |
|
| N36. |
3791611 |
[1] |
DIFFUSER-TURBOCHARGER |
|
| N37. |
3781246 |
[1] |
HOUSING-COMPRESSOR |
|
| N38. |
4041396 |
[1] |
SEAL/O-RING |
|
| N39. |
4042188 |
[1] |
SEAL/O-RING |
|
| N40. |
3776294 |
[1] |
SHIELD-TUR HEAT |
|
| N41. |
3596812 |
[2] |
SCREW-HEX F/HEAD CAP |
|
| N42. |
4046379 |
[1] |
SEAL-SPLIT RING |
|
| N43. |
4041397 |
[2] |
SCREW-SOCKET H/CAP |
|
| N44. |
4041398 |
[2] |
SCREW-SOCKET H/CAP |
|
| N45. |
4326887 |
[1] |
SENSOR-TURBO SPEED |
|
| K. |
4034175 |
[AR] |
KIT-TURBO ELEC ACTUATOR |
|
| K. |
4034185 |
[AR] |
KIT-TURBO SENSOR |
|
| N. |
@ |
[1] |
NOT SUPPLIED PARTS |
|
