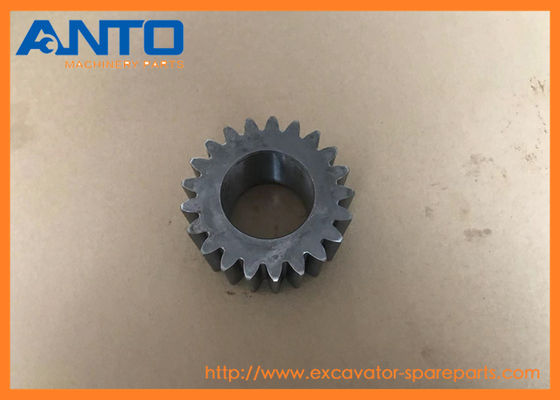

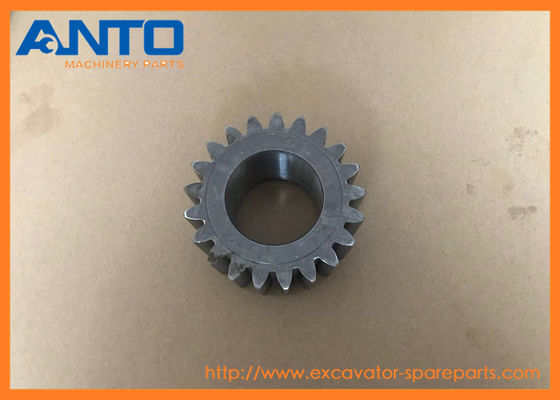

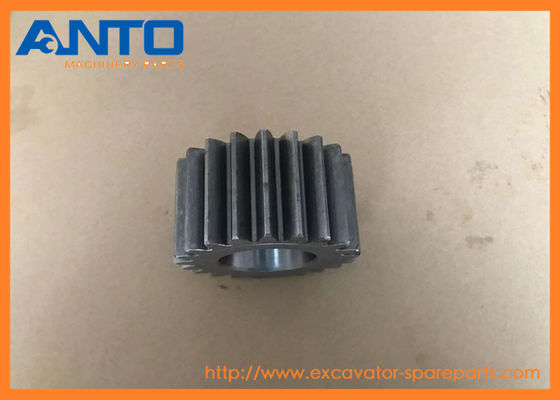

XKAQ00023 XKAQ-00023 Planet Gear 2 Excavator Swing Gear For HYUNDAI R170W7 R170W7A R200W7

Large Image : XKAQ00023 XKAQ-00023 Planet Gear 2 Excavator Swing Gear For HYUNDAI R170W7 R170W7A R200W7

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	XKAQ00023 XKAQ-00023

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD 20/PCS
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	HYUNDAI Excavator Swing Gear	Parts Name:	Planet Gear 2
PAH01054 XKAH-01054arts Number:	XKAQ00023 XKAQ-00023	Models:	R170W7 R170W7A R200W7 R200W7A
Lead Time:	Stock For Soon Delivery	Warranty:	6/12 Months
Highlight:	R170W7 Excavator Swing Gear , Planet Gear Excavator Swing Gear , XKAQ00023 Excavator Swing Gear

XKAQ00023 XKAQ-00023 Planet Gear 2 Excavator Swing Gear For HYUNDAI R170W7 R170W7A R200W7

Specification

spare parts name	Planet gear 2
Equipment Model	R170W7 R170W7A R200W7 R200W7A
Parts Category	HYUNDAI Excavator Swing gear
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

What It Is

1.A precision-machined planetary drive gear that works with the sun gear and ring gear within the swing motor’s planetary set.
2.Hyundai labels it as Planet Gear 1, part of the gearbox’s planet-carrier assembly used in swing motor systems.

Compatible models

7 SERIES WHEEL EXCAVATOR R170W7 R170W7A R200W7 R200W7A

7-SERIES CRAWLER EXCAVATOR R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R450LC7 R450LC7A R500LC7 R500LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD510LC-7

More other gear parts applicable for HYUNDAI machine

3929027 GEAR-CRANKSHAFT

100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL...

3905427 GEAR-FLYWHEEL RING

100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,...

4896380 GEAR-CAMSHAFT

HL760-7A, HL760-9, HL760-9SB, R200W7A, R210W-9, R210W9MH, R250LC7A

M230X-00671 GEAR ASSY

R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S

4893389 GEAR-FUEL PUMP

R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A

39Q5-12270 GEAR-PLANETARY 1

HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S

39Q5-12320 GEAR-SUN 1

HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S

ZGAQ-04882 GEAR-RING

R160W9A, R170W9, R180W9A, R180W9S

ZGAQ-01991 GEAR SHIFT SENSOR 1

R200W7

ZGAQ-01992 GEAR SHIFT SENSOR 3

R200W7, R210W9S

XKAQ-00405 GEAR-SUN 2

R210LC9

ZGAQ-02404 GEAR SHIFT SENSOR 1

R210W9S

Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	SWING MOTOR ASSY
*-2.	31N6-10160	[1]	SWING REDUCTION GEAR
*-2.	31N6-10161	[1]	SWING REDUCTION GEAR
1	XKAQ-00771	[1]	CASING
1	XKAQ-00962	[1]	CASING
2	XKAQ-00331	[1]	SHAFT-DRIVE
2	XKAQ-00780	[1]	SHAFT-DRIVE
3	XKAQ-00018	[1]	SPACER
5	XKAQ-00026	[1]	BEARING-ROLLER
6	XKAQ-00032	[1]	SEAL-OIL
7	XKAQ-00029	[1]	BEARING-ROLLER
7	XKAQ-00647	[1]	BEARING-ROLLER
7	XKAQ-00961	[1]	BEARING-ROLLER
8	XKAQ-00076	[1]	PLATE-THRUST
9	XKAQ-00075	[1]	CARRIER 2
10	XKAQ-00074	[1]	RING-STOP
11	XKAQ-00284	[1]	GEAR-RING
11	XKAQ-00779	[1]	GEAR-RING
12	XKAQ-00072	[4]	PIN-KNOCK
13	XKAQ-00781	[1]	GEAR-PINION
13	XKAQ-00976	[1]	GEAR-PINION
14	XKAQ-00071	[6]	WASHER-THRUST
15	XKAQ-00023	[3]	GEAR-PLANET 2
16	XKAQ-00070	[3]	PIN 2	INCL 23
17	XKAQ-00048	[6]	PIN-SPRING
18	XKAQ-00011	[1]	GEAR-SUN 2
19	XKAQ-00015	[1]	CARRIER 1
20	XKAQ-00057	[3]	PLATE-SIDE 1
21	XKAQ-00019	[3]	PIN 1
22	XKAQ-00030	[3]	CAGE-NEEDLE
N23.	@	[3]	BUSHING 2
24	XKAQ-00025	[3]	GEAR-PLANET 1
25	XKAQ-00292	[1]	WASHER-LOCK
26	XKAQ-00068	[1]	PLATE-SIDE 3
27	XKAQ-00010	[1]	GEAR-SUN 1
29	XKAQ-00049	[1]	PLUG
30	XKAQ-00066	[2]	PLUG
31	XKAQ-00065	[2]	BOLT-SOCKET
32	XKAQ-00035	[1]	PIPE-GAUGE
33	XKAQ-00034	[1]	BAR-GAUGE
34	XKAQ-00031	[1]	PLATE-COVER
35	XKAQ-00064	[8]	BOLT-HEX
36	XKAQ-00043	[1]	PLATE-LOCK
37	XKAQ-00042	[2]	BOLT-HEX
38	XKAQ-00041	[3]	RING-STOP
39	XKAQ-00040	[3]	PLATE-SIDE 2
40	XKAQ-00143	[1]	POST-AIR BREATHER
*-1.	@	[1]	SWING MOTOR UNIT	SEE 4100

XKAQ00023 XKAQ-00023 Planet Gear 2 Excavator Swing Gear For HYUNDAI R170W7 R170W7A R200W7 0

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
