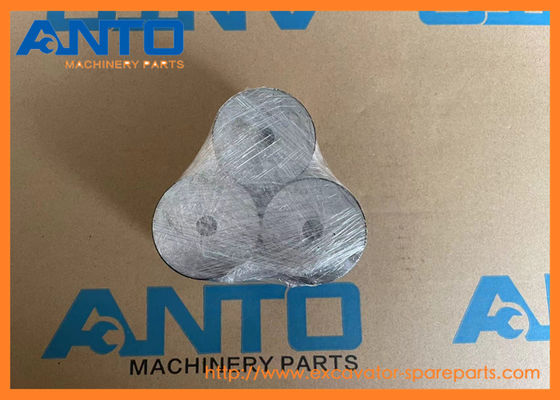

XKAQ-00415 XKAQ00415 Pin 1 Excavator Swing Gear For HYUNDAI R360LC7A R370LC7 R450LC7

Large Image : XKAQ-00415 XKAQ00415 Pin 1 Excavator Swing Gear For HYUNDAI R360LC7A R370LC7 R450LC7

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	XKAQ-00415 XKAQ00415

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD 7/PCS
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	HYUNDAI Excavator Swing Gear	Parts Name:	Pin 1
PAH01054 XKAH-01054arts Number:	XKAQ-00415 XKAQ00415	Models:	R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS R800LC7A RD510LC-7
Lead Time:	Stock For Soon Delivery	Warranty:	6/12 Months
Highlight:	HYUNDAI R370LC7 Excavator Swing Gear , R450LC7 Excavator Swing Gear , Pin Excavator Swing Gear

XKAQ-00415 XKAQ00415 Pin 1 Excavator Swing Gear For HYUNDAI R360LC7A R370LC7 R450LC7

Specification

spare parts name	Pin 1
Equipment Model	R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS R800LC7A RD510LC-7
Parts Category	HYUNDAI Excavator Swing gear
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

Function

1. Positioning function: used to determine the relative position of each component in the gearbox to ensure assembly accuracy. For example, in a planetary transmission gearbox, the long pin can pre-position the high-speed low-load end housing, the inner gear ring, and the low-speed high-load end housing to avoid the problem of poor positioning accuracy of the stopper and facilitate the installation of other connectors.

2. Transmit torque: Some pins can participate in the transmission of torque, transferring power from one component to another to ensure the normal operation of the gearbox. For example, in a wind power gearbox, the internal threaded cylindrical pin installed between the housing and the gear ring can transmit torque between the two to ensure the power transmission of the gearbox.

Compatible models

7-SERIES CRAWLER EXCAVATOR R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS R800LC7A RD510LC-7

9-SERIES CRAWLER EXCAVATOR R1200-9 R160LC9A R180LC9A R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S R800LC-9 R800LC9FS RB160LC9S RB220LC9S RD220LC9

9-SERIES WHEEL EXCAVATOR R160W9A R180W9A R210W-9 R210W9A R210W9AMH R210W9S

F-SERIES CRAWLER EXCAVATOR HX160L HX180L

More other pin parts applicable for HYUNDAI machine

3904483 PIN-DOWEL

100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 35D-9, 42HDLL, 50D-9, 80D-9, H70, H80, HDF35A-2, HDF50A, HL25C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7...

3950549 PIN-PISTON

180DE, 250D-9, 250DE, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX330L, HX380L, HX430L, R320LC7A, R320LC9, R330LC9A, R360LC7A, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R430LC9, R430LC9A

4083244 PIN-PISTON

HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7

XKDA-00479 PIN

R520LC9S

XKDA-00480 PIN

R520LC9S

XKDA-00481 PIN

R520LC9S

XKDA-00490 PIN

R520LC9S

XKDA-00572 PIN

R520LC9S

XKDA-00573 PIN

R520LC9S

XKDA-00574 PIN

R520LC9S

XKDA-00575 PIN

R520LC9S

61QD-00030 PIN WA

R800LC-9

Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
*.	@	[2]	SWING MOTOR ASSY	SEE 4200
*-2.	31QE-10140	[1]	SWING REDUCTION GEAR
*-2.	31QE-10141	[1]	SWING REDUCTION GEAR
*-2.	31QE-10142	[1]	SWING REDUCTION GEAR
*-2.	31QE-10143	[1]	SWING REDUCTION GEAR
*-2.	31QE-10142AR	[1]	SWING REDUCTION GEAR
1	XKAQ-00406	[1]	CASING
2	XKAQ-00458	[1]	SHAFT-DRIVE
3	XKAQ-00146	[1]	BEARING-ROLLER
4	XKAQ-00147	[1]	PLATE-COVER
5	XKAQ-00148	[8]	BOLT-HEX
6	XKAQ-00149	[1]	SEAL-OIL
7	XKAQ-00791	[1]	BEARING-ROLLER
8	XKAQ-00792	[1]	CARRIER ASSY 2
8	XKAQ-00808	[1]	CARRIER ASSY 2
8-1.	XKAQ-00793	[1]	CARRIER 2
8-2.	XKAQ-00460	[4]	GEAR-PLANET 2
8-3.	XKAQ-00254	[4]	PIN 2
8-3.	XKAQ-00410	[4]	PIN 2
8-4.	XKAQ-00411	[4]	WASHER
8-5.	XKAQ-00050	[4]	PIN-SPRING
8-6.	XKAQ-00232	[4]	PIN-SPRING
9	XKAQ-00412	[1]	CARRIER ASSY 1
9-1.	XKAQ-00413	[1]	CARRIER 1
9-2.	XKAQ-00414	[4]	GEAR-PLANETARY 1
9-3.	XKAQ-00415	[4]	PIN 1
9-4.	XKAQ-00030	[4]	CAGE-NEEDLE
9-5.	XKAQ-00416	[4]	PLATE 2-SIDE
9-6.	XKAQ-00417	[4]	PLATE 1-SIDE
9-7.	XKAQ-00041	[4]	RING-STOP
9-8.	XKAQ-00048	[4]	PIN-SPRING
10	XKAQ-00463	[1]	SUN GEAR 2
11	XKAQ-00418	[1]	SUN GEAR 1
12	XKAQ-00420	[1]	GEAR-RING
13	XKAQ-00072	[2]	PIN-KNOCK
14	XKAQ-00171	[1]	RING-SPACER
15	XKAQ-00421	[1]	SPACER
16	XKAQ-00778	[1]	GEAR-PINION
17	XKAQ-00164	[1]	PLATE-LOCK
18	XKAQ-00042	[4]	BOLT-HEX
19	XKAQ-00292	[4]	WASHER-LOCK
20	XKAQ-00260	[1]	RING-THRUST
21	XKAQ-00465	[1]	COVER
21	XKAQ-00750	[1]	COVER
21	XKAQ-00982	[1]	COVER
22	XKAQ-00170	[4]	BOLT-SOCKET
23	XKAQ-00425	[16]	BOLT-SOCKET
24	XKAQ-00155	[1]	PLUG-SOCKET
25	XKAQ-00794	[1]	PLUG
26	XKAQ-00274	[2]	PLUG
27	XKAQ-00166	[1]	BAR-GAUGE
28	XKAQ-00167	[1]	PIPE-GAUGE
29	XKAQ-00798	[1]	AIR BREATHER ASSY
29-1.	XKAQ-00797	[1]	CAP-ARI BREATHER
29-2.	XKAQ-00799	[1]	POST AIR BREATHER
30	XKAQ-00751	[1]	O-RING
31	XKAQ-00143	[1]	POST-AIR BREATHER
32	XKAQ-00797	[1]	CAP-ARI BREATHER

XKAQ-00415 XKAQ00415 Pin 1 Excavator Swing Gear For HYUNDAI R360LC7A R370LC7 R450LC7 0

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
