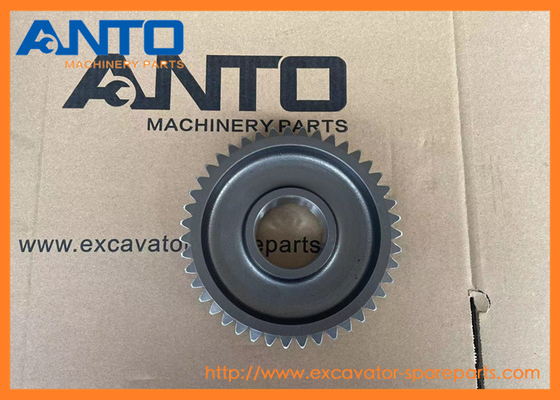

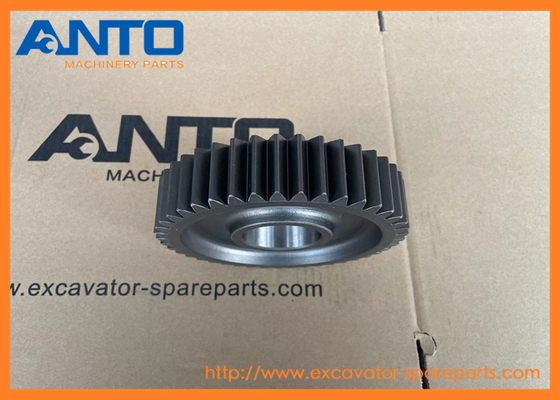

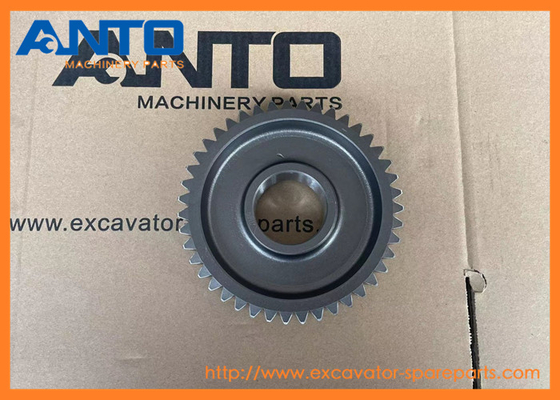

- XKAQ-00237 Planet Gear Excavator Swing Gear Used For HYUNDAI R110-7 R110-7A R140LC-7
| spare parts name |
Planet gear |
| Equipment Model |
R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 |
| Parts Category |
HYUNDAI Excavator Swing Gear |
| Spare parts Condition |
Brand new, OEM quality |
| MOQ of order(PCS, SET) |
1 PCS |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
In a planetary gear assembly, the gearset includes:
Sun gear (center) Planet gears (typically 3–4, including XKAQ‑00237) Ring gear (internal teeth) Planetary carrier
The planet gear meshes with the sun and ring gears to:
1.Transmit torque
2.Reduce speed
3.Allow smooth rotation in travel or swing motions of the excavator
1.Metal debris or shavings in gearbox oil
2.Excessive backlash or free play in gearset
3.Unusual noises under load (e.g., grinding or knocking)
4.Uneven wear or tooth damage visible during disassembly
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 RC215C7 RC215C7H RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R140LC9 R140LC9A R140LC9S R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 RB160LC9S RB220LC9S RD220LC9
- More other gear parts applicable for HYUNDAI machine
| 3929027 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| |
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| |
| 4896380 GEAR-CAMSHAFT |
| HL760-7A, HL760-9, HL760-9SB, R200W7A, R210W-9, R210W9MH, R250LC7A |
| |
| M230X-00671 GEAR ASSY |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |
| |
| 4893389 GEAR-FUEL PUMP |
| R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A |
| |
| 39Q5-12110 GEAR-RING |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| |
| 39Q5-12270 GEAR-PLANETARY 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| |
| 39Q5-12320 GEAR-SUN 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| |
| ZGAQ-04882 GEAR-RING |
| R160W9A, R170W9, R180W9A, R180W9S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31Q5-42051 |
[1] |
TRAVEL MOTOR ASSY |
|
| *-2. |
31Q6-40121 |
[1] |
T/REDUCTION GEAR |
|
| 1 |
XKAQ-00217 |
[1] |
HOUSING |
|
| 2 |
XKAQ-00986 |
[2] |
BEARING-MAIN |
|
| 3 |
XKAQ-00219 |
[1] |
SEAL-FLOATING |
|
| 4 |
XKAQ-00220 |
[1] |
SHIM |
|
| 5 |
XKAQ-00221 |
[1] |
RETAINER |
|
| 6 |
XKAQ-00222 |
[12] |
BOLT-HEX |
|
| 7 |
XKAQ-00223 |
[2] |
PIN-PARALLEL |
|
| 8 |
XKAQ-00224 |
[1] |
GEAR-RING |
|
| 9 |
XKAQ-00225 |
[1] |
COUPLING |
|
| 10 |
XKAQ-00226 |
[1] |
CARRIER 2 ASSY |
|
| 10-1. |
XKAQ-00227 |
[1] |
CARRIER 2 |
|
| 10-2. |
XKAQ-00228 |
[4] |
GEAR-PLANET 2 |
|
| 10-3. |
XKAQ-00229 |
[8] |
BEARING-NEEDLE 2 |
|
| 10-4. |
XKAQ-00230 |
[8] |
WASHER-THRUST |
|
| 10-5. |
XKAQ-00231 |
[4] |
PIN 2 |
|
| 10-6. |
XKAQ-00232 |
[4] |
PIN-SPRING |
|
| 10-7. |
XKAQ-00208 |
[2] |
RING-THRUST |
|
| 11 |
XKAQ-00233 |
[1] |
CARRIER ASSY 1 |
|
| 11-1. |
XKAQ-00234 |
[1] |
CARRIER 1 |
|
| 11-2. |
XKAQ-00235 |
[1] |
GEAR-SUN 2 |
|
| 11-3. |
XKAQ-00236 |
[1] |
RING-RETAINING |
|
| 11-4. |
XKAQ-00237 |
[3] |
GEAR-PLANET 1 |
|
| 11-5. |
XKAQ-00238 |
[3] |
BEARNG-NEEDLE 1 |
|
| 11-6. |
XKAQ-00239 |
[6] |
WASHER-THRUST |
|
| 11-7. |
XKAQ-00240 |
[3] |
PIN 1 |
|
| 11-8. |
XKAQ-00241 |
[3] |
PIN-SPRING |
|
| 11-9. |
XKAQ-00655 |
[3] |
PIN-SPRING |
|
| 12 |
XKAQ-00242 |
[1] |
GEAR-SUN 1 |
|
| 13 |
XKAQ-00243 |
[1] |
COVER |
|
| 14 |
XKAQ-00214 |
[1] |
PAD |
|
| 15 |
XKAQ-00244 |
[20] |
BOLT-SOCKET |
|
| 16 |
XKAQ-00245 |
[2] |
SCREW-HEX SOCKET |
|
| 17 |
XKAQ-00246 |
[3] |
PLUG-HYDRAULIC |
|
| 18 |
XKAQ-00247 |
[3] |
O-RING |
|
| 19 |
XKAQ-00989 |
[1] |
NAME PLATE |
|
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts catalog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
