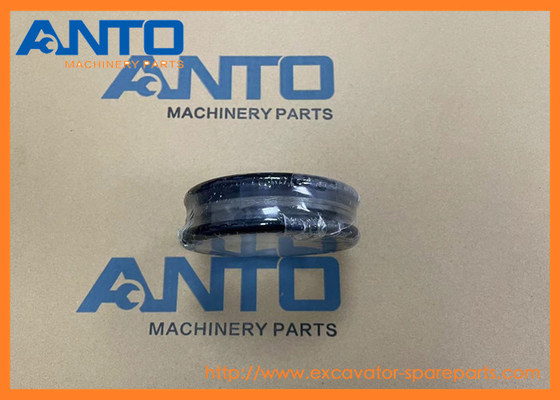

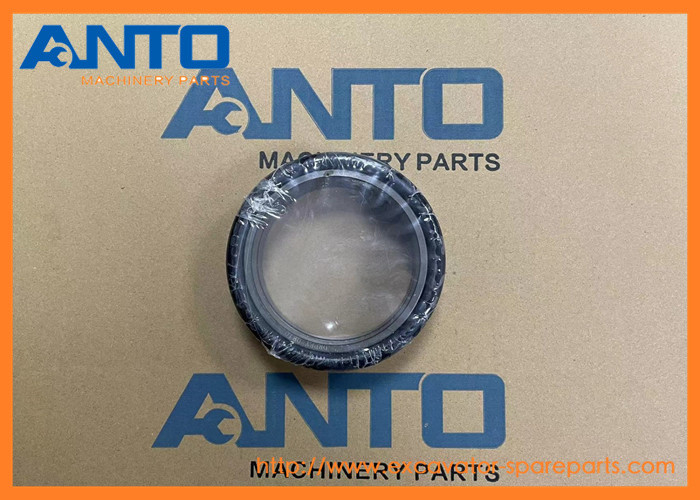

9W-7241 9W7241 Seal Excavator Spare Parts For D6F SR D7G

Large Image : 9W-7241 9W7241 Seal Excavator Spare Parts For D6F SR D7G

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	9W-7241 9W7241

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Model Number:	D6F SR D7G	Product Name:	Seal
Part Number:	9W-7241 9W7241	Transportation:	By Sea/air By Express
Packing:	Standard Export Carton	Warranty:	6/12 Months
Highlight:	9W7241 Seal Excavator Spare Parts , Seal Excavator Spare Parts Fitting , 9W-7241 Seal Excavator Spare Parts

9W-7241 9W7241 Seal Excavator Spare Parts Fitting For D6F SR D7G

Specification

Application	C A T excavator spare parts
Name	Seal
Parts No	9W-7241 9W7241
Model	D6F SR D7G
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

Applicable models

TRACK-TYPE TRACTOR D6F SR D7G

More seal parts supplied to C A T machine

4F9653 SEAL-O-RING

1090, 1190, 1190T, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 1290T, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 1390, 140G, 140H, 140H ES, 140H NA...

8M4445 SEAL-O-RING

120H, 120H ES, 120H NA, 135H, 14E, 16, 1673, 1673B, 1676, 1693, 205B, 214B, 3116, 3126, 322C, 325, 325 L, 325B, 325C, 3304, 35, 45, 55, 550, 561C, 561D, 570, 571G, 572G, 574, 580, 583K, 594, 594H, 621...

8H7521 SEAL-O-RING

120H, 12G, 12H, 12H ES, 12H NA, 135H, 140G, 140H, 140H ES, 140H NA, 143H, 14H NA, 16, 160H, 160H ES, 160H NA, 163, 163H NA, 183, 184, 215, 215B, 215D, 219D, 225, 235D, 24H, 30/30, 3126, 3126B, 3181, 3...

6J2419 SEAL-O-RING

120G, 12G, 12H, 12H ES, 12H NA, 130G, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H NA, 160G, 160H, 160H ES, 160H NA, 163H NA, 1673C, 1674, 1693, 16G, 16H NA, 235, 235B, 245, 24H, 321C, 330, 330 L, 330...

4J5267 SEAL-O-RING

140, 141, 153, 163, 173B, 183B, 191, 206B, 212B, 215, 215B, 216, 216B, 216B3, 225, 226B, 226B3, 232B, 235, 235B, 235C, 235D, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 245, 245B, 245D, 246C, 247, 247B...

0336042 SEAL-O-RING

140G, 236B, 236B3, 24H, 24M, 252B, 252B3, 267B, 268B, 30/30, 3116, 3126, 3176C, 3196, 320B FM LL, 323D2 L, 325 L, 330 FM L, 3406E, 3408C, 3408E, 3412E, 3456, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 35...

5P7211 SEAL

120G, 12G, 130G, 140G, 14G, 16G, 215, 215B, 215D, 225, 225D, 229, 229D, 231D, 2470C, 2570C, 2670C, 2864C, 301.6C, 302.5C, 325D MH, 330D, 330D FM, 330D MH, 345B L, 416F, 420F, 428F, 430F, 432F, 434F, 4...

8M4437 SEAL-O-RING

120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 12H, 12H ES, 12H NA, 12K, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 14H, 14H NA, 16, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA, 16G...

5J4989 SEAL ASSEM.

225, 225D, 229, 621, 621B, 621E, 621F, 621G, 623B, 623E, 623F, 623G, 627B, 627E, 627F, 627G, 631C, 657, 657B, 6A, 776, 789, 789B, 789C, 789D, 7A, 824C, 824S, 834B, 8A, 928HZ, 930G, 950, 950B, 950F, 96...

Catalog part list

Pos.	Part No	Qty	Parts name	Comments
1	3T-1898	[2]	DRUM (120 TEETH)
2	7X-0345	[40]	BOLT (5/8-11X1.75IN)
3	8T-4122	[40]	WASHER (3.5MM THK)
4	9P-0418	[2]	CAGE
5	0L-1026	[6]	PLUG-CUP
6	3F-1953	[6]	DOWEL
7	5P-9176	[4]	BEARING
8	9W-7241	[2]	SEAL GP-DUO-CONE
9	5P-9177	[4]	RACE-BEARING INNER
10	6V-0530	[2]	NUT
11	3P-7236	[2]	GASKET
12	7G-6986	[2]	LOCK
13	8T-9397	[4]	BOLT (3/4-10X1.25IN)
14	7X-0521	[4]	WASHER-HARD (5MM THK)
15	3P-6318	[2]	FLANGE-DRUM
16	5P-2566	[68]	BOLT (1/2-13X1.50IN)
17	8T-4223	[24]	WASHER-HARD (3MM THK)
18	1S-4974	[2]	SEAL-O-RING
19	5M-7383	[2]	CAGE
20	6V-1013	[2]	BEARING
21	6V-1014	[2]	RACE-BEARING INNER
22	3H-4174	[2]	DOWEL
23	9P-9360	[2]	GEAR (35 TEETH)
24	9P-9362	[2]	PINION (11 TEETH)
25	5P-5066	[2]	BEARING-OUTER
26	5P-5067	[2]	RACE-BEARING INNER
27	8P-8914 Y	[2]	SPROCKET GP-SEGMENTED
28	9W-6674	[4]	SEAL GP-DUO-CONE
29	6B-4844	[2]	GUARD-DIRT
30	5M-3062	[10]	BOLT (3/8-16X.750IN)
31	8T-4896	[10]	WASHER-HARD (2.5MM THK)
32	2B-8091	[2]	LOCKRING-NUT
33	2B-7906	[2]	PIN
34	5M-2130	[2]	NUT
35	5M-6670	[2]	SHAFT-SPROCKET
36	9W-8929	[2]	RETAINER-SEAL
37	4B-1281	[16]	SCREW-MACHINE
38	128-8561	[2]	HUB-FINAL DRIVE
39	3B-4990	[36]	BOLT
40	2S-8415	[36]	WASHER
41	2K-4821	[36]	LOCKNUT (5/8-18 THD)
42	4M-7432	[2]	RING
43	118-8605	[2]	BEARING AS
44	134-6261	[2]	BEARING-SPECIAL
45	9P-9361	[2]	GEAR-FINAL DRIVE (46 TEETH)
46	9P-0566	[1]	CASE-FINAL DRIVE (RH)
47	9P-0567	[1]	CASE-FINAL DRIVE (LH)
48	3S-9182	[2]	PLUG-MAGNETIC
49	6P-9609	[2]	GASKET
50	5M-6637	[1]	BEARING-SLEEVE
	7T-0341	[1]	SUPPORT
51	2P-3421	[2]	RETAINER
52	146-5808	[2]	CAP-BEARING
53	2S-4364	[1]	RETAINER
	0S-0130	[2]	PIN
54	5M-6628	[2]	LOCK
55	7F-2339	[2]	NUT
56	1B-8742	[2]	KEY-WOODRUFF
57	2S-4366	[8]	SHIM (.915MM) (.036IN THK)
58	9S-8005	[2]	PLUG-O-RING (3/4-16 THD)
59	3K-0360	[2]	SEAL-O-RING
60	9W-7989	[2]	SEAL
61	2B-7557	[6]	CORK
62	2B-8162	[6]	DOWEL
63	8T-9391	[8]	BOLT (1/2-13X3.75IN)
64	8C-4436	[12]	BOLT (1/2-13X1.375IN)
65	118-0030	[2]	SPACER
66	118-0028	[2]	NUT
67	118-0029	[2]	RETAINER
68	118-0031	[2]	HOLDER AS
	9M-4007	[2]	DOWEL
69	135-6036	[2]	LOCK
70	132-3837	[2]	RACE-SPL ROLLER
71	2M-0849	[64]	WASHER (5MM THK)
72	2M-4480	[2]	RING
73	9P-9363	[2]	PINION (9 TEETH)
	Y		SEPARATE ILLUSTRATION

9W-7241 9W7241 Seal Excavator Spare Parts For D6F SR D7G 0

Other hot selling parts

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft

2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y

3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y

4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder

5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve

6.Electrical parts: Wiring harness, Controller, Monitor

7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
