| Application |
C A T excavator electric parts |
| Name |

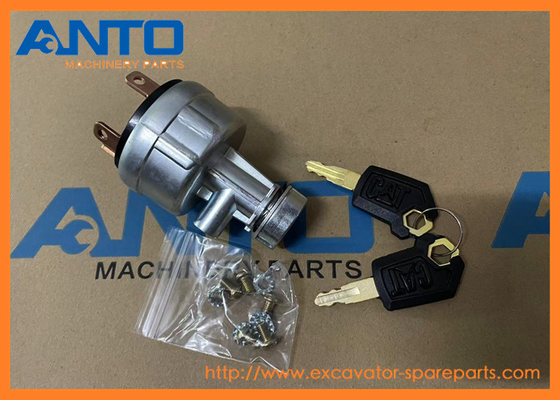

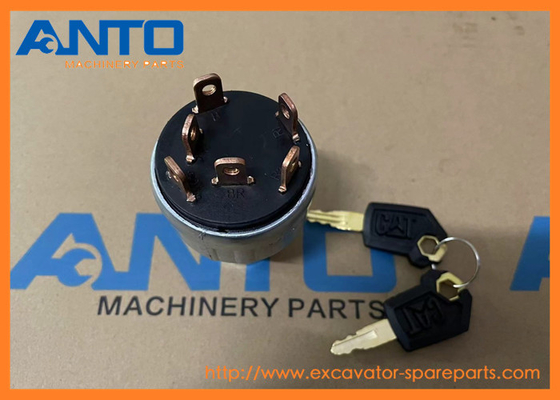

Heat Start Switch |
| Parts No |
7Y3918 7Y-3918 |
| Model |
307 311 311C 312 312B L 313B 314C 315 315B L 317 317B LN 318B 320 320 L 320N 321C 325C L
|
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
EXCAVATOR 307 311 311C 312 312B L 313B 314C 315 315B L 317 317B LN 318B 320 320 L 320N 321C 325C L
- More switch parts supplied to C A T machine
| 9G5250 SWITCH AS-START |
| 815B, 826C, 950B, 980C |
| |
| 3T3195 SWITCH AS-PRESSURE |
| 769C, 772B, 773B, 776C, 777, 777B, 784B, 785, 785B, 789, 789B, 793B |
| |
| 1701326 SWITCH AS-ROCKER |
| 69D, 769D, 771D, 773D, 773E, 775D, 775E, 776D, 777D, 784C, 785C, 789C, 793C, AD30, AD45B, AD55, AD55B, AD60 |
| |
| 1701328 SWITCH AS-ROCKER |
| 769D, 771D, 773D, 773E, 775D, 775E, 776D, 777D, 784C, 785C, 789C, 793C |
| |
| 1701301 SWITCH AS-ROCKER |
| 69D, 769D, 771D, 773D, 773E, 775D, 775E, 776D, 777D, 784C, 785C, 789C, 793C, 797, 797B |
| |
| 1701315 SWITCH AS-ROCKER |
| 769D, 771D, 773D, 773E, 775D, 775E, 777D |
| |
| 2284808 SWITCH GP-POSITION |
| 770, 770G, 770G OEM, 772, 772G, 772G OEM, 773E, 773F, 773G, 773G LRC, 773G OEM, 775F, 775G, 775G LRC, 775G OEM, 777D, 777F, 777G, AD30, AD45B, AD55, AD55B, AD60 |
| |
| 3E7807 SWITCH AS-PRESSURE |
| 5110B, 515, 525, 525B, 535B, 545 |
| |
| 8C8165 SWITCH-START |
| AP-800 |
| |
| 1114759 SWITCH AS-LIQUID LEVEL |
| 322B L, 325B, 325B L, 330B, 345B II, 345B L, M325B |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
7Y-3918 Y |
[1] |
SWITCH GP-HEAT START (KEY) |
|
| 2 |
185-9208 |
[1] |
KNOB AS |
|
| 3 |
106-0107 Y |
[1] |
SWITCH GP-ROTARY (ENGINE SPEED) |
|
| 4 |
259-5078 |
[1] |
HARNESS AS-CONSOLE |
|
| |
102-8802 |
[1] |
KIT-RECEPTACLE (2-PIN) |
|
| |
102-8804 |
[1] |
KIT-RECEPTACLE (4-PIN) |
|
| |
102-8805 |
[2] |
KIT-RECEPTACLE (6-PIN) |
|
| |
102-8801 |
[1] |
KIT-RECEPTACLE (12-PIN) |
|
| |
|
|
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| |
3S-2093 |
[19] |
STRAP-CABLE |
|
| |
7Y-3963 |
[2] |
TERMINAL-BULLET (FEMALE) |
|
| |
7Y-3965 |
[2] |
TUBE (RECEPTACLE TERMINAL) |
|
| |
8T-8737 |
[16] |
PLUG-SEAL |
|
| |
102-7965 |
[13] |
TERMINAL (FEMALE) |
|
| |
9X-3402 |
[42] |
SOCKET-CONNECTOR (16-GA TO 18-GA) |
|
| |
|
|
-OR- |
| |
126-1768 |
[42] |
SOCKET-CONNECTOR (14-GA TO 16-GA) |
|
| |
2L-8077 |
[3] |
TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW) |
|
| |
3T-4696 |
[1] |
TERMINAL-RING (10-GA TO 12-GA, 7/16-IN SCREW) |
|
| |
9X-3401 |
[18] |
PIN-CONNECTOR (16-GA TO 18-GA) |
|
| |
|
|
-OR- |
| |
126-1767 |
[18] |
PIN-CONNECTOR (14-GA TO 16-GA) |
|
| |
155-2255 |
[2] |
KIT-CONNECTING PLUG (12-PIN) |
|
| |
155-2270 |
[1] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
155-2271 |
[2] |
KIT-CONNECTING PLUG (4-PIN) |
|
| |
155-2274 |
[2] |
KIT-CONNECTING PLUG (6-PIN) |
|
| |
|
|
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| |
163-6803 |
[3] |
PLUG-CONNECTOR (5-PIN) |
|
| |
167-3487 |
[3] |
WEDGE-PLUG LOCK (5-PIN) |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
