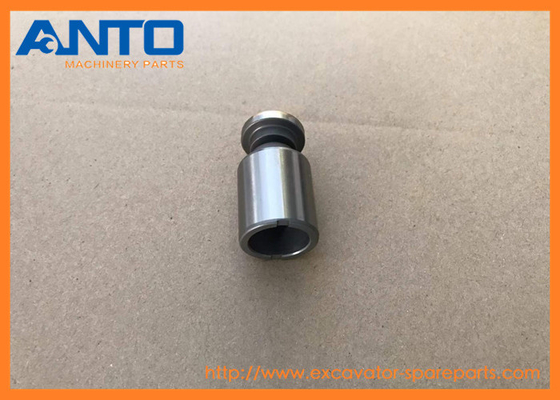

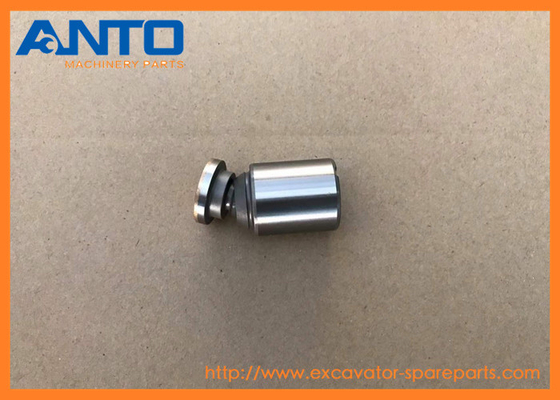

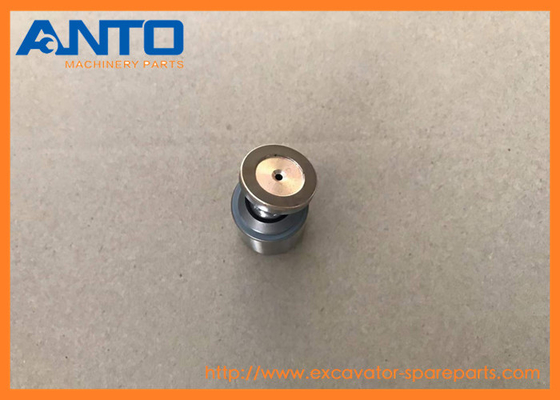

- 708-3S-14290 7083S14290 Piston Fitting For KOMATSU Excavator PC27MR PC30MR PC35MR
| Category |
Excavator Hydraulic Pump |
| Name |
Piston |
| Parts No |
708-3S-14290 7083S14290 |
| Machine Model |
PC27MR PC30MR PC35MR PC45MR PC490 PC55MR
|
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
BULLDOZERS D155AX D275A D31EX D31PX D375A D37EX D37PX D39EX D39PX D475A D475ASD D65EX D65PX D65WX
DUMP TRUCKS HM300 HM400
EXCAVATORS PC27MR PC30MR PC35MR PC45MR PC490 PC55MR
GRADERS GD755
WHEEL DOZERS WD600
WHEEL LOADERS WA380 WA430 WA470 WA480 WA500 WA600
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
708-1T-00552 |
[1] |
Pump Assembly Komatsu China |
|
| |
["SN: 3882-UP"] |$0. |
| |
708-1T-01552 |
[1] |
Pump Subassembly Komatsu China |
|
| |
["SN: 3882-UP", "SCC: C2"] |$1. |
| 1 |
708-1T-12171 |
[1] |
Shaft Komatsu China |
|
| |
["SN: 3001-UP", "SCC: C2"] |
| 2 |
708-3S-12210 |
[1] |
Bearing Komatsu |
0.4 kg. |
| |
["SN: 3001-UP", "SCC: C2"] |
| 3 |
708-21-12840 |
[1] |
Ring, Snap Komatsu China |
|
| |
["SN: 3001-UP", "SCC: C2"] |
| 4 |
708-3S-12140 |
[1] |
Holder Komatsu |
0.215 kg. |
| |
["SN: 3001-UP", "SCC: C2"] |
| 5 |
708-1S-12350 |
[1] |
O-ring Komatsu |
0.003 kg. |
| |
["SN: 3882-UP", "SCC: C2"] |
| 5 |
207-09-11140 |
[1] |
O-ring Komatsu |
0.002 kg. |
| |
["SN: 3001-3881", "SCC: C2"] |
| 6 |
708-7T-12330 |
[1] |
Seal, Oil Komatsu |
0.042 kg. |
| |
["SN: 3882-UP", "SCC: C2"] |
| 6 |
708-3S-12150 |
[1] |
Seal, Oil Komatsu |
0.02 kg. |
| |
["SN: 3001-3881", "SCC: C2"] |
| 7 |
04065-06220 |
[1] |
Ring, Snap Komatsu |
0.013 kg. |
| |
["SN: 3001-UP", "SCC: C2"] |
| 8 |
708-1T-13440 |
[1] |
Cylinder Block Komatsu China |
|
| |
["SN: 3882-UP", "SCC: C2"] |
| 8 |
708-1T-13610 |
[1] |
Cylinder Block Komatsu China |
|
| |
["SN: 3001-3881", "SCC: C2"] |
| 9 |
708-1T-13450 |
[1] |
Plate, Valve Komatsu China |
|
| |
["SN: 3882-UP", "SCC: C2"] |
| 9 |
708-1T-13620 |
[1] |
Plate, Valve Komatsu China |
|
| |
["SN: 3001-3881", "SCC: C2"] |
| 10 |
708-1T-13710 |
[2] |
Spacer Komatsu China |
|
| |
["SN: 3882-UP", "SCC: C2"] |
| 10 |
708-3S-13160 |
[2] |
Washer Komatsu China |
|
| |
["SN: 3001-3881", "SCC: C2"] |
| 11 |
708-3S-13430 |
[1] |
Spring Komatsu |
0.07 kg. |
| |
["SN: 3001-UP", "SCC: C2"] |
| 12 |
04065-03515 |
[1] |
Ring, Snap Komatsu |
0.003 kg. |
| |
["SN: 3001-UP", "SCC: C2"] |
| 13 |
708-1S-13370 |
[1] |
Guide, Retainer Komatsu |
0.045 kg. |
| |
["SN: 3882-UP", "SCC: C2"] analogs:["7083S13370", "R7081S13370"] |
| |
708-3S-13370 |
[1] |
Guide, Retainer Komatsu |
0.14 kg. |
| |
["SN: 3001-3881", "SCC: C2"] analogs:["7081S13370"] |$20. |
| 14 |
708-1S-13380 |
[3] |
Pin Komatsu |
0.06 kg. |
| |
["SN: 3001-UP", "SCC: C2"] |
| 15 |
708-1T-13670 |
[1] |
Retainer, Shoe Komatsu China |
|
| |
["SN: 3882-UP", "SCC: C2"] |
| 15 |
708-3S-13410 |
[1] |
Retainer, Shoe Komatsu |
0.24 kg. |
| |
["SN: 3001-3881", "SCC: C2"] |
| 16 |
708-1S-13520 |
[10] |
Piston Subassembly Komatsu |
0.09 kg. |
| |
["SN: 3001-UP", "SCC: C2"] |
| 17 |
708-3S-14240 |
[1] |
Plug Komatsu China |
|
| |
["SN: 3001-UP", "SCC: C2"] |
| 18 |
708-3S-14261 |
[1] |
Plug Komatsu China |
|
| |
["SN: 3001-UP", "SCC: C2"] |
| 19 |
07002-11223 |
[2] |
O-ring Komatsu China |
0.001 kg. |
| |
["SN: 3001-UP", "SCC: C2"] analogs:["0700201223"] |
| 20 |
708-3S-14290 |
[1] |
Piston Subassembly Komatsu |
0.087 kg. |
| |
["SN: 3882-UP", "SCC: C2"] analogs:["7081S14230", "7083S14250"] |
| 20 |
708-3S-14250 |
[1] |
Piston Subassembly Komatsu |
0.087 kg. |
| |
["SN: 3001-3881", "SCC: C2"] analogs:["7081S14230"] |
| 21 |
708-1S-14241 |
[1] |
Spring Komatsu |
0.01 kg. |
| |
["SN: 3001-UP", "SCC: C2"] |
- More other piston parts applied to KOMASTU equipment
| 708-8K-14141 PISTON |
| BR200S, PC250, PC300, PC300HD, PC310, PC400, PC400HD, PC410 |
| |
| 419-44-12510 PISTON |
| 512, 518, JT150, WA100, WA100M, WA100SS, WA100SSS, WA120, WA120L, WA150, WA180, WA180L, WA180PT, WA200, WA250, WA250L, WA250PT, WA300, WA320, WA50, WA70, WA80 |
| |
| MY781-8222-00 PISTON ASS'Y |
| FD20/25, FD20H/25H, FD30, FD30H, FG20/25, FG20H/25H, FG30, FG30H |
| |
| 423-33-11121 PISTON |
| WA350, WA380 |
| |
| YM729105-22951 PISTON RING ASS'Y,0.25MM (OS) |
| S3D84 |
| |
| 708-8H-14180 PISTON |
| CS360, CS360SD, PC150HD, PC150NHD, PC180, PC180L, PC200, PC210, PC220, PC240 |
| |
| 232-43-00110 PISTON ASS'Y |
| GD30, GD31, GD37 |
| |
| 568-15-12750 PISTON |
| HD680 |
| |
| 702-13-11440 PISTON |
| WS23S |
| |
| 175-15-42769 PISTON |
| D155A |
| |
| 232-43-00111 PISTON ASS'Y |
| GD28AC, GD30, GD300A, GD31, GD31RC, GD37, GD405A, GD500R, GD505A, GD600R, GD605A, GD655A, GS360 |
| |
| 234-43-00261 PISTON ASS'Y (KIT) |
| GD705R |
