342-3063 3423063 Wiring Harness Excavator Electric Parts For C9 336D 336DL

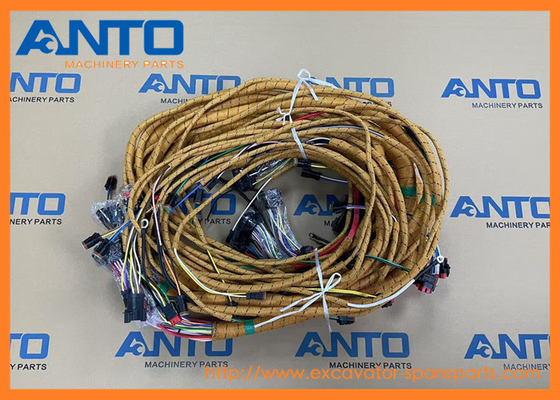

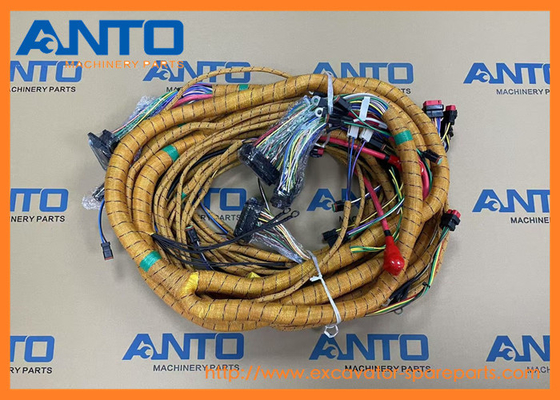

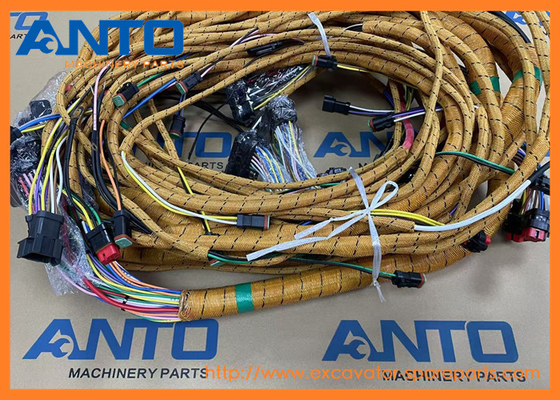

Large Image : 342-3063 3423063 Wiring Harness Excavator Electric Parts For C9 336D 336DL

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	342-3063 3423063

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Electric Part; Battery & Wiring	Machine Model:	336D 336D L 336D LN
Application:	Excavator	Product Name:	Wiring Harness
Part Number:	342-3063 3423063	Packing:	Standard Export Carton
Highlight:	336DL Wiring Harness , 336D Excavator Wiring Harness , 342-3063 Wiring Harness

342-3063 3423063 Wiring Harness Excavator Electric Parts Fitting For C9 336D 336DL

Specification

Name	Wiring Harness
Parts No	342-3063 3423063
Machine Model	336D 336D L 336D LN
Category	Electric Part
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

Compatible models

EXCAVATOR 336D 336D L 336D LN C.at.erp.illar.

More other harness parts fit for C A T machine

2594887 HARNESS AS-WIRING

311D LRR, 312D, 312D L, 312D2, 312D2 L, 313D2 LGP, 315D L, 318D2 L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D L, 320D LN, 320D2, 320D2 L, 323D L, 323D LN, 323D SA, 324D, 324D FM, 324D FM LL, 324D L, ...

4190841 HARNESS AS-ENGINE

140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 5...

2358202 HARNESS AS-ENGINE

160M, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 511, 521, 522, 532, 541, 551, 552, 627G, 637D, 637E, 637G, 814F II, 815F II, 816F II, 973D, C9, CX31...

2153249 HARNESS AS-ENGINE

12H, 140M, 140M 2, 160M, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 340D L, 511, 521, 521B, 522, 522B, 532, 541, 541 ...

3239140 HARNESS AS-ENGINE

140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, ...

3669313 HARNESS AS-SENSOR

311D LRR, 311F LRR, 312D, 312D L, 312D2, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA, 324D, 324D L, 324D LN, 325D,...

2510580 HARNESS AS-CONSOLE

311D LRR, 311F LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 315D L, 318D L, 318D2 L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D ...

3366095 HARNESS AS-LIGHTING

312D, 312D L, 315D L, 319D LN, 320D, 320D L, 320D LRR, 320D RR, 323D LN, 323D SA, 324D L, 329D, 329D LN, 336D LN, 345D L, 345D L VG

2457821 HARNESS AS-HEATER & AIR COND

320D L, 323D L, 324D, 324D L, 324D LN, 325D, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 345C

Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	2G-8767	[2]	WASHER (10.5X60X3-MM THK)
2	3S-2093	[42]	STRAP-CABLE
3	4N-0205	[1]	SPACER (0.42X0.75X0.6-IN THK)
4	5I-8270	[1]	COVER-BATTERY
5	6G-2256	[2]	CLAMP
6	6G-2263	[2]	SPACER (10.5X19X28.5-MM THK)
7	6W-6005	[1]	HOLD-DOWN-BATTERY
8	7I-2673	[5]	STRAP-CABLE
9	7K-1181	[21]	STRAP-CABLE
10	7Y-8165	[2]	GROMMET
11	087-4587	[1]	GROMMET
12	091-9035	[1]	SPACER (11X25X20-MM THK)
13	107-8618	[1]	SENSOR GP-TEMPERATURE (AMBIENT)
	102-8803	[1]	KIT-RECEPTACLE (3-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
	8T-8729	[3]	PIN-CONNECTOR (16-GA TO 18-GA)
	112-4550 E		SLEEVE (31-CM)
14	111-4836	[9]	CLIP
15	111-4837	[11]	CLIP
16	111-4838	[17]	CLIP
17	111-4839	[16]	STRAP
18	116-0118	[14]	CLIP
19	128-8886	[1]	STRAP AS-GROUND
20	130-1433	[1]	SPACER (11X25X17-MM THK)
21	134-3344	[1]	STRAP AS
22	204-2281	[1]	STRAP-CABLE
23	170-6929	[1]	CABLE AS
	5P-0761 E		CABLE (00-GA, RED)(31-CM)
	9G-0002	[1]	COVER AS-TERMINAL (RED)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	9G-0005	[1]	COVER AS-TERMINAL (BLACK)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8C-5918	[1]	TERMINAL AS-BATTERY (NEGATIVE)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
	8T-9756	[1]	TERMINAL AS-BATTERY (POSITIVE)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
24	204-1611	[1]	STRAP (DUAL)
25	204-1673	[2]	STRAP-CABLE
26	238-2501	[1]	KNOB
27	238-2528	[1]	ROD
28	251-0153	[1]	BRACKET AS
29	259-5127	[1]	CABLE AS
	1S-7251	[2]	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)
	5P-0761 E		CABLE (00-GA, RED)(365-CM)
	8N-0869	[1]	COVER-TERMINAL (RED)(STARTING MOTOR)
	301-0091	[1]	COVER-TERMINAL (RED)(JUNCTION BLOCK)
30	259-5128	[1]	CABLE AS
	1S-7251	[1]	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)
	5P-0761 E		CABLE (00-GA, RED)(44-CM)
	9G-0004	[1]	COVER AS-TERMINAL (RED)(BATTERY)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8C-5917	[1]	TERMINAL AS-BATTERY (POSITIVE)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
	301-0091	[1]	COVER-TERMINAL (RED)(JUNCTION BLOCK)
31	259-5130	[1]	BRACKET AS
32	259-5132	[1]	BRACKET AS
33	259-5206	[1]	BRACKET AS
34	263-9574	[2]	BATTERY (12-VOLT, MAINTENANCE FREE)
35	291-7780	[1]	BRACKET AS
36	306-8526	[1]	GROMMET
37	306-8803	[1]	BRACKET AS
38	336-6305	[1]	BRACKET AS
39	336-6307	[1]	BRACKET AS
40	336-6309	[2]	GROMMET
41	342-3063	[1]	HARNESS AS-CHASSIS
	102-8802	[4]	KIT-RECEPTACLE (2-PIN)
	102-8803	[3]	KIT-RECEPTACLE (3-PIN)
	102-8804	[1]	KIT-RECEPTACLE (4-PIN)
	102-8806	[1]	KIT-RECEPTACLE (8-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
	8T-8729	[8]	PIN-CONNECTOR (16-GA TO 18-GA)
	8T-8730	[54]	SOCKET-CONNECTOR (16-GA TO 18-GA)
	3S-2093	[32]	STRAP-CABLE
	3T-4688	[1]	TERMINAL-RING (4-GA, 7/16-IN SCREW)
	9X-0196	[2]	TERMINAL AS (16-GA)
	7Y-3962	[1]	TERMINAL-BULLET (MALE)(MALE)
	7Y-3963	[1]	TERMINAL-BULLET (FEMALE)(FEMALE)
	8N-1547	[1]	SOCKET-CONNECTOR (6-GA)
	8T-8737	[167]	PLUG-SEAL
	8T-8827	[2]	BOOT (RED)
	110-8769	[1]	WIRE AS (16-GA)
	103-2529 E		HOSE (80-CM)
	9W-0852	[17]	PIN-CONNECTOR (14-GA TO 16-GA)
	9W-0844	[13]	SOCKET-CONNECTOR (14-GA TO 16-GA)
	116-0126	[1]	HOUSING-PLUG
	116-0128	[2]	SEAL
	116-0255	[2]	TERMINAL-BLADE (10-GA TO 20-GA)(FEMALE)
	119-3662 BE		TUBE-HEAT SHRINK (10.85-MM DIA)
	121-1038	[1]	HOUSING-RECEPTACLE
	121-1039	[1]	TERMINAL (MALE)
	125-7874 BE		TUBE-HEAT SHRINK (5.72-MM DIA)
	125-7875 BE		TUBE-HEAT SHRINK (7.44-MM DIA)
	9X-3402	[120]	SOCKET-CONNECTOR (16-GA TO 18-GA)
			-OR-
	126-1768	[120]	SOCKET-CONNECTOR (14-GA TO 16-GA)
	126-1768	[10]	SOCKET-CONNECTOR (14-GA TO 16-GA)
	127-5483	[1]	PLUG AS-CONNECTOR (1-PIN)
	9G-4343	[3]	TERMINAL-RING (4-GA, 1/4-IN SCREW)
	5P-3454	[1]	TERMINAL-RING (4-GA, 5/16-IN SCREW)
	9G-4336	[1]	TERMINAL-RING (4-GA, 3/8-IN SCREW)
	2L-8049	[1]	TERMINAL-RING (6-GA, NO. 10 SCREW)
			-OR-
	2L-8057	[1]	TERMINAL-RING (8-GA, NO. 10 SCREW)
	2L-8050	[2]	TERMINAL-RING (6-GA, 1/4-IN SCREW)
			-OR-
	2L-8058	[2]	TERMINAL-RING (8-GA, 1/4-IN SCREW)
	2L-8069	[7]	TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)
	2L-8075	[4]	TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)
	2L-8079	[1]	TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)
	134-3297	[1]	SEAL
	9X-3401	[58]	PIN-CONNECTOR (16-GA TO 18-GA)
	176-9299	[2]	KIT-RECEPTACLE (3-PIN)
			(EACH INCLUDES RECEPTACLE AS & WEDGE)
	153-2620	[1]	PLUG AS-CONNECTOR (54-PIN, BLACK)
	163-6759	[1]	SEAL
	153-2630	[1]	PLUG AS-CONNECTOR (54-PIN, BROWN)
	163-6759	[1]	SEAL
	155-2260	[2]	KIT-CONNECTING PLUG (3-PIN)
	155-2270	[20]	KIT-CONNECTING PLUG (2-PIN)
	155-2271	[1]	KIT-CONNECTING PLUG (4-PIN)
			(EACH PLUG KIT INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL)
	160-7689	[1]	PLUG AS-CONNECTOR (70-PIN)
	159-9322	[1]	SEAL-O-RING
	163-6637	[1]	RECEPTACLE AS-CONNECTOR (54-PIN, BLACK)
	174-3016	[2]	PLUG AS-CONNECTOR (3-PIN)
	197-4385	[1]	DIODE
	230-4009	[2]	PLUG AS-CONNECTOR (12-PIN)
			(EACH INCLUDES)
	264-7034	[1]	SEAL-CONNECTOR
	230-4011	[8]	PLUG AS-CONNECTOR (2-PIN)
			(EACH INCLUDES)
	264-7029	[1]	SEAL-CONNECTOR
	230-4013	[4]	PLUG AS-CONNECTOR (3-PIN)
			(EACH INCLUDES)
	264-7030	[1]	SEAL-CONNECTOR
	230-5010	[2]	PLUG AS-CONNECTOR (6-PIN)
			(EACH INCLUDES)
	264-7032	[1]	SEAL-CONNECTOR
	231-2295	[1]	PLUG AS-CONNECTOR (8-PIN)
	264-7033	[1]	SEAL-CONNECTOR
	243-4505	[7]	RECEPTACLE AS-CONNECTOR (2-PIN)
	243-4506	[2]	RECEPTACLE AS-CONNECTOR (3-PIN)
	243-4508	[2]	RECEPTACLE AS-CONNECTOR (6-PIN)
	243-4509	[1]	RECEPTACLE AS-CONNECTOR (8-PIN)
	243-4510	[2]	RECEPTACLE AS-CONNECTOR (12-PIN)
42	342-3064	[1]	CABLE AS
	1S-7251	[1]	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)
	030-1706	[1]	TERMINAL-RING (00-GA, 1/4-IN SCREW)
	159-8049 E		CABLE (00-GA, RED)(129-CM)
	301-0091	[2]	COVER-TERMINAL (RED)
43	342-3065	[1]	CABLE AS
	1S-7252	[1]	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
	9G-0003	[1]	COVER AS-TERMINAL (BLACK)(BATTERY)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	9G-8909	[1]	COVER-TERMINAL (BLACK)(DISCONNECT SWITCH)
	8T-9757	[1]	TERMINAL AS-BATTERY (NEGATIVE)
	159-8050 E		CABLE (00-GA, BLACK)(31-CM)
44	132-5789	[9]	CLIP (LADDER)
45	148-5018	[1]	GROMMET
46	4K-8864	[2]	CLIP (LOOP)
47	4P-7428	[2]	CLIP (LADDER)
48	5C-7261 M	[1]	NUT (M8X1.25-THD)
49	5C-7883 M	[4]	BOLT-SOCKET HEAD (M6X1X16-MM)
50	5I-8748	[1]	SPACER (11X18X5-MM THK)
51	5P-4116	[2]	WASHER-HARD (8.8X20.5X2-MM THK)
52	5P-8439	[1]	GROMMET
53	6K-8178	[6]	CLIP (LOOP)
54	7X-2548 M	[1]	BOLT (M12X1.75X16-MM)
55	7X-2621 M	[5]	BOLT (M10X1.5X12-MM)
56	350-8388	[1]	SPACER (11X25X65-MM THK)
57	8M-2770	[1]	CLIP (LOOP)
58	8T-1889	[1]	CLIP (SLOT)
59	8T-1890	[1]	CLIP (TAB)
60	8T-4121	[69]	WASHER-HARD (11X21X2.5-MM THK)
61	8T-4133 M	[1]	NUT (M10X1.5-THD)
62	8T-4136 M	[18]	BOLT (M10X1.5X25-MM)
63	8T-4137 M	[20]	BOLT (M10X1.5X20-MM)
64	8T-4172 M	[1]	BOLT (M10X1.5X80-MM)
65	8T-4182 M	[1]	BOLT (M10X1.5X45-MM)
66	8T-4191 M	[11]	BOLT (M10X1.5X16-MM)
67	8T-4195 M	[4]	BOLT (M10X1.5X30-MM)
68	8T-4196 M	[7]	BOLT (M10X1.5X35-MM)
69	8T-4199 M	[1]	BOLT (M8X1.25X12-MM)
70	8T-4223	[1]	WASHER-HARD (13.5X25.5X3-MM THK)
71	8T-4226	[1]	WASHER-PLATED (10.5X45X3-MM THK)
72	8T-5005 M	[1]	BOLT (M10X1.5X70-MM)
73	8T-6466 M	[1]	BOLT (M10X1.5X60-MM)
74	9W-0742 Y	[1]	BLOCK GP-JUNCTION (BATTERY)
75	9X-8256	[4]	WASHER (6.6X12X2-MM THK)
	B		USE AS REQUIRED
	E		ORDER BY THE CENTIMETER
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

342-3063 3423063 Wiring Harness Excavator Electric Parts For C9 336D 336DL 0

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

Tag:

Contact Person: Mr. Paul

Tel: 0086-15920526889

Fax: +86-20-89855265

Other Products

6261-81-2600 6261812600 Temperature Sensor Excavator Electric Parts For KOMATSU PC118MR

Model number: PC118MR PC200 PC200LL PC220 PC220LL PC240 PC270 PC290 PC300 PC300HD PC350 PC350HD PC360 PC390 PC390LL PC400 PC450 PC490 PC88MR PW118MR PW98MR

Product name: Temperature Sensor

Part number: 6261-81-2600 6261812600

Transportation: By sea/air By express

6261-81-2901 6261812901 Position Sensor Excavator Electric Parts For KOMATSU PC118MR

Model number: PC118MR PC300LL PC350LL PC400 PC88MR PW118MR

Product name: Position Sensor

Part number: 6261-81-2901 6261812901

Transportation: By sea/air By express

6261-81-2901 6261812901 Position Sensor Excavator Electric Parts For KOMATSU PC118MR

Model number: PC118MR PC300LL PC350LL PC400 PC88MR PW118MR

Product name: Position Sensor

Part number: 6261-81-2901 6261812901

Transportation: By sea/air By express

6261-81-2710 6261812710 Pressure Sensor Excavator Electric Parts For KOMATSU PC400 PC450

Model number: PC400 PC450

Product name: Pressure Sensor

Part number: 6261-81-2710 6261812710

Transportation: By sea/air By express

21Q6-10501 Wiring Harness HYUNDAI Excavator Spare Parts For R210LC-9 R250LC-9

Category: Bottom Electric

Machine model: R210LC-9 R250LC-9 R290LC-9 R320LC-9

Application: Excavator

Product name: Wiring Harness

342-3063 3423063 Wiring Harness Excavator Electric Parts For C9 336D 336DL

342-3063 3423063 Wiring Harness Excavator Electric Parts For C9 336D 336DL

336DL Wiring Harness

336D Excavator Wiring Harness

342-3063 Wiring Harness

excavator spare parts,

excavator replacement parts,

excavator accessories
