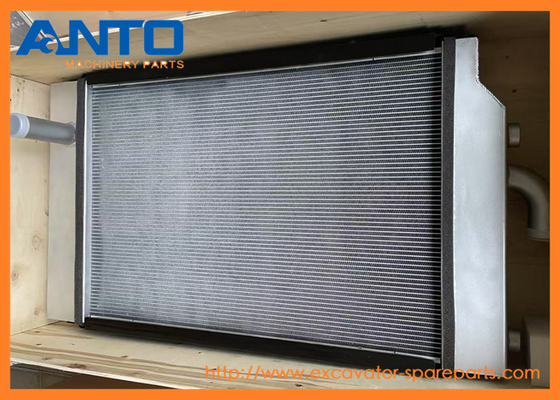

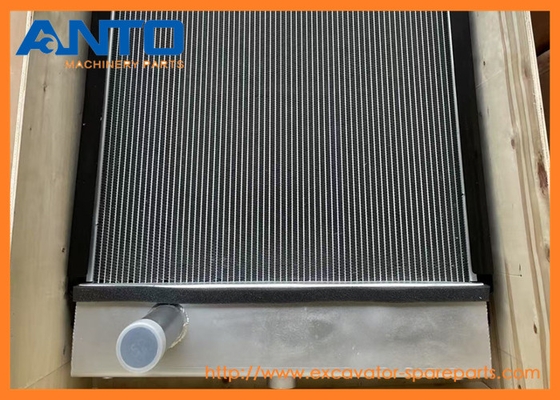

- 225-3317 2253317 Radiator Core Wheel Loader Spare Parts Fitting For 938G II
| Name |
Radiator Core |
| Parts No |
225-3317 2253317 |
| Machene Model |
938G II |
| Category |
Radiator & Fan |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
INTEGRATED TOOLCARRIER IT38G II
WHEEL LOADER 938G II Cate.rpillar.
- More other radiator core parts fit for C A T machine
| 2674743 CORE AS-ENGINE OIL COOLER |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 12K, 12M, 135H, 135H NA, 140G, 140K, 140K 2, 140M, 160K, 30/30, 3116, 3126, 3126B, 3126E, 320 L, 320B, 322B L, 322B LN, 322C, 322C FM, 324D, 324D FM, 324D FM LL, ... |
| |
| 1252871 CORE AS-POWER TRAIN OIL COOLER |
| 545, 938G, 938G II, 950G, 950G II, 962G, 962G II, IT38G, IT38G II, IT62G II, R1300G II |
| |
| 1515711 CORE AS-AXLE OIL COOLER |
| 938G, 938G II, 938H, 950G, 950G II, 950H, 962G, 962G II, IT38G, IT38G II, IT38H, IT62G, IT62G II |
| |
| 1252873 CORE AS-CONDENSER |
| 938G, 938G II, 950G, 950G II, 962G, 962G II, 980G, IT38G, IT38G II, IT62G, IT62G II, MH3037 |
| |
| 2021328 CORE AS-HYDRAULIC OIL COOLER |
| 938G II, 950G II, 962G II, IT62G II |
| |
| 1890224 CORE AS-HYDRAULIC OIL COOLER |
| 938G II, IT38G II |
| |
| 2281034 CORE AS-RADIATOR |
| 938G II |
| |
| 2281035 CORE AS-HYDRAULIC OIL COOLER |
| 938G II |
| |
| 6F3930 CORE-VALVE |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| |
| 2057730 CORE AS-RADIATOR |
| 938G II |
| |
| 2245895 CORE AS-RADIATOR |
| 938G II, IT38G II |
| |
| 3255781 CORE AS-RADIATOR |
| 938G II, IT38G II |
| |
| 2057730 CORE AS-RADIATOR |
| 938G II |
| |
| 2348945 CORE AS-HYDRAULIC OIL COOLER |
| 631G, 637G, D8R, D8R II, D9N |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
3R-8530 |
[4] |
BOSS |
|
| 2 |
4E-1384 |
[1] |
BUMPER-CONICAL |
|
| 3 |
5V-8780 |
[1] |
KNOB |
|
| 4 |
8T-2893 |
[2] |
LOCK GP-CYLINDER |
|
| |
|
|
(EACH INCLUDES) |
|
| |
226-0291 |
[1] |
LOCK AS |
|
| |
226-0321 |
[1] |
CAM |
|
| 5 |
9L-8781 |
[3] |
WASHER (0.406X1.5X0.188-IN THK) |
|
| 6 |
112-5345 |
[1] |
LATCH AS-DOOR |
|
| 7 |
121-3307 |
[2] |
MOUNT AS-RESILIENT |
|
| |
|
|
(EACH INCLUDES) |
|
| |
8T-4226 |
[1] |
WASHER-PLATED (10.5X45X3-MM THK) |
|
| 8 |
137-4238 |
[1] |
ADAPTER |
|
| 9 |
164-4413 |
[3] |
MOUNT |
|
| 10 |
176-0326 |
[1] |
HINGE AS |
|
| 11 |
184-0846 |
[1] |
DEFLECTOR |
|
| 12 |
186-0116 |
[1] |
SPIDER AS-FAN (8-BLADE) |
|
| 13 |
219-0306 |
[1] |
AFTERCOOLER AS |
|
| 14 |
187-4007 |
[1] |
BRACKET AS |
|
| 15 |
188-5039 |
[1] |
BAFFLE AS |
|
| |
174-5807 |
[7] |
RIVET-POP |
|
| 16 |
188-8950 |
[1] |
BRACKET AS |
|
| |
6V-9632 M |
[4] |
NUT-WELD (M6X1-THD) |
|
| |
8T-3490 M |
[1] |
NUT-WELD (M10X1.5-THD) |
|
| 17 |
189-0224 |
[1] |
CORE AS-HYDRAULIC OIL COOLER |
|
| 18 |
189-5594 |
[2] |
COVER AS |
|
| |
|
|
(EACH INCLUDES) |
|
| |
194-5278 |
[1] |
HINGE |
|
| 19 |
189-6654 |
[1] |
ANGLE AS |
|
| |
8T-3490 M |
[6] |
NUT-WELD (M10X1.5-THD) |
|
| 20 |
189-6656 |
[1] |
SUPPORT AS |
|
| |
8T-3490 M |
[2] |
NUT-WELD (M10X1.5-THD) |
|
| 21 |
189-6657 |
[1] |
ANGLE AS |
|
| |
8T-3490 M |
[4] |
NUT-WELD (M10X1.5-THD) |
|
| 22 |
189-6658 |
[1] |
SUPPORT AS (LH) |
|
| |
6V-9632 M |
[2] |
NUT-WELD (M6X1-THD) |
|
| |
8T-3490 M |
[11] |
NUT-WELD (M10X1.5-THD) |
|
| |
8T-3612 M |
[2] |
NUT-WELD (M8X1.25-THD) |
|
| |
192-7979 M |
[1] |
STUD-WELD |
|
| 23 |
189-6659 |
[1] |
SUPPORT AS (RH) |
|
| |
6V-9632 M |
[2] |
NUT-WELD (M6X1-THD) |
|
| |
8T-3490 M |
[13] |
NUT-WELD (M10X1.5-THD) |
|
| 24 |
190-1125 |
[1] |
GROMMET |
|
| 25 |
191-1932 Y |
[1] |
GUARD GP-FAN |
|
| 26 |
191-2943 Y |
[1] |
MOTOR GP-GEAR (HYDRAULIC FAN) |
|
| 27 |
195-0349 |
[1] |
SHROUD AS |
|
| 28 |
199-3755 |
[1] |
HANDLE |
|
| 29 |
201-7947 |
[1] |
BAFFLE |
|
| 30 |
204-0826 |
[1] |
BAFFLE AS |
|
| |
174-5807 |
[6] |
RIVET-POP |
|
| 31 |
204-0827 |
[1] |
BAFFLE AS |
|
| |
174-5807 |
[6] |
RIVET-POP |
|
| 32 |
204-7961 |
[1] |
PLATE |
|
| 33 |
204-9877 |
[2] |
BAFFLE |
|
| 34 |
205-5465 |
[1] |
PLATE AS |
|
| |
8T-3490 M |
[4] |
NUT-WELD (M10X1.5-THD) |
|
| 35 |
225-3317 |
[1] |
CORE AS-RADIATOR |
|
| 36 |
215-5612 |
[1] |
BAFFLE AS |
|
| |
174-5807 |
[5] |
RIVET-POP |
|
| 37 |
5C-7261 M |
[1] |
NUT (M8X1.25-THD) |
|
| 38 |
5C-9553 M |
[4] |
BOLT (M6X1X16-MM) |
|
| 39 |
5I-3878 |
[1] |
GROMMET (50-MM ID) |
|
| 40 |
5P-1076 |
[10] |
WASHER-HARD (13.5X30X4-MM THK) |
|
| 41 |
7X-0515 |
[1] |
WASHER-HARD (17X35X5-MM THK) |
|
| 42 |
7X-2553 M |
[2] |
BOLT (M16X2X40-MM) |
|
| 43 |
7X-2554 M |
[4] |
BOLT (M16X2X70-MM) |
|
| 44 |
7X-7729 |
[68] |
WASHER (11X25X3-MM THK) |
|
| 45 |
8T-4132 M |
[1] |
NUT (M16X2-THD) |
|
| 46 |
8T-4133 M |
[8] |
NUT (M10X1.5-THD) |
|
| 47 |
8T-4137 M |
[4] |
BOLT (M10X1.5X20-MM) |
|
| 48 |
8T-4195 M |
[43] |
BOLT (M10X1.5X30-MM) |
|
| 49 |
8T-4196 M |
[11] |
BOLT (M10X1.5X35-MM) |
|
| 50 |
8T-4226 |
[2] |
WASHER-PLATED (10.5X45X3-MM THK) |
|
| 51 |
8T-4956 M |
[2] |
BOLT (M12X1.75X35-MM) |
|
| 52 |
8T-4971 M |
[8] |
BOLT (M6X1X30-MM) |
|
| 53 |
8T-6466 M |
[2] |
BOLT (M10X1.5X60-MM) |
|
| 54 |
9X-8256 |
[12] |
WASHER (6.6X12X2-MM THK) |
|
| 55 |
9X-8257 |
[6] |
WASHER (17.5X30X3.5-MM THK) |
|
| 57 |
3E-8349 E |
|
SEAL (90CM) |
|
| 58 |
8T-4139 M |
[8] |
BOLT (M12X1.75X30-MM) |
|
| |
E |
|
ORDER BY THE CENTIMETER |
|
| |
M |
|
METRIC PART |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
