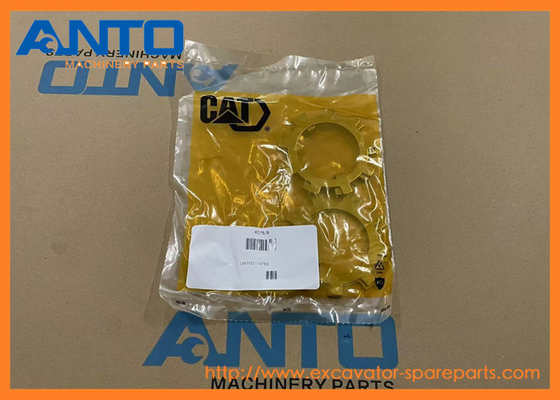

- 4D-7536 4D7536 Lock Washer Tractor Spare Parts Fitting For 3508B 776D
| Name |
Thrust Washer |
| Parts No |
4D-7536 4D7536 |
| Machine Model |
768C 772 772B 776C 776D 784B 784C |
| Category |
Differential GP |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
MOTOR GRADER 24H 24M
QUARRY TRUCK 771C 771D 775B 775D
TRACTOR 768C 772 772B 776C 776D 784B 784C
TRUCK 69D 769C 769D 770 770G 770G OEM 772 772G 772G OEM 773B 773D 773E 773F 773G 773G LRC 773G OEM 775D 775E 775F 775G 775G LRC 775G OEM 777 777B 777D 777F 777G 785 785B 785C 785D 789 789B 789C 789D 793 793B 793C 793D 793F 793F CMD 793F OEM 793F XQ 797B 797F
WHEEL DOZER 834 844 844H 844K 854G 854K
WHEEL LOADER 990 990 II 990H 990K 992C 992D 992G 992K 994 994D 994F 994H
WHEEL TRACTOR 631C 631E 631G 633C 633E II 637D 637E 637G 641B 650B 651E 657E 657G C.ater.pillar.
- More other washer parts fit for C A T machine
| 8X7650 WASHER |
| 24H, 773B, 773D, 773E, 775B, 775D, 775E |
| |
| 9M1608 WASHER |
| 69D, 768B, 768C, 769, 769C, 769D, 770, 771C, 771D, 772, 773, 773B, 773D, 773E, 773F, 773G, 773G LRC, 773G OEM, 775B, 775D, 775E, 775F, 775G, 775G LRC, 775G OEM, AD40, AD45, AD45B, AD55, AD55B, AD60, A... |
| |
| 7D7488 WASHER-THRUST |
| 69D, 769, 769C, 769D, 770, 770G, 770G OEM, 771C, 771D, 772, 772B, 772G, 772G OEM, 773, 773B, 773D, 773E, 773F, 773G, 773G LRC, 775B, 775D, 775E, 775F, 775G, 775G LRC, AD30, AD40, AD45, AD45B, AD55, AD... |
| |
| 2820882 WASHER-HARD |
| 120K, 120K 2, 120M, 120M 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 16H NA, 777F, 777G |
| |
| 8D3899 WASHER |
| 772, 773B |
| |
| 6D2658 WASHER |
| 631C, 631E, 631G, 633C, 633E II, 637, 637D, 637E, 637G, 641B, 650B, 651E, 657B, 657E, 657G |
| |
| 6D8514 WASHER |
| 631C, 631E, 631G, 633C, 633E II, 637, 637D, 637E, 637G, 641B, 650B, 651E, 657B, 657E, 657G |
| |
| 6G7437 WASHER |
| 631E, 633E II, 637E, 651E, 657E |
| |
| 9D2373 WASHER |
| 641B, 650B, 651E, 657B, 657E |
| |
| 5M1726 LOCK |
| 641B, 777, 824, 824B, 988 |
| |
| 8S2719 LOCK |
| 641B, 650B, 657B, 772, 773, 992 |
| |
| 2M3341 LOCK |
| 16, 651, 657, 666, 768B, 769, 772, 773 |
| |
| 8M7159 LOCK |
| 824, 824B, 825B, 834, 988, 992 |
| |
| 9M2126 LOCK |
| 16, 769, 772, 824B, 825B, 834, 988, 992 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
5T-5184 |
[2] |
GEAR (20 TEETH) |
|
| 2 |
7I-5876 C |
[2] |
WASHER-THRUST (3.71-MM THK) |
|
| 3 |
4D-7536 |
[4] |
LOCKNUT |
|
| 4 |
8T-0674 M |
[8] |
BOLT (M24X3X180-MM) |
|
| 5 |
5T-5185 |
[4] |
PINION (16-TEETH) |
|
| 6 |
5T-5223 |
[1] |
SPIDER |
|
| 7 |
4D-7541 |
[4] |
RETAINER |
|
| 8 |
107-2958 |
[4] |
NUT (2-1/8-12-THD) |
|
| 9 |
6V-8237 |
[8] |
WASHER (26X44X4-MM THK) |
|
| 10 |
4D-7534 |
[4] |
BEARING AS-ROLLER |
|
| 11 |
130-6445 C |
[1] |
HOUSING AS-DIFFERENTIAL |
|
| 12 |
8W-9487 |
[4] |
DOWEL (25X6.2-MM OD) |
|
| 13 |
6K-1984 |
[2] |
DOWEL |
|
| 14 |
2H-1190 |
[2] |
DOWEL |
|
| 15 |
123-8502 C |
[1] |
HOUSING AS-DIFFERENTIAL |
|
| 16 |
6K-1984 |
[2] |
DOWEL |
|
| |
C |
|
CHANGE FROM PREVIOUS TYPE |
|
| |
M |
|
METRIC PART |
|
| |
R |
|
REMANUFACTURED PART MAY BE AVAILABLE |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
