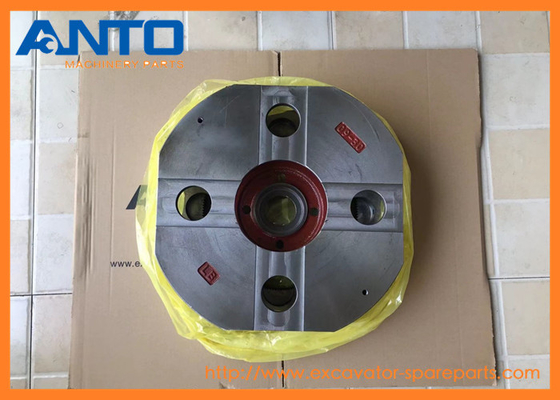

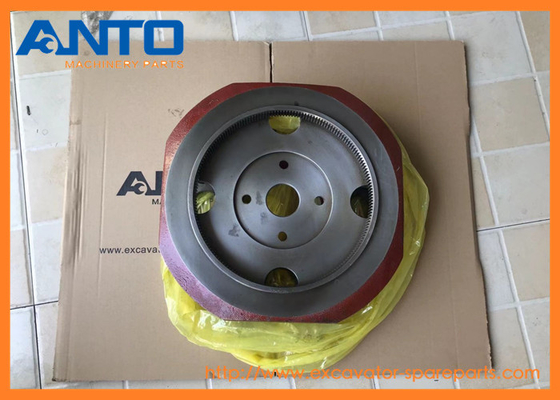

2082771170 208-27-71170 Carrier Support For KOMATSU PC270LL PC300 PC300HD PC300LL

• 2082771170 208-27-71170 Carrier Support For KOMATSU PC270LL PC300 PC300HD PC300LL

• ​Specification

• Compatible models

EXCAVATORS PC270LL PC300 PC300HD PC300LL PC350HD PC350LL PC390 PC390LL PC400 PC450 PC490 PC550

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	208-27-00311	[2]	Final Drive Assembly Komatsu	750 kg.
			["SN: 70724-70787"] analogs:["2082700242", "2082700241", "2082700240", "2082700243", "2082700312"] |$0.
	208-27-00243	[2]	Final Drive Assembly Komatsu	750 kg.
			["SN: 70001-70723", "SCC: A2"] analogs:["2082700242", "2082700241", "2082700240", "2082700312", "2082700311"] |$1.
	208-27-00210	[1]	Seal Ring Assembly Komatsu OEM	3.46 kg.
			["SN: 70001-@"] |$2.
2	425-33-11650	[2]	O-ring Komatsu	0.18 kg.
			["SN: 70001-@"]
3.	208-27-71151	[1]	Gear Komatsu OEM	260 kg.
			["SN: 70001-@"] analogs:["2082771150"]
4.	208-27-71210	[2]	Bearing Komatsu OEM	9.44 kg.
			["SN: 70001-@"]
5.	208-27-71310	[1]	Collar Komatsu	2.26 kg.
			["SN: 70001-@"]
6.	208-27-71270	[1]	Lock Komatsu	0.05 kg.
			["SN: 70001-@"]
7.	208-27-71260	[1]	Lock Komatsu	7.17 kg.
			["SN: 70001-@"]
8.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 70001-@"] analogs:["801014093", "0101051020", "801015108"]
9.	208-27-71170	[1]	Carrier Komatsu OEM	55 kg.
			["SN: 70001-@"]
10.	208-27-71140	[4]	Gear Komatsu OEM	11.85 kg.
			["SN: 70001-@"]
11.	208-27-71230	[4]	Bearing Komatsu OEM	0.64 kg.
			["SN: 70001-@"]
12.	21M-27-11260	[8]	Washer, Thrust Komatsu OEM	0.24 kg.
			["SN: 70001-@"]
13.	208-27-71250	[4]	Pin Komatsu OEM	2.16 kg.
			["SN: 70001-@"]
14.	20Y-27-21290	[4]	Pin Komatsu OEM	0.03 kg.
			["SN: 70001-@"]
15.	207-27-52270	[1]	Spacer Komatsu OEM	0.089 kg.
			["SN: 70001-@"]
16.	208-27-71130	[1]	Gear Komatsu OEM	4.1 kg.
			["SN: 70001-@"]
17.	208-27-71290	[1]	Spacer Komatsu OEM	0.4 kg.
			["SN: 70001-@"]
18.	208-27-71160	[1]	Carrier Komatsu OEM	15.4 kg.
			["SN: 70001-@"]
19.	208-27-71120	[3]	Gear Komatsu OEM	15.3 kg.
			["SN: 70001-@"]
20.	208-27-71220	[3]	Bearing Komatsu OEM	0.22 kg.
			["SN: 70001-@"]
21.	20Y-27-21250	[6]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 70001-@"]
22.	21M-27-11240	[3]	Pin Komatsu OEM	1.17 kg.
			["SN: 70001-@"]
23.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 70001-@"]
24.	208-27-71112	[1]	Shaft Komatsu OEM	2.7 kg.
			["SN: 70001-@"] analogs:["2082771111"]
25.	20Y-27-11250	[1]	Spacer Komatsu OEM	0.044 kg.
			["SN: 70001-@"] analogs:["2052771570"]
26.	04260-01905	[1]	Ball Komatsu OEM	0.029 kg.
			["SN: 70001-@"]
27.	208-27-71183	[1]	Cover Komatsu	43 kg.
			["SN: 70001-70723"] analogs:["2082771182"]
28.	01010-81235	[16]	Bolt Komatsu	0.048 kg.
			["SN: 70001-@"] analogs:["0101051235", "01010E1235", "801015136"]
29.	01643-31232	[16]	Washer Komatsu	0.027 kg.
			["SN: 70001-@"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
30.	07049-01215	[2]	Plug Komatsu	0.001 kg.
			["SN: 70001-@"]
31.	20Y-27-31190	[3]	Plug Komatsu	0.07 kg.
			["SN: 70001-@"]
32.	07002-12434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 70001-@"] analogs:["0700202434", "0700213434"]
33.	208-27-61210	[1]	Sprocket Komatsu China	60 kg.
			["SN: 70001-@"]
34.	207-27-51311	[26]	Bolt Komatsu China	0.222 kg.
			["SN: 70001-@"] analogs:["2072751310", "20727K1120", "20727K1130"]
35	01011-82000	[48]	Bolt Komatsu	0.31 kg.
			["SN: 70001-@"] analogs:["0101162000", "801015657"]
36	01643-32060	[48]	Washer Komatsu China	0.044 kg.
			["SN: 70001-@"] analogs:["802170007", "0164322045", "0164302045"]
37	208-30-71241	[2]	Cover Komatsu	25.81 kg.
			["SN: 70001-@"]
38	01010-81640	[12]	Bolt Komatsu	0.264 kg.
			["SN: 70001-@"] analogs:["0101061640", "801015186", "0101031640", "0101051640"]
39	01643-31645	[12]	Washer Komatsu	0.072 kg.
			["SN: 70001-@"] analogs:["802170005", "0164301645"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
