| Application |
C A T excavator air conditioner parts |
| Name |

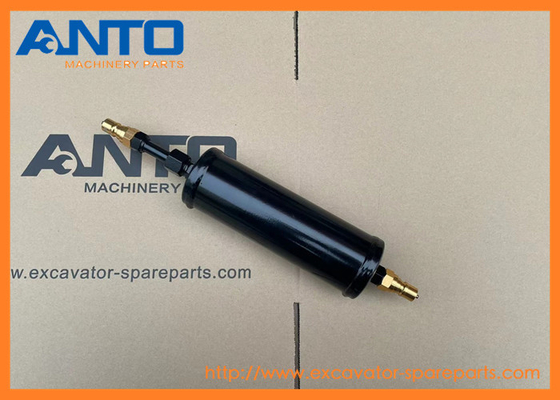

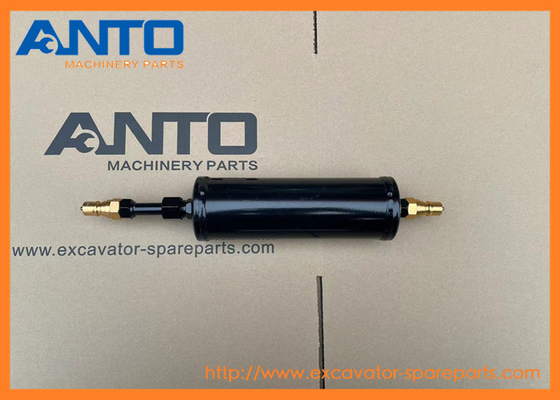

Dryer |
| Parts No |
3E3535 3E-3535 |
| Model |
307 312 312B L 315 315B L 317 317B LN 318B 320 L 320B 322 FM L 322 LN 322B L 322B LN 325 325 FM L 325B L 330 330 L 330B L 345B 345B II 345B II MH 345B L 350 350 L 365B 365B II 375 375 L
|
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
EXCAVATOR 307 312 312B L 315 315B L 317 317B LN 318B 320 L 320B 322 FM L 322 LN 322B L 322B LN 325 325 FM L 325B L 330 330 L 330B L 345B 345B II 345B II MH 345B L 350 350 L 365B 365B II 375 375 L
FRONT SHOVEL 5080
- More dryer parts supplied to C A T machine
| 9D6888 DRYER-REFRIGERANT |
| 120G, 12G, 130G, 140G, 14G, 16G, 416B, 426, 426B, 428, 446, 446B, 613B, 613C, 615, 615C, 621E, 623E, 627E, 631E, 637E, 651E, 657E, 769C, 772B, 773B, 777, 777B, 785, 789, 815B, 816B, 826C, 916, 926, 93... |
| |
| 1065534 DRYER-REFRIGERANT |
| 416B, 426B, 428B, 446B, 583T, 587T, 631E, 633E II, 637E, 651E, 657E, 814B, 815B, 816B, 826C, 834B, 836, 936F, 950 GC, 980F, AD30, AD45B, AD55, AD55B, AD60, CB-44B, CB-534D, CB-54B, CB-564D, CD-54, CD-... |
| |
| 1757162 DRYER AS-REFRIGERANT |
| 120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 135H NA, 140H, 140H ES, 140H NA, 143H, 14H, 14H NA, 160H, 160H ES, 160H NA, 163H, 163H NA, 16H, 317B LN, 318B, 325C FM, 330C FM, 345B II, 345B L, 365... |
| |
| 2573227 DRYER AS-REFRIGERANT |
| 120K, 12K, 140K, 140K 2, 160K, 16M, 325D FM LL, 330D FM, 568 FM LL, 613G, 631E, 633E II, 637E, 773F, 775F, 777F, 814F II, 815F II, 816F II, 834G, 834H, 836G, 836H, 854K, 924G, 924GZ, 924H, 924HZ, 928H... |
| |
| 9W0549 DRYER-REFRIGERANT |
| 768C, 769C, 771C, 772B, 773B, 775B, 777B, 785, 789, 793, 918F, 928F, 950F, 950F II, 966F, 966F II, 970F, 988F, 992C, 992D, 994, D10N, D11N, D4H, D4H XL, D4HTSK III, D5H, D5H XL, D5HTSK II, D9N, IT18F,... |
| |
| 8T8642 DRYER-REFRIGERANT |
| D6H, D6H XL, D6H XR, D8N |
| |
| 2573226 DRYER AS-REFRIGERANT |
| 120K, 120K 2, 120M, 120M 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 16H, 16M, 24H, 627F, 793F, 793F AC, 793F CMD... |
| |
| 1341045 DRYER-REFRIGERANT |
| 5130B, 5230B |
| |
| 2834236 DRYER AS-AIR |
| 416E, 416F, 420F, 422F, 428F, 430F, 432F, 434F, 444F, 450E, 450F |
| |
| 2834237 DRYER-REFRIGERANT |
| 24M, 414E, 416E, 420E, 422E, 428E, 430E, 432E, 434E, 442E, 444E, 450E, 793F, 795F AC, 797F, 993K |
| |
| 2090045 DRYER-REFRIGERANT |
| TH210, TH215 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
3E-3535 |
[1] |
DRYER AS-REFRIGERANT (IN-LINE) |
|
| 1A. |
330-3117 |
[1] |
FILM-WARNING (UNIVERSAL, READ OMM) |
|
| |
7X-2049 |
[1] |
ORIFICE AS-AIR CONDITIONER |
|
| 2 |
5P-3928 |
[1] |
COUPLING AS-REFRIGERANT (SELF-SEALING) |
|
| 3 |
103-6100 |
[1] |
FITTING AS-AIR CONDITIONER (QUICK DISCONNECT) |
|
| |
9X-7382 |
[2] |
SEAL-O-RING |
|
| 4 |
116-6202 |
[2] |
BOOT |
|
| 5 |
196-5052 |
[2] |
CLIP (SLOT) |
|
| 6 |
196-5053 |
[2] |
CLIP (TAB) |
|
| 7 |
217-7742 |
[1] |
GROMMET |
|
| 8 |
274-5909 |
[1] |
ACCUMULATOR-REFRIGERANT |
|
| 9 |
327-0282 |
[2] |
SEAL-INTEGRAL (1/2-IN) |
|
| 10 |
369-1054 I |
[1] |
HOSE AS |
|
| 11 |
369-1055 I |
[1] |
HOSE AS |
|
| 12 |
369-1056 I |
[1] |
HOSE AS |
|
| 13 |
369-1057 I |
[1] |
HOSE AS |
|
| 14 |
391-4290 |
[1] |
GUARD AS |
|
| 15 |
106-1793 |
[3] |
STUD-TAPERLOCK (3/8-16X2.36-IN) |
|
| 16 |
133-6934 |
[2] |
SPACER (11X20X25-MM THK) |
|
| 17 |
178-3336 M |
[2] |
NUT-HEX FLANGE (M8X1.25-THD) |
|
| 18 |
3S-8665 |
[2] |
CLIP (LOOP) |
|
| 19 |
9B-7237 |
[1] |
BOLT (3/8-16X1.25-IN) |
|
| 21 |
5P-1075 |
[1] |
WASHER-HARD (10.2X22.5X3-MM THK) |
|
| 22 |
5P-4107 |
[1] |
LOCKWASHER |
|
| 23 |
5S-7383 |
[2] |
BOLT (3/8-16X1.75-IN) |
|
| 24 |
6V-6782 |
[1] |
CLIP (SLOT) |
|
| 25 |
6V-6783 |
[1] |
CLIP (TAB) |
|
| 26 |
6V-8801 |
[6] |
NUT (3/8-16-THD) |
|
| 27 |
7X-7910 |
[1] |
CLIP (SLOT) |
|
| 28 |
7X-7911 |
[1] |
CLIP (TAB) |
|
| 30 |
8T-4896 |
[8] |
WASHER-HARD (10.2X18.5X2.5-MM THK) |
|
| 31 |
3S-8664 |
[2] |
CLIP (LOOP) |
|
| 32 |
9X-7380 |
[1] |
SEAL-O-RING |
|
| 33 |
9X-7381 |
[1] |
SEAL-O-RING |
|
| 34 |
9X-7382 |
[1] |
SEAL-O-RING |
|
| 35 |
9X-7383 |
[2] |
SEAL-O-RING |
|
| 36 |
9X-7384 |
[1] |
SEAL-O-RING |
|
| 37 |
200-6345 |
[1] |
SADDLE-MOUNTING (DUAL SWIVEL) |
|
| 38 |
7K-1181 |
[2] |
STRAP-CABLE |
|
| |
I |
|
REFER TO HYDRAULIC INFORMATION SYSTEM |
| |
M |
|
METRIC PART |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
