Product Details:
Payment & Shipping Terms:
|
| Category: | Engine Parts | Machine Model: | 330C 330C FM 330C L 330C MH |
|---|---|---|---|

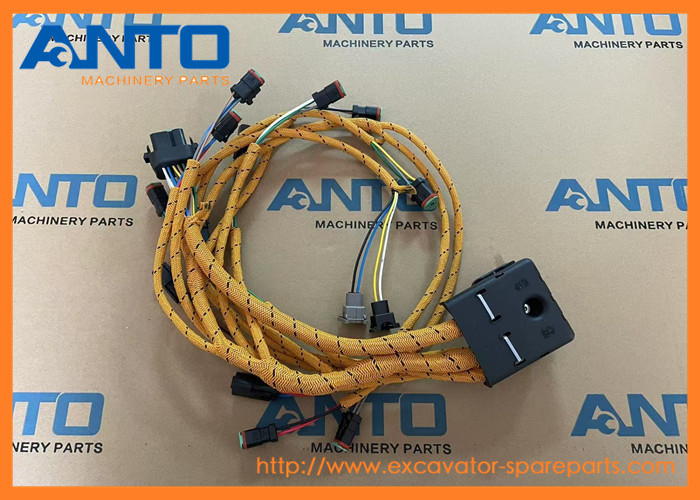

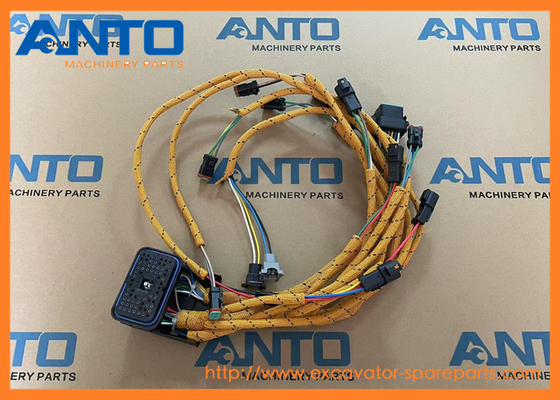

| Product Name: | Harness Assembly | Application: | Excavator |
| Part Number: | 201-1283 2011283 | Packing: | Standard Export Carton |
| Highlight: | 330C Harness Assembly,Excavator Engine Parts Harness Assembly,201-1283 Harness Assembly |
||
| Application | Excavator |
| Name | Harness Assembly |
| Parts No | 201-1283 2011283 |
| Machine Model | 330C 330C FM 330C L 330C MH |
| Category | Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
CHALLENGER MTC735
EXCAVATOR 330C 330C FM 330C L 330C MH
INDUSTRIAL ENGINE C-9
MOBILE HYD POWER UNIT 330C
MOTOR GRADER 12H
TRACK FELLER BUNCHER TK711 TK721 TK722 TK732
TRACK-TYPE TRACTOR D6R II
WHEEL SCRAPER 627G 637G Cater.pillar
| 2725869 HARNESS AS-SENSOR |
| 573, 584, C7, C9, CX31-C9I, TH31-E61 |
| 1957336 HARNESS AS-ENGINE |
| 120H, 135H, 3126B, 322C, 322C FM, 325C, 325C FM, 561N, 570B, 580B, 938G II, 950G II, 953C, 962G II, 963C, D5N, D6N, IT38G II, IT62G II, M325C MH, SPP101 |
| 4190841 HARNESS AS-ENGINE |
| 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 5... |
| 2358202 HARNESS AS-ENGINE |
| 160M, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 511, 521, 522, 532, 541, 551, 552, 627G, 637D, 637E, 637G, 814F II, 815F II, 816F II, 973D, C9, CX31... |
| 2153249 HARNESS AS-ENGINE |
| 12H, 140M, 140M 2, 160M, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 340D L, 511, 521, 521B, 522, 522B, 532, 541, 541 ... |
| 2011283 HARNESS ASSEMBLY |
| 12H, 330C, 330C FM, 330C L, 330C MH, 627G, 637G, C-9, D6R II, MTC735, TK711, TK721, TK722, TK732 |
| 3239140 HARNESS AS-ENGINE |
| 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, ... |
| 2306279 HARNESS AS-ENGINE |
| 12H, 330C, 330C FM, 330C L, 330C MH, 627G, 637D, 637G, C-9, D6R II, MTC735, TK711, TK721, TK722, TK732, TK741, TK751, TK752 |
| 2355264 HARNESS AS-WIRING |
| 3126B, C-10, C-12, C-15, C-16, C-9, C11, C13, C15, C18, C27, C32, C7, C9, CX31-C13I, CX31-C15I, CX31-C9I, CX35-P800, TH31-E61, TH35-C11I, TH35-C13I, TH35-C15I, TH48-E70 |
| 2180400 HARNESS AS |
| 980C, C-9 |
| 3282150 HARNESS AS-PLATFORM |
| CX31-C13I, CX31-C15I, CX31-C9I, CX35-C18I, CX35-P800, TH35-C11I, TH35-C13I, TH35-C15I, TH48-E70 |
| 3084462 HARNESS AS-CONTROL |
| C9, TH31-E61 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 | [14] | STRAP-CABLE | |
| 1A. | 3S-2093 J | [1] | STRAP-CABLE | |
| 2 | 003-9835 | [2] | PROTECTOR | |
| 3 | 110-8457 | [1] | BOOT | |
| 4 | 112-6646 M | [1] | LOCKNUT (M6X1-THD) | |
| 5 | 148-0757 | [1] | SWITCH GP-MAGNETIC (24-VOLT)(AIR INLET HEATER) | |
| 6 | 147-0286 | [1] | WIRE AS | |
| 7 | 188-9865 | [1] | HARNESS AS-ENGINE (FUEL INJECTOR) | |
| 3S-2093 | [5] | STRAP-CABLE | ||
| 105-1797 | [5] | MOUNT | ||
| 156-7106 Y | [1] | KIT-INJECTOR WIRING HARNESS | ||
| 191-7823 | [1] | RECEPTACLE AS | ||
| 8 | 201-1283 | [1] | HARNESS AS-CONTROL (ENGINE ELECTRONIC, LOWER) | |
| 214-7170 L | [1] | KIT-REPAIR (ELECTRICAL CONNECTORS)(FOR EXTREME COLD CLIMATES) | ||
| 102-8803 | [2] | KIT-RECEPTACLE (3-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 3E-3371 | [2] | WEDGE-RECEPTACLE LOCK (3-PIN) | ||
| 8T-8737 | [8] | PLUG-SEAL | ||
| 155-2276 | [3] | WEDGE-PLUG LOCK (3-PIN) | ||
| 155-2260 | [3] | KIT-CONNECTING PLUG (3-PIN) | ||
| (EACH INCLUDES PLUG AS & WEDGE) | ||||
| 194-5226 | [8] | WIRE AS (16-GA) | ||
| 102-8802 | [2] | KIT-RECEPTACLE (2-PIN) | ||
| 102-8803 | [3] | KIT-RECEPTACLE (3-PIN) | ||
| (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 100-3320 | PLUG AS-CONNECTOR (2-PIN) | |||
| 111-2416 | [1] | PLUG AS-CONNECTOR (2-PIN) | ||
| 9 | 4P-7428 | [1] | CLIP (LADDER) | |
| 10 | 4P-7429 | [1] | CLIP (LADDER) | |
| 11 | 4P-7581 | [4] | CLIP (LADDER) | |
| 12 | 4P-8134 | [1] | CLIP (LADDER) | |
| 13 | 6V-4369 | [1] | CLIP | |
| 14 | 6V-5215 M | [1] | BOLT (M8X1.25X16-MM) | |
| 15 | 7I-2272 M | [2] | BOLT (M5X0.8X12-MM) | |
| 16 | 8T-0328 | [2] | WASHER-HARD (5.5X10X1-MM THK) | |
| 17 | 8T-4205 | [1] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 18 | 8T-4970 M | [2] | BOLT (M6X1X14-MM) | |
| 19 | 8T-5451 M | [1] | BOLT (M6X1X12-MM) | |
| 20 | 9M-1974 | [1] | WASHER-HARD (8.8X16X2-MM THK) | |
| 21 | 9X-8256 | [2] | WASHER (6.6X12X2-MM THK) | |
| J | TIE STRAP WIRE TO PREVENT WIRE FROM RUBBING ON LIFTING PLATE | |||
| L | KIT MARKED "L" PROVIDES OIL GRADE PLUGS FOR 0W20, 10W30, 15W40 OIL GRADES | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
