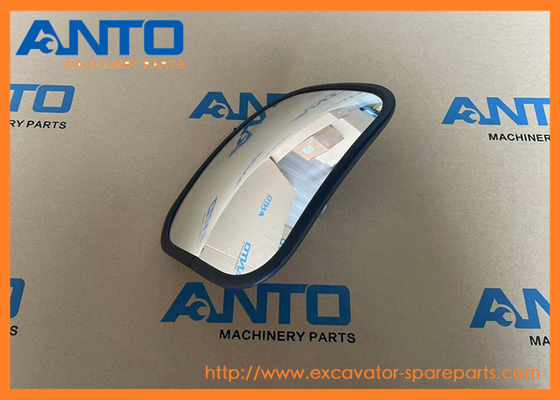

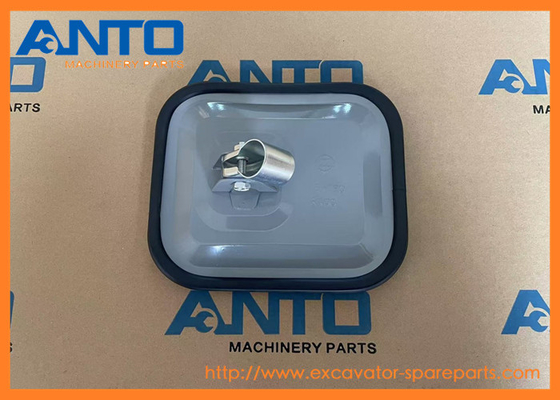

• 23W-P86-2890 23WP862890 Mirror Support For KOMATSU HD325 HD405 HD465 HD605 HD785 HM250

• ​Specification

• Compatible models

DUMP TRUCKS HD325 HD405 HD465 HD605 HD785 HM250 HM300 HM350 HM400

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	56B-54-11520	[1]	Tube Komatsu	0.102 kg.
			["SN: 2001-2929"]
2	01011-81020	[1]	Bolt Komatsu	0.084 kg.
			["SN: 2001-@"] analogs:["0101151020", "801014113"]
3	01580-11008	[1]	Nut Komatsu	0.011 kg.
			["SN: 2001-@"]
4	01643-31032	[2]	Washer Komatsu	0.054 kg.
			["SN: 2001-2929"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
5	56D-54-21481	[1]	Bracket Komatsu China
			["SN: 2001-@"]
6	01010-81635	[4]	Bolt Komatsu	0.088 kg.
			["SN: 2001-@"] analogs:["0101061635", "801015185", "0101051635", "0101031635"]
7	01643-31645	[4]	Washer Komatsu	0.072 kg.
			["SN: 2001-@"] analogs:["802170005", "0164301645"]
8	01010-81230	[3]	Bolt Komatsu	0.043 kg.
			["SN: 2001-@"] analogs:["0101051230", "01010B1230"]
9	01643-31232	[3]	Washer Komatsu	0.027 kg.
			["SN: 2001-@"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
10	56E-54-28410	[1]	Bracket Komatsu China
			["SN: 2001-@"]
11	56B-54-21980	[1]	Striker Komatsu	0.000 kg.
			["SN: 2001-@"]
12	01010-81095	[1]	Bolt Komatsu	0.059 kg.
			["SN: 2001-@"] analogs:["0101051095"]
14	56B-54-11491	[2]	Bracket Komatsu China
			["SN: 2001-@"]
15	56D-54-11410	[12]	Shim Komatsu China
			["SN: 2001-@"]
16	01010-80860	[4]	Bolt Komatsu	0.029 kg.
			["SN: 2001-@"]
17	01643-30823	[4]	Washer Komatsu	0.004 kg.
			["SN: 2001-@"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
18	01010-80825	[2]	Bolt Komatsu	0.015 kg.
			["SN: 2001-@"] analogs:["0101050825", "01010D0825", "801015087"]
20	01010-80830	[2]	Bolt Komatsu	0.017 kg.
			["SN: 2001-@"] analogs:["6735511120", "0101050830", "0737200830", "1240145H1"]
22	56B-54-21880	[1]	Cover Komatsu China
			["SN: 2001-@"] analogs:["56B5421730"]
23	01010-81020	[4]	Bolt Komatsu	0.161 kg.
			["SN: 2001-@"] analogs:["801014093", "0101051020", "801015108"]
24	56E-54-28400	[1]	Lock Assembly Komatsu China
			["SN: 2001-@"]
25.	56E-54-28440	[1]	Bracket Komatsu China
			["SN: 2001-@"]
26.	56E-54-28430	[1]	Lever Komatsu China
			["SN: 2001-@"]
27.	56B-54-21930	[1]	Plate Komatsu China
			["SN: 2001-@"]
28.	56B-54-21940	[1]	Holder Komatsu China
			["SN: 2001-@"]
29.	56E-54-28420	[1]	Spring Komatsu China
			["SN: 2001-@"]
30.	01310-20606	[2]	Screw Komatsu	0.002 kg.
			["SN: 2001-@"]
31.	04025-00420	[2]	Pin, Spring Komatsu	0.001 kg.
			["SN: 2001-@"]
32.	09304-00835	[1]	Knob, Black Komatsu	0.04 kg.
			["SN: 2001-@"]
33	01010-81025	[4]	Bolt Komatsu	0.36 kg.
			["SN: 2001-@"] analogs:["0101051025", "0101651025", "801015109"]
35	56B-54-11710	[2]	Stopper Komatsu	1 kg.
			["SN: 2001-@"]
38	56D-54-21550	[1]	Stay Komatsu China
			["SN: 2001-@"]
39	56D-54-21520	[1]	Stay Komatsu China
			["SN: 2001-@"]
42	23W-P86-2890	[4]	Mirror, Rearview Komatsu	0.839 kg.
			["SN: 2001-@"]
43	56E-46-29510	[1]	Plate Komatsu China
			["SN: 2001-@"]
44	01010-81235	[4]	Bolt Komatsu	0.048 kg.
			["SN: 2001-@"] analogs:["0101051235", "01010E1235", "801015136"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
