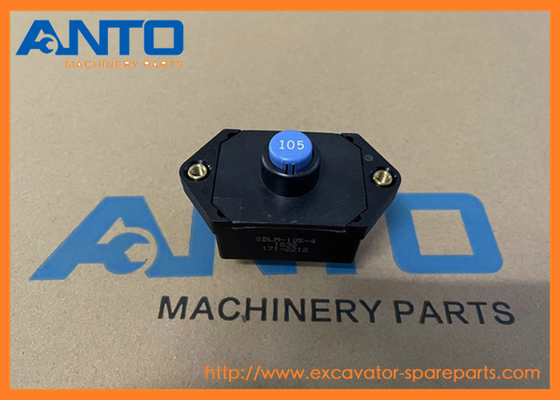

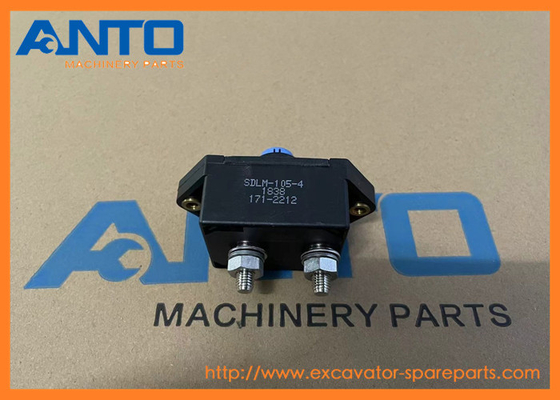

1712211 171-2211 Circuit Breaker Fit Excavators 312E 312E L 314E CR 314E LCR 316E L 318E L

Large Image : 1712211 171-2211 Circuit Breaker Fit Excavators 312E 312E L 314E CR 314E LCR 316E L 318E L

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	1712211 171-2211

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Model Number:	312E 312E L 314E CR 314E LCR 316E L 318E L 320C 320C FM 320D GC 320D L	Product Name:	Circuit Breaker
Part Number:	1712211 171-2211	Packing:	Standard Export Carton
Transportation:	By Sea/air By Express	Warranty:	6/12 Months
Highlight:	316E L Circuit Breaker , 314E LCR Circuit Breaker , 314E CR Circuit Breaker

1712211 171-2211 Circuit Breaker Fit Excavators 312E 312E L 314E CR 314E LCR 316E L 318E L

Specification

Application	C A T electric parts
Parts Name	Circuit breaker
Parts No	1712211 171-2211
Model	312E 312E L 314E CR 314E LCR 316E L 318E L 320C 320C FM 320D GC 320D L 320E 320E L 320E LN 320E LRR 320E RR 322C FM 323D L 323E L 324E 324E L 324E LN 329E 329E L 329E LN 336E 336E H 336E L 336E LH 336E LN 336F L 349E 349E L 349E L VG 349F L 374F L 390F L
Delivery time	Stock for urgent delivery
Condtion	Brand new, OEM quality
MOQ	1 PCS
Design	made in PRC
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

Applicable models

COMPACT WHEEL LOADER 901C 902 902C 903C 904B 906 908 914G
EXCAVATOR 312E 312E L 314E CR 314E LCR 316E L 318E L 320C 320C FM 320D GC 320D L 320E

320E L 320E LN 320E LRR 320E RR 322C FM 323D L 323E L 324E 324E L 324E LN 329E 329E L 329E LN

336E 336E H 336E L 336E LH 336E LN 336F L 349E 349E L 349E L VG 349F L 374F L 390F L

More other circuit applicable for C A T equipments

6T3642 CIRCUIT BREAKER AS

12H, 140H, 160H, 30/30, 3114, 3116, 3126, 3208, 3304, 3304B, 3306, 3306B, 3406, 3406B, 3406C, 3408, 3408C, 3412, 3412C, 3412D, 3508, 3508C, 3512, 3512C, 3516, 3516B, 3606, 3608, 3612, 3616, 5130B, 523...

3T2662 CIRCUIT BREAKER AS

10 FT, 120G, 120H, 120H ES, 120H NA, 120M, 12G, 12H, 12H ES, 12H NA, 12M, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140M, 143H, 14G, 14H, 14H NA, 14M, 160G, 160H, 160H ES, 160H NA, 160M, 163H...

1712210 CIRCUIT BREAKER AS

1090, 1190, 1190T, 120H, 120M, 120M 2, 1290T, 12H, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 1390, 140H, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 14H, 14M, 160H, 160M, 160M 2, 160M 3, 160M 3 AWD, 163H, 16H, ...

1712208 CIRCUIT BREAKER AS

216, 228, 236, 247, 248, 267, 287, 301.5, 302.5, 303, 304, 305, 305.5, 306, 306E, 307, 307C, 307D, 308C, 308D, 311C, 311D LRR, 311F LRR, 3126B, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 31...

1712212 CIRCUIT BREAKER AS

1090, 1190, 1190T, 120K, 120K 2, 1290T, 12K, 1390, 140H, 140K, 140K 2, 143H, 14H, 160H, 160K, 163H, 16H, 216B, 226B, 2290, 232B, 236B, 2384C, 2390, 2391, 242B, 2470C, 247B, 2484C, 2491, 24H, 252B, 257...

2802710 CIRCUIT BREAKER AS

120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 256C, 262C, 272C, 277C, 277C2, 279C, 287C, 289C, 297C, 299C, 621H, 621K, 623H,...

6T3643 CIRCUIT BREAKER AS

120H, 12H, 135H, 140H, 143H, 14H, 160H, 163H, 16H, 24H, 30/30, 3116, 3126, 3126B, 3176C, 3196, 3208, 320D, 320D FM, 324D FM, 324D FM LL, 325D FM, 325D FM LL, 3304, 3304B, 3306, 3306B, 3406E, 3408B, 34...

1712211 CIRCUIT BREAKER AS

1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2470C, 2491, 2570C, 2590, 2670C, 2864C, 3126B, 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320C, 320C FM, 320D GC, 320D L, 320E, 320E L, 320E LN,...

1394724 CIRCUIT BREAKER AS

120M 2, 12M 2, 140M 2, 160M 2, 2290, 2390, 2391, 2491, 24H, 2590, 315B, 315B FM L, 315B L, 317B LN, 318B, 345B L, 365B, 365B II, 365B L, 385B, 5090B

6T3643 CIRCUIT BREAKER AS

3T2663 CIRCUIT BREAKER AS

1712211 CIRCUIT BREAKER AS

1712209 CIRCUIT BREAKER AS

1712213 CIRCUIT BREAKER AS

2802711 CIRCUIT BREAKER AS

6T3644 CIRCUIT BREAKER AS

Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
1	399-3433	[1]	GROMMET
2	399-3443	[1]	BAR-BUS
3	171-2206	[1]	CIRCUIT BREAKER AS (50-AMPERE)(GLOW PLUG)
	1H-3244	[2]	LOCKWASHER
	4E-5724	[2]	WASHER (7X12X1-MM THK)
	8T-0122	[2]	NUT-FULL (1/4-28-THD)
4	171-2211	[1]	CIRCUIT BREAKER AS (90-AMPERE)(ALTERNATOR)
	1H-3244	[2]	LOCKWASHER
	4E-5724	[2]	WASHER (7X12X1-MM THK)
	8T-0122	[2]	NUT-FULL (1/4-28-THD)
5	171-2212	[1]	CIRCUIT BREAKER AS (105-AMPERE)(MAIN)
	1H-3244	[2]	LOCKWASHER
	4E-5724	[2]	WASHER (7X12X1-MM THK)
	8T-0122	[2]	NUT-FULL (1/4-28-THD)
6	213-0772	[1]	SWITCH AS-MAGNETIC (24-VOLT)
7	399-3431	[1]	BRACKET AS
8	399-3434	[1]	BLOCK AS-TERMINAL
	3B-4504	[8]	LOCKWASHER
	8T-4171 M	[4]	BOLT (M6X1X12-MM)
	8T-6411 M	[4]	SCREW-MACHINE (M6X1X12-MM)
	9X-8256	[8]	WASHER (6.6X12X2-MM THK)
9	399-3435 Y	[1]	BLOCK GP-JUNCTION
10	399-3438	[1]	BAR-BUS
11	399-5257	[1]	BAR-BUS
12	416-5612	[1]	HARNESS AS-ALARM
13	416-5613	[1]	BUS BAR-CIRCUIT BREAKER
14	416-5614	[1]	BUS BAR-CIRCUIT BREAKER
15	418-6303	[1]	CLIP
16	418-7433	[1]	GROMMET
17	4B-2049	[2]	NUT (10-32-THD)
18	8T-4127 M	[6]	SCREW-MACHINE (M5X0.8X20-MM)
19	6V-5645	[8]	SCREW-MACHINE (10-32X0.87-IN)
20	8T-0328	[2]	WASHER-HARD (5.5X10X1-MM THK)
21	5A-4631	[6]	WASHER (5.5X12X0.8-MM THK)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

1712211 171-2211 Circuit Breaker Fit Excavators 312E 312E L 314E CR 314E LCR 316E L 318E L 0

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
