| Model Number: | 322C 325C | Product Name: | Harness |
|---|---|---|---|
| Part Number: | 204-0008 2040008 | Transportation: | By Sea/air By Express |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |
| Highlight: | 204-0008 Excavator Hydraulic Pump Fitting,204-0008 Excavator Hydraulic Pump Fitting,322C Excavator Hydraulic Pump Fitting |
||

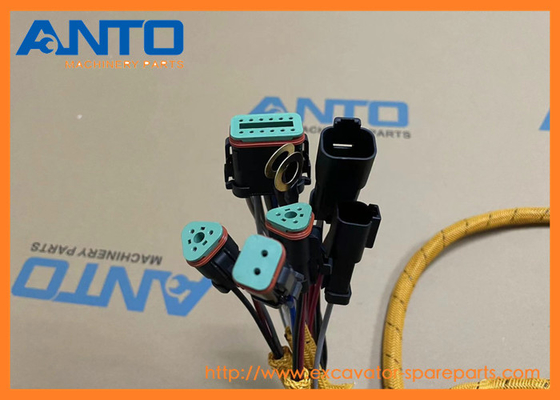

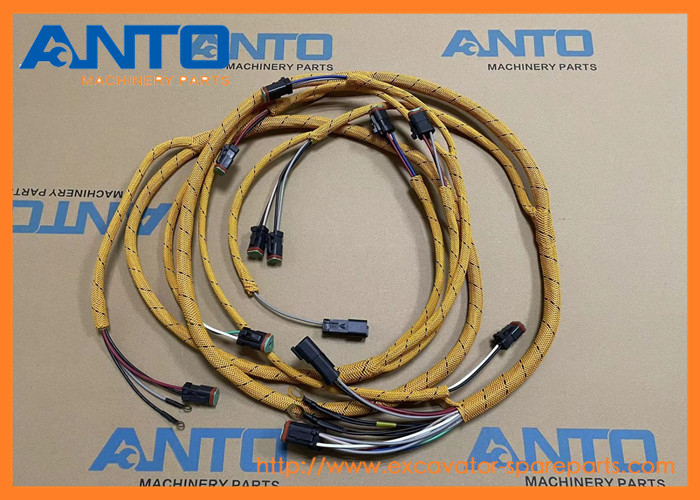

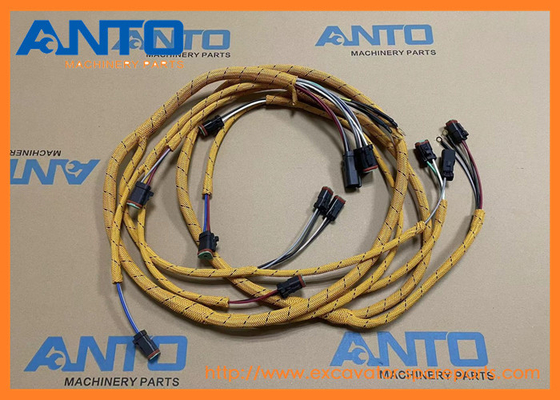

204-0008 2040008 Harness Excavator Hydraulic Pump Fitting For 322C 325C
Specification
| Application | C A T excavator hydraulic pump parts |
| Name | Harness |
| Parts No | 204-0008 2040008 |
| Model |
322C 325C |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
EXCAVATOR 322C 325C
MOBILE HYD POWER UNIT
WHEELED EXCAVATOR M325C MH
| 1957336 HARNESS AS-ENGINE |
| 120H, 135H, 3126B, 322C, 322C FM, 325C, 325C FM, 561N, 570B, 580B, 938G II, 950G II, 953C, 962G II, 963C, D5N, D6N, IT38G II, IT62G II, M325C MH, SPP101 |
| 2118002 HARNESS AS-WINDOW WIPER |
| 320C, 322C, 325C, 330C, 330C L |
| 2397167 HARNESS AS-PANEL |
| M325C MH |
| 2641960 HARNESS AS-WIRING |
| M325C MH |
| 2641959 HARNESS AS-BOX |
| M325C MH |
| 2373554 HARNESS AS |
| M325C MH |
| 2427407 HARNESS AS |
| M325C MH |
| 2373555 HARNESS AS |
| M325C MH |
| 2621888 HARNESS AS-CONTROL |
| M325C MH |
| 2637951 HARNESS AS-PANEL |
| M325C MH |
| 2349342 HARNESS AS-SOLENOID |
| M325C MH, M325D L MH, M330D |
| 3040704 HARNESS AS-WIRING |
| M325C MH, M325D L MH, M325D MH |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 111-4837 | [10] | CLIP | |
| 2 | 8T-4137 M | [41] | BOLT (M10X1.5X20-MM) | |
| 3 | 8T-4121 | [90] | WASHER-HARD (11X21X2.5-MM THK) | |
| 4 | 204-0005 Y | [1] | PANEL GP-CIRCUIT BREAKER | |
| 5 | 167-3583 | [1] | STRAP AS-GROUND | |
| 6 | 111-4838 | [20] | CLIP | |
| 7 | 111-4839 | [20] | STRAP | |
| 8 | 3S-2093 | [31] | STRAP-CABLE | |
| 9 | 210-7236 | [1] | CABLE AS | |
| 1S-7251 | [1] | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | ||
| 5P-0761 E | CABLE (00-GA, RED)(380CM) | |||
| 8N-0869 | [1] | COVER-TERMINAL (RED) | ||
| 8N-1725 | [1] | COVER AS-TERMINAL (RED) | ||
| 3S-6049 | [1] | TERMINAL AS-BATTERY (POSITIVE) | ||
| 1M-6119 | [1] | BOLT (5/16-18X1.375-IN) | ||
| 1M-6120 | [1] | NUT (5/16-18-THD) | ||
| 10 | 8T-4191 M | [8] | BOLT (M10X1.5X16-MM) | |
| 11 | 170-6929 | [1] | CABLE AS | |
| 5P-0761 E | CABLE (00-GA, RED)(31 CM) | |||
| 9G-0002 | [1] | COVER AS-TERMINAL (RED) | ||
| 9G-0005 | [1] | COVER AS-TERMINAL (BLACK) | ||
| 8C-5918 | [1] | TERMINAL AS-BATTERY (NEGATIVE) | ||
| 8T-9756 | [1] | TERMINAL AS-BATTERY (POSITIVE) | ||
| 1M-6119 | [2] | BOLT (5/16-18X1.375-IN) | ||
| 1M-6120 | [2] | NUT (5/16-18-THD) | ||
| 12 | 128-8928 | [1] | BRACKET AS | |
| 13 | 2G-8767 | [3] | WASHER (10.5X60X3-MM THK) | |
| 14 | 128-8886 | [1] | STRAP AS-GROUND | |
| 15 | 8T-4182 M | [1] | BOLT (M10X1.5X45-MM) | |
| 16 | 197-4435 | [1] | CABLE AS | |
| 1S-7252 | [1] | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | ||
| 5P-0747 E | CABLE (00-GA, BLACK)(115CM) | |||
| 7N-5274 | [1] | COVER AS-TERMINAL (BLACK) | ||
| 9G-8909 | [1] | COVER-TERMINAL (BLACK) | ||
| 3S-6050 | [1] | TERMINAL AS-BATTERY (NEGATIVE) | ||
| 1M-6119 | [1] | BOLT (5/16-18X1.375-IN) | ||
| 1M-6120 | [1] | NUT (5/16-18-THD) | ||
| 17 | 3T-5760 | [2] | BATTERY GP (12-VOLT, 750-CCA) | |
| 18 | 6W-6005 | [1] | HOLD-DOWN-BATTERY | |
| 19 | 5I-8270 | [1] | COVER-BATTERY | |
| 20 | 6G-2256 | [2] | CLAMP | |
| 21 | 4K-8864 | [2] | CLIP | |
| 22 | 6K-8178 | [7] | CLIP (LOOP) | |
| 23 | 213-0646 | [1] | STRIP AS | |
| 24 | 8T-4136 M | [16] | BOLT (M10X1.5X25-MM) | |
| 25 | 227-8670 | [1] | HARNESS AS-CHASSIS | |
| 102-8802 | [6] | KIT-RECEPTACLE (2-PIN) | ||
| 102-8803 | [1] | KIT-RECEPTACLE (3-PIN) | ||
| 102-8804 | [2] | KIT-RECEPTACLE (4-PIN) | ||
| 102-8805 | [3] | KIT-RECEPTACLE (6-PIN) | ||
| 102-8801 | [4] | KIT-RECEPTACLE (12-PIN) | ||
| (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 155-2255 | [2] | KIT-CONNECTING PLUG (12-PIN) | ||
| 155-2260 | [1] | KIT-CONNECTING PLUG (3-PIN) | ||
| 155-2270 | [14] | KIT-CONNECTING PLUG (2-PIN) | ||
| 155-2271 | [3] | KIT-CONNECTING PLUG (4-PIN) | ||
| 155-2274 | [3] | KIT-CONNECTING PLUG (6-PIN) | ||
| (EACH PLUG KIT INCLUDES PLUG AS & WEDGE) | ||||
| 26 | 7Y-8165 | [3] | GROMMET | |
| 27 | 7C-4354 | [1] | CLIP | |
| 28 | 7X-2621 M | [8] | BOLT (M10X1.5X12-MM) | |
| 29 | 116-0118 | [19] | CLIP | |
| 30 | 111-4836 | [21] | CLIP | |
| 31 | 219-0268 | [1] | HARNESS AS-PLATFORM | |
| 102-8802 | [5] | KIT-RECEPTACLE (2-PIN) | ||
| 102-8805 | [1] | KIT-RECEPTACLE (6-PIN) | ||
| 102-8801 | [2] | KIT-RECEPTACLE (12-PIN) | ||
| (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 155-2255 | [2] | KIT-CONNECTING PLUG (12-PIN) | ||
| 155-2260 | [3] | KIT-CONNECTING PLUG (3-PIN) | ||
| 155-2270 | [9] | KIT-CONNECTING PLUG (2-PIN) | ||
| 155-2271 | [1] | KIT-CONNECTING PLUG (4-PIN) | ||
| 155-2274 | [2] | KIT-CONNECTING PLUG (6-PIN) | ||
| (EACH PLUG KIT INCLUDES PLUG AS & WEDGE) | ||||
| 32 | 7G-1060 | [1] | STRAP AS-GROUND | |
| 33 | 087-6598 | [1] | GROMMET | |
| 34 | 193-3564 | [1] | BRACKET AS | |
| 35 | 8T-4195 M | [9] | BOLT (M10X1.5X30-MM) | |
| 36 | 163-6786 | [1] | BRACKET | |
| 37 | 6V-5683 M | [4] | BOLT (M6X1X16-MM) | |
| 38 | 9X-8256 | [4] | WASHER (6.6X12X2-MM THK) | |
| 39 | 8T-4189 M | [1] | BOLT (M8X1.25X20-MM) | |
| 40 | 7K-1181 | [4] | STRAP-CABLE | |
| 41 | 5C-7261 M | [1] | NUT (M8X1.25-THD) | |
| 42 | 8T-4226 | [1] | WASHER-PLATED (10.5X45X3-MM THK) | |
| 43 | 8T-4133 M | [2] | NUT (M10X1.5-THD) | |
| 44 | 5I-8304 | [1] | ROD | |
| 45 | 6G-2263 | [2] | SPACER (10.5X19X28.5-MM THK) | |
| 46 | 224-2898 | [1] | BRACKET | |
| 47 | 163-6750 | [1] | HARNESS AS-ALARM (HORN) | |
| 155-2270 | [1] | KIT-CONNECTING PLUG (2-PIN)(INCLUDES PLUG AS & WEDGE) | ||
| 48 | 5P-4116 | [1] | WASHER-HARD (8.8X20.5X2-MM THK) | |
| 49 | 186-4623 | [1] | BRACKET | |
| 50 | 170-9336 | [1] | BRACKET AS | |
| 51 | 7I-2673 | [4] | STRAP-CABLE | |
| 52 | 081-6344 | [1] | SPACER (13.3X21.3X25-MM THK) | |
| 53 | 093-2065 | [1] | GROMMET | |
| 54 | 7Y-8167 | [1] | GROMMET (50-MM ID) | |
| 55 | 204-0008 | [1] | HARNESS AS-CHASSIS | |
| 102-8802 | [4] | KIT-RECEPTACLE (2-PIN) | ||
| 102-8805 | [1] | KIT-RECEPTACLE (6-PIN) | ||
| 102-8801 | [2] | KIT-RECEPTACLE (12-PIN) | ||
| (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 56 | 4I-7889 | [5] | SPACER (11X25X45-MM THK) | |
| 57 | 7Y-8171 | [1] | GROMMET | |
| 58 | 8T-5005 M | [4] | BOLT (M10X1.5X70-MM) | |
| 60 | 8T-4185 M | [1] | BOLT (M10X1.5X50-MM) | |
| 61 | 8T-4200 M | [1] | BOLT (M8X1.25X16-MM) | |
| 62 | 8T-4172 M | [1] | BOLT (M10X1.5X80-MM) | |
| 63 | 8T-6466 M | [1] | BOLT (M10X1.5X60-MM) | |
| 64 | 3E-5169 | [1] | GUARD-SWITCH | |
| 65 | 4D-1836 | [1] | SWITCH-TOGGLE (SECONDARY SHUTDOWN SWITCH) | |
| 66 | 204-1816 | [1] | HARNESS AS-SWITCH (SECONDARY SHUTDOWN) | |
| 102-8802 | [1] | KIT-RECEPTACLE (2-PIN)(INCLUDES RECEPTACLE AS & WEDGE) | ||
| 67 | 136-0344 | [1] | GROMMET | |
| 68 | 204-1868 | [1] | INSULATOR | |
| 69 | 8T-4224 | [1] | WASHER-HARD (8.8X16X2-MM THK) | |
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
