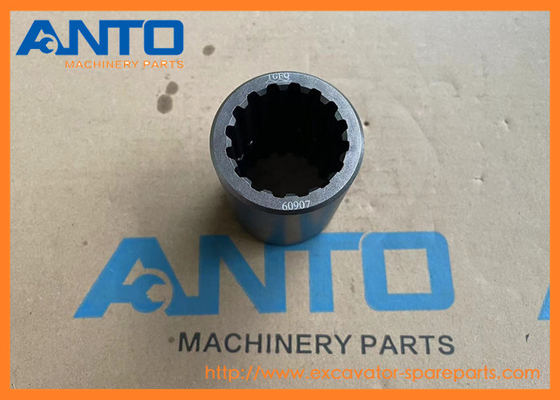

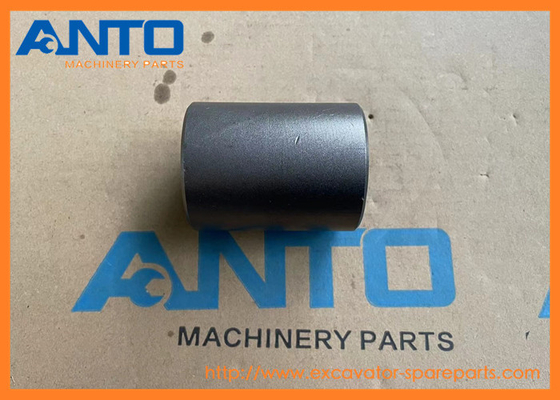

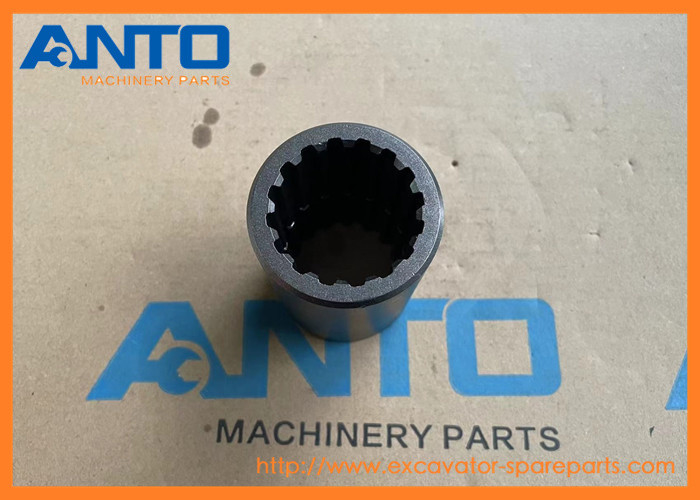

- LB00793 Coupling CASE Excavator Spare Parts For CX330C CX350 CX460
| Name |
Coupling |
| Parts No |
LB00793 |
| Machine Model |
CX290B CX300C CX330 CX350 CX350B CX350C CX460 |
| Category |
Travel Motor Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
HEAVY EQUIPMENT CX290 CX290B CX300C CX330 CX350 CX350B CX350C CX460 CX470B CX470C CX490D LC CX490D RTC CX500D LC CX500D RTC Case
- More other coupling parts fit for CASE machine
| LB00535 COUPLING |
| CX240BLR, CX250C, CX210LR, CX290, CX210N, CX235C SR, CX210C NLC, CX210B, CX210C LC, CX210BLR, CX210C LR, CX240, CX240B, CX240LR, CX210 |
| |
| KSJ2874 COUPLING FLANGE |
| CX350, CX330, CX290B, CX300C, CX300D LC |
| |
| 438129A1 COUPLING |
| CX350 |
| |
| 86987070 COUPLING |
| CX460 |
| |
| 86987352 COUPLING |
| CX460 |
| |
| 86987356 COUPLING |
| CX460 |
| |
| KTJ2232 COUPLING |
| CX500D RTC, CX470B, CX470C, CX490D LC, CX460, CX490D RTC, CX500D LC |
| |
| LK00405 COUPLING FLANGE |
| CX470C, CX460, CX470B |
| |
| 87603895 COUPLING |
| CX460, CX470B |
| |
| LJ014170 COUPLING FLANGE |
| CX240BLR, CX250C, CX250D LC LR, CX290B, CX300C, CX210B, CX210C LC, CX210BLR, CX210C LR, CX210D LC LR, CX210BNLC, CX210C NLC, CX240B, CX235C SR |
| |
| KSJ12610 COUPLING FLANGE |
| CX350B |
| |
| KSJ12611 COUPLING FLANGE |
| CX350C |
| |
| KRJ10340 COUPLING |
| CX240BLR, CX250C, CX210B, CX210BLR, CX225SR, CX210BNLC, CX210C NLC, CX240B |
| |
| LB00535 COUPLING |
| CX240BLR, CX250C, CX210LR, CX290, CX210N, CX235C SR, CX210C NLC, CX210B, CX210C LC, CX210BLR, CX210C LR, CX240, CX240B, CX240LR, CX210 |
| |
| KRJ6622 COUPLING |
| CX210LR, CX210N, CX225SR, CX240, CX240LR, CX210 |
| |
| J943745 COUPLING |
| CX290, CX210LR, CX240LR, CX210, CX240 |
| |
| LB012750 COUPLING RING |
| CX130B, CX145C SR, CX135SR, CX130C |
| |
| LK00344 COUPLING FLANGE |
| CX135SR |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
LJ01274 |
[1] |
HYDRAULIC MOTOR |
SUM Incl. 32 - 118, Serial Range: DAC0746117-DAC0746161 |
| 32 |
LW00392 |
[1] |
CASE |
SUM |
| 33 |
LW00387 |
[1] |
COVER |
SUM |
| 34 |
LS00207 |
[1] |
CYLINDER BLOCK |
SUM |
| 35 |
LH00320 |
[1] |
RETAINER |
SUM |
| 36 |
LR00858 |
[4] |
PLATE |
SUM |
| 37 |
LJ00954 |
[1] |
PISTON |
SUM |
| 38 |
LR00859 |
[5] |
ADJUSTING PLATE |
SUM |
| 39 |
LR00877 |
[1] |
PLATE |
SUM |
| 40 |
LB00833 |
[1] |
SHAFT |
SUM |
| 41 |
LB00793 |
[1] |
COUPLING FLANGE |
SUM |
| 42 |
LX00044 |
[1] |
BALL |
SUM |
| 43 |
LB00795 |
[1] |
BALL JOINT |
SUM |
| 44 |
LR00950 |
[1] |
SPRING SEAT |
SUM |
| 45 |
LJ00968 |
[9] |
JACK PISTON |
SUM |
| 46 |
LE00994 |
[1] |
SEALING RING |
SUM SEALRING |
| 47 |
LE00995 |
[1] |
SEALING RING |
SUM SEALRING |
| 48 |
LJ00956 |
[3] |
VALVE, CHECK |
SUM |
| 49 |
800-2140 |
[1] |
SNAP RING,M40, Int |
CAS Superseded by part number: 300644 |
| 50 |
800-2168 |
[1] |
SNAP RING,M68, Int |
CAS Superseded by part number: 11061376 |
| . . |
LR01061 |
[1] |
PLATE |
SUM Incl. 52, 53 |
| 52 |
NSS |
[1] |
NOT SOLD SEPARAT |
CON Plate |
| 53 |
NSS |
[2] |
NOT SOLD SEPARAT |
CON Bearing, Roller |
| . . |
LJ01047 |
[1] |
PISTON |
SUM Incl. 55, 56 |
| 55 |
NSS |
[1] |
NOT SOLD SEPARAT |
CON Piston |
| 56 |
NSS |
[1] |
NOT SOLD SEPARAT |
CON Seal, Piston |
| 57 |
TK00140 |
[1] |
RESTRICTOR |
SUM Replaces LK00384 |
| 58 |
LK005000 |
[1] |
RESTRICTOR |
SUM Replaces LK00385 |
| 59 |
LE00997 |
[1] |
OIL SEAL |
SUM |
| 60 |
LG00429 |
[3] |
COMPRESSION SPRING |
SUM |
| 61 |
LG00430 |
[9] |
COMPRESSION SPRING |
SUM |
| 62 |
LG00431 |
[14] |
COMPRESSION SPRING |
SUM |
| 63 |
LB00834 |
[1] |
TAPERED BEARING |
SUM Superseded by part number: 9832269 |
| 64 |
LB00797 |
[1] |
TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W |
SUM |
| 65 |
863-18050 |
[10] |
HEX SOC SCREW,M18 x 50mm, Cl 12.9 |
SUM |
| 66 |
LH00389 |
[1] |
SHIM KIT |
SUM Set; Incl. 66.1 - 66.6 |
| 66.1. |
LH00428 |
[1] |
SHIM,0.4mm Thk |
SUM Not Illustrated |
| 66.2. |
LH00429 |
[1] |
SHIM,0.5mm Thk |
SUM Not Illustrated |
| 66.3. |
LH00430 |
[1] |
SHIM,0.6mm Thk |
SUM Not Illustrated |
| 66.4. |
LH00431 |
[1] |
SHIM,0.7mm Thk |
SUM Not Illustrated |
| 66.5. |
LH00432 |
[1] |
SHIM,0.8mm Thk |
SUM Not Illustrated |
| 66.6. |
LH00433 |
[1] |
SHIM,0.9mm Thk |
SUM Not Illustrated |
| 67 |
837-8012 |
[1] |
DOWEL,M8 x 12 |
CAS |
| 68 |
154447A1 |
[3] |
O-RING |
SUM |
| 69 |
154455A1 |
[2] |
O-RING |
SUM |
| 70 |
154459A1 |
[3] |
O-RING |
SUM |
| 71 |
LE00998 |
[1] |
O-RING |
SUM |
| 72 |
LE00999 |
[1] |
O-RING |
SUM |
| 73 |
LJ00958 |
[2] |
VALVE, PRESSURE RELI |
SUM EF See Figure 06-04 |
| 87 |
NSS |
[1] |
NOT SOLD SEPARAT |
CON Valve, See Figure 06-04A |
| 98 |
LJ00996 |
[1] |
TRAILER BRAKE VALVE |
SUM See Figure 06-04B |
| 117 |
LK00392 |
[2] |
PLUG |
SUM |
| 118 |
LK00393 |
[4] |
PLUG |
SUM |
| . . |
KTA1286 |
[1] |
TRAILER BRAKE VALVE |
SUM Incl. 58, 87; Also Includes on Figures 06-04A, 06-04B |
