Product Details:
Payment & Shipping Terms:
|
| Model Number: | 320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN | Product Name: | Gear-Ring |
|---|---|---|---|
| Part Number: | 1719387 171-9387 | Transportation: | By Sea/air By Express |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |
| Highlight: | 320D Excavator Swing Gear,320C Excavator Swing Gear,1719387 Excavator Swing Gear |
||

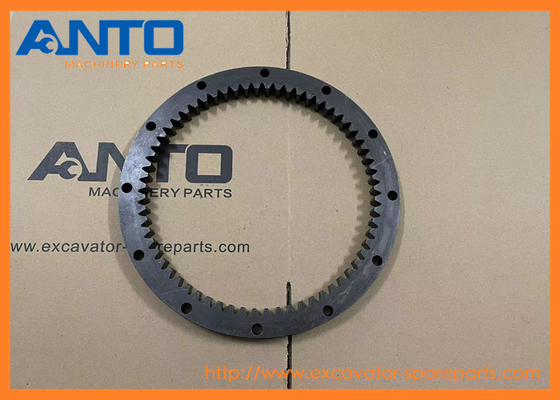

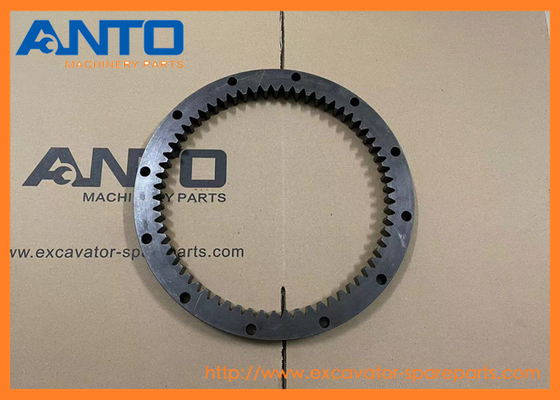

1719387 171-9387 Gear-Ring Excavator Swing Gear For 320C 320C FM 320D 320D FM 320D FM RR
Specification
| Application | Excavator swing gear |
| Name | Gear-Ring |
| Parts No | 1719387 171-9387 |
| Model |
320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
EXCAVATOR 320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L
325D MH 329D 329D L 329D LN 329E 329E L 329E LN
| 1912684 GEAR-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 325C, 325C FM, 325D, 325D L, 325D MH, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS |
| 1695592 GEAR-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32... |
| 1695593 GEAR-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32... |
| 1695594 GEAR-RING |
| 322C, 322C FM, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 326D L |
| 1912675 GEAR-PLANETARY |
| 322C, 322C FM, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 326D L |
| 7Y0663 GEAR-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| 7Y0676 GEAR-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| 7Y0659 GEAR-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| 7Y0639 GEAR-SUN |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3E-2338 | [2] | PLUG-PIPE | |
| 2 | 267-6863 BJ | [1] | SHIM (0.75-MM THK) | |
| 7Y-0752 BJ | [1] | SHIM (0.8-MM THK) | ||
| 267-6864 BJ | [1] | SHIM (0.85-MM THK) | ||
| 267-6865 BJ | [1] | SHIM (0.9-MM THK) | ||
| 267-6866 BJ | [1] | SHIM (0.95-MM THK) | ||
| 7Y-0753 BJ | [1] | SHIM (1-MM THK) | ||
| 267-6867 BJ | [1] | SHIM (1.2-MM THK) | ||
| 267-6868 BJ | [1] | SHIM (1.4-MM THK) | ||
| 7Y-0754 BJ | [1] | SHIM (1.6-MM THK) | ||
| 267-6869 BJ | [1] | SHIM (1.8-MM THK) | ||
| 267-6870 BJ | [1] | SHIM (2-MM THK) | ||
| 267-6871 BJ | [1] | SHIM (2.3-MM THK) | ||
| 5 | 094-0578 B | [1] | PLATE (8-MM THK) | |
| 094-0579 B | [1] | PLATE (9-MM THK) | ||
| 094-0580 B | [1] | PLATE (10-MM THK) | ||
| 8 | 094-1528 | [12] | WASHER (53X84X1-MM THK) | |
| 9 | 114-1540 J | [4] | PIN-DOWEL | |
| 10 | 168-8452 J | [2] | BALL BEARING | |
| 11 | 169-5589 | [1] | GEAR-SUN (24-TEETH) | |
| 12 | 169-5590 | [1] | GEAR-SUN (24-TEETH) | |
| 13 | 169-5592 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 14 | 169-5593 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 15 | 169-5601 | [3] | SHAFT-PLANETARY | |
| 16 | 169-5602 | [3] | SHAFT-PLANETARY | |
| 17 | 171-9387 | [1] | GEAR-RING (64-TEETH) | |
| 18 | 191-2569 | [3] | BEARING AS (CAGED ROLLER) | |
| 19 | 191-2570 | [6] | BEARING AS (CAGED ROLLER) | |
| 20 | 191-2571 | [1] | CARRIER-PLANETARY | |
| 21 | 191-2676 | [1] | GEAR-RING (72-TEETH) | |
| 22 | 191-2683 | [1] | GEAR-SUN (20-TEETH) | |
| 23 | 191-2684 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 24 | 191-2685 | [3] | BEARING AS | |
| 25 | 191-2686 | [1] | CARRIER AS | |
| 191-2687 | [3] | RACE-BEARING | ||
| 26 | 191-2689 | [3] | WASHER (34X70X1-MM THK) | |
| 27 | 191-2690 | [3] | WASHER (42.3X70X1-MM THK) | |
| 28 | 199-4503 | [1] | COVER | |
| 29 | 207-1571 J | [1] | SEAL GP-DUO-CONE | |
| 214-3570 | [2] | RING-TORIC | ||
| 30 | 267-6797 J | [1] | HOUSING-MOTOR | |
| 31 | 267-6798 J | [1] | HOUSING | |
| 32 | 267-6799 | [1] | CARRIER-PLANETARY | |
| 33 | 267-6800 J | [1] | GEAR-COUPLING | |
| 43 | 093-1731 | [2] | RING-RETAINING | |
| 44 | 095-0891 | [6] | PIN-SPRING | |
| 45 | 096-0433 | [3] | RING-RETAINING | |
| 46 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 47 | 171-9298 | [1] | SEAL-O-RING | |
| 48 | 179-8733 M | [16] | BOLT (M20X2.5X170-MM) | |
| 49 | 7M-8485 | [2] | SEAL-O-RING | |
| 50 | 7Y-0595 | [3] | SPACER (58X79.6X6-MM THK) | |
| 51 | 7Y-5217 JM | [16] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| 52 | 8T-3282 J | [16] | WASHER-HARD (22X35X3.5-MM THK) | |
| 53 | 8T-4123 | [16] | WASHER (22X35X3.5-MM THK) | |
| 54 | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| 55 | 1U-8846 B | SEALANT-GASKET | ||
| AVAILABLE REPAIR KIT(S): | ||||
| 267-6818 J | [1] | KIT-FINAL DRIVE BEARING | ||
| B | USE AS REQUIRED | |||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
