Product Details:
Payment & Shipping Terms:
|
| Model Number: | 320C 320C FM 322C 322C FM 325C 325C FM | Product Name: | Planetary Carrier |
|---|---|---|---|
| Part Number: | 1695599 169-5599 | Transportation: | By Sea/air By Express |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |
| Highlight: | 1695599 Planetary Carrier Excavator Swing Gear,322C Planetary Carrier Excavator Swing Gear,1695599 Planetary Carrier Excavator Swing Gear |
||

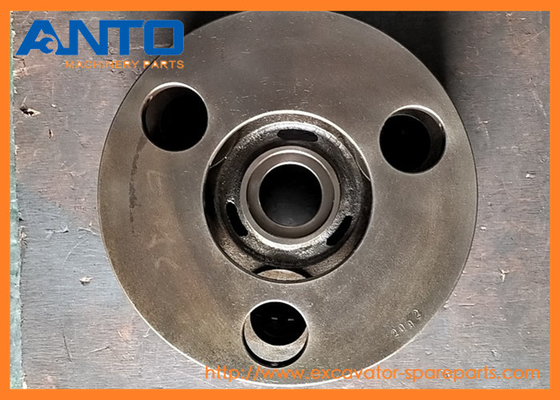

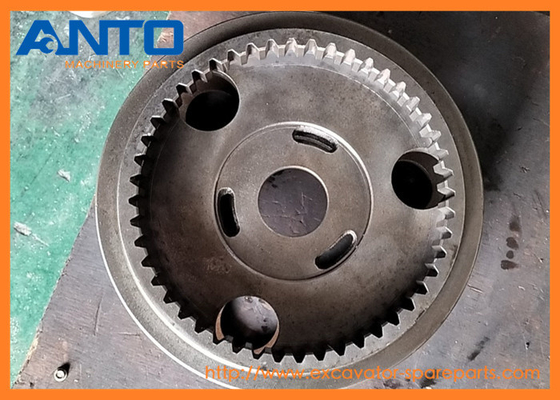

1695599 169-5599 Planetary Carrier Excavator Swing Gear For 320C 320C FM 322C 322C FM
Specification
| Application | Excavator swing gear |
| Name | Planetary Carrier |
| Parts No | 1695599 169-5599 |
| Model |
320C 320C FM 322C 322C FM 325C 325C FM |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
EXCAVATOR 320C 320C FM 322C 322C FM 325C 325C FM
| 1218139 CARRIER |
| M315, M315C, M316C, M318 |
| 8U5989 CARRIER-PLANETARY |
| 206B, 212B, M315, M315C, M316C, M318, M318C, M318C MH, M320, M322C |
| 1324344 CARRIER |
| M312, M313C |
| 1324288 CARRIER-PLANETARY |
| M312, M313C |
| 1550823 CARRIER |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| 3756310 CARRIER-PLANETARY |
| M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318D, M318D MH, M322C, M322D, M322D MH |
| 1550823 CARRIER |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| 1484749 CARRIER-PLANETARY |
| 315C, 318B |
| 1582457 CARRIER GP |
| 317B LN, 318B |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 1550173 CARRIER GP |
| 315B L, 317B LN, 318B |
| 1719443 CARRIER |
| 307C, 307D, 308C, 308D, 308E |
| 1719439 CARRIER |
| 307C, 307D, 308C, 308D, 308E |
| 3074161 CARRIER |
| 307C, 307D, 308C, 308D, 308E, 308E CR, 308E SR |
| 1938429 CARRIER |
| 304.5 |
| 1938428 CARRIER |
| 304.5 |
| 2069479 CARRIER AS |
| 302.5, 302.5C |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 169-5586 | [1] | HOUSING-MOTOR | |
| 2 | 207-1571 | [1] | SEAL GP-DUO-CONE | |
| 2A. | 163-7373 | [2] | RING-TORIC | |
| 3 | 168-8452 | [2] | BALL BEARING | |
| 4 | 7Y-0595 | [3] | SPACER (58X79.6X6-MM THK) | |
| 5 | 169-5596 | [1] | STOP | |
| 6 | 171-9298 | [1] | SEAL-O-RING | |
| 7 | 191-2676 | [1] | GEAR-RING (72-TEETH) | |
| 8 | 169-5599 | [1] | CARRIER-PLANETARY | |
| 9 | 169-5590 | [1] | GEAR-SUN (24-TEETH) | |
| 10 | 191-2571 | [1] | CARRIER-PLANETARY | |
| 11 | 171-9387 | [1] | GEAR-RING (64-TEETH) | |
| 12 | 7M-8485 | [2] | SEAL-O-RING | |
| 13 | 3E-2338 | [2] | PLUG-PIPE | |
| 14 | 191-2686 | [1] | CARRIER AS | |
| 14A. | 191-2687 | [3] | RACE-BEARING | |
| 15 | 093-1731 | [2] | RING-RETAINING | |
| 16 | 169-5589 | [1] | GEAR-SUN (24-TEETH) | |
| 17 | 094-0578 | [1] | PLATE (8-MM THK) | |
| 18 | 094-0579 | [1] | PLATE (9-MM THK) | |
| 19 | 094-0580 | [1] | PLATE (10-MM THK) | |
| 20 | 191-2683 | [1] | GEAR-SUN (20-TEETH) | |
| 21 | 191-2684 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 22 | 096-0433 | [3] | RING-RETAINING | |
| 23 | 191-2689 | [3] | WASHER (34X70X1-MM THK) | |
| 24 | 191-2685 | [3] | BEARING AS | |
| 25 | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| 26 | 179-8733 M | [16] | BOLT (M20X2.5X170-MM) | |
| 27 | 8T-4123 | [16] | WASHER (3.62X5.75X0.375-MM THK) | |
| 28 | 199-4503 | [1] | COVER | |
| 29 | 1U-8846 B | SEALANT-GASKET | ||
| 31 | 191-2570 | [6] | BEARING AS (CAGED ROLLER) | |
| 32 | 169-5601 | [3] | SHAFT-PLANETARY | |
| 33 | 169-5592 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 34 | 094-1528 M | [12] | WASHER (53X84X1-MM THK) | |
| 35 | 095-0891 | [6] | PIN-SPRING | |
| 36 | 169-5593 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 37 | 191-2569 | [3] | BEARING AS (CAGED ROLLER) | |
| 38 | 169-5602 | [3] | SHAFT-PLANETARY | |
| 39 | 169-5585 | [1] | HOUSING | |
| 40 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 41 | 191-2690 | [3] | WASHER (42.3X70X1-MM THK) | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
