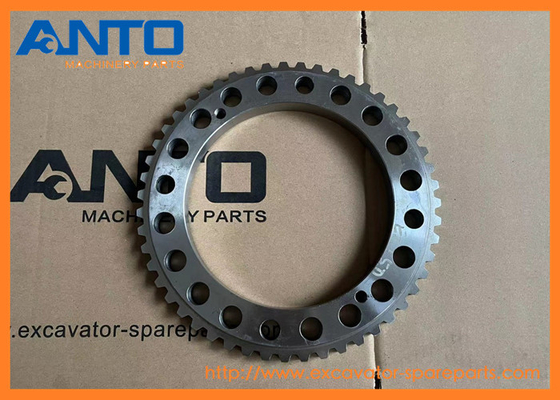

1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L

1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L
1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L 1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L

Large Image :  1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 1655797 165-5797
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Model Number: 311C 313D2 LGP 315C 315D L 316E L 318D L 318D2 L Product Name: Gear
Part Number: 1655797 165-5797 Transportation: By Sea/air By Express
Packing: Standard Export Carton Warranty: 6/12 Months

  • 1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L







  • Specification

Application Excavator swing gear
Name Gear
Parts No 1655797 165-5797
Model

311C 313D2 LGP 315C 315D L 316E L 318D L 318D2 L
Delivery time Stock for urgent delivery
Quality Brand new, OEM quality
MOQ 1 PCS
Design made in china
Means of transport By sea/air, DHL FEDEX UPS TNT Express
Packing As request or standard packing







  • Applicable models

EXCAVATOR 311C 313D2 LGP 315C 315D L 316E L 318D L 318D2 L







  • More gear parts supplied to C A T machine​
1484715 GEAR-COUPLING
315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN,...

7Y1431 GEAR-PLANETARY
315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3...

7Y1430 GEAR-SUN
315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3...

5I7674 GEAR
311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320 L, 320B, 320B L, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321B, 321C, 323D L, 323D LN

2056788 GEAR
311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN...

1252951 GEAR
311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN

5I7686 GEAR AS
311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN

5I7558 GEAR AS
311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320...

1252950 GEAR AS
311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 3...







  • Catalog parts list​
Pos. Part No Qty Parts name Comments
1 165-5785 [1] SPACER (40X60.9X1-MM THK)
2 096-1773 B [1] SHIM (0.15-MM THK)
  096-1774 B [1] SHIM (0.3-MM THK)
  096-1775 B [1] SHIM (0.4-MM THK)
  096-1776 B [1] SHIM (0.5-MM THK)
  096-1777 B [1] SHIM (0.6-MM THK)
  096-1778 B [1] SHIM (0.7-MM THK)
  096-1779 B [1] SHIM (0.8-MM THK)
  096-1780 B [1] SHIM (1-MM THK)
  096-1781 B [1] SHIM (1.6-MM THK)
11 227-6034 M [16] BOLT-FLANGE HEAD (M16X2X60-MM)
12 165-5786 [3] SHAFT
13 296-6269 [6] BEARING-ROLLER
14 165-5787 [3] GEAR-PLANETARY (26-TEETH)
15 094-1528 [6] WASHER (53X84X1-MM THK)
16 095-0891 [6] PIN-SPRING
17 165-5788 [3] GEAR-PLANETARY (29-TEETH)
18 296-6268 [3] BEARING AS-ROLLER
19 3E-2338 [2] PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
20 7M-8485 [2] SEAL-O-RING
21 165-5790 [1] COVER
22 7Y-0225 [3] SHAFT-PLANETARY
23 094-0611 [6] WASHER (47.3X76X1-MM THK)
24 094-0580 [1] PLATE (10-MM THK)
25 165-5792 [1] GEAR-SUN (14-TEETH)
26 165-5793 [1] GEAR-SUN (17-TEETH)
27 165-5794 [1] SPACER (72X101X7-MM THK)
28 165-5795 [1] CARRIER
29 8T-7929 M [16] BOLT (M12X1.75X180-MM)
30 8T-4223 [16] WASHER-HARD (13.5X25.5X3-MM THK)
31 095-1299 [3] DOWEL
32 165-3892 [1] GEAR-RING (73-TEETH)
33 165-5796 [1] CARRIER
34 165-5797 [1] GEAR (51-TEETH)
35 165-5800 [1] WASHER (241X282X3-MM THK)
36 210-3530 [1] HOUSING
37 114-1539 [4] PIN-DOWEL
38 296-6220 [2] BALL BEARING
39 210-3531 [1] HOUSING-MOTOR
40 174-4874 [1] SEAL GP-DUO-CONE

  1U-8846 BF   SEALANT-GASKET
  B   USE AS REQUIRED
  F   NOT SHOWN
  M   METRIC PART

1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L 0







  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Advantage

1. Offer Top quality & competitive products


2. Support 6-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service







  • Packing and Shipping

Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
