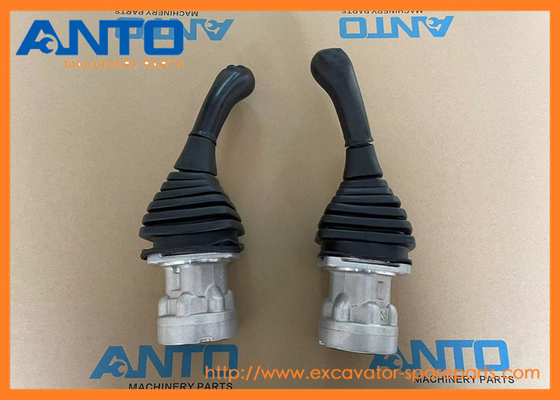

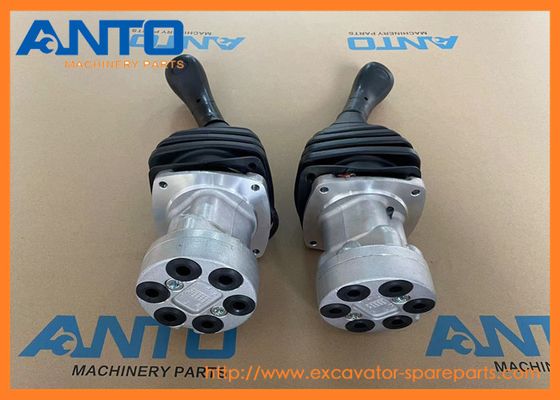

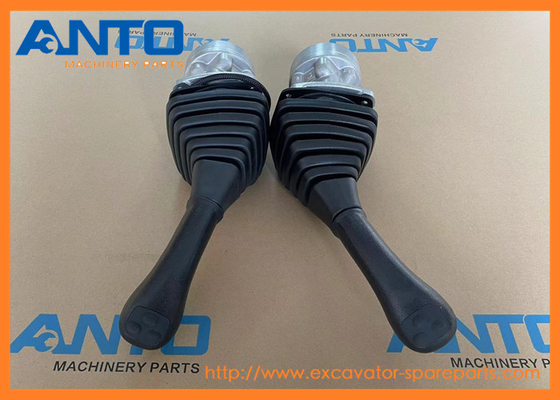

- 31N6-26300 31N6-26310 Pilot Joystick Handle HYUNDAI Excavator Spare Parts Fit For R110-7A R140LC-7A
| Name |
Pilot Joystick Handle |
| Parts No |
31N6-26300 31N6-26310 |
| Machine Model |
R110-7A R140LC-7A R160LC7A R180LC7A |
| Category |
Remote Control Lever |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
7 SERIES WHEEL EXCAVATOR R140W7A R170W7 R170W7A R200W7A
7-SERIES CRAWLER EXCAVATOR R110-7A R140LC-7A R160LC7A R180LC7A R210LC7A R210NLC7A R250LC7A R290LC7A R320LC7A R360LC7A R450LC7A R500LC7A R80-7A R8007AFS R800LC7A RC215C7 RC215C7H RD80-7 Hyundai
- More other handle parts fit for HYUNDAI machine
| 31N6-20200 RCV SUB ASSY-LH |
| R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210NLC7 |
| |
| 31N5-20020 RCV PEDAL |
| R140W7, R140W7A, R140W9, R140W9A, R140W9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S, R200W7, R200W7A, R210W-9 |
| |
| 31EE-20091 RCV-DOZER BLADE |
| R130W3, R160LC3, R200W3, R55-3, R80-7, R80-7A, R95W3, RD80-7 |
| |
| 31N8-24200 RCV SUB ASSY-LH |
| R250LC7, R290LC7, R290LC7A, R290LC7H, R300LC7, R320LC7, R320LC7A, R360LC7, R360LC7A, R370LC7, R450LC7, R450LC7A, R500LC7, R500LC7A, RD340LC-7, RD510LC-7 |
| |
| 31N8-24210 RCV SUB ASSY-RH |
| R250LC7, R290LC7, R290LC7A, R290LC7H, R300LC7, R320LC7, R320LC7A, R360LC7, R360LC7A, R370LC7, R450LC7, R450LC7A, R500LC7, R500LC7A, RD340LC-7, RD510LC-7 |
| |
| 31N8-27200 RCV LEVER SUB ASSY-LH |
| R250LC7, R250LC7A, R290LC7, R290LC7A, R305LC7, R320LC7, R320LC7A, R360LC7, R360LC7A, R450LC7, R450LC7A, R500LC7, R500LC7A |
| |
| 31N8-27210 RCV LEVER SUB ASSY-RH |
| R250LC7, R250LC7A, R290LC7, R290LC7A, R305LC7, R320LC7, R320LC7A, R360LC7, R360LC7A, R450LC7, R450LC7A, R500LC7, R500LC7A |
| |
| 31N8-26200 RCV SUB ASSY-LH |
| R250LC7A, R290LC7A, R320LC7A, R360LC7A, R450LC7A, R500LC7A, R8007AFS, R800LC7A |
| |
| 31N8-26210 RCV SUB ASSY-RH |
| R250LC7A, R290LC7A, R320LC7A, R360LC7A, R450LC7A, R500LC7A, R8007AFS, R800LC7A |
| |
| 31N1-20020 RCV PEDAL |
| R140LC9V, R55-9, R55-9A, R55-9S, R60CR-9, R60CR-9A, R80-7, R80-7A, R80CR-9, R80CR-9A, RD80-7 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31N6-26200 |
[1] |
RCV LEVER SUB ASSY-LH |
|
| *. |
31N6-26210 |
[1] |
RCV LEVER SUB ASSY-RH |
|
| *-1. |
31N6-26300 |
[1] |
RCV LEVER ASSY-LH |
|
| *-1. |
31N6-26310 |
[1] |
RCV LEVER ASSY-RH |
|
| 1 |
XKAY-00077 |
[1] |
CASE |
|
| 2 |
XKAY-00065 |
[4] |
PLUG |
|
| 3 |
XKAY-00064 |
[1] |
PLUG |
|
| K4. |
XKAY-00063 |
[1] |
O-RING |
|
| *-2. |
XKAY-00802 |
[2] |
SPOOL KIT(1,3) |
PORT 1,3 |
| *-2. |
XKAY-00803 |
[2] |
SPOOL KIT(2,4) |
PORT 2,4 |
| 5 |
XKAY-00062 |
[4] |
SPOOL |
|
| 6 |
XKAY-00061 |
[4] |
SHIM |
|
| 7 |
XKAY-00804 |
[2] |
SPRING(1,3) |
PORT 1,3 |
| 8 |
XKAY-00436 |
[2] |
SEAT-SPRING(1,3) |
PORT 1,3 |
| 28 |
XKAY-00814 |
[2] |
SPRING(2,4) |
PORT 2,4 |
| 29 |
XKAY-00059 |
[2] |
SEAT-SPRING |
PORT 2,4 |
| 9 |
XKAY-00058 |
[4] |
STOPPER |
4SET |
| 10 |
XKAY-00078 |
[4] |
SPRING |
|
| *-3. |
XKAY-00805 |
[2] |
PLUG KIT(1,3) |
PORT 1,3 |
| *-3. |
XKAY-00806 |
[2] |
PLUG KIT(2,4) |
PORT 2,4 |
| 11 |
XKAY-00784 |
[4] |
PLUG |
|
| K12. |
XKAY-00611 |
[4] |
SEAL-ROD |
|
| K13. |
XKAY-00054 |
[4] |
O-RING |
|
| 14 |
XKAY-00052 |
[2] |
ROD-PUSH |
PORT 1,3 |
| 15 |
XKAY-00439 |
[2] |
ROD-PUSH |
PORT 2,4 |
| 16 |
XKAY-00075 |
[1] |
PLATE |
|
| 17 |
XKAY-00074 |
[1] |
BUSHING |
|
| 18 |
XKAY-00049 |
[1] |
JOINT ASSY |
|
| 19 |
XKAY-00612 |
[1] |
SWASH PLATE |
|
| 20 |
XKAY-00072 |
[1] |
BOOT |
|
| 21 |
XKAY-00047 |
[1] |
NUT-HEX |
|
| *-4. |
XKAY-00807 |
[1] |
HANDLE KIT(RH) |
|
| *-4. |
XKAY-00808 |
[1] |
HANDLE KIT(LH) |
|
| 22 |
XKAY-00046 |
[1] |
NUT |
|
| K23. |
XKAY-00045 |
[1] |
O-RING |
|
| N24. |
XKAY-00810 |
[1] |
BAR-HANDLE |
|
| 25 |
XKAY-00811 |
[1] |
NUT |
|
| 26 |
XKAY-00041 |
[1] |
BOOT |
|
| 27 |
XKAY-00812 |
[1] |
HANDLE ASSY(RH) |
|
| 27 |
XKAY-00813 |
[1] |
HANDLE ASSY(LH) |
|
| 41 |
X500-110001 |
[5] |
CONNECTOR-ORFS |
|
| 42 |
31N6-25060 |
[1] |
FILTER-LAST GUARD |
|
| 43 |
S631-011004 |
[6] |
O-RING |
|
| 44 |
S621-011001 |
[6] |
O-RING(SEAL LOCK TYPE) |
|
| K. |
91ER-20051 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT INDIVIDUALLY SUPPLIED |
|
