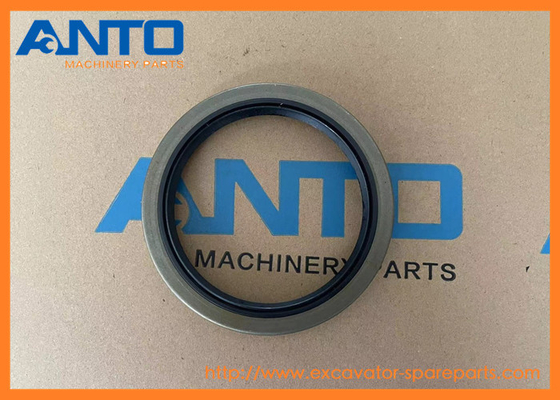

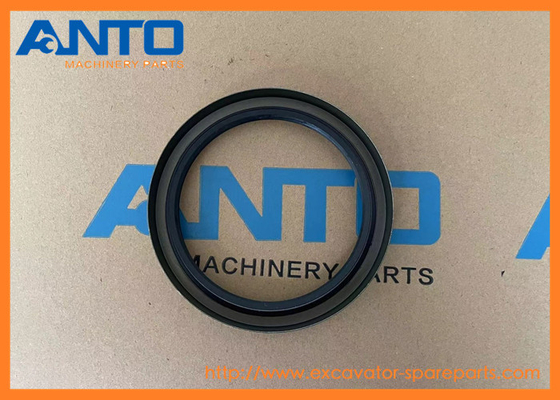

- 714-07-39120 7140739120 Oil Seal KOMATSU Wheel Loader Spare Parts Fit For WA430-6 WA470-6
| Name |
Oil Seal |
| Parts No |
714-07-39120 7140739120 |
| Machine Model |
WA380 WA430 WA470 WA480 |
| Category |
Service Kit Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
WHEEL LOADERS WA380 WA430 WA470 WA480 Komatsu
- More other oil seal parts fit for KOMATSU machine
| 104-98-32634 OIL CHART |
| D20P, D21A |
| |
| 569-61-18100 OIL FILTER ASS'Y |
| HD205, HD460 |
| |
| 3EC-04-51750 OIL COOLER |
| FD35/40, FD35Y/40Y, FD40, FD40Z, FD40ZY, FD45, FD45Y, FD50A, FD50AY, FG35/40, FG40, FG40Z, FG45, FG50A |
| |
| 26A-03-11200 OIL COOLER ASS'Y |
| GC50 |
| |
| 3EB-04-35510 OIL COOLER |
| FD200, FD20H/25H, FD250Z, FD30H, FD35A, FD50/60, FD70, FD80, FG35A, FG70 |
| |
| 425-16-11112 OIL FILTER ASS'Y |
| 558, HD465, HD605, WA500 |
| |
| YMR000949 OIL SEAL CASE, ASSY. |
| PC10 |
| |
| 56D-93-23211 OIL CHART |
| HM250, HM300 |
| |
| 56D-93-23210 OIL CHART |
| HM300 |
| |
| 21U-98-34110 OIL CHART |
| PC28UU |
| |
| 885411418 OIL LEVEL INDICATOR |
| WB140, WB140PS, WB150, WB150AWS, WB150PS, WB150WSC, WB70A, WB91R, WB93R, WB97R, WB97S |
| |
| 6110-21-5313 OIL GAUGE |
| 4D120 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
714-17-30004 |
[1] |
Transmission Assembly Komatsu China |
|
| |
|
|
["SN: (100980-UP"] |$0. |
|
| |
714-17-30003 |
[1] |
Transmission Assembly Komatsu China |
|
| |
|
|
["SN: 65501-(100979"] |$1. |
|
| 1. |
714-12-24521 |
[1] |
Shaft, Output Komatsu China |
|
| |
|
|
["SN: (100686-UP"] |
|
| 1. |
714-12-24520 |
[1] |
Shaft,Output Komatsu China |
|
| |
|
|
["SN: 65501-(100685", "SCC: A2"] |
|
| 2. |
714-24-24620 |
[1] |
Gear,Output Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 3. |
06002-32215 |
[1] |
Bearing Komatsu |
1.741 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 4. |
06002-32017 |
[1] |
Bearing Komatsu |
1.4 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 5. |
714-17-33830 |
[1] |
Spacer Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 6. |
714-07-28611 |
[1] |
Hub, Spline Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 7. |
714-12-27141 |
[1] |
Cage Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 8. |
714-07-39120 |
[1] |
Seal, Oil, (Kit : K01) Komatsu China |
|
| |
|
|
["SN: (100686-UP"] |
|
| 8. |
07012-50095 |
[1] |
Seal, Oil Komatsu |
0.095 kg. |
| |
|
|
["SN: 65501-(100685", "SCC: A1"] |
|
| 10. |
425-15-28710 |
[2] |
Seal, Dust, (Kit : K01) Komatsu |
0.06 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 11. |
07000-75140 |
[1] |
O-ring, (Kit : K01) Komatsu |
0.02 kg. |
| |
|
|
["SN: 65501-UP"] analogs:["0700065140"] |
|
| 12. |
01010-81235 |
[6] |
Bolt Komatsu |
0.048 kg. |
| |
|
|
["SN: 65501-UP"] analogs:["0101051235", "01010E1235", "801015136"] |
|
| 13. |
714-17-37110 |
[1] |
Housing Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 14. |
714-12-27121 |
[1] |
Housing Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 15. |
07000-75285 |
[1] |
O-ring, (Kit : K01) Komatsu China |
|
| |
|
|
["SN: 65501-UP"] analogs:["0700065285"] |
|
| 16. |
01016-51250 |
[4] |
Bolt Komatsu |
0.061 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 17. |
07043-A0312 |
[2] |
Plug, Taper Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 18. |
714-07-27161 |
[10] |
Spring Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 19. |
714-07-27151 |
[10] |
Spring Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 20. |
714-17-37130 |
[1] |
Piston Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 21. |
07000-A6210 |
[1] |
O-ring, (Kit : K01) Komatsu |
0.033 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 22. |
07001-06215 |
[1] |
Ring, Back-up, (Kit : K01) Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 23. |
07000-A6260 |
[1] |
O-ring, (Kit : K01) Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 24. |
07001-06265 |
[1] |
Ring, Back-up, (Kit : K01) Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 25. |
04020-01842 |
[2] |
Pin, Dowel Komatsu |
0.09 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 26. |
714-07-12670 |
[9] |
Disc Komatsu |
0.4 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 27. |
714-12-19730 |
[10] |
Plate, Separate Komatsu |
0.52 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 28. |
714-07-12691 |
[9] |
Spring, Wave Komatsu |
0.04 kg. |
| |
|
|
["SN: 65501-UP"] analogs:["7140712690"] |
|
| 29. |
714-12-17250 |
[1] |
Plate, End Komatsu |
1.4 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 30. |
714-07-12720 |
[2] |
Ring, Snap Komatsu |
0.6 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 31. |
714-12-00040 |
[1] |
Shim Assembly, (Kit : K01) Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 32. |
714-17-24111 |
[1] |
Coupling Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 33. |
772-14-13130 |
[1] |
Holder Komatsu China |
|
| |
|
|
["SN: 65501-UP"] |
|
| 34. |
07000-75060 |
[1] |
O-ring, (Kit : K01) Komatsu |
0.007 kg. |
| |
|
|
["SN: 65501-UP"] |
|
| 35. |
01011-62020 |
[1] |
Bolt Komatsu |
0.358 kg. |
| |
|
|
["SN: 65501-UP"] analogs:["0101182020"] |
|
| 36. |
01643-32060 |
[1] |
Washer Komatsu China |
0.044 kg. |
| |
|
|
["SN: 65501-UP"] analogs:["802170007", "0164322045", "0164302045"] |
|
| 37. |
714-12-24120 |
[1] |
Coupling Assembly Komatsu |
7.082 kg. |
| |
|
|
["SN: 65501-UP"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
