Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Spare Parts | Machine Model: | EC240C EC250D EC250E EC290B EC290C EC300D EC300E EC330B EC330C EC340D EC350D EC350E EC360B EC360C EC360CHR EC380D EC380DHR EC380E EC380EHR ECR305C FC2924C FC3329C PL3005D |
|---|---|---|---|

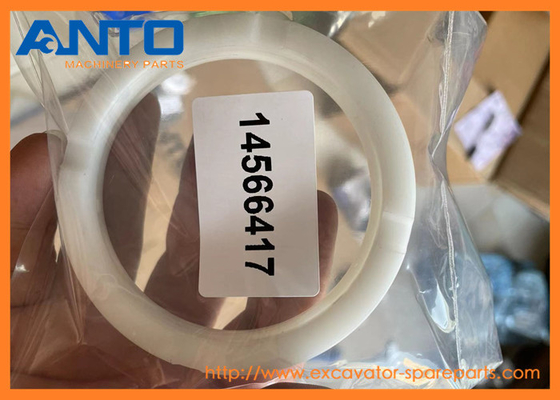

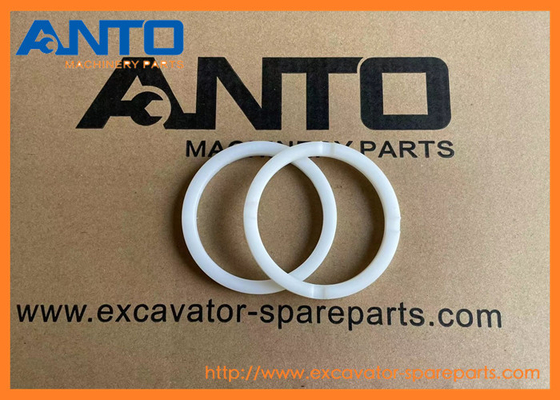

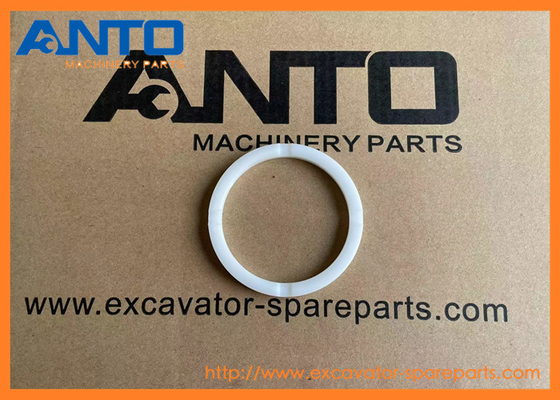

| Parts No.: | 14566417 VOE14566417 | Parts Name: | Ring |
| Warranty: | 3/6/12 Months | Package: | Standard Export Carton |
| Application | Vo-lvo Excavator Spare Parts |
| Parts Name | Ring |
| Parts No | 14566417 VOE14566417 |
| Model | EC240C EC250D EC250E EC290B EC290C EC300D EC300E EC330B EC330C EC340D EC350D EC350E EC360B EC360C EC360CHR EC380D EC380DHR EC380E EC380EHR ECR305C FC2924C FC3329C PL3005D |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
EXCAVATORS EC240C EC250D EC250E EC290B EC290C EC300D EC300E EC330B EC330C EC340D EC350D
EC350E EC360B EC360C EC360CHR EC380D EC380DHR EC380E EC380EHR ECR305C FC2924C FC3329C PL3005D
| VOE20711957 Ring gear |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, A35D, A35E, A35E FS, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40D, A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A45G FS,... |
| VOE14881253 Ring |
| EC330B, EC330C, EC360B, EC360C |
| VOE14684220 Ring |
| EC380EHR |
| VOE14357674 Ring |
| EC360CHR, EC380DHR, EC380EHR |
| VOE14501800 Ring |
| EC290, EC290B, EC290C, FC3329C |
| VOE14648484 Ring |
| EC300E, EC350E, EC380E, EC380EHR |
| VOE14597337 Ring |
| EC360CHR, EC380DHR, EC380EHR, EC460CHR, EC480DHR, EC480EHR, EC700BHR, EC700CHR |
| VOE14597344 Ring |
| EC360CHR, EC380DHR, EC380EHR, EC460CHR, EC480DHR, EC480EHR, EC700BHR, EC700CHR |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14569763 | [1] | Gearbox | ||
| 1 | VOE14570930 | [1] | Housing | |
| 2 | VOE14566409 | [1] | Gear | |
| 3 | SA9213-20000 | [18] | Spring washer | |
| 4 | VOE60110006 | [19] | Hexagon screw | |
| 5 | VOE14566432 | [1] | Cover | |
| 6 | VOE14883847 | [2] | Plug | |
| 7 | SA7117-38230 | [2] | Bearing | |
| 8 | VOE14566403 | [1] | Retainer | |
| 9 | VOE14566404 | [1] | Shim | |
| 10 | VOE984088 | [20] | Hex. socket screw | |
| 11 | VOE14566410 | [1] | Planet carrier | |
| 12 | VOE14566411 | [1] | Planet carrier | |
| 13 | VOE14566415 | [5] | Pin | |
| 14 | VOE14566413 | [4] | Planetary gear | |
| 15 | VOE14566414 | [8] | Washer | |
| 16 | SA9325-06012 | [4] | Spring pin | |
| 17 | SA8230-21020 | [1] | Thrust ring | |
| 18 | VOE14566412 | [4] | Needle bearing | |
| 19 | VOE14566416 | [1] | Gear | |
| 20 | VOE14566418 | [1] | Planet carrier | |
| 21 | VOE14566423 | [3] | Pin | |
| 22 | VOE14566419 | [1] | Planet carrier | |
| 23 | VOE14566421 | [3] | Planetary gear | |
| 24 | VOE14566422 | [6] | Washer | |
| 25 | SA9325-06012 | [3] | Spring pin | |
| 26 | VOE14566420 | [3] | Needle bearing | |
| 27 | VOE14566433 | [1] | Thrust washer | |
| 28 | VOE14566424 | [1] | Gear | |
| 29 | VOE14570931 | [1] | Planet carrier | |
| 29A. | VOE14570933 | [3] | Gear | |
| 29B. | VOE14566427 | [3] | Needle bearing | |
| 29C. | VOE14566429 | [6] | Washer | |
| 29D. | VOE14566430 | [3] | Pin | |
| 29E. | SA9325-06012 | [3] | Spring pin | |
| 29F. | VOE14569232 | [1] | Ring | |
| 30 | VOE14566417 | [1] | Ring | |
| 31 | VOE14570934 | [1] | Gear | |
| 32 | VOE990557 | [2] | O-ring | |
| 33 | VOE950677 | [2] | Pin | |
| 34 | VOE914467 | [1] | Retaining ring | |
| 35 | VOE14667679 | [1] | Seal |
Hydraulic pump and valve parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
