Product Details:
Payment & Shipping Terms:
|
| Category: | Hydraulic Parts | Machine Model: | 304.5 305.5 306 |
|---|---|---|---|
| Product Name: | Barrel Kit | Application: | Mini Hydraulic Excavator |
| Part Number: | 153-6093 1536093 | Packing: | Standard Export Carton |
| Highlight: | 305.5 306 Barrel Kit,153-6093 Barrel Kit,Excavator Hydraulic Parts Barrel Kit |
||
| Application | Mini Hydraulic Excavator |

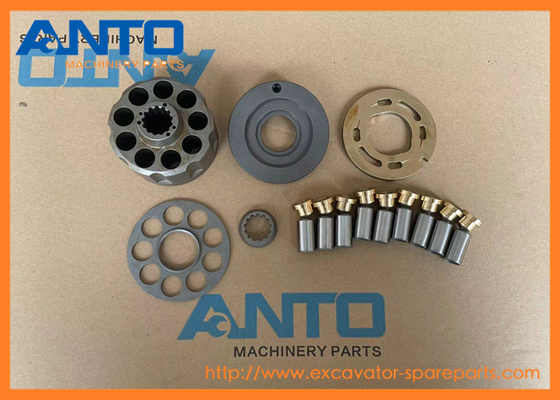

| Name | Barrel Kit |
| Parts No | 153-6093 1536093 |
| Machine Model | 304.5 305.5 306 |
| Category | Hydraulic Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
MINI HYD EXCAVATOR 304.5 305.5 306 Cater.pillar.
| 3393014 KIT-FRONT GEAR |
| 232B, 242B, 247B, 3011C, 3013, 3013C, 3014, 3024, 3024C, 303.5, 304.5, C1.1, C1.5, C2.2, CB-214E, CB-334E |
| 1552265 KIT-CONNECTING PLUG |
| 216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 262D, 267, 267B,... |
| 1028806 KIT-RECEPTACLE |
| 216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 262D, 267, 267B,... |
| 1288614 KIT-SEAL |
| 120H, 120H ES, 120H NA, 135H, 135H NA, 216, 216B, 216B3, 226B, 226B3, 232B, 236, 236B, 236B3, 242B, 242B3, 246C, 247B, 247B3, 252B, 252B3, 256C, 257B, 257B3, 259B3, 262C, 262C2, 267B, 268B, 272C, 277C... |
| 1214480 KIT-WATER BASE |
| 120H, 120H ES, 120H NA, 135H, 135H NA, 216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 242B, 247, 247B, 247B3, 248, 257B, 267, 30/30, 301.5, 301.6C, 301.7D, 301.7D CR, 302.2D, 302.4D, 302.5, 302.5C, 30... |
| 1541203 KIT-CRANKSHAFT BEARING |
| 216, 216B, 226B, 232B, 242B, 247B, 257B, 3014, 3024, 3024C, 304.5, 902, C2.2, CB-334D, CB-334E, CB-335D |
| 1648900 KIT-GASKET |
| 3014, 3024, 304.5, 902 |
| 1934321 KIT-SEAL |
| 304.5 |
| 1991149 KIT-SEAL |
| 305, 305.5, 306 |
| 1536093 KIT-BARREL |
| 304.5, 305.5, 306 |
| 1938478 KIT-MOTOR HEAD |
| 304.5, 305.5, 306 |
| 1536090 KIT-CARRIER |
| 304.5, 305.5, 306 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 153-6082 | [1] | GEAR AS | |
| 2 | 193-8427 H | [1] | HOUSING | |
| 3 | 193-8428 J | [1] | CARRIER | |
| 4 | 193-8429 L | [1] | CARRIER | |
| 5 | 193-8430 H | [1] | PINION | |
| 6 | 193-8431 H | [1] | GEAR | |
| 7 | 193-8432 J | [4] | GEAR | |
| 8 | 193-8433 L | [3] | GEAR | |
| 9 | 193-8434 L | [1] | GEAR | |
| 10 | 153-6083 | [1] | GEAR | |
| 11 | 193-8436 J | [4] | PIN | |
| 12 | 193-8437 L | [3] | PIN | |
| 13 | 193-8438 H | [1] | RING | |
| 15 | 193-8440 H | [2] | COLLAR | |
| 16 | 193-8441 H | [1] | BEARING | |
| 17 | 193-8442 H | [1] | BEARING | |
| 18 | 193-8443 J | [96] | ROLLER | |
| 19 | 193-8444 L | [48] | ROLLER | |
| 20 | 193-8445 J | [4] | WASHER | |
| 21 | 193-8446 J | [4] | WASHER | |
| 22 | 193-8447 L | [6] | WASHER | |
| 23 | 6V-5200 L | [1] | RING-RETAINING | |
| 24 | 6V-7644 J | [4] | RING-RETAINING | |
| 25 | 095-0919 L | [3] | RING-RETAINING | |
| 26 | 8C-3347 J | [4] | PIN-ROLL | |
| 27 | 096-8055 L | [3] | PIN-SPRING | |
| 28 | 193-8448 H | [2] | PIN | |
| 29 | 193-8449 H | [1] | SEAL | |
| 30 | 096-0037 | [1] | SEAL-O-RING | |
| 31 | 5A-3604 M | [6] | BOLT-SOCKET HEAD (M8X1.25X25-MM) | |
| 32 | 153-6085 | [1] | RING | |
| 33 | 193-8451 | [1] | MOTOR AS | |
| 34 | 193-8452 S | [1] | BARREL | |
| 35 | 193-8453 S | [1] | PLATE | |
| 36 | 193-8454 S | [9] | PISTON | |
| 37 | 193-8455 S | [9] | SHOE | |
| 38 | 193-8456 S | [1] | RETAINER | |
| 39 | 193-8457 S | [1] | RETAINER | |
| 40 | 193-8458 T | [1] | PLATE | |
| 41 | 193-8459 S | [2] | RETAINER | |
| 42 | 193-8460 S | [3] | PIN | |
| 43 | 153-6087 | [2] | SCREEN | |
| 44 | 193-8462 S | [1] | SPRING | |
| 45 | 170-8767 | [1] | BEARING | |
| 46 | 193-8464 P | [1] | BEARING | |
| 47 | 095-1721 U | [1] | SEAL-O-RING | |
| 48 | 8T-9597 S | [1] | RING-RETAINING | |
| 49 | 170-8768 | [4] | SCREW | |
| 50 | 7X-0794 P | [1] | PIN (ROLL) | |
| 51 | 170-8769 | [1] | PIN | |
| 52 | 193-8467 T | [1] | PIN | |
| 53 | 095-1717 U | [1] | SEAL-O-RING | |
| 54 | 095-1719 U | [1] | SEAL-O-RING | |
| 55 | 193-8468 U | [1] | RING-BACKUP | |
| 56 | 193-8469 U | [1] | RING-BACKUP | |
| 57 | 193-8470 P | [1] | BODY | |
| 58 | 193-8471 P | [2] | VALVE | |
| 59 | 193-8472 P | [2] | PLUG | |
| 60 | 193-8473 P | [2] | SPRING | |
| 61 | 095-1579 P | [2] | SEAL-O-RING | |
| 63 | 095-1582 V | [2] | SEAL-O-RING | |
| 64 | 8T-0211 V | [2] | SEAL-O-RING | |
| 65 | 095-1590 V | [2] | SEAL-O-RING | |
| 66 | 095-1595 V | [2] | SEAL-O-RING | |
| 67 | 095-1781 V | [4] | RING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 153-6091 H | [1] | KIT-PINION | ||
| 153-6089 J | [1] | KIT-CARRIER | ||
| 153-6090 L | [1] | KIT-CARRIER | ||
| 193-8478 P | [1] | KIT-MOTOR HEAD | ||
| 153-6093 S | [1] | KIT-BARREL | ||
| 153-6094 T | [1] | KIT-PLATE | ||
| 193-8481 U | [1] | KIT-SEAL (SWING MOTOR)(MOTOR) | ||
| 193-8482 V | [1] | KIT-SEAL (VALVE) | ||
| H | KIT MARKED H SERVICES PART(S) MARKED H | |||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| L | KIT MARKED L SERVICES PART(S) MARKED L | |||
| M | METRIC PART | |||
| P | KIT MARKED P SERVICES PART(S) MARKED P | |||
| S | KIT MARKED S SERVICES PART(S) MARKED S | |||
| T | KIT MARKED T SERVICES PART(S) MARKED T | |||
| U | KIT MARKED U SERVICES PART(S) MARKED U | |||
| V | KIT MARKED V SERVICES PART(S) MARKED V |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
