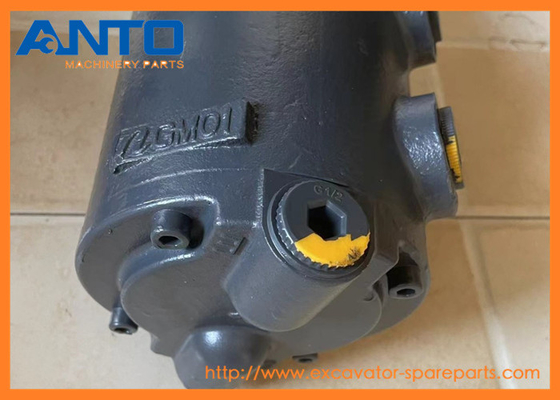

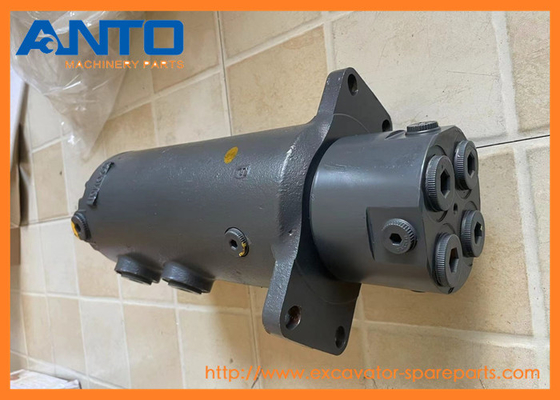

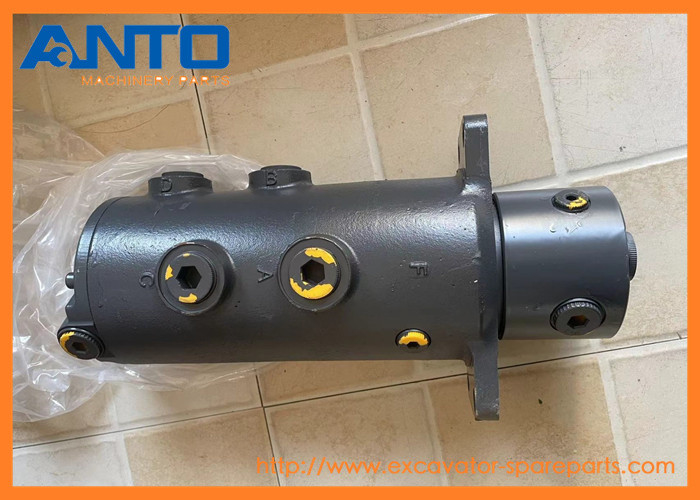

- KRA11190 Swivel Joint CASE Excavator Spare Parts Fit For CX130B CX225SR
| Name |
Swivel Joint |
| Parts No |
2544-9033 2544-9033 |
| Machine Model |
CX130C CX160B CX160C CX210B CX225SR CX240B |
| Category |
Hydraulic Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
HEAVY EQUIPMENT CX130B CX130C CX130D LC CX135SR CX160B CX160C CX160D LC CX210B CX210BLR CX210BNLC CX210C LC CX210C LR CX210C NLC CX210D LC CX210D LC LR CX210D NLC CX225SR CX235C SR CX240B CX240BLR CX250C CX250D LC CX250D LC LR Case
- More other swivel joint parts fit for CASE machine
| KRA12910 HYDRAULIC MOTOR |
| CX210BLR, CX225SR, CX210B, CX210BNLC |
| |
| KRV19720 HYDRAULIC HOSE,19.00 mm ID x 850.00 mm |
| CX130B, CX145C SR, CX130D LC, CX130C, CX130D |
| |
| KHJ16200 HYDRAULIC HOSE,6.35 mm ID x 400.00 mm |
| CX130B, CX160B, CX160C, CX160D LC, CX300D LC, CX350D LC, CX700B, CX75C SR, CX800B, CX80C, CX130C |
| |
| KRJ10590 HYDRAULIC OIL FILTER |
| CX240BLR, CX250C, CX290B, CX300C, CX210B, CX210C LC, CX210BLR, CX210C LR, CX210BNLC, CX210C NLC, CX240B |
| |
| KRJ16320 HYDRAULIC HOSE,22.2mm ID x 1070mm L |
| CX240BLR, CX250C, CX210B, CX210C LC, CX210BLR, CX210C LR, CX210C NLC, CX240B |
| |
| KRJ10750 HYDRAULIC HOSE,25.40 mm ID x 650.00 mm |
| CX240BLR, CX210BLR, CX240B, CX210B, CX210BNLC |
| |
| KRV22580 HYDRAULIC HOSE,22.2mm ID x 1550mm L |
| CX210B, CX210C LC, CX210D LC, CX210BNLC, CX210C NLC, CX210D NLC, CX240B, CX235C SR |
| |
| LJ014520 HYDRAULIC PUMP |
| CX240BLR, CX250C, CX290B, CX300C, CX300D LC, CX210B, CX210C LC, CX210BLR, CX210C LR, CX210C NLC, CX240B, CX235C SR |
| |
| KBJ12510 HYDRAULIC HOSE,25.40 mm ID x 1050.00 mm |
| CX240BLR, CX290B, CX300C |
| |
| KSJ12940 HYDRAULIC HOSE |
| CX500D RTC, CX250C, CX350B, CX350C, CX210C LC, CX490D LC, CX210C LR, CX490D RTC, CX210C NLC, CX500D LC |
| |
| KHJ24420 HYDRAULIC HOSE |
| CX250D LC LR, CX145C SR, CX130D LC, CX235C SR, CX250D LC, CX130D |
| |
| KHJ22152 HYDRAULIC OIL FILTER |
| CX250D LC LR, CX210C LC, CX210D LC, CX210C LR, CX210D LC LR, CX210C NLC, CX210D NLC, CX250D LC |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
KRA11190 |
[1] |
HYDRAULIC SWIVEL |
SUM Incl. 2 - 14 |
| 1 |
KRA11190R |
[1] |
REMAN-HYDRAULIC SWIV |
RAC CX130B CRAWLER EXCAVATOR TIER 3 (3/08-) |
| 1 |
KRA11190C |
[1] |
CORE-HYDRAULIC SWIV |
RAC Return Number |
| 2 |
KRA11200 |
[1] |
HOUSING |
SUM Incl. 3, 4 |
| 3 |
150821A1 |
[1] |
PLUG |
SUM |
| 4 |
150829A1 |
[4] |
PLUG |
SUM |
| 5 |
151814A1 |
[1] |
SEAL,72mm ID x 84mm OD x 11mm Thk |
SUM |
| 6 |
KHA10130 |
[1] |
O-RING |
SUM |
| 7 |
168295A1 |
[7] |
SEALING RING,80mm ID x 90mm OD x 4.8mm Thk |
SUM SEALRING |
| 8 |
862-8025 |
[8] |
HEX SOC SCREW,M8 x 25mm, Cl 12.9 |
CAS |
| 9 |
154721A1 |
[1] |
O-RING,99.4mm ID x 3.1mm Width |
SUM |
| 10 |
KRA1874 |
[1] |
COVER |
SUM |
| 11 |
KRA10380 |
[1] |
THRUST PLATE |
SUM |
| 12 |
KRA1872 |
[1] |
ROTOR |
SUM |
| 13 |
152593A1 |
[1] |
TYPE PLATE |
SUM |
| 14 |
301-1413 |
[2] |
DRIVE SCREW,Drive, #2 x 3/16" |
CAS Superseded by part number: 86542114 |
| 15 |
166352A1 |
[2] |
BOLT |
SUM M12X30 |
| 15A. |
105R012Y045R |
[4] |
BOLT |
SUM BOLT, SEMS Superseded by part number: 47789341 |
| 16 |
KRA11210 |
[1] |
LOCKING BAR |
SUM Superseded by part number: 47801676 |
| 17 |
KRA11090 |
[1] |
SEALING RING |
SUM SEALRING |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
