Product Details:
Payment & Shipping Terms:
|
| Category: | Remote Control Lever | Machine Model: | R140CR-9 R145LC-9 R160LC-9 R180LC-9 |
|---|---|---|---|
| Application: | Excavator | Product Name: | Handle |
| Part Number: | XKAY-01720 XKAY-01721 XKAY-01083 | Packing: | Standard Export Carton |
| Highlight: | HYUNDAI Excavator Spare Parts,R140LC-9 R145CR-9 Excavator Spare Parts,XKAY-01720 XKAY-01721 Excavator Spare Parts |
||

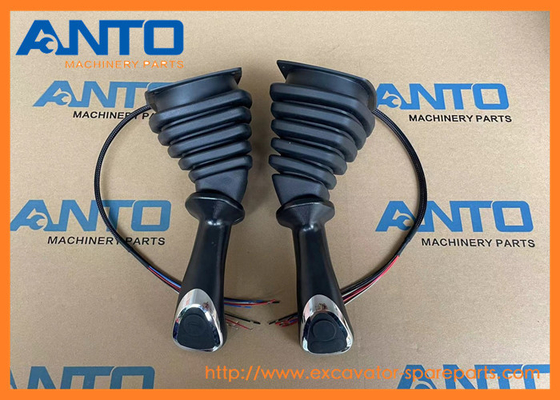

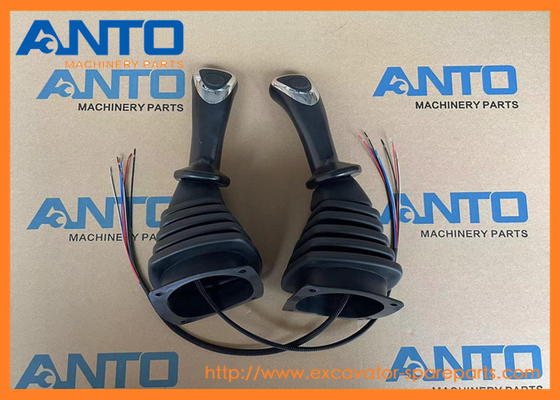

| Name | Handle |
| Parts No | XKAY-01720 XKAY-01721 XKAY-01083 |
| Machine Model | R140CR-9 R145LC-9 R160LC-9 R180LC-9 |
| Category | Remote Control Lever |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
9-SERIES CRAWLER EXCAVATOR R1200-9 R125LCR-9A R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R145CR9A R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH R360LC9 R380LC9A R380LC9DM R380LC9MH R380LC9SH R390LC9 R430LC9 R430LC9A R430LC9SH R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S R800LC-9 R800LC9FS RB140LC9S RB160LC9S RB220LC9S RB260LC9S RD140LC9 RD220LC9
9-SERIES WHEEL EXCAVATOR R140W9 R140W9A R140W9S R170W9 R170W9S R180W9A R180W9S R210W-9 R210W9A R210W9MH R210W9S
F-SERIES CRAWLER EXCAVATOR HX180L HX300L Hyundai
| XKAY-02279 HANDLE KIT-RH |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, R140W9, R140W9A, R160W9A, R170W9, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R21... |
| XKDB-00062 HANDLE ASSY-LH |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| XKDB-00063 HANDLE ASSY-RH |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| XKAY-02370 HANDLE KIT(LH) |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| XKAY-02371 HANDLE KIT(RH) |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| XKAY-02372 HANDLE ASSY(LH) |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| XKAY-02373 HANDLE ASSY(RH) |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| XKAY-02293 HANDLE KIT |
| HW140, HX140L, HX160L, HX235L, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9S, R210LC9BC, ... |
| 71Q6-02651G9 HANDLE |
| HW140, HX140L, HX220L, HX260L, HX300L |
| 71Q6-02474G9 HANDLE |
| HW140, HX140L, HX220L, HX260L, HX300L |
| 71K8-02121 HANDLE ASSY |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| ZGBH-00386 HANDLE-FR |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| XKAY-01719 HANDLE KIT-RH |
| HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140... |
| XKAY-01718 HANDLE KIT-LH |
| HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31Q6-20011 | [1] | RCV SUB ASSY-LH | |
| *. | 31Q6-20012 | [1] | RCV SUB ASSY-LH | |
| *. | 31Q6-20013 | [1] | RCV LEVER ASSY-LH | SHORT |
| *. | 31Q6-20013 | [1] | RCV SUB ASSY-LH | |
| *. | 31Q6-20021 | [1] | RCV SUB ASSY-RH | |
| *. | 31Q6-20023 | [1] | RCV LEVER ASSY-RH | SHORT |
| *. | 31Q6-20022 | [1] | RCV SUB ASSY-RH | |
| *. | 31Q6-20023 | [1] | RCV SUB ASSY-RH | |
| *-1. | 31Q6-21013 | [1] | RCV LEVER SUB-LH | |
| *-1. | 31Q6-21011 | [1] | RCV LEVER -LH | |
| *-1. | 31Q6-21012 | [1] | RCV LEVER -LH | |
| *-1. | 31Q6-21023 | [1] | RCV LEVER SUB-RH | |
| *-1. | 31Q6-21013 | [1] | RCV LEVER -LH | |
| 1 | XKAY-01706 | [1] | CASE | |
| *-1. | 31Q6-21021 | [1] | RCV LEVER -RH | |
| *-1. | 31Q6-21022 | [1] | RCV LEVER -RH | |
| 3 | XKAY-01708 | [1] | BUSHING | |
| *-1. | 31Q6-21023 | [1] | RCV LEVER -RH | |
| *-2. | XKAY-01709 | [2] | SPOOL KIT(1,3) | PORT 1,3 |
| 1 | XKAY-01417 | [1] | CASE | |
| *-2. | XKAY-01973 | [2] | SPOOL KIT(2,4) | PORT 2,4 |
| 1 | XKAY-01706 | [1] | CASE | |
| N4. | XKAY-01711 | [1] | SPOOL | |
| 2 | XKAY-00065 | [4] | PLUG | |
| 3 | XKAY-00768 | [1] | BUSHING | |
| 3 | XKAY-01708 | [1] | BUSHING | |
| *-2. | XKAY-01418 | [2] | SPOOL KIT(1,3) | PORT 1,3 |
| *-2. | XKAY-01709 | [2] | SPOOL KIT(1,3) | PORT 1,3 |
| *-2. | XKAY-01419 | [2] | SPOOL KIT(2,4) | PORT 2,4 |
| *-2. | XKAY-01973 | [2] | SPOOL KIT(2,4) | PORT 2,4 |
| *-3. | XKAY-01918 | [2] | PLUG KIT(1,3) | PORT 1,3 |
| N4. | XKAY-00771 | [1] | SPOOL | |
| *-3. | XKAY-01974 | [2] | PLUG KIT(2,4) | PORT 2,4 |
| N4. | XKAY-01711 | [1] | SPOOL | |
| N5. | XKAY-00772 | [1] | SHIM | |
| N6. | XKAY-01420 | [1] | SPRING(1,3) | PORT 1,3 |
| N7. | XKAY-00436 | [1] | SEAT-SPRING(1,3) | PORT 1,3 |
| N8. | XKAY-00058 | [1] | STOPPER | 4SET |
| N14. | XKAY-01714 | [1] | PLUG | |
| N12. | XKAY-00781 | [1] | SPRING(2,4) | PORT 2,4 |
| N13. | XKAY-00059 | [1] | SEAT-SPRING(2,4) | PORT 2,4 |
| N10. | XKAY-01421 | [1] | SPRING | |
| N10. | XKAY-01749 | [1] | SPRING | |
| 17 | XKAY-01716 | [1] | PLATE | |
| *-3. | XKAY-01422 | [2] | PLUG KIT(1,3) | PORT 1,3 |
| *-3. | XKAY-01918 | [2] | PLUG KIT(1,3) | PORT 1,3 |
| 19 | XKAY-01717 | [1] | JOINT ASSY | |
| *-3. | XKAY-01423 | [2] | PLUG KIT(2,4) | PORT 2,4 |
| *-3. | XKAY-01974 | [2] | PLUG KIT(2,4) | PORT 2,4 |
| N9. | XKAY-00052 | [1] | ROD-PUSH(1,3) | PORT 1,3 |
| N11. | XKAY-00439 | [1] | ROD-PUSH(2,4) | PORT 2,4 |
| N14. | XKAY-00784 | [1] | PLUG | |
| N14. | XKAY-01714 | [1] | PLUG | |
| KN15. | XKAY-00785 | [1] | O-RING | |
| KN16. | XKAY-01424 | [1] | SEAL-ROD | |
| KN16. | XKAY-01715 | [1] | SEAL-ROD | |
| 17 | XKAY-01425 | [1] | PLATE | |
| 17 | XKAY-01716 | [1] | PLATE | |
| 18 | XKAY-00786 | [1] | BOOT | |
| 19 | XKAY-00049 | [1] | JOINT ASSY | |
| 19 | XKAY-01717 | [1] | JOINT ASSY | |
| 20 | XKAY-01066 | [1] | PLATE-SWASH | |
| 21 | XKAY-00047 | [1] | NUT-HEX | |
| *-4. | XKAY-01426 | [1] | HANDLE KIT LH | |
| *-4. | XKAY-01718 | [1] | HANDLE KIT-LH | |
| *-4. | XKAY-01427 | [1] | HANDLE KIT RH | |
| *-4. | XKAY-01719 | [1] | HANDLE KIT-RH | |
| N22. | XKAY-00046 | [1] | NUT-LOCK | |
| N23. | XKAY-01428 | [1] | HANDLE ASSY-LH | |
| N23. | XKAY-01720 | [1] | HANDLE ASSY-LH | |
| N23. | XKAY-01429 | [1] | HANDLE ASSY-RH | |
| N23. | XKAY-01721 | [1] | HANDLE ASSY-RH | |
| N24. | XKAY-01430 | [1] | BAR-HANDLE | |
| N24. | XKAY-01722 | [1] | BAR-HANDLE | |
| N25. | XKAY-00811 | [1] | NUT | |
| N26. | XKAY-01083 | [1] | BOOT | |
| N27. | XKAY-00662 | [1] | PIN-SPRING | |
| 28 | XKAY-00074 | [2] | BUSHING | |
| 41 | XKDB-00034 | [5] | CONNECTOR-ORFS | |
| 41 | XKDB-00030 | [5] | CONNECTOR-ORFS | PORT 1,2,3,4,T |
| 42 | XKDB-00032 | [6] | O-RING | |
| 43 | XKDB-00035 | [1] | FILTER-LAST GUARD | |
| 43 | XKDB-00031 | [1] | FILTER-LAST GUARD | PORT P |
| 44 | XKDB-00036 | [6] | O-RING | |
| 44 | XKDB-00033 | [6] | O-RING | |
| K. | XKAY-01431 | [1] | SEAL KIT | SEE ILLUST |
| K. | XKAY-01723 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
