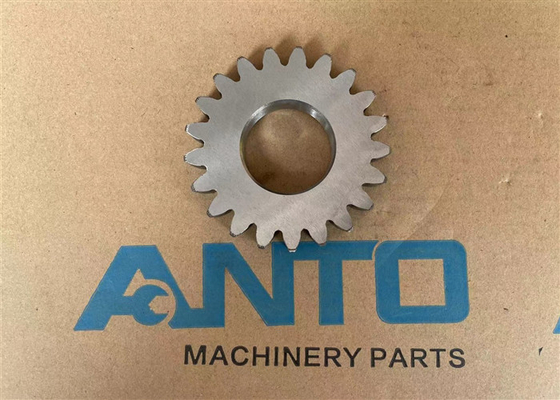

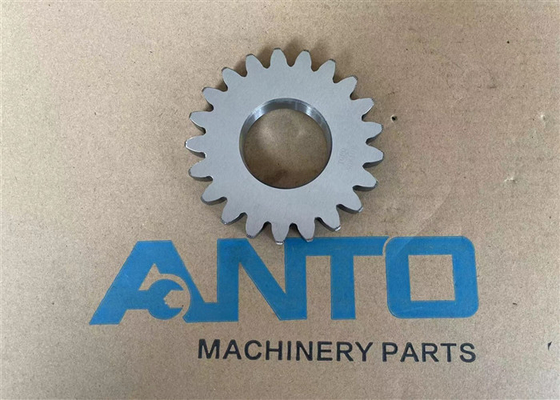

3063955 Planet Gear Fit HITACHI Excavator EX200-3 EX200-5 EX200K-3 EX200LC-5HHE EX200SS-5

Large Image : 3063955 Planet Gear Fit HITACHI Excavator EX200-3 EX200-5 EX200K-3 EX200LC-5HHE EX200SS-5

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	3063955

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability:	568 PCS per week

Contact Now

Detailed Product Description

Category:	HITACHI Excavator Swing Reduction Parts	Machine Model:	HITACHI CHR70, EX200-3 EX200-3C EX200-3E EX200-5 EX200-5 JPN EX200-5HG EX200-5HHE EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200K-3 EX200LC-5HHE EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5
Parts No.:	3063955	Parts Name:	Planet Gear
Warranty:	6 Months	Package:	Standard Export Carton
Highlight:	EX200-5 Planet Gear , EX200-3 Planet Gear , HITACHI Excavator Planet Gear

3063955 Planet Gear Fit HITACHI Excavator EX200-3 EX200-5 EX200K-3 EX200LC-5HHE EX200SS-5

Spec Sheet

Product name	Planet gear
Part number	3063955
Model	HITACHI CHR70, EX200-3 EX200-3C EX200-3E EX200-5 EX200-5 JPN EX200-5HG EX200-5HHE EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200K-3 EX200LC-5HHE EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5
Category group	Excavator Swing reduction gearbox gear parts
MOQ	1 PCS
Warranty	6 months
Payment term	T/T, Western Union, PAYPAL
Delivery time	1-3 days after receiving the payment
Packing	As request or standard packing
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS

Application

Excavator CHR70, EX200-3 EX200-3C EX200-3E EX200-5 EX200-5 JPN EX200-5HG EX200-5HHE

EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200K-3 EX200LC-5HHE EX200SS-5 EX210H-5

EX210H-5 JPN EX210K-5 HITACHI

More gear parts for HITACHI machinery

3050685 GEAR;SUN

270C LC JD, CX700HD, CX900, CX900-2, CX900HD, EX270-5, EX280H-5, EX300-2, EX300-3, EX300-3C, EX310H-3C, SCX700HD, SCX900, SCX900HD, SCX900HD-C, ZX270, ZX270-HHE, ZX280LC-AMS, ZX280LC-HCME, ZX300W

3047443 GEAR;SUN

CX350DR, CX500, CX500DR, CX500PD, CX550, CX700, CX700 JPN, EX200-2, EX200K-2, MH5510B, RX2000-2, SCX400, SCX500-C, SCX550-C, SCX700, UCX300

3041847 GEAR;PLANETARY

CX1000, CX1100, CX1800, CX900, EX800H-5, KH850-3, TL1100-3, ZX800, ZX850-3, ZX850H

3036264 GEAR;PLANETARY

EX300, EX300-2

3034492 GEAR;PLANETARY

EX220

3024915 GEAR;DRIVE

UH103, UH143

5125210413 GEAR; CR/SHF

EX20UR, EX20UR-2, EX22, EX25, EX30, EX30UR, EX30UR-2, EX35, EX40UR, EX40UR-2

4238502 GEAR;BEVEL(R)

LX120

3100993 GEAR

MA200, MA200-G, SR2000G, VR512, VR516FS, ZR950JC, ZX140W-3, ZX140W-3-AMS, ZX140W-3DARUMA, ZX145W-3, ZX145W-3-AMS, ZX160LC-3, ZX160LC-3-AMS, ZX160LC-3-HCME, ZX170W-3, ZX170W-3-AMS, ZX170W-3DARUMA, ZX18...

3098523 GEAR;PLANETARY (2)

218HSL, SCX900-2

3082155 GEAR;PLANETARY

HC2710, IZX200, IZX200LC, IZX210F, IZX210MF, ZH200-A, ZH200LC-A, ZR420JC, ZX180LC, ZX180LC-3, ZX180LC-3-AMS, ZX180LC-3-HCME, ZX180LC-AMS, ZX180LC-HCME, ZX200, ZX200-3, ZX200-3-HCMC, ZX200-3G, ZX200-5G...

3070208 GEAR;PLANETARY

CX500, CX550, CX650-2, CX700HD, CX900, CX900-2, CX900HD, SCX400T, SCX400T-C3, SCX500, SCX500-C, SCX550, SCX550-C, SCX700, SCX700-C3, SCX700HD, SCX900, SCX900HD, SCX900HD-C

Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
	9150472	[2]	TRAVEL DEVICE ASS'Y	I 9155253 (for assembly of machine)
	-9155253	[2]	TRAVEL DEVICE ASS'Y	(for transportation)
0	9146471	[1]	MOTOR;OIL	I 9149087 (for assembly of machine)
0	-9149087	[1]	MOTOR;OIL	(for transportation)
2	4114753	[1]	SEAL;GROUP
3	4246793	[2]	BRG.;ROL.
4	1018736	[1]	DRUM
5	1018740	[1]	SPROCKET
6	J932055	[16]	BOLT
7	A590920	[16]	WASHER;SPRING
8	3047448	[1]	HUB
9	3057125	[1]	NUT
10	4246783	[1]	PIN;KNOCK
12	1019147	[1]	CARRIER
13	3063957	[3]	GEAR;PLANETARY
14	4317122	[6]	BRG.;NEEDLE
15	4284521	[6]	PLATE;THRUST
16	4315838	[3]	PIN
17	4116309	[3]	PIN;SPRING
18	3063959	[1]	GEAR;SUN
20	1020184	[1]	GEAR;RING
21	J931640	[24]	BOLT
23	2034836	[1]	CARRIER
24	4401293	[2]	SPACER
25	3063956	[3]	GEAR;PLANETARY
26	4317121	[3]	BRG.;NEEDLE
27	4210851	[6]	PLATE;THRUST
28	4309995	[3]	PIN
29	4192020	[3]	PIN;SPRING
30	3063958	[1]	GEAR;SUN
32	2034835	[1]	CARRIER
33	3063955	[3]	GEAR;PLANETARY
34	4387383	[3]	BRG.;NEEDLE
35	4192910	[6]	PLATE;THRUST
36	4210853	[3]	PIN
37	4173093	[3]	PIN;SPRING
38	2034834	[1]	SHAFT;PROP.
40	2034833	[1]	COVER
41	4285323	[1]	PIN;STOPPER
41	4478346	[1]	PIN;STOPPER
42	J011230	[12]	BOLT;SEMS
42	4609016	[12]	BOLT;SEMS
43	4245797	[3]	PLUG
47	M492564	[2]	SCREW;DRIVE
48	+++++++	[1]	NAME-PLATE

Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
