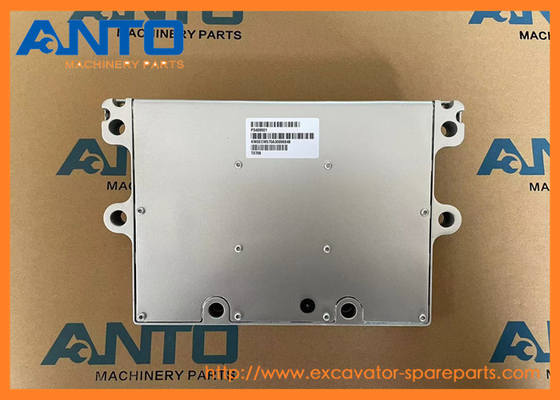

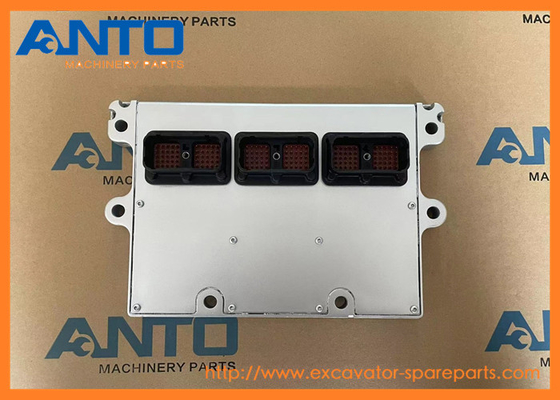

- 3408501 ECU CUMMINS Excavator Engine Parts Fit For QSM11 ISX15
| Name |
ECU |
| Parts No |
3408501 |
| Machine Model |
QSM11 ISX15 |
| Category |
Engine Computer Board ECM Electronic Control Module |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
CUMMINS ENGINE 15-600 Deere
- More other ECU parts fit for CUMMINS machine
| 4077087 Module, Fuel Control |
| 15-600 |
| |
| 4077087 Module, Fuel Control |
| 15-600 |
| |
| 5AP837074845 Module |
| W440 |
| |
| 5AP837074846 Module |
| W440 |
| |
| 5FDMAC04001 Module |
| AB1010, AB70 |
| |
| 5KBML246W Module |
| DH, DH5108, DH5210, DH5308, DH5410 |
| |
| 5KBML246W4 Module |
| TM5118 |
| |
| 5KBML248W4 Module |
| DH5221F, TM5129 |
| |
| 5PQ505118 Module |
| RR2324 |
| |
| 5PQ505413 Module |
| RR2324 |
| |
| 5PQ505543 Module |
| RR2324 |
| |
| 5PQ505553 Module |
| RR2324 |
| |
| 5PQ505594 Module |
| RR2324 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
PH1763 |
[1] |
Electronic Control Module |
ENGINE CONTROL SYSTEM: API ECM VERSION: DCM 570 MOTOROLA. MODULE LOCATION: UPPER LEFT SIDE FRONT. AMBIENT AIR PRESSURE SENSOR INCLUDED: YES INTAKE MFLD TEMP SENSOR MANUFACTURER: KAYLICO WITH INDUSTRIAL CUSTOMER ACCESSORY BRACKETS. APPLICATION: INDUST |
| 1 |
146161 |
[4] |
Washer, Plain |
3/8 INCH. |
| |
4001902 |
[2] |
Sensor, Position |
|
| 2 |
4010600 |
[1] |
Seal, O Ring |
|
| 3 |
4001903 |
[1] |
Sensor, Position |
|
| 4 |
3331044 |
[1] |
Sensor, Pressure |
|
| 5 |
3330202 |
[1] |
Seal, O Ring |
|
| 6 |
3417185 |
[1] |
Sensor, Prs Temperature |
|
| |
3417183 |
[1] |
Sensor, Prs Temperature |
|
| 7 |
3330202 |
[1] |
Seal, O Ring |
|
| 8 |
3417143 |
[1] |
Sensor, Prs Temperature |
|
| 9 |
3618863 |
[1] |
Cover, Protective |
|
| 10 |
3680284 |
[1] |
Gasket, Etr Control Module |
|
| 11 |
4026680 |
[1] |
Brace, Wiring |
|
| 12 |
3680896 |
[1] |
Dataplate |
|
| 13 |
3408501 |
[1] |
Module, Electronic Control |
|
| 14 |
4059348 |
[1] |
Harness, Etr Cnt Mdl Wrg |
|
| 15 |
3096153 |
[1] |
SENSOR, TEMPERATURE |
|
| 16 |
3678912 |
[1] |
Seal, O Ring |
|
| 17 |
3900629 |
[2] |
Screw, Hex Flange Head Cap |
M8 X 1.25 X 16 |
| 18 |
3925402 |
[6] |
Screw, Hex Flange Head Cap |
M8 X 1.25 X 50. |
| 19 |
3681059 |
[1] |
Plate, Cooler |
|
| 20 |
4059191 |
[1] |
Bracket, Cus Accessory |
|
| 21 |
69465 |
[2] |
Clip |
|
| 22 |
3076301 |
[6] |
CLAMP, WIRE TIE |
|
| |
|
|
|
NOTE: THE INFORMATION BELOW SHOULD PROVIDE ASSISTANCE IN TYPE/FUNCTION OF SENSORS. |
| |
3417183 |
|
Sensor, Prs Temperature |
BOOST/PRESSURE/TEMPERATURE |
| |
3417185 |
|
Sensor, Prs Temperature |
OIL/PRESSURE/TEMPERATURE |
| |
3865346 |
|
SENSOR, TEMPERATURE |
COOLANT/TEMPERATURE |
| |
3331044 |
|
Sensor, Pressure |
AMBIENT/PRESSURE |
| |
4001902 |
|
Sensor, Position |
CAM/CRANK/POSITION |
