Product Details:
Payment & Shipping Terms:
|

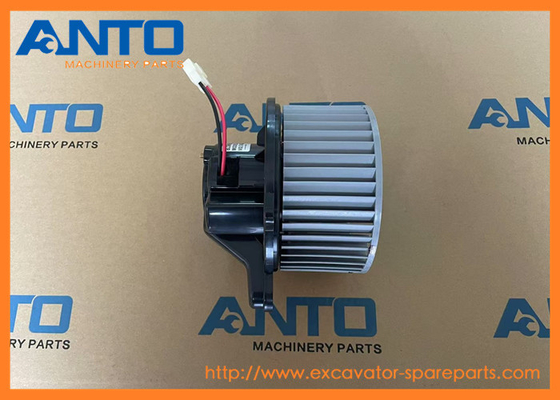

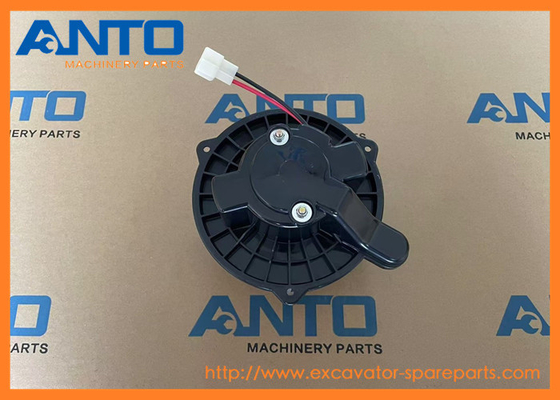

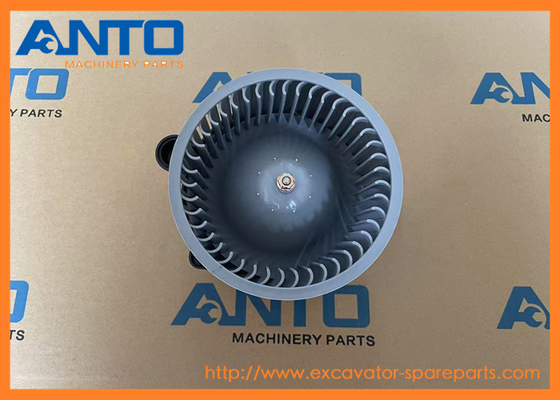

| Category: | HYUNDAI Excavator Air Conditioner Parts | Parts Name: | Fan Motor |
|---|---|---|---|
| Parts Number: | 11K6-90700 11K690700 | Models: | HX140L HX160L HX180L HX220L HX220NL HX260L HX300L HX330L HX380L HX430L HX480L HX520L |
| Lead Time: | Stock For Soon Delivery | Warranty: | 6/12 Months |
| Highlight: | 11K690700 Fan Motor Assy,HX180L Fan Motor Assy,11K6-90700 Excavator Fan Motor Assy |
||
| spare parts name | Fan motor assy |
| Equipment Model | 11K6-90700 11K690700 |
| Parts Category | HYUNDAI excavator air conditioner parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
F-SERIES CRAWLER EXCAVATOR HX140L HX160L HX180L HX220L HX220NL HX260L HX300L HX330L
HX380L HX430L HX480L HX520L
F-SERIES WHEEL EXCAVATOR HW140 HW210 Hyundai
| 11Q6-00360 FAN CLUTCH ASSY |
| HX180L, R140LC9A, R160LC9, R160LC9A, R160LC9S, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9S |
| 11Q6-01230 FAN-COOLING |
| HX180L, R140LC9A, R160LC9, R160LC9A, R160LC9S, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9S |
| 11N8-46190 FAN |
| HX480L, HX520L, R300LC7, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A |
| 11QB-61041 FAN GUARD |
| HX480L, HX520L, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A |
| 11QA-43251 FAN GUARD |
| HX330L, HX380L, HX430L, R330LC9A, R380LC9A, R430LC9A |
| 11Q6-00361 FAN CLUTCH ASSY |
| HX180L, R140LC9A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R180W9S |
| 11QA-03161 FAN |
| HX330L, HX380L, HX430L, R330LC9A, R380LC9A, R430LC9A |
| 11N8-46191 FAN |
| HX480L, HX520L, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A |
| 11K4-01020 FAN CLUTCH |
| HW140 |
| 31K9-31120 FAN PUMP |
| HX330L, HX380L, HX430L |
| 11QA-03111 FAN-COOLING |
| HX380L, HX430L |
| 11KB-00101 FAN |
| HX480L, HX520L |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 11K6-90601 | [1] | AIR CON & HEATER UNIT | |
| 1-5. | AH003729 | [1] | CASE-LH(AC & HT,W/APTC) | |
| 1-6. | AH003730 | [1] | CASE-RH(WITH AIR HOLE) | |
| 1-8. | AH003716 | [1] | DOOR ASSY-REAR | |
| 1-9. | AH003715 | [1] | DOOR ASSY-FRONT | |
| 1-10. | AH003717 | [1] | DOOR ASSY-DEF | |
| 1-11. | AH003718 | [1] | DOOR ASSY-FOOT | |
| 1-12. | AH003719 | [1] | DOOR ASSY-TEMP | |
| 1-13. | AH003679 | [1] | CAM-MODE | |
| 1-14. | AH003671 | [2] | LEVER A | |
| 1-15. | AH003672 | [2] | LEVER B | |
| 1-16. | AH003677 | [1] | LINK-DEF | |
| 1-17. | AH003678 | [1] | LINK-FOOT | |
| 1-18. | AH003680 | [1] | CAM-TEMP | |
| 1-19. | AH003675 | [1] | LEVER-TEMP | |
| 1-20. | AH003779 | [1] | SEAL-RUBBER A | |
| 1-21. | AH003780 | [1] | SEAL-RUBBER B | |
| 1-22. | AH003781 | [1] | SEAL-RUBBER C | |
| 1-23. | AH003775 | [3] | SEAL-OUTLET | |
| 1-24. | AH003776 | [1] | SEAL-FOOT | |
| 1-25. | AH000966 | [3] | CLIP-CASE | |
| 1-26. | 3AH0686 | [4] | BUSHING | |
| 1-27. | 4AH0643 | [3] | HOLDER-WIRE | |
| 1-28. | AH000865 | [24] | SCREW-HIGH LWR | |
| 1-29. | 11K6-90210 | [1] | ADAPTER | |
| 1-30. | AH003858 | [1] | SEAL-AIR DUCT | |
| 1-31. | AH003624 | [1] | CASE-INTAKE | |
| 1-32. | AH003676 | [1] | LEVER-INTAKE | |
| 1-33. | AH003720 | [1] | DOOR ASSY-INTAKE | |
| 1-34. | AH003777 | [1] | SEAL-INTAKE A | |
| 1-35. | AH003778 | [2] | SEAL-INTAKE B | |
| 1-36. | AH003682 | [1] | DUST-COVER | |
| 1-37. | 11K6-90520 | [2] | ACTUATOR ASSY | |
| 1-38. | AH101192 | [1] | LEVER-MODE ACTUATOR | |
| 1-39. | AH101193 | [1] | LEVER-TEMP ACTUATOR | |
| 1-40. | 4AH0643 | [3] | HOLDER-WIRE | |
| 1-41. | AH000865 | [8] | SCREW-HIGH LWR | |
| 1-42. | AH003698 | [1] | CASE-LOWER(AC) | |
| 1-43. | 11K6-90561 | [1] | CORE ASSY-EVAP | |
| 1-44. | 11Q6-90551 | [1] | VALVE-EXPANSION | |
| 1-45. | 11K6-90540 | [1] | HTR-CORE ASSY | |
| 1-46. | 11K6-90700 | [1] | FAN-MOTOR ASSY | |
| 1-47. | AH003681 | [1] | CLAMP-HTR PIPE | |
| 1-48. | AH003782 | [1] | SEAL-HEATER | |
| 1-49. | 11K6-90770 | [1] | AIR FILTER-INLET | |
| 1-50. | 11K6-90570 | [1] | ACTUATOR ASSY-INTAKE | |
| 1-51. | 11K6-90370 | [1] | CONTROL BOX ASSY | |
| 1-52. | 11Q6-90530 | [1] | FET | |
| 1-53. | 11K6-90820 | [1] | RELAY | |
| 1-54. | 11K6-90530 | [1] | THERMISTOR-ASSY | |
| 1-55. | 11N6-90890 | [1] | SENSOR-TEMP | |
| 1-56. | 11K6-90690 | [1] | WIRE-ASSY(WITH APTC) | |
| 1-57. | 11K6-90610 | [1] | APTC-PWM ASSY | |
| 1-58. | AH000865 | [36] | SCREW-HIGH LWR | |
| 1-59. | AA000079 | [1] | COVER FILM-TXV |
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
