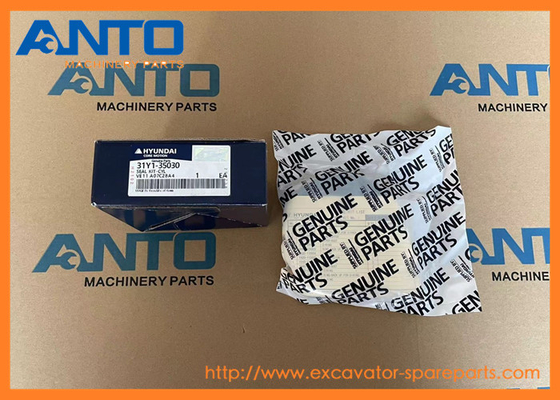

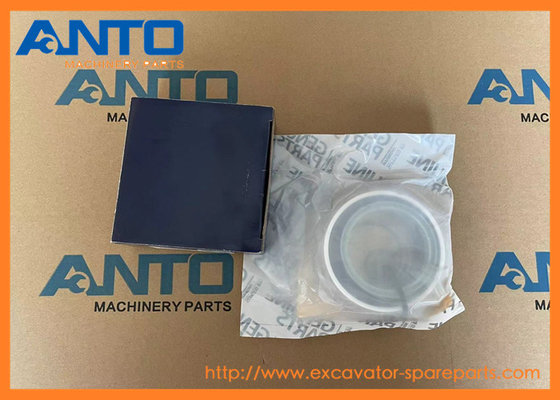

- 31Y1-35030 Seal Kit HYUNDAI Excavator Bucket Cylinder Parts Fit For R160LC-9
| Name |
Seal Kit |
| Parts No |
31Y1-35030 |
| Machine Model |
R160LC9 R160LC9A R160LC9S R180LC9 |
| Category |
Bucket Cylinder |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
9-SERIES CRAWLER EXCAVATOR R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S RB160LC9S
9-SERIES WHEEL EXCAVATOR R160W9A R170W9 R170W9S R180W9A R180W9S
F-SERIES CRAWLER EXCAVATOR HX160L HX180L Hyundai
- More other seal kit parts fit for HYUNDAI machine
| XKAY-00014 SEAL-DUST |
| HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R110-7, R110-7A, R1200-9, R125LCR-9A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9... |
| |
| XKAH-00031 SEAL-FLOATING |
| R140LC-7, R210LC7, R210NLC7 |
| |
| XKAH-00916 SEAL-FLOATING |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S, RC215C7, RC215C7H |
| |
| XKAQ-00219 SEAL-FLOATING |
| HX140L, HX160L, HX180L, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R210LC7, R210... |
| |
| 31Y1-15885 SEAL KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD210-7, RD210-7V, RD220-7 |
| |
| 31Y1-15230 SEAL KIT |
| R200W7, R210LC7, R210LC7H, R210NLC7 |
| |
| 31Y1-15235 SEAL KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, RC215C7, RC215C7H |
| |
| 31Y1-15236 SEAL KIT |
| R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD210-7, RD220-7 |
| |
| 31Y1-15700 SEAL KIT |
| R200W7, R210LC7, R210LC7H, R210NLC7 |
| |
| 31Y1-15705 SEAL KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R290LC7A, R305LC7, R450LC7, R450LC7A, RC215C7, RC215C7H, RD210-7, RD220-7 |
| |
| 31Y1-15880 SEAL KIT |
| R210LC7, R210LC7H |
| |
| 31Y1-06731 SEAL KIT |
| HW210, HX220L, R200W3, R210LC3, R210LC3H, R210LC7, R210LC7A, R210LC7H, RC215C7, RC215C7H, RD220-7 |
| |
| XJBN-00973 SEAL KIT-EPPR CASING |
| HW210, HX220L, HX220NL, HX235L, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R215LC7, R220LC9A, R235LCR9, R235LCR9A, R260LC9S, R290LC7, R290LC7A, RB220LC9S, RB260LC9S, RC215C7, RC215C7H... |
| |
| 31Y1-18060 SEAL KIT |
| R210LC7 |
| |
| 3066211 SEAL/O-RING |
| R200W7, R210LC7, R210LC9BC, R210NLC7, R210W9S, R260LC9S, RC215C7, RD220-7 |
| |
| 3864029 SEAL/O-RING |
| R200W7, R210LC7, R210NLC7, RC215C7, RD220-7 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31Q5-60111 |
[1] |
BUCKET CYLINDER ASSY |
|
| *. |
31Q5-60112 |
[1] |
BUCKET CYLINDER ASSY |
|
| *-1. |
31Y1-34801 |
[1] |
BUCKET CYL SUB ASSY |
WITHOUT PIPE |
| 1 |
31Y1-34811 |
[1] |
TUBE ASSY |
|
| 2 |
31Y1-34881 |
[1] |
ROD ASSY |
|
| 2 |
31Y1-34882 |
[1] |
ROD ASSY |
|
| 3 |
31Y1-34930 |
[1] |
GLAND |
|
| 4 |
S732-075030 |
[1] |
BUSHING-DD2 |
|
| 5 |
Y191-081000 |
[1] |
RING-SNAP |
|
| K6. |
Y220-075013 |
[1] |
SEAL-ROD |
|
| K7. |
Y180-075020 |
[1] |
RING-BACK UP |
|
| K8. |
Y240-075012 |
[1] |
RING-BUFFER |
|
| K9. |
Y110-075011 |
[1] |
WIPER-DUST |
|
| 10 |
Y190-089000 |
[1] |
RING-SNAP |
|
| K11. |
S632-105004 |
[1] |
O-RING |
|
| K12. |
S642-105003 |
[1] |
RING-BACK UP |
|
| 13 |
31YC-26040 |
[1] |
RING-CUSHION |
|
| 14 |
31Y1-34970 |
[1] |
PISTON |
|
| 14 |
31Y1-34971 |
[1] |
PISTON |
|
| K15. |
Y420-110000 |
[1] |
SEAL-PISTON |
|
| K16. |
Y310-110100 |
[2] |
RING-WEAR |
|
| K17. |
Y440-110000 |
[2] |
RING-DUST |
|
| K18. |
S632-055004 |
[1] |
O-RING |
|
| K19. |
S642-055003 |
[2] |
RING-BACK UP |
|
| 20 |
31YC-68020 |
[1] |
NUT-LOCK |
|
| 20 |
31YC-68025 |
[1] |
NUT-LOCK |
|
| 21 |
S114-080144 |
[1] |
SCREW-SET |
|
| K22. |
S632-110004 |
[1] |
O-RING |
|
| 23 |
S109-140704 |
[14] |
BOLT-SOCKET |
|
| 24 |
61Q6-05560 |
[1] |
BUSHING-PIN |
|
| 25 |
61Q6-98810 |
[1] |
BUSHING-PIN |
|
| 25 |
61QH-72610 |
[1] |
BUSHING-PIN |
|
| 26 |
Y020-070000 |
[4] |
SEAL-DUST,DLI,KPU |
|
| 27 |
31Y1-34990 |
[2] |
BAND ASSY |
|
| 27 |
31Y1-34991 |
[2] |
BAND ASSY |
|
| 27-1. |
31Y1-35000 |
[1] |
BAND SUB ASSY |
|
| 27-2. |
31YC-31050 |
[1] |
BAND |
|
| 27-3. |
S011-100352 |
[2] |
BOLT-HEX |
|
| 27-3. |
S011-100356 |
[2] |
BOLT-HEX |
|
| 27-4. |
S411-100002 |
[2] |
WASHER-SPRINIG |
|
| 27-4. |
S411-100006 |
[2] |
WASHER-SPRING |
|
| 27-5. |
31YC-36010 |
[1] |
CLAMP-PIPE |
|
| 27-6. |
S015-120502 |
[1] |
BOLT-HEX |
|
| 27-6. |
S015-120506 |
[1] |
BOLT-HEX |
|
| 27-7. |
S411-120002 |
[1] |
WASHER-SPRING |
|
| 27-7. |
S411-120006 |
[1] |
WASHER-SPRING |
|
| 28 |
31Y1-36041 |
[1] |
PIPE ASSY-R |
|
| 28 |
31Y1-36042 |
[1] |
PIPE ASSY-R |
|
| 29 |
31Y1-36051 |
[1] |
PIPE ASSY-B |
|
| 29 |
31Y1-36052 |
[1] |
PIPE ASSY-B |
|
| K30. |
Y171-019004 |
[2] |
O-RING |
|
| 31 |
S107-100454 |
[8] |
BOLT-SOCKET |
|
| 31 |
S107-100456 |
[8] |
BOLT-SOCKET |
|
| K. |
31Y1-35030 |
[1] |
SEAL KIT |
SEE ILLUST |
