Product Details:
Payment & Shipping Terms:
|
| Category: | Cylinder Block | Machine Model: | DD80 DL200A DX140W DX210 DX225LCA |
|---|---|---|---|
| Application: | Excavator | Product Name: | Metal STD Crank |
| Part Number: | 65.01110-6090B | Packing: | Standard Export Carton |

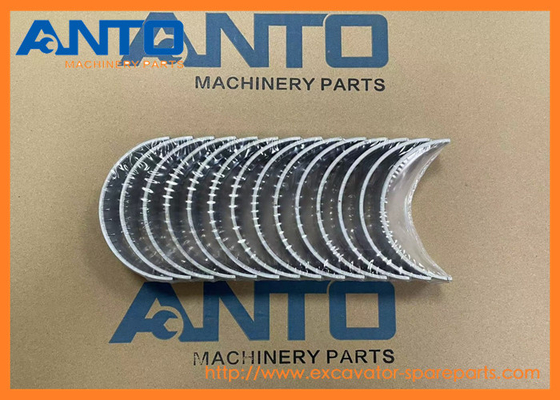

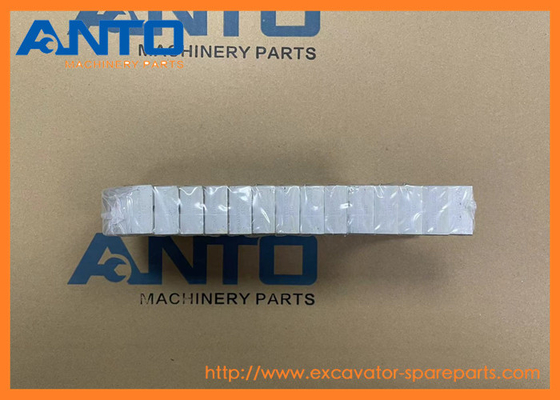

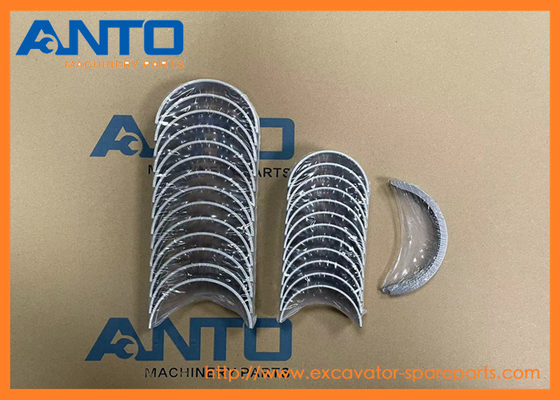

| Name | Metal STD Crank |
| Parts No | 65.01110-6090B 65011106090B |
| Machine Model | DD80 DL200A DX140W DX160W TIER-II DX210 DX225LCA DX225LCB |
| Category | DOOSAN Spare Parts, Cylinder Block |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
EXCAVATOR DD80 DL200A DX140W DX160W TIER-II DX210 DX225LCA DX225LCB DX220AF Doosan
| 65.01110-6354 METAL;MAIN 0.75 |
| MEGA, SOLAR |
| 65.01110-6351 METAL;MAIN STD. |
| MEGA, SOLAR |
| 65.01110-6352 METAL;MAIN 0.25 |
| MEGA, SOLAR |
| 65.01110-6355 METAL;MAIN 1.00 |
| SOLAR |
| 65.01110-6353 METAL;MAIN 0.50 |
| MEGA, SOLAR |
| 65.02410-0010 METAL;CONNECTING ROD |
| MEGA, SOLAR |
| 65.02410-0011 METAL;CONNECTING ROD 0.25 |
| MEGA, SOLAR |
| 65.02410-0012 METAL;CONNECTING ROD 0.5 |
| MEGA, SOLAR |
| 65.02410-0014 METAL;CONNECTING ROD 1.00 |
| SOLAR |
| K9005033 METAL;LOUVER |
| DX35Z |
| K9004747 METAL;CRANK (0.25) |
| DX35Z |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 150102-00483A | [1] | CYLINDER BLOCK ASS`Y | |
| 1 | 65.01101-6079D | [1] | CYLINDER BLOCK ASS'Y | 150102-00483A |
| 10 | 65.04410-0006C | [5] | . BUSH;CAM SHAFT | |
| 11 | 65.90302-0009 | [2] | . PLUG;CORE | |
| 12 | 65.90302-0041 | [2] | . PLUG;CORE | |
| 13 | 65.90302-0042 | [3] | . PLUG;CORE | |
| 15 | 65.90310-0030 | [1] | SCREW;PLUG M12X1.25 | |
| 16 | 06.56190-0704 | [1] | . RING;SEAL | |
| 17 | 65.90320-0019 | [1] | PLUG SCREW PT3/8 | |
| 18 | 06.15091-0313 | [2] | PLUG;CORE | |
| 19 | 65.90320-0022 | [10] | PLUG SCREW | |
| 2 | 65.01101-0030I | [1] | . BLOCK;CYLINDER | |
| 20 | 65.90201-0058 | [1] | BOLT;STUD M14X12.5X45 | |
| 21 | 65.91605-0001E | [1] | COVER | |
| 22 | 06.01913-3113 | [2] | .. BOLT ASS`Y M8X20 | |
| 23 | 65.01112-0021A | [2] | COVER;PUSH ROD CHAMBER | |
| 24 | 65.01112-5018 | [1] | COVER;PUSH ROD CHAMBER | |
| 25 | 65.90020-0049 | [6] | BOLT;HEX. | |
| 26 | 65.96507-0007 | [6] | PACKING;PUSH ROD CHAMBER | |
| 27 | 65.01110-6090B | [7] | METAL;CRANK STD | |
| 27 | 65.01110-6091B | [7] | BEARING,MAIN 0.25 | |
| 27 | 65.01110-6092B | [7] | BEARING,MAIN 0.50 | |
| 28 | 65.01150-6008 | [2] | WASHER;THRUST | |
| 28 | 65.01150-6034A | [2] | WASHER;THRUST 0.25 | |
| 28 | 65.01150-6035A | [2] | WASHER;THRUST 0.50 | |
| 29 | 65.91615-0011 | [1] | COVER;BLIND | |
| 3 | 65.01105-1048A | [6] | . CAP;BEARING | |
| 30 | 06.01913-3113 | [2] | .. BOLT ASS`Y M8X20 | |
| 31 | 65.01201-0067 | [6] | LINER;CYLINDER (ALTV.) | |
| 31 | 65.01201-0068 | [6] | LINER;CYLINDER(1A) | |
| 31 | 65.01201-0069 | [6] | LINER;CYLINDER(1B) | |
| 31 | 65.01201-0070 | [6] | LINER;CYLINDER(2A) | |
| 31 | 65.01201-0071 | [6] | LINER;CYLINDER(2B) | |
| 36 | 65.01901-0020 | [3] | GASKET;PUSH ROD CHAMBER | |
| 37 | 06.56021-0106 | [1] | O-RING;O/P DRIVE FLANGE | |
| 38 | 65.90310-0135 | [1] | PLUG;SCREW | |
| 39 | 06.56190-0706 | [1] | SEAL RING | |
| 40 | 65.05903A0013 | [1] | GASKET;FLANGE | |
| 42 | 65.90310-0122 | [1] | PLUG;DRAIN | |
| 45 | 06.56190-0713 | [2] | RING;SEAL | |
| 46 | 65.01601-5010A | [6] | OIL JET PIPE | |
| 47 | 65.05401-5023 | [6] | RELIEF VALVE ASS`Y | |
| 48 | 06.56021-0102 | [1] | . O-RING | |
| 5 | 65.01105-1047A | [1] | . CAP;BEARING | |
| 52 | 65.05401-5002F | [1] | RELIEF VALVE ASS'Y | 65.05401-5002G |
| 52 | 65.05401-5002G | [1] | . RELIEF VALVE | |
| 53 | 65.27441-7006 | [1] | SWITCH;OIL PRESS | |
| 54 | 65.90201-0182 | [1] | BOLT;STUD | |
| 7 | 65.91710-0001 | [2] | .. RING;STOPPER | |
| 8 | 120112-01340 | [14] | . BOLT | |
| 8 | 65.90020-0066A | [14] | . BOLT;BRG CAP | 120112-01340 |
| 9 | 65.04410-0007D | [1] | . BUSH;CAM SHAFT | |
| 9 | 65.04410-0007C | [1] | BUSH;CAM SHAFT | 65.04410-0007D |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
Contact Person: Mr. Paul
Tel: 0086-15920526889
Fax: +86-20-89855265
