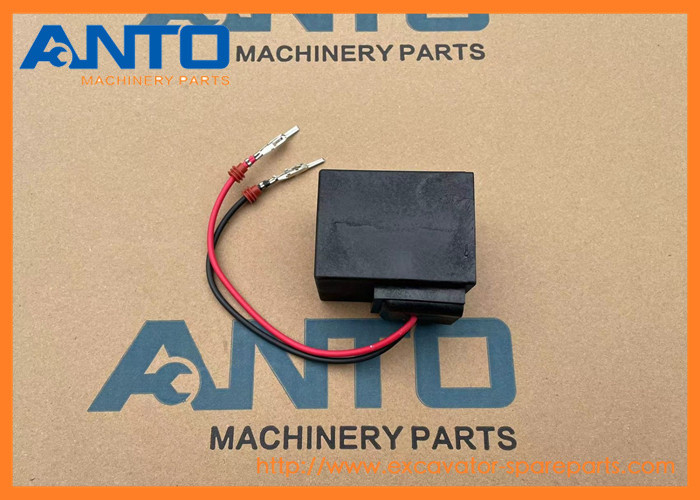

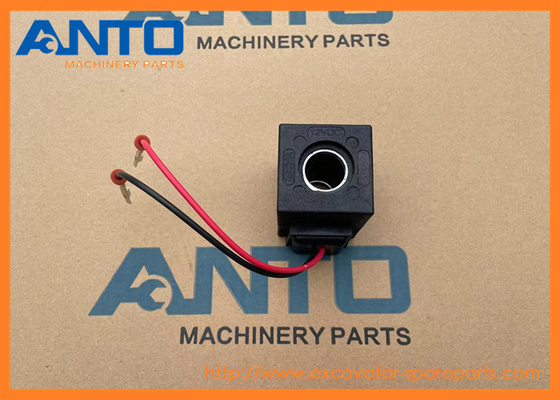

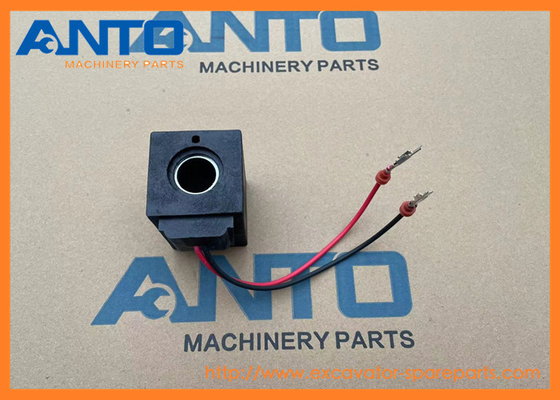

- 190443A1 Solenoid Valve Coil Excavator Spare Parts Fit For 570LXT
| Name |
Solenoid Valve Coil |
| Parts No |
190443A1 |
| Machine Model |
570LXT 570MXT 580L 580M 580SL 580SM 580SM+ |
| Category |
CASE Forklift |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
LIGHT EQUIPMENT 570LXT 570MXT 580L 580M 580SL 580SM 580SM+ 585G 586G 588G 590L 590SL 590SM Ca.se
- More other coil parts fit for C A S E machine
| 309791A1 COIL |
| 590SM, 580SM, 580M, 570LXT, 580L, 580SL, 590SL |
| |
| 392401A1 COIL |
| 580M, 590SM, 580SM, 570MXT |
| |
| 396992A1 COIL SPRING |
| 580M, 590SM, 580SM |
| |
| 388881A1 COIL SPRING,Compression, 12.20mm OD x 59.21mm L |
| 580N, 580SN, 580SN WT, 580N EP, 590SN, 580SM, 580SM+, 590SM, 580M, 590SM+ |
| |
| 405741A1 COIL SPRING |
| 590SM, 580SM, 580M, 590SM+, 580SM+ |
| |
| 87421832 COIL |
| 590SM, 580SM, 580M, 590SM+, 580SM+ |
| |
| 87438023 COIL |
| 580SN, 580N, 570MXT, 580SN WT, 580N EP, 570N EP, 590SN, 580SM, 580SM+, 590SM, 580M, 590SM+ |
| |
| 87438027 COIL |
| 580SN, 580N, 570MXT, 580SN WT, 580N EP, 570N EP, 590SN, 580SM, 580SM+, 590SM, 580M, 590SM+ |
| |
| 85827995 COIL |
| 580N, 580SN, 580SN WT, 580N EP, 590SN, 580SM, 580SM+, 590SM, 580M, 590SM+ |
| |
| 429979A1 COIL |
| 570NXT, 570MXT |
| |
| 419339A1 COIL SPRING |
| 570NXT, 570MXT, 570N EP |
| |
| 86982037 COIL |
| 570NXT, 570MXT, 570N EP |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
130786A3 |
[1] |
TRANSMISSION |
CAS 2 Wheel Drive, For Details, See Figure 06-28, Incl. 06-28 - 06-37; No Longer Available, Order 329081A3, Figure 6-39 - 6-48A Superseded by part number: 87396486 |
| 1 |
130786A3R |
[1] |
REMAN-TRANSMISSION |
CAS Remanufactured Transmission Superseded by part number: 87396486R |
| 1 |
130786A3C |
[1] |
CORE-TRANSMISSION |
CAS Return number |
| 1 |
130787A3 |
[1] |
TRANSMISSION |
CAS 4 Wheel Drive, For Details, See Figure 06-28, Incl. 06-28 - 06-37; No Longer Available, Order 329082A3, Figure 6-39 - 6-49 Superseded by part number: 87396487 |
| 1 |
130787A3R |
[1] |
REMAN-TRANSMISSION |
CAS Remanufactured Transmission Superseded by part number: 87396487R |
| 1 |
130787A3C |
[1] |
CORE-TRANSMISSION |
CAS Return number |
| 1 |
334558A1 |
[1] |
VALVE |
CAS Transmission, Incl. 1 - 38, Without Differential Lock Solenoid Valve & 4WD (Ref 39), Used On A2 Or A3 Transmissions With Chassis Mounted Solenoid Valve, See Figure 06-51, 06-52, If Used Superseded by part number: 334558A2 |
| 1 |
334558A2R |
[1] |
REMAN-HYD VALVE |
CAS 585G, 586G, 588G, For Use w/Transmissions w/Chassis Mounted Solenoid Valve, Reman For New P/N's 334558A1 & 334558A2. |
| 1 |
334558A2C |
[1] |
CORE-VALVE HYD |
CAS Return Number. |
| *. |
REF |
[1] |
INSTRUCTION |
NH Transmission Assy, For Details, See Figure 06-28 |
| 1 |
335640A1 |
[1] |
VALVE |
CAS Transmission, Incl. 1 - 45, Incl. 349295A1 Differential Lock Solenoid Valve & 2WD (Ref 39), Used In A3 Transmissions, See Figure 06-51, 06-52, If Used Superseded by part number: 87525756 |
| *. |
NSS |
[1] |
NOT SOLD SEPARAT |
CON Body |
| 2 |
190442A1 |
[1] |
PLUNGER |
CAS Solenoid |
| 3 |
190443A1 |
[2] |
COIL |
CAS Solenoid Superseded by part number: 87456900 |
| 4 |
190437A1 |
[1] |
FITTING |
CAS |
| 5 |
181136A1 |
[4] |
O-RING |
CAS |
| 6 |
181273A1 |
[1] |
COPPER WASHER |
CAS |
| 7 |
181272A1 |
[1] |
PLUG |
CAS Superseded by part number: 87530365 |
| 8 |
864-6020 |
[4] |
HEX SOC SCREW,M6 x 20mm, Cl 8.8 |
CAS Superseded by part number: 86531615 |
| 9 |
181251A1 |
[1] |
COVER |
CAS |
| 10 |
181256A1 |
[2] |
GASKET |
CAS Superseded by part number: 87524437, 87524439 |
| 11 |
190439A1 |
[1] |
SPACER |
CAS Superseded by part number: 87524439 |
| 12 |
190438A1 |
[1] |
PISTON |
CAS Outer Superseded by part number: 87524438 |
| 13 |
190435A1 |
[1] |
SPRING |
CAS Medium, 8.5 ID x 11.5 OD x 63 mm free length; Inner Superseded by part number: 87524438 |
| 14 |
190441A1 |
[1] |
SPRING |
CAS Large, 12.2 ID x 17.6 OD x 65.5 mm free length; Outer Superseded by part number: 87524438 |
| 15 |
181234A1 |
[1] |
PISTON |
CAS Inner Superseded by part number: 87524438 |
| 16 |
299324A1 |
[1-2] |
CIRCLIP |
CAS Superseded by part number: 87524433 |
| 16A. |
368436A1 |
[1] |
CIRCLIP |
CAS 334558A1 or 335640A1 Control Valve |
| 17 |
181261A1 |
[1] |
SPRING |
CAS Superseded by part number: 87524439 |
| 18 |
181146A1 |
[1] |
BALL |
CAS Superseded by part number: 87524439 |
| 19 |
181107A1 |
[1] |
COPPER WASHER |
CAS Superseded by part number: 87524435 |
| 20 |
181103A1 |
[1] |
PLUG |
CAS Superseded by part number: 87524435 |
| 21 |
864-8020 |
[3] |
HEX SOC SCREW,M8 x 20mm, Cl 8.8 |
CAS Purchase Separately Superseded by part number: 120228 |
| 22 |
181166A1 |
[1] |
GASKET |
CAS Purchase Separately |
| 23 |
181207A1 |
[1] |
PLATE |
CAS Purchase Separately |
| 24 |
181208A1 |
[1] |
GASKET |
CAS Purchase Separately |
| 25 |
181254A1 |
[1] |
SHAFT |
CAS |
| 26 |
181260A1 |
[1] |
SPRING |
CAS Superseded by part number: 87524433 |
| 27 |
181255A1 |
[1] |
PISTON |
CAS Superseded by part number: 87524433 |
| 28 |
181137A1 |
[3] |
O-RING |
CAS Superseded by part number: 87524432, 87524432, 87524433, 87524432, 87524433, 87524436 |
| 29 |
181258A1 |
[2] |
PLUG |
CAS Superseded by part number: 87524432, 87524433 |
| 30 |
334724A1 |
[2] |
SPRING |
CAS Spool Superseded by part number: 87524432 |
| 31 |
181253A1 |
[2] |
SPACER |
CAS Superseded by part number: 87524432 |
| 32 |
334725A1 |
[1] |
PLUNGER |
CAS Forward/Reverse Superseded by part number: 87524432 |
| 34 |
814-8080 |
[6] |
BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8 |
CAS Purchase Separately Superseded by part number: 43133 |
| 35 |
181100A1 |
[4] |
PLUG,1/8 CAS x 8 |
CAS |
| 36 |
934667R1 |
[4] |
SEALING RING,M10 x 14 x 1 |
IH Superseded by part number: 87317058 |
| 37 |
190436A1 |
[1] |
SPRING |
CAS Small, 4.7 ID x 7.7 OD x 21 mm free length; Piston; Included in 256888A3 Synchronizer Kit, See Below Superseded by part number: 87524438 |
| 38 |
190440A1 |
[1] |
PIN |
CAS Superseded by part number: 87524438 |
| 39 |
349295A1 |
[1] |
SOLENOID VALVE |
CAS Used In A3 Transmissions, Incl. 40 - 45 |
| 40 |
237-6008 |
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro |
CAS Superseded by part number: 128825 |
| 41 |
238-5014 |
[1] |
O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro |
CAS Superseded by part number: 130282 |
| 42 |
238-5013 |
[1] |
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro |
CAS Superseded by part number: 14453080 |
| 43 |
NSS |
[1] |
NOT SOLD SEPARAT |
CON Valve, Solenoid, Cartridge, Component Parts Not Serviced Separately, Not Illustrated |
| 44 |
NSS |
[1] |
NOT SOLD SEPARAT |
CON Coil, Not Illustrated |
| 45 |
NSS |
[1] |
NOT SOLD SEPARAT |
CON Nut, Not Illustrated |
| . . |
256888A3 |
[1] |
SYNCHRONIZER |
CAS KIT, Incl: Ref 37; plus parts on Figures 06-32, 06-34, 06-35, 06-37. Also incls (1) 278531A1 washer which is NSS and not shown. |
