Product Details:
Payment & Shipping Terms:
|
| Model Number: | 311C 311D LRR 311F LRR 312C 312C L 312D 312D L 312D2 312D2 GC 312D2 L 312E 312E L 313D 313D2 314C 314D CR 314D LCR 314E CR 314E LCR | Product Name: | Housing |
|---|---|---|---|
| Part Number: | 165-5868 1655868 | Transportation: | By Sea/air By Express |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |

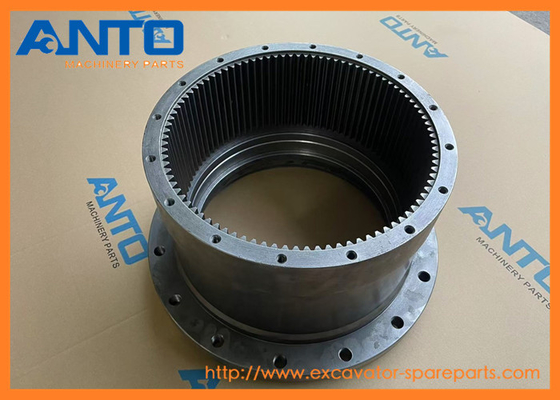

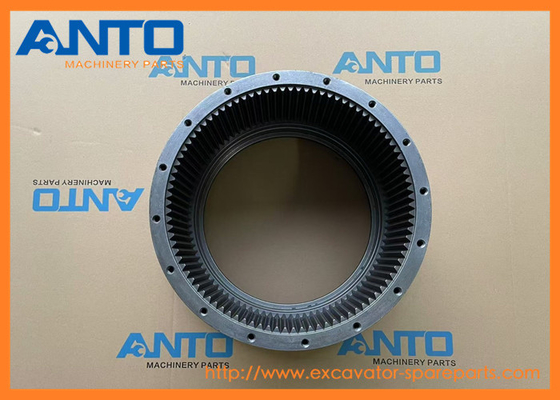

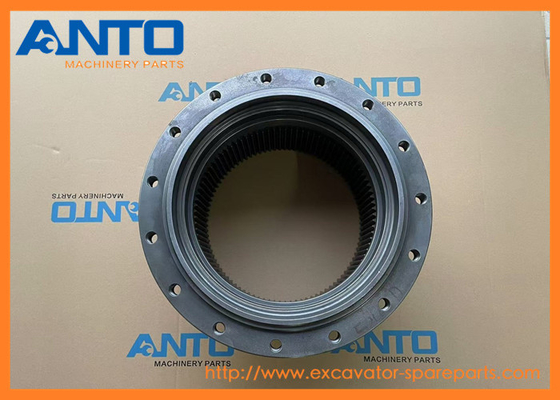

165-5868 1655868 Housing Excavator Spare Parts For Excavators 311C 311D LRR 311F LRR 312C
Specification
| Application | C A T excavator spare parts |
| Name | Housing |
| Parts No | 165-5868 1655868 |
| Model | 311C 311D LRR 311F LRR 312C 312C L 312D 312D L 312D2 312D2 GC 312D2 L 312E 312E L 313D 313D2 314C 314D CR 314D LCR 314E CR 314E LCR |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
EXCAVATOR 311C 311D LRR 311F LRR 312C 312C L 312D 312D L 312D2 312D2 GC 312D2 L 312E 312E L 313D 313D2
314C 314D CR 314D LCR 314E CR 314E LCR
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 094-0580 | [1] | PLATE (10-MM THK) | |
| 2 | 094-1528 | [3] | WASHER (53X84X1-MM THK) | |
| 3 | 165-5854 M | [1] | RING-LOCKING | |
| 4 | 357-1828 | [4] | BEARING | |
| 5 | 165-5856 | [4] | GEAR (37-TEETH) | |
| 6 | 357-1829 | [4] | RACE | |
| 7 | 165-5859 | [3] | RACE | |
| 8 | 165-5860 | [1] | COVER | |
| 9 | 165-5864 | [1] | GEAR-SUN (17-TEETH) | |
| 10 | 165-5866 | [1] | RING | |
| 11 | 165-5867 | [1] | GEAR (19-TEETH) | |
| 12 | 165-5868 | [1] | HOUSING | |
| 13 | 191-0862 | [1] | PLATE-LOCK | |
| 14 | 204-1086 | [4] | PLATE | |
| 15 | 218-4247 | [2] | BEARING | |
| 16 | 357-1827 | [3] | BEARING | |
| 17 | 310-4980 | [1] | SEAL GP-DUO-CONE | |
| 18 | 332-7484 | [1] | CARRIER | |
| 19 | 332-7485 | [3] | GEAR-PLANETARY (40-TEETH) | |
| 20 | 332-7486 | [1] | PLATE | |
| 21 | 332-7487 | [1] | PLATE | |
| 22 | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) | |
| 23 | 6V-7726 M | [4] | SCREW-HEX SOCKET (M10X1.5X25-MM) | |
| 24 | 7M-8485 | [2] | SEAL-O-RING | |
| 25 | 8T-1158 M | [16] | BOLT-SOCKET HEAD (M8X1.25X20-MM) | |
| 26 | 8T-4136 M | [1] | BOLT (M10X1.5X25-MM) | |
| 27 | 8T-4185 M | [3] | BOLT (M10X1.5X50-MM) | |
| 28 | 9X-2027 | [1] | WASHER (11X18X2-MM THK) | |
| 29 | 1U-8846 B | SEALANT-GASKET | ||
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
| 2327449 HOUSING AS |
| 3054C, 3054E, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D2, 313D2 LGP, 314E CR, 314E LCR, 315C, 316E L, 318D2 L, 318E L, 320D2, 320D2 GC, 320D2 L, 323D2 L, 414E, 416D, 416E, 416F, 420D, 420E, 420F, 4... |
| 1252940 HOUSING |
| 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 3109539 HOUSING |
| 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR |
| 1721099 HOUSING AS-COUPLER |
| 312D, 312E, CW-10 |
| 2155036 HOUSING |
| 308E SR, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, 345D, 345D L, 349D, 349D L |
| 3717141 HOUSING AS |
| 312D, 312D2 GC, 313D, 313D2, 313D2 LGP, 315D L, 318D L, 318D2 L, 320D, 320D FM, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 323D L, 323D2 L, 324D, 326D L, 329D, 329D L, 336D, 336D L, 336D2, 340D L, 340... |
| 3717142 HOUSING AS |
| 312D, 312D2 GC, 313D, 313D2, 313D2 LGP, 315D L, 318D L, 318D2 L, 320D, 320D FM, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 323D L, 323D2 L, 324D, 326D L, 329D, 329D L, 336D, 336D L, 336D2, 340D L, 340... |
| 1838454 HOUSING |
| 312D, 312D2 GC, 313D, 313D2, 315D L, 318D L, 318D2 L, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 323D L, 324D, 325C, 325D, 329D, 329D L, 330C L, 330D, 330D L, 336D, 336D L, 340D L, 349D, 554, 583T,... |
| 3395201 HOUSING-FLYWEEL |
| 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L |
| 3639450 HOUSING AS-AIR CONDITIONER |
| 312E, 312E L, 316E L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323E L, 324E, 324E L, 324E LN, 329E, 329E L, 329E LN, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 349E, 349E L, 34... |
| 3920265 HOUSING-FLYWEEL |
| 312D2, 312D2 GC, 312D2 L, 313D2, 313D2 LGP, 318D2 L |
| 3755780 HOUSING AS-FLYWHEEL |
| 311F LRR |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
