Product Details:
Payment & Shipping Terms:
|
| Model Number: | M312 M313C M313D M315 M315C M315D M315D2 M316C M316D M317D2 | Product Name: | Shaft |
|---|---|---|---|
| Part Number: | 155-0821 1550821 | Transportation: | By Sea/air By Express |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |

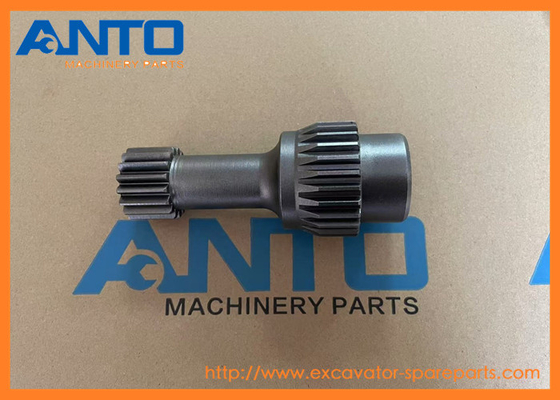

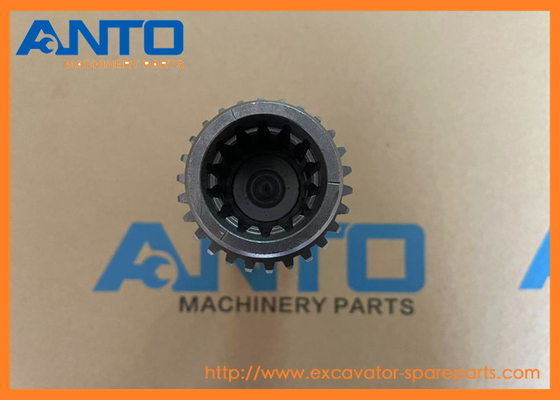

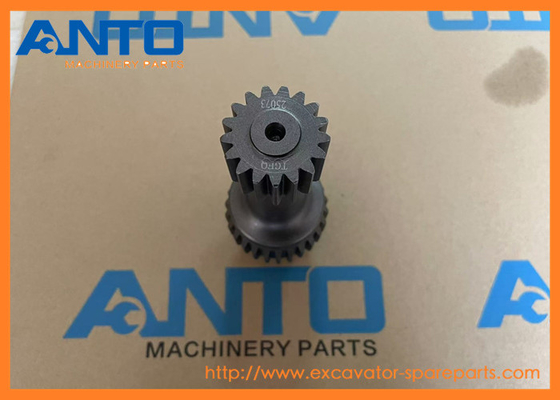

155-0821 1550821 Shaft Excavator Spare Parts For Excavators M312 M313C M313D M315 M315C
Specification
| Application | C A T excavator spare parts |
| Name | Shaft |
| Parts No | 155-0821 1550821 |
| Model | M312 M313C M313D M315 M315C M315D M315D2 M316C M316D M317D2 |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
WHEELED EXCAVATORS M312 M313C M313D M315 M315C M315D M315D2 M316C M316D M317D2
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 155-0821 | [1] | SHAFT | |
| 2 | 155-0822 | [3] | GEAR-PLANETARY | |
| 3 | 155-0823 | [1] | CARRIER | |
| 4 | 155-0824 | [3] | PIN | |
| 5 | 082-3084 | [6] | WASHER | |
| 6 | 082-3085 | [6] | WASHER | |
| 7 | 132-4292 | [63] | BEARING AS-NEEDLE | |
| 8 | 095-0919 | [3] | RING-RETAINING | |
| 9 | 155-0827 | [1] | HOUSING AS-SWING | |
| 10 | 155-0828 | [1] | SEAL-LIP TYPE | |
| 11 | 155-0829 | [1] | SEAL | |
| 12 | 155-0830 | [1] | PINION | |
| 13 | 155-0831 | [1] | WASHER-SPECIAL | |
| 14 | 155-0832 | [1] | BEARING AS-ROLLER | |
| 15 | 155-0833 | [1] | BEARING AS-ROLLER | |
| 16 | 155-0835 | [2] | NUT-SLOTTED | |
| 17 | 155-0834 | [1] | RING | |
| 19 | 155-0836 | [1] | CARRIER-PLANETARY | |
| 20 | 155-0837 | [4] | GEAR-PLANETARY | |
| 21 | 155-0838 | [4] | BEARING AS-ROLLER | |
| 22 | 1H-8647 | [4] | RING-SNAP | |
| 23 | 098-2981 | [3] | SHIM (2-MM THK) | |
| 24 | 110-4737 | [1] | RING-RETAINING | |
| 25 | 121-8088 | [2] | BALL BEARING | |
| 26 | 155-0839 | [1] | GEAR-SUN | |
| 27 | 179-3153 | [2] | SHIM (2.5-MM THK) | |
| 28 | 6V-5201 | [2] | RING-RETAINING | |
| 29 | 155-0848 | [1] | HOUSING-BRAKE | |
| 30 | 155-0849 | [1] | ORIFICE | |
| 31 | 8T-4139 M | [4] | BOLT (M12X1.75X30-MM) | |
| 32 | 201-7396 | [1] | SEAL-O-RING | |
| 33 | 155-0850 | [1] | PISTON | |
| 34 | 155-0851 | [1] | SEAL-LIP TYPE | |
| 35 | 155-0852 | [1] | SEAL-LIP TYPE | |
| 36 | 179-3151 | [1] | SPRING | |
| 37 | 179-3154 | [1] | SHIM (3.5-MM THK) | |
| 38 | 132-4268 | [4] | DISC-CLUTCH (1.7-MM THK) | |
| 39 | 132-4262 B | [5] | DISC-CLUTCH (1.4-MM THK) | |
| 40 | 132-4263 B | [1] | DISC-CLUTCH (1.2-MM THK) | |
| 41 | 132-4265 B | [1] | DISC-CLUTCH (1.6-MM THK) | |
| 42 | 132-4266 B | [1] | DISC-CLUTCH (1.8-MM THK) | |
| 43 | 9X-6574 | [1] | RING-RETAINING | |
| 44 | 155-0855 | [1] | SLEEVE | |
| 45 | 8T-0707 | [1] | RING-RETAINING (INTERNAL) | |
| 46 | 179-3560 | [1] | SEAL-O-RING | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
| 0329007 SHAFT AS |
| 206, 212, 3054, 307, 312, 315, 317, 416B, 416C, 426B, 426C, 428, 428B, 428C, 436C, 438C, 914G, AP-800C, BG-225B, CB-434B, CB-434C, CB-534B, CB-534C, CB-535B, CB-544, CB-545, CP-433B, CP-433C, CS-323C,... |
| 1273294 SHAFT |
| 3054, 3054B, 3056, 3056E, 307, 312B L, 312C, 315B L, 416B, 416C, 416D, 420D, 424D, 426C, 428B, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D, 550B, 554, 560B, 564, 574B, 908, 914G, 924G, 924GZ, AP-80... |
| 6T5748 SHAFT-DIFFERENTIAL |
| 416, 416B, 426, 426B, 428, 428B, 436B, M312, M313C |
| 1217676 SHAFT-AXLE |
| M312, M313C, M315, M315C, M316C, M318, M318C |
| 2718869 SHAFT |
| M313C, M313D |
| 2528200 SHAFT GP-MOTOR |
| M313C |
| 3338044 SHAFT-AXLE |
| M315D, M316D, M318C, M318D, M318D MH, M322C, M322D, M322D MH |
| 3311398 SHAFT |
| M313D, M315D, M315D 2, M316D, M317D 2, M318C, M318D, M318D MH |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
