Product Details:
Payment & Shipping Terms:
|
| Category: | Lines Gp-Pilot | Machine Model: | 311C 315C 318C 319C 320C 325C |
|---|---|---|---|
| Application: | Excavator | Product Name: | Hose |
| Part Number: | 5I-4390 5I4390 | Packing: | Standard Export Carton |
| Highlight: | 5I-4390 Excavator Spare Parts,345B Excavator Spare Parts,3176C Excavator Spare Parts |
||

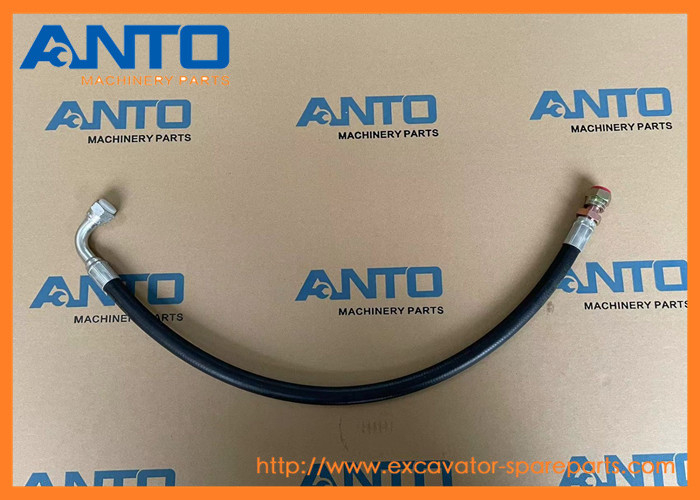

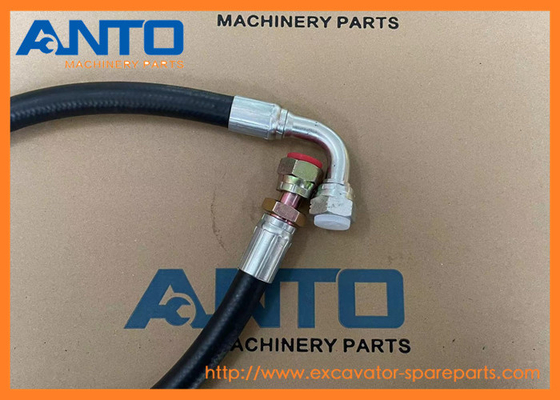

| Name | Hose |
| Parts No | 5I-4390 5I4390 |
| Machine Model | 311C 315C 318C 319C 320C 325C |
| Category | Lines Gp-Pilot |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
EXCAVATOR 311C 315C 318C 319C 320C 325C 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 336D2 L 340D L 340D2 L 345B 345B II 345B II MH 345B L 345C 345C MH 385B 385C 385C FS 385C L 385C L MH 390D 390D L
FRONT SHOVEL 385C
MINI HYD EXCAVATOR 307C
MOBILE HYD POWER UNIT 330D 330D L 336D L 385C 385C L
SHOVEL LOGGER 345C
WHEELED EXCAVATOR W345B II W345C MH Cater.pillar.
| 2352470 HOSE AS |
| 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L |
| 2181223 HOSE AS |
| 345C L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH |
| 2125334 HOSE AS |
| 365B, 365B II, 365B L, 365C, 365C L, 365C L MH |
| 3402958 HOSE AS |
| 336E, 336E L, 336E LN, 390D, 390D L |
| 2181230 HOSE AS |
| 365B, 365B II, 365C, 365C L, 385B, 385C, 385C L |
| 2125540 HOSE AS |
| 375, 385B, 385C, 385C L |
| 2125539 HOSE AS |
| 375, 385B, 385C, 385C L |
| 2181227 HOSE AS |
| 328D LCR, 365B, 365B II, 365B L, 365C, 365C L |
| 2125330 HOSE AS |
| 330C, 365B, 365B II, 365B L, 365C L MH |
| 2125328 HOSE AS |
| 365B, 365B II, 365B L, 365C, 365C L |
| 1960498 HOSE AS |
| 325C, 330C, 330C FM, 330C L |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 104-8841 I | [1] | HOSE AS | |
| 2 | 6V-9837 | [1] | TEE-SWIVEL | |
| 3 | 3K-0360 | [8] | SEAL-O-RING | |
| 4 | 6V-8398 | [19] | SEAL-O-RING | |
| 5 | 134-6926 I | [1] | HOSE AS | |
| 6 | 6V-9829 | [1] | CAP | |
| 7 | 5I-8853 I | [2] | HOSE AS | |
| 8 | 8T-0075 | [3] | CONNECTOR | |
| 9 | 3J-1907 | [47] | SEAL-O-RING | |
| 10 | 6V-8397 | [43] | SEAL-O-RING | |
| 11 | 6V-8636 | [10] | CONNECTOR | |
| 12 | 087-5767 I | [1] | HOSE AS | |
| 13 | 6V-9001 | [6] | ELBOW | |
| 14 | 6V-8988 | [2] | ELBOW | |
| 15 | 6V-8639 | [2] | CONNECTOR | |
| 16 | 6V-8632 | [1] | CONNECTOR | |
| 17 | 7J-9108 | [7] | SEAL-O-RING | |
| 18 | 6V-8637 | [1] | CONNECTOR | |
| 19 | 3D-2824 | [4] | SEAL-O-RING | |
| 20 | 6V-9746 | [3] | SEAL-O-RING | |
| 21 | 131-9588 I | [1] | HOSE AS | |
| 22 | 102-1127 I | [1] | HOSE AS | |
| 23 | 106-0178 | [1] | SENSOR AS-PRESSURE | |
| 24 | 102-7685 I | [1] | HOSE AS | |
| 25 | 4I-5933 I | [1] | HOSE AS | |
| 26 | 107-6631 | [1] | CONNECTOR-FILTER | |
| 27 | 6V-8987 | [1] | ELBOW | |
| 28 | 6V-8716 | [1] | CONNECTOR (STRAIGHT) | |
| 29 | 7M-8485 | [1] | SEAL-O-RING | |
| 30 | 6V-8943 | [1] | REDUCER | |
| 31 | 7Y-4399 I | [1] | HOSE AS | |
| 32 | 6V-8724 | [10] | ELBOW | |
| 33 | 6V-8625 | [3] | ELBOW | |
| 34 | 5I-4390 I | [1] | HOSE AS | |
| 35 | 129-5904 I | [1] | HOSE AS | |
| 36 | 134-6953 | [1] | TEE | |
| 37 | 2M-9780 | [2] | SEAL-O-RING | |
| 38 | 6V-9844 | [1] | TEE-SWIVEL | |
| 39 | 121-6388 I | [1] | HOSE AS | |
| 40 | 6V-9007 | [1] | ELBOW | |
| 41 | 134-6954 | [1] | TEE | |
| 42 | 143-4332 I | [1] | HOSE AS | |
| 43 | 5K-9090 | [2] | SEAL-O-RING | |
| 44 | 7K-1181 | [26] | STRAP-CABLE | |
| 45 | 087-4587 | [1] | GROMMET | |
| 46 | 151-5420 I | [1] | HOSE AS | |
| 47 | 087-4408 I | [1] | HOSE AS | |
| 48 | 4I-0995 I | [1] | HOSE AS | |
| 49 | 8C-0597 | [1] | CONNECTOR | |
| 50 | 129-6058 I | [1] | HOSE AS | |
| 51 | 129-6059 I | [1] | HOSE AS | |
| 52 | 6D-1641 | [1] | CLIP (LOOP) | |
| 53 | 8T-4137 M | [1] | BOLT (M10X1.5X20-MM) | |
| 54 | 8T-4121 | [2] | WASHER-HARD (11X21X2.5-MM THK) | |
| 55 | 6V-9852 | [1] | ELBOW (SWIVEL) | |
| 56 | 6V-8721 | [1] | ELBOW | |
| 57 | 143-4305 I | [1] | HOSE AS | |
| 58 | 6V-9169 | [2] | NUT (13/16-16-THD) | |
| 59 | 6V-9168 | [1] | NUT (11/16-16-THD) | |
| 60 | 099-7241 | [1] | WASHER-HARD (19X34X3-MM THK) | |
| 61 | 7I-8252 I | [2] | HOSE AS | |
| 62 | 087-6583 I | [1] | HOSE AS | |
| 63 | 7Y-4390 I | [1] | HOSE AS | |
| 64 | 123-2430 Y | [2] | VALVE GP-SHUTTLE | |
| 65 | 099-3649 M | [4] | BOLT (M8X1.25X40-MM) | |
| 66 | 6V-9836 | [2] | TEE-SWIVEL | |
| 67 | 6V-9850 | [1] | ELBOW | |
| 68 | 087-4456 Y | [1] | ACCUMULATOR GP-HYDRAULIC (CHARGED) | |
| 69 | 099-4691 M | [3] | BOLT-LOCKING (M12X1.75X25-MM) | |
| 70 | 5P-1076 | [4] | WASHER-HARD (13.5X30X4-MM THK) | |
| 71 | 111-9950 Y | [1] | MANIFOLD GP-CONTROL | |
| 72 | 6V-3965 | [4] | FITTING (QUICK DISCONNECT) | |
| 73 | 6V-0852 | [4] | CAP-DUST | |
| 74 | 131-9493 I | [1] | HOSE AS | |
| 75 | 131-9534 | [1] | ELBOW | |
| 76 | 6V-0357 | [1] | SEAL-O-RING | |
| 77 | 8T-4182 M | [2] | BOLT (M10X1.5X45-MM) | |
| 78 | 9S-4191 | [6] | PLUG (9/16-18-THD) | |
| 79 | 6V-9873 | [1] | CONNECTOR | |
| 80 | 4I-9521 | [4] | BAND-MARKER (RED, L1) | |
| 81 | 4I-9522 | [2] | BAND-MARKER (YELLOW, L2) | |
| 82 | 4I-9523 | [8] | BAND-MARKER (BLUE, L3) | |
| 83 | 4I-9524 | [2] | BAND-MARKER (BROWN, L4) | |
| 84 | 4I-9525 | [4] | BAND-MARKER (ORANGE, R1) | |
| 85 | 4I-9526 | [8] | BAND-MARKER (WHITE, R2) | |
| 86 | 4I-9527 | [4] | BAND-MARKER (GREEN, R3) | |
| 87 | 4I-9528 | [4] | BAND-MARKER (PURPLE, R4) | |
| 88 | 6V-8722 | [1] | ELBOW | |
| 89 | 6V-8638 | [1] | CONNECTOR | |
| 90 | 7X-0871 | [1] | TEE | |
| 91 | 5P-9617 | [1] | ADAPTER | |
| 92 | 8C-3446 | [1] | VALVE-SAMPLING | |
| 93 | 3J-7354 | [1] | SEAL-O-RING | |
| 94 | 8C-3451 | [1] | CAP-DUST (HYDRAULIC OIL) | |
| 95 | 131-5676 | [1] | STOPPER | |
| 96 | 6V-9851 | [1] | ELBOW | |
| 97 | 108-7387 I | [2] | HOSE AS | |
| 98 | 7Y-8478 I | [1] | HOSE AS | |
| 99 | 4P-7582 | [2] | CLIP | |
| 100 | 8T-4179 M | [1] | BOLT (M12X1.75X20-MM) | |
| 101 | 5P-5148 | [1] | STRAP-CABLE | |
| 102 | 8T-4224 | [4] | WASHER-HARD (8.8X16X2-MM THK) | |
| 103 | 4I-0821 I | [1] | HOSE AS | |
| 104 | 129-3400 | [1] | GUARD | |
| 105 | 143-4218 | [1] | CONNECTOR | |
| 106 | 6D-4244 | [1] | CLIP (LOOP) | |
| 107 | 6V-8781 | [2] | TEE | |
| 108 | 8T-6466 M | [1] | BOLT (M10X1.5X60-MM) | |
| 109 | 6B-6205 | [1] | SPACER (0.438X0.875X1.281-IN THK) | |
| 110 | 9M-8406 | [1] | CLIP (LOOP) | |
| 111 | 124-1008 | [1] | GUARD | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
