Product Details:
Payment & Shipping Terms:
|
| Category: | Engine Parts | Engine Model: | 3306 3406 |
|---|---|---|---|
| Application: | Wheel Loader | Product Name: | Cup Bearing |
| Part Number: | 2P-1823 2P1823 | Packing: | Standard Export Carton |

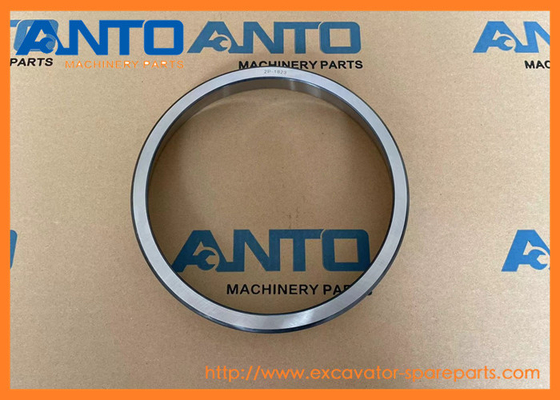

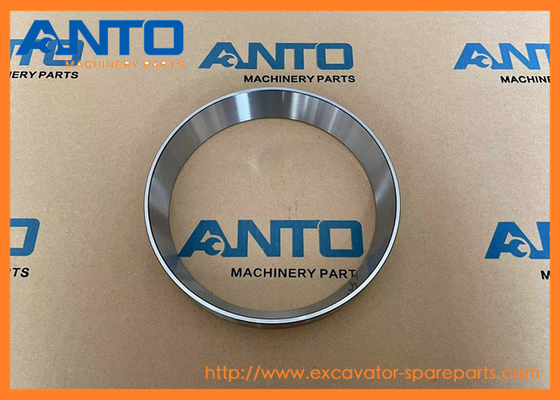

| Name | Cup Bearing |
| Parts No | 2P-1823 2P1823 |
| Machine Model | 621 621B 621E 621F 621G 621H 623 623G 623H |
| Category | Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
ARTICULATED TRUCK 735B 740B
COLD PLANER PM-565 PM-565B
EJECTOR TRUCK 740B
LANDFILL COMPACTOR 826B 826C
SOIL COMPACTOR 825B 825C
TOWED SCRAPER TS220
TRACK-TYPE TRACTOR D10 D11N D11R D11T
VIBRATORY COMPACTOR CB-614
WHEEL DOZER 824B
WHEEL LOADER 988 992C
WHEEL SCRAPER 621B 621E 621G 623E 623F 623G 627 627B 627E 627G
WHEEL TRACTOR 621 621B 621E 621F 621G 621H 623 623G 623H 627B 627E 627F 627G 627H
WHEEL TRACTOR-SCRAPER 621K 623K 623K LRC 627K 627K LRC C.ater.pillar.
| 5P4354 CUP-BEARING |
| 528, 528B, 530B, 992C, 992D |
| 1B3937 CUP-BEARING |
| 16G, 16H, 16H NA, 16M, 824C, 980, 980B, 980C, 980F, 994H, D35C, D35HP, D40D, D44B, D550B, D9E |
| 1110896 CUP-BEARING |
| 990, 990 II, CB-44B, CB-534D, CB-54B, CD-54, CD-54B |
| 1064578 CUP-BEARING |
| 990, 990 II, RR-250 |
| 1064576 CUP-BEARING |
| 990, 990 II |
| 7L4434 CUP-BEARING |
| 769C, 769D, 771C, 771D, 772, 773, 773B, 773D, 775B, 775D, 776, 776C, 776D, 777, 777B, 777D, 784B, 784C, 785, 785B, 785C, 785D, 789B, 789C, 789D, 793B, 793C |
| 9W7094 CUP-ROLLER BEARING |
| 776C, 777B, 785, 785B, 789 |
| 2P8989 CUP-BEARING |
| 776C, 776D, 777, 777B, 777D, 777F, 777G |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 5T-2194 | [1] | SHAFT-AXLE (1092MM LG) | |
| 5T-2195 | [1] | SHAFT-AXLE (1875MM LG) | ||
| 2 | 2D-9345 | [15] | STUD (5/8-11-THD) | |
| 3 | 5T-1847 | [2] | HOUSING AS | |
| 4 | 5P-8248 | [48] | WASHER-HARD (20X36.5X3.5-MM THK) | |
| 5 | 1A-8063 | [48] | BOLT (3/4-10X2.5-IN) | |
| 6 | 1M-9015 | [2] | SEAL-O-RING | |
| 7 | 6D-2347 | [2] | RETAINER AS-SEAL | |
| (EACH INCLUDES) | ||||
| 8 | 0S-0130 | [3] | PIN | |
| 9 | 9G-5319 | [2] | SEAL GP-DUO-CONE | |
| (EACH INCLUDES) | ||||
| 4M-0660 | [2] | RING-SEALING | ||
| 10 | 9D-8717 | [2] | SPACER (7.979X9.75X0.82-IN) | |
| 11 | 1P-9593 | [2] | CONE-BEARING (TAPERED ROLLER) | |
| 12 | 1P-9594 | [2] | CUP-BEARING (TAPERED ROLLER) | |
| 13 | 2D-8154 | [84] | STUD-TAPERLOCK (1/2-13X2.36-IN) | |
| 14 | 6G-6303 | [2] | WHEEL AS | |
| (EACH INCLUDES) | ||||
| 2G-7781 B | SEALANT | |||
| 15 | 7M-7410 | [1] | PLUG-PIPE | |
| 16 | 1B-5174 | [1] | PLUG-PIPE | |
| 17 | 2D-8369 | [44] | STUD-TAPERLOCK | |
| 18 | 2P-1823 | [2] | CUP-BEARING (TAPERED ROLLER) | |
| 19 | 2P-1824 | [2] | CONE-BEARING (TAPERED ROLLER) | |
| 20 | 3F-9194 | [4] | FLANGE | |
| 21 | 3D-5851 | [2] | BAND-BEAD SEAT | |
| 22 | 2D-2444 | [2] | SEAL-O-RING | |
| 23 | 3D-5852 | [2] | RING-LOCK | |
| 24 | 8D-8543 | [2] | HUB | |
| 25 | 6G-8370 B | [2] | SHIM PACK (INCLUDES 18-SHIMS) | |
| 26 | 6G-8371 | [2] | RING | |
| 27 | 1A-8537 | [12] | BOLT (5/8-11X2.75-IN) | |
| 28 | 4D-1570 | [2] | GEAR-RING (110-TEETH) | |
| 29 | 4D-3173 | [8] | RETAINER | |
| 30 | 5K-8454 | [16] | BOLT (1/2-13X1.12-IN) | |
| 31 | 6G-8372 | [2] | SPACER | |
| 32 | 7D-9354 | [2] | GEAR-SUN (19-TEETH) | |
| 33 | 4D-0141 | [2] | RING-RETAINING | |
| 34 | 6F-4855 | [2] | SEAL-O-RING | |
| 35 | 3D-8422 | [2] | SEAL-O-RING | |
| 36 | 4D-5780 | [2] | CARRIER AS | |
| (EACH INCLUDES) | ||||
| 37 | 2D-8153 | [6] | STUD-TAPERLOCK (1/2-13X1.77-IN) | |
| 38 | 5T-5682 | [2] | DRIVER | |
| 39 | 2G-1006 | [12] | SPACER (2.375X4.19X0.203-IN) | |
| 40 | 4D-3151 | [12] | BEARING AS-ROLLER | |
| 41 | 3D-8418 | [6] | SPACER (2.44X3.38X0.614-IN) | |
| 42 | 4D-1569 | [6] | GEAR-PLANETARY (44-TEETH) | |
| 43 | 5B-3265 | [2] | GASKET | |
| 44 | 6B-5262 | [2] | PLUG | |
| 45 | 2G-6571 | [6] | SHAFT-PLANETARY | |
| 46 | 2F-6067 | [6] | RING-RETAINING | |
| 47 | 4D-1577 | [2] | SEAL-O-RING | |
| 48 | 2G-5884 | [2] | COVER | |
| 49 | 5P-8245 | [12] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 50 | 1D-4719 | [12] | NUT-FULL (1/2-13-THD) | |
| 51 | 2G-4553 | [2] | PLATE | |
| 52 | 030-8535 | [8] | BOLT-LOCKING (3/8-16X0.875-IN) | |
| 53 | 2A-1162 | [2] | GASKET | |
| 54 | 5F-0304 | [2] | PLUG | |
| 55 | 3D-2239 | [2] | VALVE AS-TIRE | |
| (EACH INCLUDES) | ||||
| 9K-7951 | [1] | CAP-VALVE | ||
| 6F-3930 | [1] | CORE-VALVE | ||
| 56 | 1B-4331 | [44] | NUT (3/4-10-THD) | |
| 57 | 6V-7607 | [44] | WASHER-HARD (20X30X2.5-MM THK) | |
| B | USE AS REQUIRED |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
Contact Person: Mr. Paul
Tel: 0086-15920526889
Fax: +86-20-89855265
