Product Details:
Payment & Shipping Terms:
|
| Category: | Final Drive | Machine Model: | D7E D7E LGP |
|---|---|---|---|
| Application: | Excavator, Motor Grader | Product Name: | Seal Gp-Duo-Cone |
| Part Number: | 186-3277 1863277 | Packing: | Standard Export Carton |
| Highlight: | 186-3277 Excavator Spare Parts,1863277 Excavator Spare Parts,C9.3 Excavator Spare Parts |
||

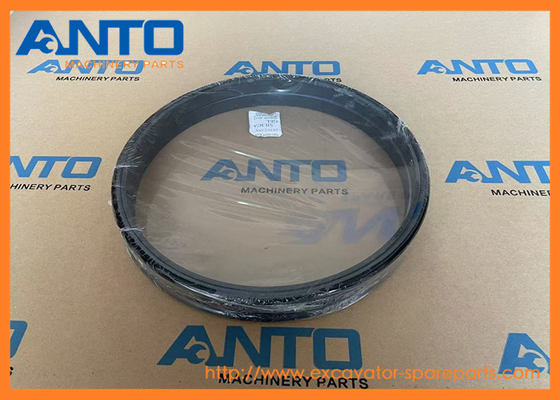

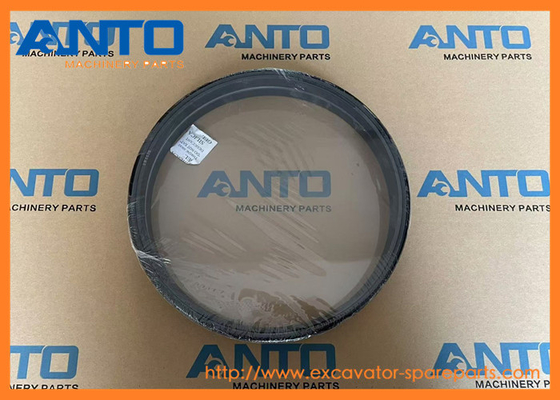

| Name | Seal Gp-Duo-Cone |
| Parts No | 186-3277 1863277 |
| Machine Model | D7E D7E LGP |
| Category | Final Drive |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
TRACK-TYPE TRACTOR D7E D7E LGP Cater.pillar.
| 6T3377 SEAL GP-DUO-CONE |
| 16M |
| 1757901 SEAL-O-RING |
| 120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 160M, 160M 2, 160M 3, 160M 3 AWD |
| 2780642 SEAL-LIP TYPE |
| 120K, 120K 2, 12K, 140K, 140K 2, 160K |
| 4D0907 SEAL |
| 12G, 130G, 140, 140B, 140G, 14E, 14G, 16G |
| 5F4258 SEAL |
| 120G, 12G, 14G, 16G |
| 3G1689 SEAL KIT |
| 14G, 16G |
| 2G7003 SEAL (plastic) |
| 120G |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1J-9227 | [2] | BEARING | |
| 2 | 1P-9005 | [1] | SEAL-O-RING | |
| 3 | 2K-2939 | [1] | SEAL-O-RING | |
| 4 | 2R-0098 | [1] | SEAL-O-RING | |
| 5 | 3D-9133 | [1] | CUP-BEARING | |
| 6 | 8G-8845 | [1] | COVER | |
| 7 | 9H-3360 | [1] | SEAL-O-RING | |
| 8 | 9M-5892 | [1] | SEAL-O-RING | |
| 9 | 126-0588 | [1] | CONE-SPECIAL TAPERED | |
| 10 | 284-7844 | [1] | GEAR-RING (74-TEETH) | |
| 11 | 284-7845 | [3] | GEAR-PLANETARY (29-TEETH) | |
| 12 | 284-7915 | [1] | RETAINER-BEARING | |
| 13 | 284-7924 | [3] | SHAFT | |
| 14 | 284-7925 | [3] | COVER | |
| 15 | 284-7926 | [1] | HUB-REACTION | |
| 16 | 284-7936 | [1] | RING | |
| 17 | 287-7310 | [1] | PLUG-MAGNETIC (FINAL DRIVE, OIL FILL, CHECK) | |
| 18 | 314-6953 | [1] | HOUSING | |
| 19 | 314-6954 | [1] | GEAR-PINION (27-TEETH) | |
| 20 | 314-6955 | [1] | GEAR (99-TEETH) | |
| 21 | 314-6957 | [1] | COVER | |
| 22 | 317-0801 | [1] | RING | |
| 23 | 319-0376 | [1] | SPINDLE | |
| 24 | 344-8499 | [1] | HUB-SPROCKET | |
| 25 | 353-7100 | [1] | COVER & BEARING AS | |
| 25A. | 8E-0618 | [1] | BEARING-THRUST | |
| 26 | 355-7037 | [1] | CARRIER-PLANETARY | |
| 27 | 358-4861 | [1] | RETAINER | |
| 28 | 152-6144 | [1] | PLUG AS-DRAIN (MAGNETIC)(FINAL DRIVE, OIL DRAIN) | |
| 6V-6228 | [1] | SEAL-O-RING | ||
| 29 | 186-3277 | [1] | SEAL GP-DUO-CONE | |
| 30 | 226-4192 | [30] | WASHER-HARD (21.5X35X8-MM THK) | |
| 31 | 282-0946 | [25] | BOLT (M20X2.5X50-MM) | |
| 32 | 3D-2992 | [1] | SEAL | |
| 33 | 5D-6296 | [1] | CONE-BEARING | |
| 34 | 5D-6298 | [1] | CUP-BEARING | |
| 35 | 5P-4920 | [2] | RACE & ROLLER AS | |
| 36 | 5P-4921 | [2] | RACE-BEARING OUTER | |
| 37 | 6F-8146 | [1] | SEAL-O-RING | |
| 38 | 6H-3566 | [6] | CONE-BEARING | |
| 39 | 6H-3568 | [6] | CUP-BEARING | |
| 40 | 6V-7970 | [1] | SEAL-O-RING | |
| 41 | 6V-8150 M | [12] | BOLT (M12X1.75X60-MM) | |
| 42 | 7X-2563 M | [30] | BOLT (M20X2.5X60-MM) | |
| 43 | 8C-5193 | [1] | SEAL-O-RING | |
| 44 | 8T-3282 | [25] | WASHER-HARD (22X35X3.5-MM THK) | |
| 45 | 8T-4121 | [20] | WASHER-HARD (11X21X2.5-MM THK) | |
| 46 | 8T-4136 M | [3] | BOLT (M10X1.5X25-MM) | |
| 47 | 8T-4195 M | [17] | BOLT (M10X1.5X30-MM) | |
| 48 | 9T-3931 | [1] | PLUG (FINAL DRIVE, OIL DRAIN) | |
| 49 | 9X-2125 M | [6] | BOLT-LOCKING (M10X1.5X25-MM) | |
| M | METRIC PART |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
