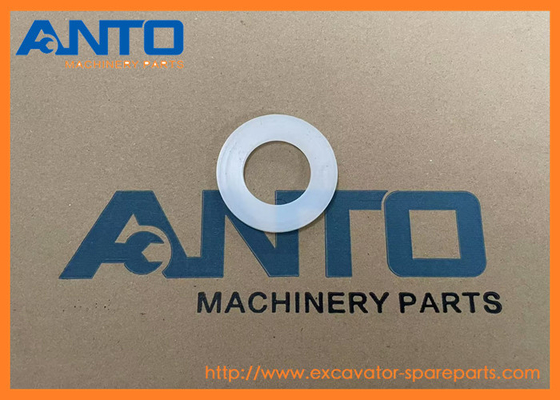

• 20Y-26-22220 20Y2622220 Thrust Washer Support For KOMATSU PC200 PC200CA PC200SC PC210

• ​Specification

• Compatible models

EXCAVATORS PC200 PC200CA PC200SC PC210 PC220 PC228 PC228US PC228UU PC230 PC240 PC250

PC250HD PC270 PC290 Komatsu

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	20Y-26-00151	[1]	SWING MACHINERY A. Komatsu	190 kg.
			["SN: C10001-UP"] analogs:["20Y2600150"] |1.
1.	20Y-26-22210	[1]	CASE Komatsu	76 kg.
			["SN: C10001-UP"]
2.	20Y-26-22330	[1]	BEARING Komatsu China	3.28 kg.
			["SN: C10001-UP"] analogs:["20Y2622331", "20Y2622430"]
3.	20Y-26-22340	[1]	BEARING Komatsu China	9.6 kg.
			["SN: C10001-UP"] analogs:["20Y2622342", "20Y2622440"]
4.	20Y-26-22191	[1]	COVER Komatsu	4.6 kg.
			["SN: C10001-UP"] analogs:["20Y2622190"]
5.	01010-81045	[12]	BOLT Komatsu	0.039 kg.
			["SN: C10001-UP"] analogs:["0101051045", "01010D1045"]
6.	01643-31032	[12]	WASHER Komatsu	0.054 kg.
			["SN: C10001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
7.	20Y-26-22420	[1]	SEAL Komatsu China	0.3 kg.
			["SN: C10001-UP"]
8.	20Y-26-21141	[1]	SHAFT¤ 15 TEETH Komatsu OEM	35 kg.
			["SN: C10001-UP"] analogs:["20Y2621140", "20Y2621142"]
9.	20Y-26-22170	[1]	CARRIER Komatsu	8.55 kg.
			["SN: C10001-UP"]
10.	20Y-26-22141	[4]	GEAR¤ 36 TEETH Komatsu China	1.8 kg.
			["SN: C10001-UP"] analogs:["20Y2622140"]
11.	20G-26-11240	[4]	BEARING Komatsu China	0.24 kg.
			["SN: C10001-UP"] analogs:["20G2611241", "20G2611410"]
12.	20Y-27-21240	[8]	WASHER Komatsu China	0.02 kg.
			["SN: C10001-UP"]
13.	20Y-26-22250	[4]	PIN Komatsu China	0.52 kg.
			["SN: C10001-UP"]
14.	20Y-27-21280	[4]	PIN Komatsu China	0.01 kg.
			["SN: C10001-UP"]
15.	20Y-26-21240	[1]	PLATE Komatsu	5.1 kg.
			["SN: C10001-UP"]
16.	112-32-11211	[1]	BOLT¤ SHOE Komatsu	0.09 kg.
			["SN: C10001-UP"]
17.	20Y-26-22151	[1]	GEAR¤ 101 TEETH Komatsu	18.8 kg.
			["SN: C10001-UP"] analogs:["20Y2622150"]
18.	20Y-26-22131	[1]	GEAR¤ 27 TEETH Komatsu	2.15 kg.
			["SN: C10001-UP"] analogs:["20Y2622130"]
19.	04064-07525	[1]	RING Komatsu	0.026 kg.
			["SN: C10001-UP"]
20.	20Y-26-22220	[1]	THRUST WASHER Komatsu	0.04 kg.
			["SN: C10001-UP"]
21.	20Y-26-22160	[1]	CARRIER Komatsu	5.1 kg.
			["SN: C10001-UP"]
22.	20Y-26-22120	[3]	GEAR¤ 39 TEETH Komatsu China	1.25 kg.
			["SN: C10001-UP"]
23.	20Y-26-21280	[3]	BEARING Komatsu	0.1 kg.
			["SN: C10001-UP"] analogs:["20Y2621281", "20X2621240", "20Y2621510"]
25.	20Y-26-22240	[3]	PIN Komatsu	0.367 kg.
			["SN: C10001-UP"]
27.	20Y-26-22110	[1]	GEAR¤ 22 TEETH Komatsu	0.4 kg.
			["SN: C10001-UP"]
28.	20Y-26-22230	[1]	THRUST WASHER Komatsu	0.1 kg.
			["SN: C10001-UP"]
29.	20Y-26-22410	[1]	COVER Komatsu China
			["SN: C10001-UP"]
30.	01011-81450	[4]	BOLT Komatsu China
			["SN: C10001-UP"]
31.	01643-31445	[4]	WASHER Komatsu	0.019 kg.
			["SN: C10001-UP"] analogs:["0164301432"]
32.	07042-30617	[1]	PLUG Komatsu China
			["SN: C10001-UP"]
33.	07042-30108	[1]	PLUG Komatsu	0.008 kg.
			["SN: C10001-UP"] analogs:["0704220108"]
34.	07042-30415	[1]	PLUG Komatsu	0.056 kg.
			["SN: C10001-UP"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
