Product Details:
Payment & Shipping Terms:
|
| Application: | Excavator | Category: | Engine Parts |
|---|---|---|---|

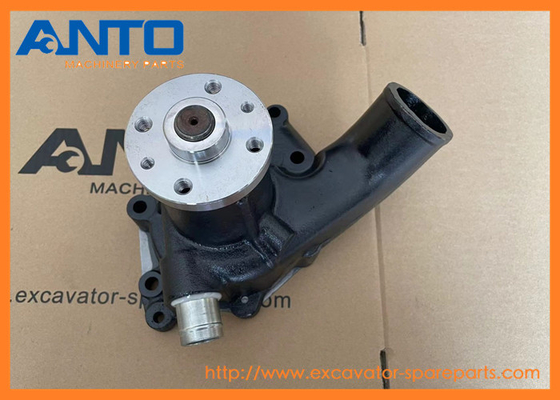

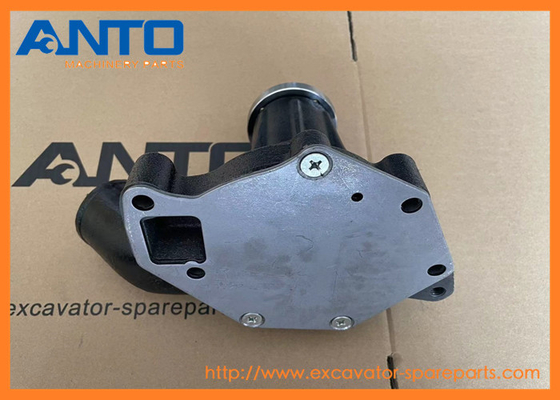

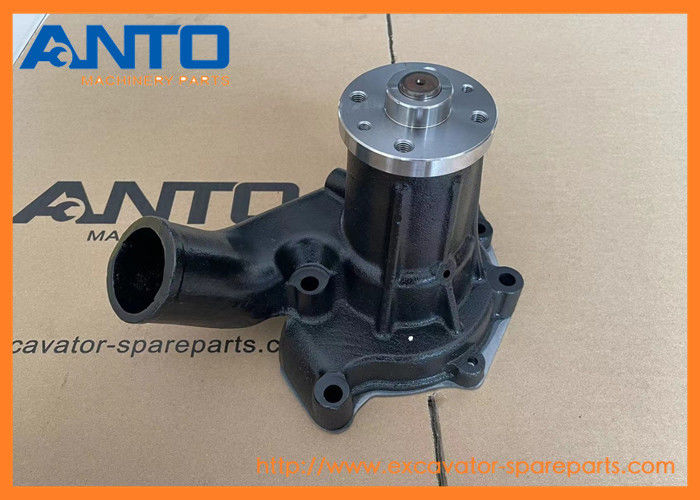

| Product Name: | Water Pump | Machine Model: | EX125WD-5 EX200-5 EX210H-5 |
| Part Number: | 1136500171 | Packing: | Standard Export Carton |
| Highlight: | 6BG1 Excavator Spare Parts,EX200-5 Excavator Spare Parts,ISUZU Excavator Spare Parts |
||
| Name | Water Pump |
| Parts No | 1136500171 |
| Machine Model | EX125WD-5 EX200-5 EX210H-5 |
| Category | Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| 1131002770 PUMP ASM; OIL |
| 225CL RTS JD, 270C LC JD, EX125WD-5, EX200-3C, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5HHE, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200LC-5HHE, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 JPN, EX... |
| 4276918 PUMP;GEAR |
| CHR70, EX100-3, EX100-3C, EX100-3m, EX100-5, EX100-5 JPN, EX100M-3, EX100M-3m, EX100M-5, EX120-3, EX120-3C, EX120-3m, EX120-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, EX120-5Z, EX120SS-5, EX1... |
| 1157610061 PUMP; PRIMING,FUEL FEED PUMP |
| 225CL RTS JD, 270C LC JD, 330C LC JD, 370C JD, 600C LC JD, CX650-2, EX125WD-5, EX75UR-5, EX75URT-5, EX75US-5, FV30, HU230-A, LX110-7, LX130-7, LX160-7, LX300-7, MA200-G, SCX300-C, SCX400, SCX400T, SCX... |
| 1157610060 PUMP; PRIMING,FUEL FEED PUMP |
| 135C RTS JD, CD1500, CD2000, CP215, CX1000, CX1000-C, CX1800, CX2000, EG40R, EX100-3C, EX100-5, EX100-5 JPN, EX100M-5, EX100WD-3C, EX120-3C, EX120-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, E... |
| 1157501540 PUMP ASM; FUEL FEED,INJ PUMP |
| 225CL RTS JD, EX125WD-5, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5HHE, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200LC-5HHE, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 JPN, EX210MT-5 JPN, EX225USR(... |
| (9152668) PUMP DEVICE |
| CHR70, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5HHE, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200LC-5HHE, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 JPN, EX210LC-5HHE, MA145-5 |
| 9252021 PUMP |
| SR-G2000 |
| 1156033350 PUMP ASM; INJ |
| EX125WD-5 |
| 4638899 PUMP;VANE |
| SR-G2000 |
| 4461373 PUMP |
| HR1200S-5, HR900S-5, HR900SM |
| Pos. | Part No | Qty | Parts name | Comments |
| 001(C). | 1136500171 | [1] | PUMP ASM; WATER,W/GASKET | |
| 3 | 8943706610 | [1] | GASKET; PUMP TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 3 | 8943706610 | [1] | GASKET; PUMP TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 4 | 1878113152 | [1] | REPAIR KIT; WATER PUMP | |
| 007(C). | 1136411751 | [1] | PULLEY; WATER PUMP | 2-GROOVE D=166.7 |
| 8 | 5136390010 | [1] | THROWER; DUST,WATER PUMP | |
| 009(A). | 9099521430 | [1] | RING; SNAP,WATER PUMP | |
| 009(B). | 9091801520 | [1] | RING; SNAP,WATER PUMP | |
| 010(A). | 5098000510 | [1] | BEARING; WATER PUMP | |
| 010(B). | 5098000500 | [1] | BEARING; WATER PUMP | |
| 010(C). | 1098001700 | [1] | BEARING; WATER PUMP | |
| 11 | 1136340410 | [1] | SPACER; BRG,WATER PUMP | |
| 16 | 5096250550 | [1] | SEAL; OIL,WATER PUMP | |
| 17 | 5136200062 | [1] | SEAL UNIT; WATER PUMP | |
| 17 | 1136200230 | [1] | SEAL UNIT; WATER PUMP | |
| 18 | 1136210450 | [1] | IMPELLER; WATER PUMP | |
| 19 | 9136136130 | [1] | GASKET; COVER TO BODY | |
| 19 | 9136136130 | [1] | GASKET; COVER TO BODY | |
| 20 | 9136128020 | [1] | COVER; WATER PUMP | |
| 24 | 280810500 | [2] | BOLT; WATER PUMP | M10X50 FLANGE |
| 24 | 286810350 | [1] | BOLT; WATER PUMP | M10X35 FLANGE |
| 24 | 280810700 | [1] | BOLT; WATER PUMP | M10X70 FLANGE |
| 24 | 280510500 | [2] | BOLT; WATER PUMP | M10X50 FLANGE |
| 24 | 280510700 | [1] | BOLT; WATER PUMP | M10X70 FLANGE |
| 24 | 286510350 | [1] | BOLT; WATER PUMP | M10X35 FLANGE |
| 25 | 5136420072 | [1] | CENTER; WATER PUMP | |
| 28 | 1095030700 | [1] | WASHER; WATER PUMP | |
| 29 | 1136310840 | [1] | SHAFT; WATER PUMP | |
| 65 | 9030908200 | [3] | SCREW; COVER,WATER PUMP | |
| 117 | 1096601192 | [1] | CONNECTOR; BYPASS | |
| 117 | 8972498951 | [1] | CONNECTOR; BYPASS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
