| Application |
KOMATSU excavator spare parts |
| Name |

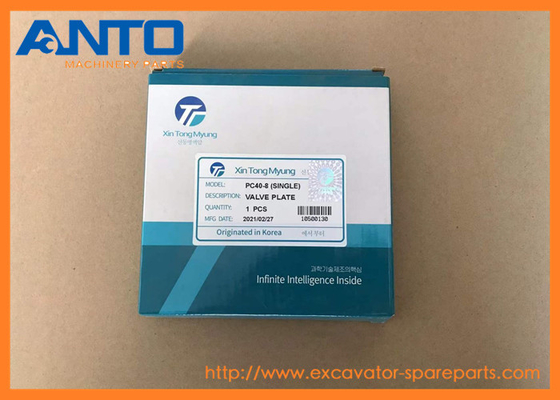

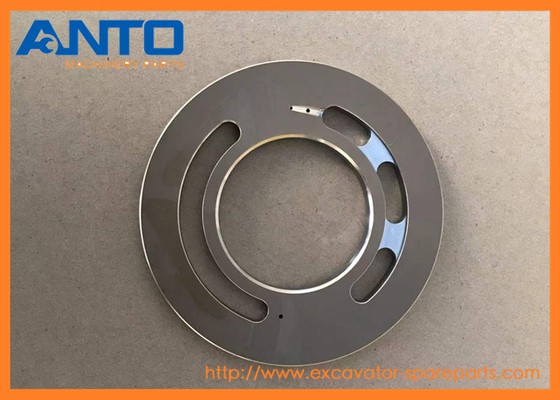

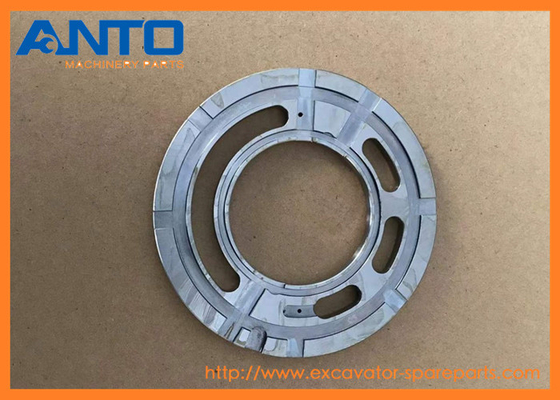

Valve plate |
| Parts No |
708-1T-13221 7081T13221 |
| Model |
PC30R PC35R PC40R PC45R PC58SF |
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
EXCAVATORS PC30R PC35R PC40R PC45R PC58SF Komatsu
- More plate parts supply to KOMATSU machine
| 22M-977-1280 PLATE, OPERATING,DEFROSTER |
| CD60R, PC40MR, PC40MRX, PC45MRX, PC58UU |
| |
| 09654-10000 PLATE, SAFETY,STARTING AND LEAVING SEAT |
| WF22A, WF22T |
| |
| 34B-96-35161 PLATE, CAUTION |
| FD100, FD115, FD135, FD15, FD150E, FD160E, FD18, FD20, FD30, FD50/60, FD70, FD80, FG15H, FG18H, FG20, FG20H, FG30, FG30H |
| |
| 22L-98-18410 PLATE, CAUTION,LOCK RELEASE |
| PC20MR, PC27MRX, PC30MR, PC35MRX |
| |
| 3FE-96-33110 PLATE, MARK,FD100 |
| FD100, FD115, FD135, FD150E, FD160E |
| |
| 21X-54-11770 PLATE |
| D375A |
| |
| 569-93-25450 PLATE, SAFETY |
| HD465, HD605 |
| |
| 569-93-25460 PLATE, NAME |
| HD465, HD605 |
| |
| 22E-98-11940 PLATE, NOTICE |
| PC75R, PC95R |
| |
| 423-847-1240 PLATE (WELDED) |
| WA350, WA400, WA420, WA450 |
| |
| 581-08-16260 PLATE |
| HD1200 |
| |
| 581-08-16250 PLATE |
| HD1200 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
708-1T-00142 |
[1] |
PUMP ASS'Y Komatsu |
22.9 kg. |
| |
["SN: 10854-UP"] analogs:["3F3055053", "7081T00141", "7081T00512"] |$2. |
| |
708-1T-00141 |
[1] |
PUMP ASS'Y Komatsu |
22.9 kg. |
| |
["SN: 10001-10853"] analogs:["3F3055053", "7081T00142", "7081T00512"] |$3. |
| |
708-1T-01122 |
[1] |
PUMP SUB ASS'Y Komatsu China |
|
| |
["SN: 10854-UP"] |$5. |
| |
708-1T-01121 |
[1] |
PUMP SUB ASS'Y Komatsu China |
|
| |
["SN: 10001-10853"] |$6. |
| 1 |
708-1T-13110 |
[1] |
BLOCK,CYLINDER Komatsu China |
|
| |
["SN: 10001-UP"] |
| 2 |
708-1T-13221 |
[1] |
PLATE,VALVE Komatsu China |
|
| |
["SN: 10001-UP"] |
| 3 |
708-1T-13130 |
[2] |
WASHER Komatsu China |
|
| |
["SN: 10001-UP"] |
| 4 |
708-1T-13151 |
[1] |
SPRING Komatsu China |
|
| |
["SN: 10001-UP"] analogs:["7081T13150"] |
| 5 |
04065-03815 |
[1] |
RING Komatsu |
0.004 kg. |
| |
["SN: 10001-UP"] |
| 6 |
708-1T-13350 |
[1] |
RETAINER,GUIDE Komatsu China |
|
| |
["SN: 10001-UP"] |
| 7 |
708-2L-23360 |
[3] |
PIN Komatsu |
0.003 kg. |
| |
["SN: 10001-UP"] |
| 8 |
708-1T-13340 |
[1] |
RETAINER,SHOE Komatsu China |
|
| |
["SN: 10001-UP"] |
| 9 |
708-1T-13310 |
[7] |
PISTON SUB ASS'Y Komatsu |
0.12 kg. |
| |
["SN: 10001-UP"] |
| 10 |
708-1T-14210 |
[1] |
BOLT,ADJUST Komatsu China |
|
| |
["SN: 10001-UP"] |
| 11 |
07002-13034 |
[1] |
O-RING Komatsu China |
0.005 kg. |
| |
["SN: 10001-UP"] analogs:["0700203034"] |
| 12 |
708-1T-14311 |
[1] |
PLUG Komatsu China |
|
| |
["SN: 10001-UP"] |
| 13 |
01583-02414 |
[1] |
NUT Komatsu |
0.068 kg. |
| |
["SN: 10001-UP"] |
| 14 |
07002-12434 |
[1] |
O-RING Komatsu China |
0.01 kg. |
| |
["SN: 10001-UP"] analogs:["0700202434", "0700213434"] |
| 15 |
708-1T-15141 |
[1] |
PLUG Komatsu China |
|
| |
["SN: 10001-UP"] |
| 16 |
01582-01210 |
[1] |
NUT Komatsu |
0.015 kg. |
| |
["SN: 10001-UP"] |
| 17 |
07002-11223 |
[1] |
O-RING Komatsu China |
0.001 kg. |
| |
["SN: 10001-UP"] analogs:["0700201223"] |
| 18 |
708-1T-15121 |
[1] |
SEAT Komatsu China |
|
| |
["SN: 10001-UP"] |
| 19 |
708-1T-14410 |
[1] |
SLIDER Komatsu China |
|
| |
["SN: 10001-UP"] |
| 20 |
708-1T-15590 |
[1] |
SEAT Komatsu China |
|
| |
["SN: 10001-UP"] analogs:["890001671"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
