Product Details:
Payment & Shipping Terms:
|
| Category: | Travel Gearbox | Machine Model: | EC140D EC140E EC160B EC170D EC180B |
|---|---|---|---|

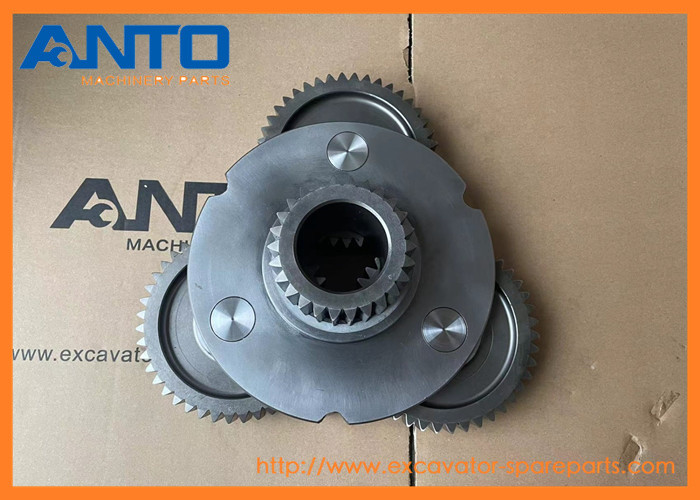

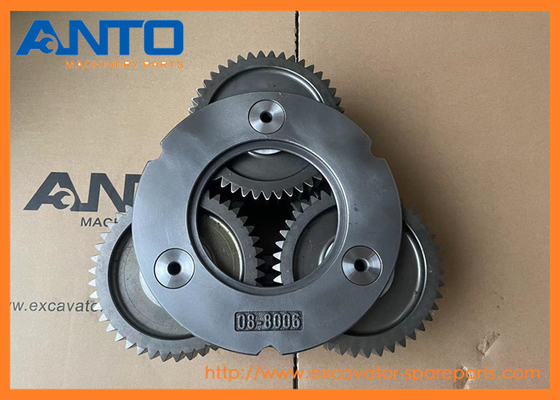

| Application: | Excavator | Product Name: | Planet Carrier |
| Part Number: | 14528727 SA7117-30270 | Packing: | Standard Export Carton |
| Highlight: | Excavator Spare Parts Planet Carrier,EC180B Planet Carrier,EC160B Planet Carrier |
||
| Name | Planet Carrier |
| Parts No | 14528727 SA7117-30270 |
| Machine Model | EC140B EC140C EC140D EC140E EC160B EC160C |
| Category | Travel Gearbox |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
EXCAVATOR EC140B EC140C EC140D EC140E EC160B EC160C EC160D EC160E EC170D EC180B EC180C EC180D EC180E EC200B EC200D EC210B EC210C EC210D EC220D EC220E FC2121C Vol.vo.
| VOE14528728 Planet carrier |
| EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, FC2121C |
| VOE14528725 Planet carrier |
| EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, EC235C, EC235D, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, ECR235C, ECR235D, ECR235E, EW180C, EW180D, EW180E, EW205D, EW210D,... |
| VOE14515064 Planet carrier |
| EC150, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E |
| VOE14515067 Planet carrier |
| EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E |
| VOE14528723 Planet carrier |
| EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, FC2121C |
| VOE14505737 Planet carrier |
| EC210C, EC220D, EC220E, EC235D, EC240B, EC240C, EC250D, EC250E, ECR235C, ECR235D, ECR235E, FC2421C |
| VOE14505751 Planet carrier |
| EC210C, EC220D, EC220E, EC235D, EC240B, EC240C, EC250D, EC250E, ECR235C, ECR235D, ECR235E, FC2421C |
| VOE14505738 Planet carrier |
| EC210C, EC220D, EC220E, EC235D, EC240B, EC240C, EC250D, EC250E, ECR235C, ECR235D, ECR235E, FC2421C |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14528733 | [1] | Travel gearbox | ||
| 1 | SA7117-30100 | [1] | Housing | SER NO 10001-10693 |
| VOE14522475 | [1] | Housing | SER NO 10694- | |
| 2 | SA7117-30110 | [2] | Ball bearing | |
| 3 | SA7117-30120 | [1] | Seal | SER NO 10001-10693 |
| VOE14729840 | [1] | Seal | SER NO 10694- | |
| 4 | SA7117-30140 | [1] | Shim | T=0.1 |
| SA7117-30150 | [1] | Shim | T=0.9 | |
| SA7117-30160 | [1] | Shim | T=1.0 | |
| SA7117-30170 | [1] | Shim | T=1.2 | |
| 5 | SA7117-30130 | [1] | Retainer | |
| 6 | VOE997446 | [12] | Hexagon screw | |
| 7 | SA9324-21212 | [2] | Pin | |
| 8 | SA7117-30190 | [1] | Ring gear | |
| 9 | SA7117-30180 | [1] | Flexible coupling | |
| 10 | SA7117-30200 | [1] | Carrier | No 2 SER NO 10001-10693 |
| VOE14528723 | [1] | Planet carrier | No 2 SER NO 10694- | |
| 11 | SA7117-30210 | [1] | Planet carrier | |
| 12 | SA7117-30240 | [4] | Planetary Gear | |
| 13 | SA7117-30230 | [8] | Needle bearing | |
| 14 | SA7117-30220 | [8] | Thrust washer | |
| 15 | SA7117-30250 | [4] | Pin | SER NO 10001-10693 |
| VOE14528724 | [4] | Pin | SER NO 10694- | |
| 16 | SA9325-06012 | [4] | Spring pin | |
| 17 | SA7117-30260 | [1] | Thrust ring | |
| 18 | SA7117-30270 | [1] | Carrier | No 1 SER NO 10001-10693 |
| VOE14528727 | [1] | Planet carrier | No 1 SER NO 10694- | |
| 19 | SA7117-30280 | [1] | Carrier | SER NO 10001-10693 |
| VOE14528728 | [1] | Planet carrier | SER NO 10694- | |
| 20 | SA7117-30290 | [1] | Sun gear | |
| 21 | SA7117-30300 | [1] | Ring | |
| 22 | SA7117-30340 | [3] | Planetary gear | |
| 23 | SA7117-30320 | [3] | Needle bearing | |
| 24 | SA7117-30310 | [6] | Thrust washer | |
| 25 | SA7117-30360 | [3] | Pin | |
| 26 | VOE951955 | [3] | Spring pin | |
| 27 | SA7117-30260 | [1] | Thrust ring | |
| 28 | VOE14602566 | [1] | Cover | |
| 29 | SA7117-15230 | [1] | Pad | |
| 30 | SA7117-30370 | [20] | Hexagon screw | |
| 31 | SA9023-11004 | [2] | Set screw | |
| 32 | VOE14883848 | [3] | Plug | |
| 33 | SA7117-30330 | [1] | Sun gear | |
| 34 | VOE983524 | [3] | O-ring |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
