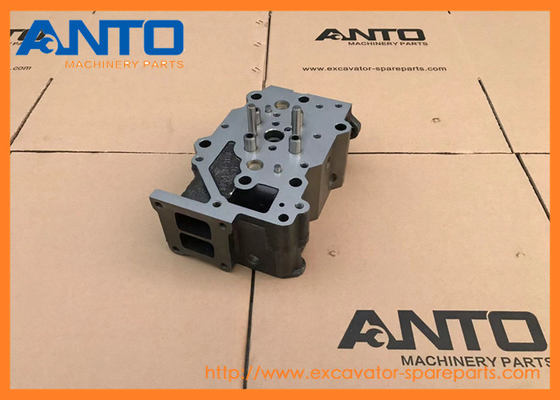

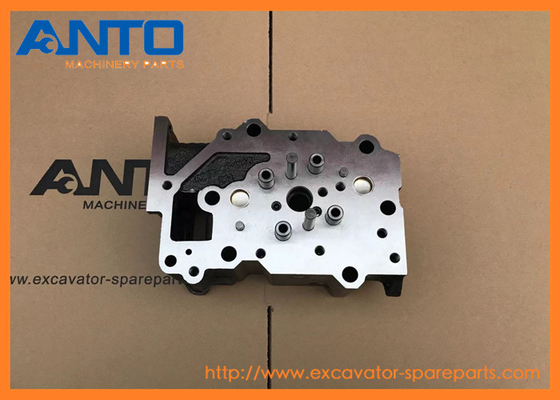

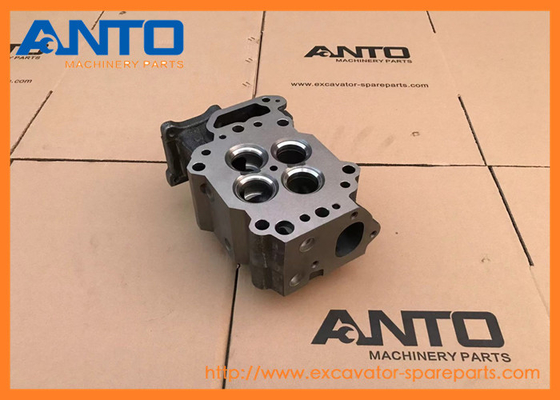

• 6251-11-1110 6251111110 Cylinder Head Support For KOMATSU Engine SAA6D125E-5A

• ​Specification

• Compatible models

Engine SAA6D125E-5A

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	6251-11-1100	[6]	Head Assembly Komatsu	14.5 kg.
			["SN: 560004-UP"] analogs:["6251111200"] |1.
1.	6251-11-1110	[1]	Head, Cylinder Komatsu	14.5 kg.
			["SN: 560004-UP", "SCC: C1"] analogs:["6251111100", "6251111200"]
2.	6150-11-1320	[2]	Insert, Exhaust Valve Standard Komatsu OEM	0.028 kg.
			["SN: 560004-UP"]
	6150-19-1320	[2]	Insert, Exhaust Valve Oversize 0.25mm Komatsu China	0.03 kg.
			["SN: 560004-UP"] |2.
	6150-18-1320	[2]	Insert, Exhaust Valve Oversize 0.50mm Komatsu	0.03 kg.
			["SN: 560004-UP"] |2.
	6150-17-1320	[2]	Insert, Exhaust Valve Oversize 0.75mm Komatsu	0.033 kg.
			["SN: 560004-UP"] |2.
	6150-16-1320	[2]	Insert, Exhaust Valve Oversize 1.00mm Komatsu	0.04 kg.
			["SN: 560004-UP"] |2.
3.	6251-11-1380	[2]	Insert, Intake Valve Standard Komatsu	0.001 kg.
			["SN: 560004-UP"]
	6251-19-1380	[2]	Insert, Intake Valve Oversize 0.25mm Komatsu China
			["SN: 560004-UP"] |3.
	6251-18-1380	[2]	Insert, Intake Valve Oversize 0.50mm Komatsu China
			["SN: 560004-UP"] |3.
	6251-17-1380	[2]	Insert, Intake Valve Oversize 0.75mm Komatsu China
			["SN: 560004-UP"] |3.
	6251-16-1380	[2]	Insert, Intake Valve Oversize 1.00mm Komatsu	0.017 kg.
			["SN: 560004-UP"] |3.
4.	6150-12-1370	[4]	Guide, Service Use Only Komatsu OEM	0.07 kg.
			["SN: 560004-UP"] analogs:["6150121341", "6150111370", "6150111341"]
5.	6162-13-1150	[11]	Plug, Expansion Komatsu	0.01 kg.
			["SN: 560004-UP"]
6.	04260-00793	[1]	Ball Komatsu	0.005 kg.
			["SN: 560004-UP"]
7.	07043-70108	[3]	Plug Komatsu	0.005 kg.
			["SN: 560004-UP"] analogs:["07043A0108"]
8	6150-42-4110	[12]	Valve, Intake Komatsu OEM	0.165 kg.
			["SN: 560004-UP"]
9	6150-42-4210	[12]	Valve, Exhaust Komatsu OEM	0.194 kg.
			["SN: 560004-UP"]
10	6150-41-4510	[24]	Seat, Upper Komatsu OEM	0.03 kg.
			["SN: 560004-UP"]
11	6150-41-4430	[24]	Seat, Lower Komatsu China	0.01 kg.
			["SN: 560004-UP"]
12	6136-42-4520	[48]	Cotter, Valve Komatsu China	0.01 kg.
			["SN: 560004-UP"]
13	6251-41-4450	[24]	Spring, Valve Komatsu China
			["SN: 560004-UP"]
14	6150-41-4570	[24]	Seal, Valve Stem Komatsu China	0.01 kg.
			["SN: 560004-UP"]
15	6210-11-1140	[12]	Guide, Crosshead Komatsu	0.051 kg.
			["SN: 560004-UP"]
16	04020-00820	[12]	Pin, Dowel Komatsu	0.056 kg.
			["SN: 560004-UP"] analogs:["802540092"]
	6150-42-5600	[12]	Crosshead Assembly Komatsu	0.16 kg.
			["SN: 560004-UP"] analogs:["6150425610"] |16.
17.	6150-42-5610	[1]	Crosshead Komatsu	0.16 kg.
			["SN: 560004-UP"] analogs:["6150425600"]
18.	6150-41-5621	[1]	Screw Komatsu	0.05 kg.
			["SN: 560004-UP"] analogs:["6150415620"]
19.	6150-41-5630	[1]	Nut Komatsu	0.01 kg.
			["SN: 560004-UP"]
20	6251-11-1810	[6]	Gasket, Cylinder Head Komatsu	0.195 kg.
			["SN: 560004-UP"]
	6150-11-1970	[1]	Grommet, Oil Komatsu China
			["SN: 560004-UP"] |20.
	6150-11-1930	[1]	Grommet, Oil Komatsu	0.001 kg.
			["SN: 560004-UP"] |20.
	6150-11-1950	[4]	Grommet, Water Komatsu	0.001 kg.
			["SN: 560004-UP"] analogs:["6150111940"] |20.
	6150-12-1960	[1]	Grommet, Water Komatsu	0.003 kg.
			["SN: 560004-UP"] |20.
	6150-11-1960	[5]	Grommet, Oil Komatsu	0.01 kg.
			["SN: 560004-UP"] |20.
21	6150-11-1620	[36]	Bolt, Head Komatsu China
			["SN: 560004-UP"]
22	6164-31-3330	[36]	Washer Komatsu China
			["SN: 560004-UP"]
23	01438-01020	[6]	Bolt Komatsu	0.207 kg.
			["SN: 560004-UP"] analogs:["6150819160"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
