| Application |
KOMATSU excavator spare Parts |
| Name |

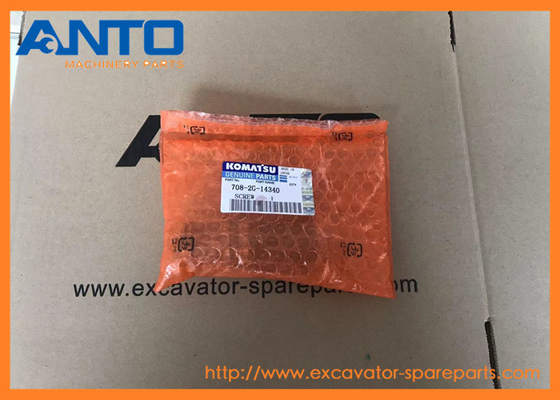

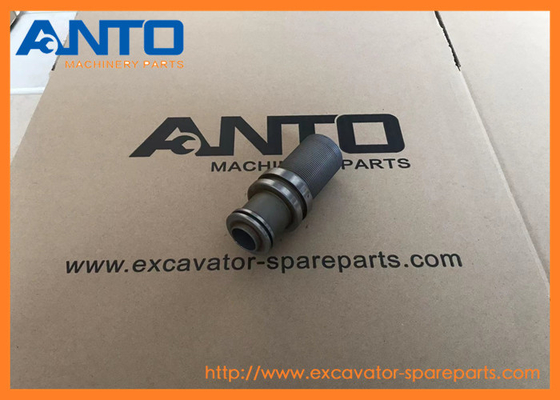

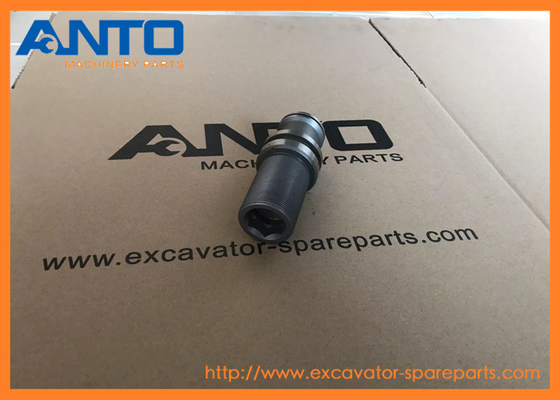

Screw |
| Parts No |
708-2G-14340 7082G14340 |
| Model |
PC160 PC180 PC190 PC300 PC300HD PC300LL PC340 PC350 PC350HD PC350LL PC360 PC380 PC400 PC450 PC550 PW160 PW180 |
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
BULLDOZERS D155AX
EXCAVATORS PC160 PC180 PC190 PC300 PC300HD PC300LL PC340 PC350 PC350HD PC350LL
PC360 PC380 PC400 PC450 PC550 PW160 PW180
MOBILE CRUSHERS AND RECYCLERS BR580JG
WHEEL DOZERS WD600
WHEEL LOADERS WA470 WA480 WA500 WA600 Komatsu
- More screws supply to KOMATSU machine
| 423-904-2640 SCREW |
| GD655, WA100, WA100M, WA150, WA200 |
| |
| 266-80-13360 SCREW |
| JV06H, JV06HM, JV07HK, JV08H, JV08HM, JV16, JV16R, JV25, JV25CR, JV25CW, JV25DW, JV25W, JV28, JV32W, JV40, JV40C, JV40CR, JV40CW, JV40DW, JV40W, JW30, JW33 |
| |
| 01210-20620 SCREW |
| D50P, D50S, GD30, GD31, GD37 |
| |
| 702-73-11850 SCREW |
| BOTTOM, D155A, D155AX, D275A, D275AX, PC1250, PC1250SP, PC2000, PC490, PC600, PC650, PC700, PC800, PC800SE, PC850, PC850SE, TRAVEL, WA600, WD600 |
| |
| 257-81-41190 SCREW |
| JV40CW, JV40DW, JW30 |
| |
| 706-87-51120 SCREW |
| BR200S, BR500JG, CD110R, COOLANT, PC300, PC300HD, PC300LL, PC380, PC400, PC400ST, PC450, PC550, PC600, PC650 |
| |
| 205-06-64370 SCREW |
| PC200, PC220, PC300 |
| |
| 230-40-11471 SCREW |
| GD30, GD31, GD31RC, GD37 |
| |
| 23B-32-31630 SCREW |
| GD555, GD655, GD675, GD755, GH320 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
708-2G-00150 |
[1] |
Pump Assembly Komatsu China |
|
| |
["SN: 62677-UP"] |$0. |
| |
708-2G-01150 |
[1] |
Pump Subassembly Komatsu China |
|
| |
["SN: 62677-UP", "SCC: C2"] |$1. |
| 1 |
708-2G-14120 |
[1] |
Slider Komatsu |
0.365 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 1 |
708-2G-03640 |
[1] |
Valve Assembly Komatsu China |
|
| |
["SN: 62677-UP", "SCC: C2"] |
| 1 |
708-2G-03650 |
[1] |
Piston Assembly Komatsu China |
|
| |
["SN: 62677-UP", "SCC: C2"] |
| 6 |
708-2L-35760 |
[1] |
Ball Komatsu |
0.001 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 7 |
708-2L-35770 |
[1] |
Plug Komatsu |
0.005 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 9 |
708-2L-35170 |
[1] |
Pin Komatsu |
0.01 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 10 |
708-2G-15211 |
[1] |
Spool Komatsu |
0.03 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 11 |
708-2G-15290 |
[1] |
Retainer Komatsu |
0.05 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 12 |
708-2G-15140 |
[1] |
Seat Komatsu |
0.01 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 13 |
708-2G-15270 |
[1] |
Spring Komatsu |
2.1 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 14 |
708-2G-15280 |
[1] |
Spring Komatsu China |
|
| |
["SN: 62677-UP", "SCC: C2"] |
| 15 |
708-2G-15151 |
[1] |
Seat Komatsu |
0.01 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 16 |
708-2G-15250 |
[1] |
Spring Komatsu |
0.01 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 17 |
708-2G-14340 |
[1] |
Screw Komatsu |
0.622 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 18 |
07000-B3038 |
[1] |
O-ring Komatsu |
0.002 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 19 |
708-2G-15230 |
[1] |
Ring, Back-up Komatsu |
0.001 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 21 |
708-2G-15240 |
[1] |
Plug Komatsu |
0.08 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 22 |
07000-B2012 |
[1] |
O-ring Komatsu China |
0.001 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 23 |
07000-B2050 |
[1] |
O-ring Komatsu |
0.002 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 24 |
708-2G-15310 |
[1] |
Ring, Back-up Komatsu |
0.001 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 25 |
708-2G-14190 |
[1] |
Cover Komatsu China |
|
| |
["SN: 62677-UP", "SCC: C2"] |
| 26 |
01580-10806 |
[1] |
Nut Komatsu |
0.005 kg. |
| |
["SN: 62677-UP", "SCC: C2"] analogs:["801920104"] |
| 27 |
708-2L-35290 |
[1] |
Nut Komatsu |
0.12 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 28 |
708-2G-15330 |
[1] |
Ring, Wear Komatsu |
0.005 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
| 29 |
01252-61645 |
[4] |
Bolt, Hexagon Socket Head Komatsu |
0.119 kg. |
| |
["SN: 62677-UP", "SCC: C2"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
