Product Details:
Payment & Shipping Terms:
|
| Engine Model: | 3TNE88 3TNV88 | Machine Model: | HSL610 |
|---|---|---|---|
| Application: | Excavator | Product Name: | Oil Pump |
| Part Number: | 129407-32000 129001-32001 | Packing: | Standard Export Carton |
| Highlight: | 129407-32000 Oil Pump,HSL610 Oil Pump,HYUNDAI Excavator Spare Parts |
||

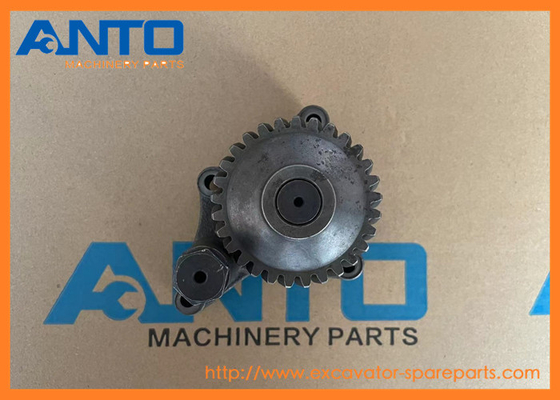

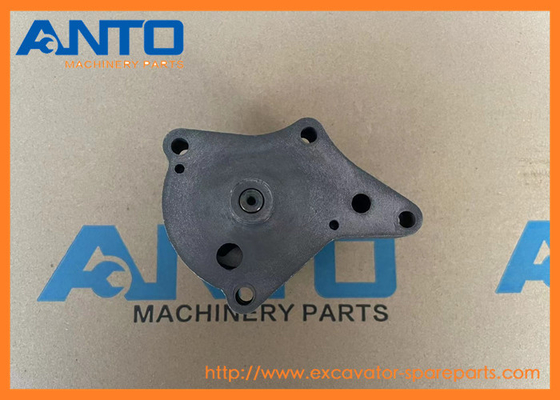

| Name | Oil Pump |
| Parts No | 129407-32000 129001-32001 |
| Machine Model | HSL610 |
| Category | Lub Oil System |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
OLD SKID STEER LOADER HSL610 Hyundai
| 129001-42002 PUMP ASSY-C.WATER |
| HSL610 |
| 729430-51410 PUMP ASSY-F.INJECT. |
| HSL610 |
| 729430-51480 PUMP ASSY-F.INJECT |
| HSL610 |
| 129468-51000 PUMP ASSY-F.INJECT |
| HSL610 |
| 129424-51000 PUMP ASSY-F.INJECT |
| HSL610 |
| 129100-52100 PUMP ASSY-FUEL FEED |
| HSL610 |
| 31S4-00010 PUMP ASSY-MAIN |
| HSL610 |
| 422309 PUMP HOUSING |
| HSL600, HSL610 |
| 82S4-00040 PUMP MTG BRACKET |
| HSL610 |
| YCAC-02593 PUMP SUPPORT ASSY |
| HSL1500T |
| YCAC-01940 PUMP-GEAR |
| HSL1500T |
| XJBT-02104 PUMP-INJECTION UNIT |
| HSL1200T, HSL1500T |
| YCAC-02542 PUMP SUPPORT ASSY |
| HSL1200T |
| YCAC-01814 PUMP-GEAR |
| HSL1200T, HSL1500T |
| YCAC-01800 PUMP-GEAR |
| HSL1200T |
| 4972862 PUMP-WATER |
| HL780-7A, HL780-9, HL780-9S, R450LC7, R480C9MH, R480LC9, R480LC9S, R500LC7, R520LC9, R520LC9S, RD510LC-7 |
| 4972857 PUMP-WATER |
| HL780-7A, HL780-9, HL780-9S, R450LC7, R480C9MH, R480LC9, R480LC9S, R500LC7, R520LC9, R520LC9S, RD510LC-7 |
| 3800479 PUMP-WATER |
| HL780-7A, HL7803A, R450LC7A, R500LC7A |
| 4003950 PUMP-LUB OIL |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 4010324 PUMP-GEAR FUEL |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 3090942 PUMP-FUEL |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 129001-42002 PUMP ASSY-C.WATER |
| HSL610 |
| 729430-51410 PUMP ASSY-F.INJECT. |
| HSL610 |
| 729430-51480 PUMP ASSY-F.INJECT |
| HSL610 |
| 129468-51000 PUMP ASSY-F.INJECT |
| HSL610 |
| 129424-51000 PUMP ASSY-F.INJECT |
| HSL610 |
| 129100-52100 PUMP ASSY-FUEL FEED |
| HSL610 |
| 31S4-00010 PUMP ASSY-MAIN |
| HSL610 |
| 422309 PUMP HOUSING |
| HSL600, HSL610 |
| 82S4-00040 PUMP MTG BRACKET |
| HSL610 |
| 4460150 PUMP SHAFT |
| HSL650-7, HSL800-7 |
| 15471-35013 PUMP ASSY-OIL |
| HSL650-7 |
| 1G796-51010 PUMP ASSY-INJECTION |
| HSL650-7 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 129407-32000 | [1] | PUMP ASSY-LUB. OIL | |
| N2. | 129407-32010 | [1] | BODY | |
| N3. | 119810-32080 | [1] | COVER-L.O.PUMP | |
| N4. | 129001-32130 | [1] | VALVE-RELIEF | |
| N5. | 129001-32151 | [1] | ROTOR | |
| N6. | 129001-32100 | [1] | ROTOR-INNER | |
| N7. | 129001-32111 | [1] | SHAFT-INNER ROTOR | |
| N8. | 129001-32120 | [1] | ROTOR-OUTER | |
| N9. | 121850-32170 | [1] | PIN | |
| N10. | 129150-32201 | [1] | GEAR-LUBE OIL PUMP | |
| N11. | 129001-32320 | [1] | PLUG | |
| N12. | 129001-32330 | [1] | PLUG | |
| N13. | 22351-040008 | [2] | SPRING PIN 4X 8 | |
| 14 | 129150-32020 | [1] | GASKET- L. O. PUMP | |
| 15 | 26450-060252 | [4] | BOLT | |
| 16 | 129114-34820 | [1] | DIPSTICK | |
| 17 | 119260-34810 | [1] | GUIDE-DIPSTICK | |
| 18 | 22190-080002 | [2] | WASHER-SEAL | |
| 18-1. | 22190-080002 | [1] | WASHER-SEAL | |
| 19 | 23414-100000 | [2] | GASKET-ROUND | |
| 20 | 124160-39450 | [1] | SWITCH-OIL PRESSURE | |
| 21 | 129150-35041 | [1] | GASKET-(NON-ASB) | |
| 22 | 129150-35091 | [1] | PIPE ASSY, OIL INLET | |
| N23. | 129150-35010 | [1] | INLET | |
| N24. | 129150-35020 | [1] | PIPE | |
| N25. | 129150-35030 | [1] | FLANGE | |
| 26 | 26106-080352 | [2] | BOLT-PLATED | |
| 27 | 129150-35101 | [1] | BRACKET-STRAINER | |
| 28 | 129150-35111 | [1] | GASKET-(NON-ASB) | |
| 29 | 129150-35151 | [1] | FILTER-ENGINE OIL | |
| 30 | 129001-35300 | [1] | BOLT-LUB.0.STRAINER | |
| 31 | 129150-35350 | [1] | NUT | |
| 32 | 24311-000160 | [1] | O-RINR | |
| 33 | 26106-080202 | [3] | BOLT-PLATED | |
| 34 | 124160-39140 | [1] | BOLT M 8X 20 PLATED | |
| 35 | 129550-39450 | [1] | PIPE ASSY-LUB.OIL | |
| N36. | 129150-39150 | [1] | JOINT 8 | |
| N37. | 129150-39180 | [1] | JOINT 10 | |
| N38. | 129550-39410 | [1] | PIPE | |
| 38A. | 124550-59830 | [1] | BOLT W/SEAL WASHER | |
| 39 | 124550-59820 | [1] | BOLT 8-PIPE JOINT | |
| 39A. | 22190-080002 | [1] | WASHER-SEAL | |
| 40 | 129612-34820 | [1] | GUIDE-DIPSTICK | |
| 41 | 24311-240100 | [1] | O-RING | |
| 42 | 26106-080162 | [1] | BOLT-PLATED | |
| N. | @ | [1] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
