Product Details:
Payment & Shipping Terms:
|
| Category: | Travel Motor | Machine Model: | R140LC9 R215LC7 RD210-7 RD220-7 |
|---|---|---|---|
| Application: | Excavator | Product Name: | Seal Kit |
| Part Number: | XKAY00518 | Packing: | Standard Export Carton |
| Highlight: | R110-7 R140LC-7 Seal Kit,HYUNDAI Excavator Spare Parts,HYUNDAI Excavator Seal Kit |
||

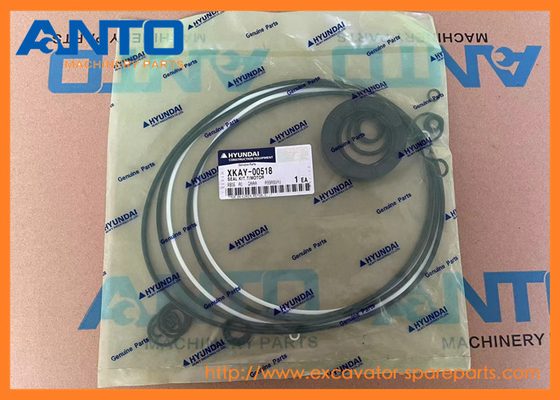

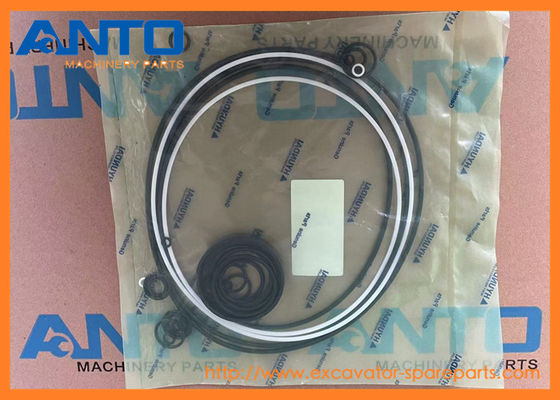

| Name | Seal Kit |
| Parts No | XKAY00518 |
| Machine Model | R140LC9 R215LC7 RD210-7 RD220-7 |
| Category | Travel Motor |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R140LC9 R140LC9A R140LC9S R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R250LC9 R250LC9A R260LC9S RB160LC9S RB220LC9S RB260LC9S RD220LC9
F-SERIES CRAWLER EXCAVATOR HX140L HX160L HX180L Hyundai
| XKAY-00014 SEAL-DUST |
| HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R110-7, R110-7A, R1200-9, R125LCR-9A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9... |
| XKAH-00031 SEAL-FLOATING |
| R140LC-7, R210LC7, R210NLC7 |
| XKAH-00916 SEAL-FLOATING |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S, RC215C7, RC215C7H |
| XKAQ-00219 SEAL-FLOATING |
| HX140L, HX160L, HX180L, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R210LC7, R210... |
| 31Y1-15885 SEAL KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD210-7, RD210-7V, RD220-7 |
| 31Y1-15230 SEAL KIT |
| R200W7, R210LC7, R210LC7H, R210NLC7 |
| 31Y1-15235 SEAL KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, RC215C7, RC215C7H |
| 31Y1-15236 SEAL KIT |
| R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD210-7, RD220-7 |
| 31Y1-15700 SEAL KIT |
| R200W7, R210LC7, R210LC7H, R210NLC7 |
| 31Y1-15705 SEAL KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R290LC7A, R305LC7, R450LC7, R450LC7A, RC215C7, RC215C7H, RD210-7, RD220-7 |
| 31Y1-15880 SEAL KIT |
| R210LC7, R210LC7H |
| 31Y1-06731 SEAL KIT |
| HW210, HX220L, R200W3, R210LC3, R210LC3H, R210LC7, R210LC7A, R210LC7H, RC215C7, RC215C7H, RD220-7 |
| XJBN-00973 SEAL KIT-EPPR CASING |
| HW210, HX220L, HX220NL, HX235L, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R215LC7, R220LC9A, R235LCR9, R235LCR9A, R260LC9S, R290LC7, R290LC7A, RB220LC9S, RB260LC9S, RC215C7, RC215C7H... |
| 31Y1-18060 SEAL KIT |
| R210LC7 |
| 3066211 SEAL/O-RING |
| R200W7, R210LC7, R210LC9BC, R210NLC7, R210W9S, R260LC9S, RC215C7, RD220-7 |
| 3864029 SEAL/O-RING |
| R200W7, R210LC7, R210NLC7, RC215C7, RD220-7 |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N5-40081BG | [1] | TRAVEL MOTOR ASSY | *-1, *-2 |
| *-1. | 31N5-40071BG | [1] | TRAVEL MOTOR | |
| *. | XKAY-02327 | [1] | COVER ASSY-REAR | NEW |
| 29 | XKAY-00475 | [1] | COVER-REAR | OLD |
| 29 | XKAY-02334 | [1] | COVER-REAR | NEW |
| C. | XKAY-00476 | [1] | SPOOL KIT | INCL 30-34 |
| N30. | XKAY-00477 | [1] | SPOOL | |
| N31. | XKAY-00478 | [2] | CHECK | |
| N32. | XKAY-00479 | [2] | SPRING | |
| N33. | XKAY-00480 | [2] | PLUG | |
| 34 | XKAY-00481 | [2] | O-RING | |
| 35 | XKAY-00482 | [2] | SEAT-SPRING | |
| 36 | XKAY-00483 | [2] | SPRING | |
| 37 | XKAY-00484 | [2] | COVER | |
| 38 | XKAY-00485 | [2] | SPRING | |
| 39 | XKAY-00486 | [2] | SPOOL | |
| 40 | XKAY-00487 | [2] | BALL-STEEL | |
| 41 | XKAY-00488 | [2] | SPRING | |
| 42 | XKAY-00489 | [2] | PLUG | |
| 43 | XKAY-00490 | [2] | SEAT-SPRING | |
| K44. | XKAY-00825 | [2] | O-RING | |
| 45 | XKAY-00492 | [8] | BOLT-WRENCH | |
| 46 | XKAY-00493 | [2] | RELIEF VALVE ASSY | |
| 46-3. | XKAY-00670 | [1] | O-RING | |
| 46-8. | XKAY-00669 | [1] | O-RING | |
| 46-12. | XKAY-00671 | [1] | O-RING | |
| 46-16. | XKAY-00668 | [1] | O-RING | |
| 47 | XKAY-00494 | [1] | SPOOL | |
| 48 | XKAY-00826 | [1] | GUIDE | |
| K49. | XKAY-00827 | [1] | O-RING | |
| K50. | XKAY-00497 | [1] | RING-BACK UP | |
| K51. | XKAY-00828 | [1] | O-RING | |
| K52. | XKAY-00499 | [1] | RING-BACK UP | |
| 53 | XKAY-00500 | [1] | RING-SNAP | |
| 54 | XKAY-00501 | [3] | PLUG | |
| K55. | XKAY-00247 | [4] | O-RING | |
| 56 | XKAY-00502 | [1] | SPRING | |
| 57 | XKAY-00503 | [1] | SEAT-SPRING | |
| 58 | XKAY-00504 | [1] | PLUG | |
| 59 | XKAY-00505 | [1] | SPOOL | |
| 60 | XKAY-00506 | [2] | ORIFICE | |
| 61 | XKAY-00507 | [2] | ORIFICE | |
| 62 | XKAY-00508 | [3] | PLUG | |
| K63. | XKAY-00256 | [3] | O-RING | |
| 64 | XKAY-00032 | [1] | PLUG | |
| 66 | XKAY-00510 | [1] | PIN | |
| 67 | XKAY-00511 | [8] | SPRING | |
| 68 | XKAY-00512 | [8] | SPRING | |
| 71 | XKAY-00385 | [16] | BOLT-WRENCH | |
| 72 | XKAY-00515 | [1] | PLUG | |
| 73 | XKAY-00830 | [1] | NAME PLATE | |
| 74 | XKAY-00517 | [2] | RIVET | |
| 76 | XKAY-00519 | [2] | ORIFICE | |
| 77 | XKAY-01097 | [AR] | SHIM | |
| *-2. | @ | [2] | T/REDUCTION GEAR | SEE 4177 |
| K. | XKAY-00518 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
